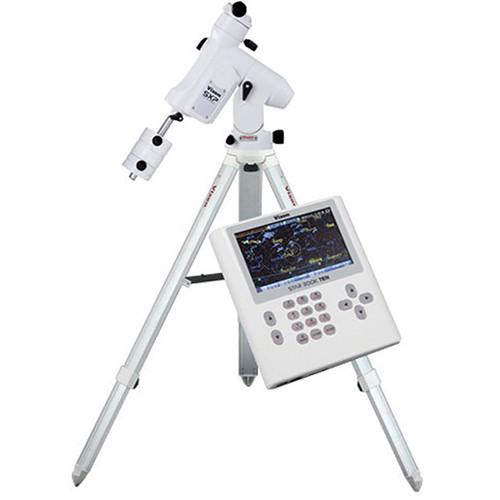

Product description Vixen Optics improved on their Sphinx SXP Go-To EQ Mount by adding the Star Book Ten computer control system and PF-L polar axis alignment scope to help you get set up and observing faster. The Sphinx mount is built in a center-balanced design so that the mount itself acts as part of the counterbalance system, allowing smaller and/or lighter optical tube assemblies (OTAs) to be mounted without the use of the counterweights. Dual-axis stepper motors, 180-tooth brass worm wheels, and ball bearings provide smooth and precise tracking abilities with little to no vibrations.The included polar axis scope has an illuminated star-pattern reticle that requires the user to simply superimpose the star pattern over the three prominent stars over the North Pole for proper polar alignment. With this simple alignment done, the Star Book Ten (SB10) controller can be used to provide full GoTo capabilities with a color display and intuitive menu system. Outfitted with an internal and updatable database of over 272,000 objects, the SB10 offers phased star charts, customized guided tours of the night sky, and the ability to program out tracking errors with Permanent Periodic Error Correction (PPEC) and Vixen Periodic Error Correction (VPEC) and backlash to improve the precision of the tracking system during long-duration observation sessions.The addition of the HAL 130SXG tripod completes this observation rig, so all that is required is an optical tube assembly with a Vixen-style dovetail plate. It is made out of lightweight and durable aluminum to offer stability when open while maintaining its portability if it has to be carried any distance to the observation site. Its two-section legs adjust from 25 to 39" to accommodate a wide variety of users, and it folds up to just 32 inches. The mount and tripod have a maximum payload capacity of 50 pounds for observation purposes, but if this rig will be used for astrophotography or imaging, Vixen recommends the max payload be kept to 35 pounds plus the counterweights. - Mount
-
- Motorized German equatorial design
- Vixen-style dovetail saddle accepts any compatible OTA
- Center balanced so the mount acts as part of counterbalance system
- When using smaller OTAs, counterweights might not be required
- Azimuth adjustment:
- ±7°, fine adjustment
- Twin tangent knobs, 1.2° per rotation
- Altitude adjustment:
- 0 to 70°
- Three altitude zone settings for easier adjustment
- 2° increment scale
- Twin T-bar adjustment handles: 0.8° per rotation
- 35-pound payload capacity plus counterweights
- 20mm retractable counterweight bar
- 4.2-pound counterweight
- 8.15-pound counterweight
- Runs on 12 VDC power supply
- Motors and Gears
-
- Dual stepping (pulse) motors, 250PPS (pulse per second)
- 9mm diameter, brass worm gears
- Right ascension and declination gears:
- 180-tooth 360° micro-movement gear
- 72mm diameter
- Brass wheel
- Right ascension and Declination axes:
- 40mm diameter
- Carbon steel
- 15 ball bearings reduce vibrations and allow for smooth tracking
- Star Book Ten Computer Controller
-
- 5" TFT full-color display
- Phased star charts display only relevant info for what is visible overhead
- Automatic GoTo Slewing
- Sidereal tracking and different tracking rates for the Sun, Moon, planets, comets, and artificial satellites
- Proprietary Vixen Periodic Error Protection (VPEC):
- Intrinsic errors are measured and entered into memory at the factory for precision tracking out of the box
- Use with PPEC to boost tracking performance
- Permanent Periodic Error Correction (PPEC) enables you to train out tracking errors for more accurate tracking over extended periods of time, such as long-exposure astrophotography
- Backlash compensation allows you to train out the play inherent in all gears for more precise tracking
- LAN port to update database via Internet
- Powered by mount via controller cable
- Database:
- 272,342 objects
- NC objects: 784
- IC objects: 5386
- Messier objects:109
- 7 planets
- 1 quasi-planet
- Moon and Sun

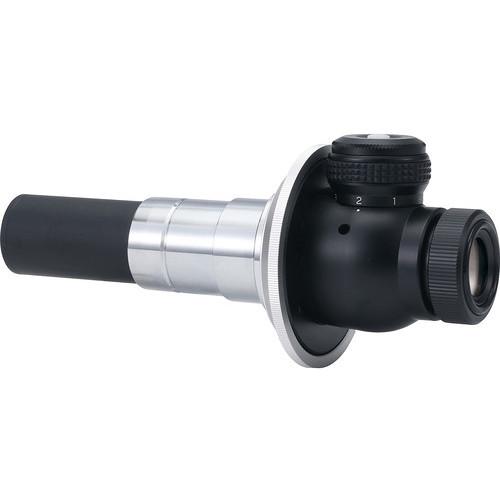

- Polarie PF-L Polar Axis Scope
-
- 6x power magnifies view while maintaining a wide angle of view
- 20mm objective lens diameter
- Ease of use: In the Northern Hemisphere, align three bright stars with the corresponding pattern on the scope's illuminated reticle
- No need to set hour angle
- Red illumination allows reticle to be easily seen without affecting night-adjusted vision
- Eight adjustable intensity levels allow precise brightness control
- Automatic off function after 2 minutes conserves battery power
- Tripod
-
- Lightweight and durable aluminum legs
- Two leg sections with secure thumbscrew locks
- Variable height: 25 to 39"
- Spiked feet provide added stability on soft or uneven ground
- Folded length: 32"
UPC: 811971018617 In the Box Vixen Optics Sphinx SXP GoTo EQ Mount with PF-L Polarie Polar Scope and Tripod HAL 130SXG Aluminum Tripod ybusuvsxvczffcuevydfbsexufxaadazbdzubw PF-L Polarie Polar Scope STARBOOK TEN Computer Controller 2 x Counterweights Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Sphinx SXP GoTo EQ Mount with PF-L Polarie Polar Scope and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics SXP Specs | Mount Type | German Equatorial | | Load Capacity | 35.2 lb / 16.0 kg | | Motor | Stepping (pulse) motor
250 pps | | GoTo Capability | Star Book Ten controller | | Altitude / Azimuth Adjustment | Alt: 0 to 70°
Az: ±7°
1.2° per rotation | | Polar Axis Scope | PF-L Polarie Polar Scope | | Includes Tripod/Pier | Aluminum
Variable Height: 25 - 39" / 63.5 - 99.1 cm
Payload capacity: 77 lb / 35 kg | | Counterweights | 1 x 4.2 lb / 1.9 kg
1 x 8 lb / 3.7 kg | | Power | 12 VDC | | Dimensions | 13.5 x 14.0 x 5.0" / 34.3 x 35.6 x 12.8 cm | | Weight | 24.25 lb / 11 kg, without counterweights | | | | Package Weight | 59.85 lb | | Box Dimensions (LxWxH) | 40.0 x 20.9 x 18.0" |
