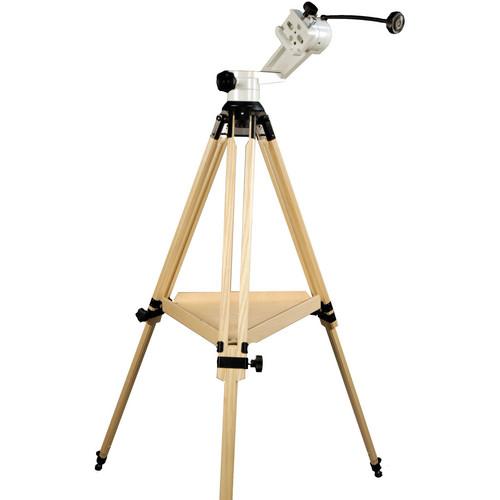

Product description The StarGuy Porta II Alt-Azimuth Mount with Berlebach Wood Tripod from Vixen Optics features a manual Porta II alt-azimuth mount that accepts any optical tube assembly (OTA) with a Vixen-style dovetail plate. The mount has a user-friendly friction-control system that eliminates axis locks or clutches. When you need to find your subject, simply move the telescope by hand. Dual flexible slow-motion handles are used for fine adjustments and tracking. A Berlebach Report wood tripod provides a steady base for the mount. Made of ash with a clear varnish, it is not only visually appealing, its weight stabilizes the telescope and reduces vibration. This two-section adjustable-height tripod has a removable matching wood accessory tray, spread-restraining chains, and black anodized metal fittings and mounting plate. - Porta II Mount
-
- Manual alt-azimuth
- 20-pound load capacity
- 6 and 8" flexible slow-motion handles
- Friction-control design eliminates clutches and locks
- Slow-motion handles can be adjusted in 45° increments for ideal positioning
- Move the OTA quickly by hand, perform fine adjustments with slow-motion handles
- Berlebach Report Ash Wood Tripod
-
- Made in Germany
- 2-section adjustable height
- Removable accessory tray
- Steel leg-spread chain
- Maximum height: 43.7"
- Minimum height: 26.8"
- Load capacity: 44 lb
- Weight: 6.2 lb
In the Box Vixen Optics StarGuy Porta II Alt-Azimuth Mount with Berlebach Wood Tripod Porta II Head atrurctbqdrfvcxbqxdvxdwcz Berlebach Report Wood Tripod for Porta II Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics StarGuy Porta II Alt-Azimuth Mount with Berlebach Wood Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics SG5863W Specs | | | Mount Type | Alt-azimuth | | Load Capacity | 20 lb / 9.1 kg | | Controls | Dual-axis manual control knobs | | Includes Tripod/Pier | Berlebach Report wood tripod | | Weight | 3 lb / 1.4 kg | | | | Load Capacity | 44.1 lb / 20.0 kg | | Leg Sections | 2 | | Height Adjustment | 26.8 to 43.7" / 68.1 to 111.0 cm | | Construction | Ash wood with clear varnish | | Weight | 6.2 lb / 2.8 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 38.0 x 10.0 x 10.0" |
