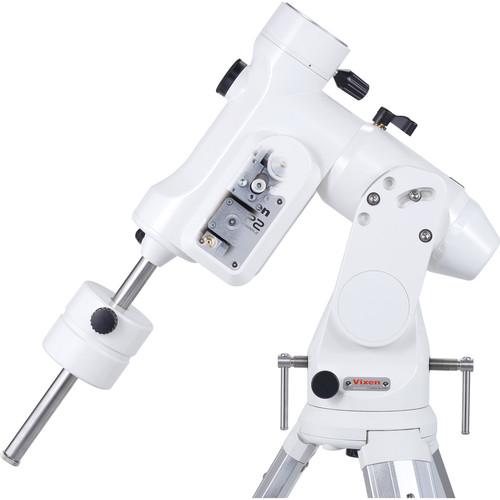

Product description Designed to give astrophotographers maximum performance and easy portability, the precision hardware of the SXP2 Sphinx GoTo EQ Mount from Vixen Optics gets a performance boost by adding the PF-L polar axis alignment scope and Star Book Ten (SB10) computer control system to boost alignment, GoTo, and tracking accuracy. Micro stepper motors with a belt-drive system, 180-tooth brass worm wheels, and ball bearings provide smooth and precise tracking abilities with virtually zero vibrations or backlash.The included polar axis scope has an illuminated star-pattern reticle that requires the user to simply superimpose the star pattern over the three prominent stars over the North Pole for proper polar alignment. With this simple alignment done, the SB10 controller can be used to provide full GoTo capabilities with a color display and intuitive menu system. Outfitted with an internal and updatable database of over 272,000 objects, the SB10 offers phased star charts, customized guided tours of the night sky, and the ability to program out tracking errors with Permanent Periodic Error Correction (PPEC), Vixen Periodic Error Correction (VPEC), and backlash to improve the precision of the tracking system during long-duration observation sessions and which gets better the more you use it.The addition of the HAL 130SXG tripod completes this observation and astrophotography rig, so all that is required is an optical tube assembly (OTA) with a Vixen-style dovetail plate. It is made out of lightweight and durable aluminum to offer stability when open while maintaining its portability if it has to be carried any distance to the observation site. Its two-section legs adjust from 25 to 39" to accommodate a wide variety of users, and it folds up to just 32". The mount and tripod have a maximum payload capacity of 60 pounds for observation purposes, but if this rig will be used for astrophotography or imaging, Vixen recommends the max payload be kept to 50 pounds excluding the two included counterweights. - Mount
-
- Motorized German equatorial design
- Innovative mount head design makes the weight of the head act as part of the counterweight system
- Payload capacity (excluding counterweights): 60 pounds recommended for observation use, 50 pounds recommended for astrophotography/imaging
- Polar axis alignment scope included for faster and more precise alignment, which improves GoTo and tracking accuracy
- Azimuth adjustment: ±7°, 2° per rotation
- Altitude adjustment: 0 to 70° 0.8° per rotation
- 20mm retractable counterweight bar reduces interference during long tracking sessions
- 4.2- and 8.2-pound counterweights
- Runs on 12 VDC power supply
- Vixen-style dovetail saddle accepts any compatible OTA
- Gears and Motors
-
- Precision stepper (pulse) motor, 300 pulse/second
- Belt-drive system improves tracking and slewing accuracy while reducing vibration and eliminating backlash
- 9mm diameter brass worm gears
- Right ascension and declination gears: 180-tooth 360° movement; 72mm diameter; brass wheels
- Right ascension and declination axes: 40mm diameter; carbon steel
- 15 ball bearings reduce vibrations and allow for smooth tracking
- Polarie PF-L Polar Axis Scope
-
- 6x power magnifies view while maintaining a wide angle of view
- 20mm objective lens diameter
- Ease of use: In the Northern Hemisphere, align three bright stars with the corresponding pattern on the scope's illuminated reticle
- No need to set hour angle
- Red illumination allows reticle to be easily seen without affecting night-adjusted vision
- Eight adjustable intensity levels allow precise brightness control
- Automatic off function after 2 minutes to conserve battery power
- Star Book Ten Computer Controller
-
- 5" TFT full-color display
- Phased star charts display only relevant info for what is visible overhead
- Automatic GoTo Slewing
- Sidereal tracking and different tracking rates for the Sun, Moon, planets, comets, and artificial satellites
- Proprietary Vixen Periodic Error Protection (VPEC): Intrinsic errors are measured and entered into memory at the factory for precision tracking out of the box, use with PPEC to boost tracking performance
- Permanent Periodic Error Correction (PPEC) enables you to train out tracking errors for more accurate tracking over extended periods of time, such as long-exposure astrophotography
- Backlash compensation allows you to train out the play inherent in all gears for more precise tracking
- LAN port to update database via Internet
- Powered by mount via controller cable
Database details:- 272,342 objects
- NC objects: 784
- IC objects: 5386
- Messier objects:109
- Solar system: Moon, Sun, planets, and Pluto
- HAL 130 Tripod
-
- Lightweight and durable aluminum legs
- Two leg sections with secure thumbscrew locks
- Variable height: 25 to 39"
- Spiked feet provide added stability on soft or uneven ground
- Folded length: 32"
- Weight: 12 pounds
UPC: 811971018884 In the Box Vixen Optics SXP2 Sphinx GoTo EQ Mount with Star Book Ten STARBOOK TEN Computer Controller HAL 130SXG Aluminum Tripod 4.2 lb (1.9 kg) SX Counterweight - White 8.2 lb (3.7 kg) SX Counterweight - White PF-L Polarie Polar Scope Mount Head 12 VDC Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics SXP2 Sphinx GoTo EQ Mount with Star Book Ten in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics SXP2 Specs | Mount Type | Motorized German equatorial | | Load Capacity | Observation: 60.0 lb / 27.2 kg
Astrophotography: 50.0 lb / 22.6 kg, without counterweights | | Motor | Micro stepper motor, 300 pulse/sec | | GoTo Capability | Yes. Star Book Ten controller | | Altitude Adjustment Range | 0 - 70°; 0.8°/rotation | | Latitude Adjustment Range | ±7°, 2°/rotation | | Polar Axis Scope | Yes | | Includes Tripod/Pier | Aluminum tripod
Adjustable height: 25.0 - 39.0" / 63.5 - 99.1 cm
Weight: 12.1 lb / 5.5 kg | | Power Source | 12 VDC | | Dimensions | Mount head: 14.0 x 13.5 x 5.0" / 35.6 x 34.3 x 12.7 cm | | Weight | 24.25 lb / 11.0 kg, fully assembled without counterweights |
