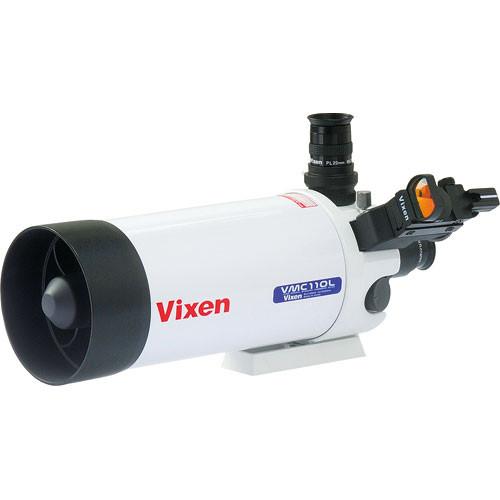

User Manual for Vixen Optics VMC110L 110mm f 9 Maksutov-Cassegrain Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics VMC110L 110mm f 9
- Product category: Catadioptrics (Cassegrains) Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Catadioptrics (Cassegrains)
|
User manual for the Vixen Optics VMC110L 110mm f 9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Ideal for observation or imaging, the Vixen Optics VMC110L 110mm f/9 Maksutov-Cassegrain Telescope features an internal flip-mirror mechanism that allows the light path to be directed toward one of two points: 90° upward or straight through. This configuration supports the use of two eyepieces for quickly changing magnification without having to switch eyepieces, or of an eyepiece at the 90° position and an imaging system straight through. For imaging, simply flip the mirror up to check alignment and tracking accuracy between exposures and flip it back down to use the camera. The straight-through port has threads that accept most imaging and camera mounting rings for eyepiece projection, prime-focus, and afocal imaging techniques.Optically, the Maksutov design exchanges the conventional front corrector plate of a Schmidt with a convex meniscus lens, resulting in a smaller secondary mirror that limits obstruction and increases contrast while eliminating the need for periodic collimation. The Maksutov optical path results in a narrower field of view versus a similar Schmidt, but the optical benefits, when coupled with the VMC110L's larger aperture and multi-coated optics, make this an ideal scope for solar, lunar, and planetary observations, while being able to resolve bright deep-sky objects like stars, clusters, galaxies, and nebulae.This version of the VMC110L is offered here without a mount or tripod for users who have a reliable support system, but a Vixen-style dovetail plate is included that can be attached on the bottom of the optical tube assembly (OTA) or the side to accommodate a variety of mount configurations. For observations, a 25mm eyepiece is included, as is a red-dot finderscope and bracket. - Optical Tube Assembly
-
- 110mm aperture
- f/9 focal ratio
- 1035mm focal length
- Maksutov-Cassegrain optical design
- Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror versus Schmidt-Cassegrain reduces obstructions and increases contrast
- Multi-coated optics maximize light transmission to improve brightness, color rendition, sharpness, and contrast
- Resolution: 1.05 arcsec
- Internal focusing mechanism
- Observing/Imaging
-
- Dual 1.25" eyepiece holders: First set at 90° and second straight through
- Internal flip mirror allows easy switch between light paths for the use of two eyepieces or eyepiece/imaging combination
- Able to perform various astrophotography techniques including eyepiece projection, prime-focus, and afocal imaging
- When imaging, quickly flip mirror to check tracking between exposures without unmounting imaging rig
- Threads on the straight-through light path enable direct connection of accessories and imaging systems
- Mounting
-
- Optical tube assembly only; mount and tripod required for proper use
- Vixen-style dovetail plate
- Plate can be mounted on the side or bottom to accommodate a variety of mount configurations
- Weight: 4.6 pounds
- Included Accessories
- Eyepiece:
- 1.25" barrel diameter
- Accepts most astronomical filters
- 25mm eyepiece produces 41x magnification
Finder:- Unmagnified view ensures an ultra-wide angle of view for easier alignment and faster star-hopping navigation
- Simple red aiming dot won't obscure small or dim objects
- Adjustable brightness prevents interfering with night-adjusted vision
- Mounting bracket included
UPC: 811971010086 In the Box Vixen Optics VMC110L 110mm f/9 Maksutov-Cassegrain Telescope (OTA Only) Red-Dot Finder with Bracket 25mm Eyepiece Allen Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics VMC110L 110mm f 9 Maksutov-Cassegrain Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics VMC110L Specs | Optical Design | Maksutov‐Cassegrain | | Aperture | 110 mm | | Focal Length | 1035 mm | | Focal Ratio | f/9.4 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90°, internal
Internal flip-mirror assembly | | Finderscope | Red dot | | Tripod | None | | Mount Type | Vixen-style dovetail plate | | Power Source | None | | Optical Tube Dimensions | 14.6 x 4.7" / 37.0 x 11.9 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 17.1 x 9.1 x 8.4" |
