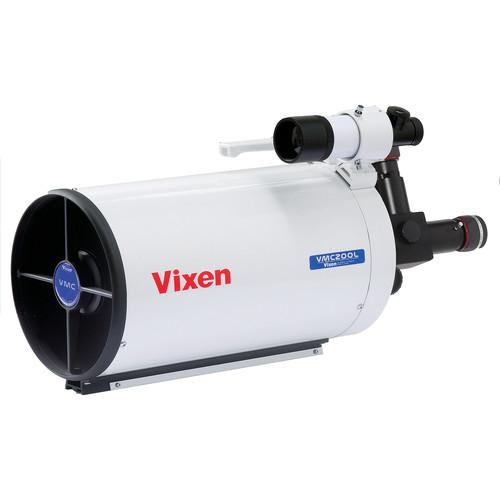

User Manual for Vixen Optics VMC200L 200mm f 10 Field-Maksutov Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics VMC200L 200mm f 10
- Product category: Catadioptrics (Cassegrains) Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Catadioptrics (Cassegrains)
|
User manual for the Vixen Optics VMC200L 200mm f 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Optimized for observation and imaging, the Vixen Optics VMC200L 200mm f/10 Field-Maksutov Telescope features a modified Maksutov design that exchanges the conventional front corrector plate of a Schmidt with a convex meniscus lens, resulting in a smaller secondary mirror that limits obstruction and increases contrast, while eliminating the need for periodic collimation. This "Field-Maksutov" optical path results in a faster focal ratio versus standard Maksutovs and a narrower field of view versus a similar Schmidt, but the optical benefits, when coupled with the large aperture and multi-coated optics, make this an ideal scope for solar, lunar, and planetary observations, while being able to resolve bright deep-sky objects like stars, clusters, galaxies, and nebulae.This version of the VMC200L is offered here without a mount or tripod, for users who have a reliable support system, but a Vixen-style dovetail plate is included along with a carrying handle for safe and secure setup and breakdown. - Optical Tube Assembly
-
- 200mm aperture
- f/10 focal ratio
- 1950mm focal length
- Modified Maksutov-Cassegrain optical design
- Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror reduces obstructions and increases contrast versus Schmidt-Cassegrain telescope (SCT) models
- Multi-coated optics maximize light transmission to improve brightness, color rendition, sharpness, and contrast
- Resolution: 0.58 arcsec
- Imaging and Observing
-
- Internal rack-and-pinion focusing mechanism eliminates the common image shift in standard SCT focusers for sharper focusing during imaging and observation sessions
- Ideal for prime-focus and eyepiece projection techniques
- 60 and 42mm T-ring threads for cameras and imaging systems
- 2" and 1.25" push-fit eyepiece holders to accept the two most common sizes of eyepieces and accessories
- Mounting
-
- Optical tube assembly only; mount and tripod required for proper use
- Vixen-style dovetail plate makes it compatible with the most common saddle
- Carrying handle adds security during setup and breakdown
- Weight: 13 pounds
UPC: 811971014657 In the Box Vixen Optics VMC200L 200mm f/10 Field-Maksutov Telescope (OTA Only) Dovetail Plate Carry Handle Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics VMC200L 200mm f 10 Field-Maksutov Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics VMC200L Specs | | | Optical Design | Maksutov Cassegrain | | Aperture | 200 mm / 7.9" | | Focal Length | 1950 mm | | Focal Ratio | f/9.8 | | Focuser | Internal | | Eyepiece Barrel Diameter | 1.25", 2" | | Diagonal | None | | Finderscope | None | | Mounting System | Vixen Style | | Optical Tube Dimensions | 20 x 9.1" / 51 x 23.2 cm | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Weight | 13.0 lb / 5.9 kg | | | | Package Weight | 20.1 lb | | Box Dimensions (LxWxH) | 23.5 x 15.4 x 13.2" |
