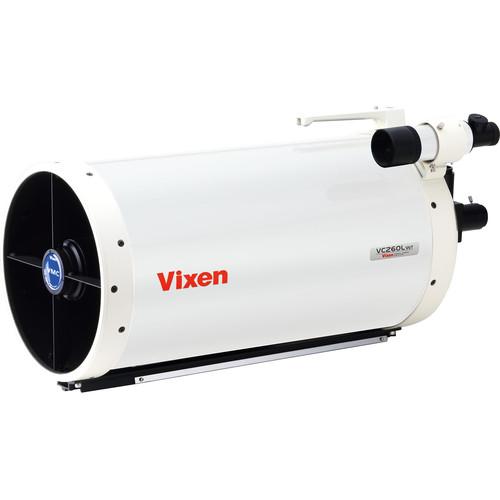

User Manual for Vixen Optics VMC260L 260mm f 11.5 Catadioptric Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics VMC260L 260mm f 11.5
- Product category: Catadioptrics (Cassegrains) Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Catadioptrics (Cassegrains)
|
User manual for the Vixen Optics VMC260L 260mm f 11.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Vixen VMC260L 260mm f/11.5 Catadioptric Telescope is a serious deep-sky observing instrument, allowing you to see those things on the star map that you've always passed by when using smaller scopes. With 169% more light-gathering capacity than Vixen's 8.0" scopes, this unique scope offers a Maksutov-Cassegrain-like design in a big but manageable package. It is also a great imaging tool.Consisting of Pyrex primary and secondary spherical mirrors, Vixen's improvement of the Maksutov design is in the incorporation of a two-element corrector lens in front of the secondary mirror. This system tidily corrects spherical aberration and field curvature, but also eliminates a heavy, expensive front corrector plate found in conventional Maksutov designs. The resulting open tube design eliminates typical dew problems.Focusing is achieved via primary mirror movement, and optical collimation is accomplished by secondary mirror adjustments, just like on the smaller Schmidt-Cassegrain telescopes to which many amateurs have already become accustomed.The VMC260L is configured in this package to directly interface with Vixen's optional Sphinx SXD mount, and requires a user-supplied flip mirror, finderscope, and finderscope bracket. - Internal meniscus correction lenses lower weight, speed cool-down times, and practically eliminate dewing problems
- 2.4" (60mm) focuser barrel allows even illumination across full-frame DSLRs and also accepts optional 2" eyepieces/accessories
- Top-mounted carrying handle
- Specifically configured to Vixen Sphinx SXD mount
In the Box Vixen Optics VMC260L 260mm f/11.5 Catadioptric Telescope (OTA Only; for SXD Mount) SX 60mm to 50.8mm Adapter Dovetail Rail Carrying Handle Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics VMC260L 260mm f 11.5 Catadioptric Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics VMC260L Specs | Optical Design | Catadioptric | | Aperture | 260mm / 10.2" | | Focal Length | 3000mm | | Focal Ratio | f/11.5 | | Maximum Useful Magnification | 511x | | Resolving Power | 0.45 | | Optical Tube Dimensions | W x L: 12.0 x 25.6" / 30.4 x 65.0cm | | Eyepiece Barrel Diameter | 2.4" / 60mm | | Finderscope | None | | Weight | 22.0 lbs / 10.00 kg | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 37.0 x 21.0 x 18.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Vixen Optics VMC260L 260mm f 11.5 Catadioptric Telescope
| Subject: Vixen Optics VMC260L 260mm f 11.5 | | Date: 10.02.2022 14:48:53 | Name: rajender singh | SR.NO. NOMENCLATURE A/U QTY REMARKS
1 TELESCOPE AND ACCESSORIES
(I) Telescope
(a) Types of telescope- Cassegrain reflector
(b) Optical design- Call Kriksham
© Aperture 300 mm or more
(d) Resolution - 0.4" or better (lower is better)
€ Limiting Magnitude - 14.2
(f) Light gathering power - 1837 or more
(g) Focal Length- 2960 mm
(h) Image circle diamter- 40 m
(i) Focusing- Electronic focusing/Auto Focus
(j) Corrector Plate- For flat field for imaging and visual observation
(k) Eyepiece holder - 50.8 mm
2 FINDERSCOPE 7X50
Type - Go to
Type - Equatorial (Parallactic)
Payload Capacity - 50 kg
micro step/0.9 stepper motor drive
Latitude adjustment reange 10- 65 degree
Azimuth adjustment range +/-+10 degree
Tracking speeds- Sidereal, Sun, moon
Gear Ration- 435
Encoder resolution on the Axis- 17624 ticks or 1226 Arc Minutes
Resolution of stepping Motors - 0.12 ArcSecs
Pointing Accuracy - upto 5 Arc Minutes
3 POLARISCOPE- Compatible with mount
4 Eyepieces- 5mm, 10mm, 18mm, 30mm
| | Post reply |
