Product description

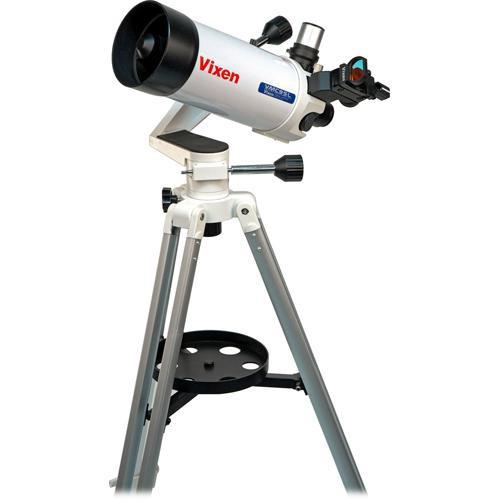

• VMC95L 95mm f/11 Maksutov-Cassegrain Telescope (OTA Only) Lightweight, portable, and powerful, the Vixen Optics VMC95L 95mm f/11 Maksutov-Cassegrain Telescope is an ideal choice for observation or imaging. It features an internal flip-mirror mechanism that allows the light path to be directed toward one of two points: 90° upward or straight through. This configuration supports the use of two eyepieces for quickly changing magnification without having to switch eyepieces, or of an eyepiece at the 90° position and an imaging system straight through. For imaging, simply flip the mirror up to check alignment and tracking accuracy between exposures and flip it back down to use the camera. The straight-through port has threads that accept most imaging and camera mounting rings for eyepiece projection, prime-focus, and afocal imaging techniques.Optically, the Maksutov design exchanges the conventional front corrector plate of a Schmidt with a convex meniscus lens, resulting in a smaller secondary mirror that limits obstruction and increases contrast while eliminating the need for periodic collimation. The Maksutov optical path results in a narrower field of view versus a similar Schmidt, but the optical benefits, when coupled with the VMC95L's larger aperture and multi-coated optics, make this an ideal scope for solar, lunar, and planetary observations, while being able to resolve bright deep-sky objects like stars, clusters, galaxies, and nebulae.This version of the VMC95L is offered here without a mount or tripod, for users who have a reliable support system, but a Vixen-style dovetail plate is included to accommodate a variety of mounts. For observations, a 25mm eyepiece is included, as is a red-dot finderscope and bracket.
  Optical Tube Assembly
  • • 95mm aperture
    • f/11 focal ratio
    • 1050mm focal length
    • Maksutov-Cassegrain optical design
    • Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
    • Smaller secondary mirror versus Schmidt-Cassegrain reduces obstructions and increases contrast
    • Curved-vane secondary mirror mounting "spider" reduces diffraction to improve resolution
    • Multi-coated optics maximize light transmission to improve brightness, color rendition, sharpness, and contrast
    • Resolution: 1.22 arcsec
    • Internal focusing mechanism
  Observing/Imaging
  • • Dual 1.25" eyepiece holders: First set at 90° and second straight through
    • Internal flip mirror allows easy switch between light paths for the use of two eyepieces or eyepiece/imaging combination
    • Able to perform various astrophotography techniques including eyepiece projection, prime-focus, and afocal imaging
    • When imaging, quickly flip mirror to check tracking between exposures without unmounting imaging rig
    • 42mm threads on the straight-through light path enable direct connection of accessories and imaging systems
  Mounting
  • • Optical tube assembly only; mount and tripod required for proper use
    • Vixen-style dovetail plate
    • Weight: 4 pounds
  Included Accessories
  • Eyepiece:
    • 1.25" barrel diameter
    • Accepts most astronomical filters
    • 25mm eyepiece produces 42x magnification
    Finder:
    • Unmagnified view ensures an ultra-wide angle of view for easier alignment and faster star-hopping navigation
    • Simple red aiming dot won't obscure small or dim objects
    • Adjustable brightness prevents interfering with night-adjusted vision
    • Mounting bracket included
• Mini Porta Manual AZ Mount with Tripod Support your smaller optical tube assembly (OTA) with the highly portable and lightweight Vixen Optics Mini Porta Manual AZ Mount. Built with an adjustable-tension friction-control system, there are no clumsy axis locks or clutches to manipulate, so the mount can be easily moved by hand for fast navigation. For more precise movement, the mount has dual-axis slow-motion knobs that allow for easy and smooth tracking. The mount comes with an aluminum tripod that adjusts from 28 to 50" to accommodate a wide variety of users and viewing positions, with a center tray that adds stability to the legs while offering a place for eyepieces, filters, and other accessories. Weighing just 6 pounds including the tripod, but with a payload capacity of 8 pounds, this mount is ideal for smaller OTAs less than 4.7" (11.9cm) in diameter.
  Mount
  • • Manual alt-azimuth design
    • Dual-axis slow-motion control knobs allow for precision adjustments and tracking with less vibrations
    • Smooth 360° rotation on both axes
    • Friction-control system: No locks or clutches for fast and easy manual hand adjustments
    • Friction-resistant adjustment tools included for precise balancing and smooth movement
    • Vixen-style dovetail saddle
    • Use of optical tube diameters of less than 4.7" (11.9cm) recommended
    • 8-pound (3.6kg) payload capacity
  Tripod
  • • Aluminum legs
    • Two leg sections each
    • Adjustable height from 28 to 50"
    • Spiked feet provide additional stability on rough or soft ground
    • Large thumbscrew leg locks are easy to use even while wearing gloves
    • Center tray adds stability while offering a place to hold accessories
    • Use of optical tube diameters of less than 4.7" (11.9cm) recommended

• Red-Dot Finder with Bracket

• 25mm Eyepiece

• Allen Wrench

• Limited 5-Year Warranty

• Tool Kit

• 2 x Control Knobs

• Aluminum Tripod

• Accessory Tray

• 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VMC95L 95mm f/11 Maksutov-Cassegrain Telescope (OTA Only)

  Optical Design	Maksutov-Cassegrain
  Aperture	95mm
  Focal Length	1050mm
  Focal Ratio	f/11.05
  Eyepiece Barrel Diameter	2 x 1.25"
  Diagonal	90°, internal Internal flip-mirror assembly
  Finderscope	Red-dot
  Tripod	None
  Mount Type	Vixen-style dovetail plate
  Power Source	None
  Optical Tube Dimensions	14.2 x 4.2" / 36.0 x 10.7 cm
  Weight	4.0 lb / 1.8 kg

  Box Dimensions (LxWxH)	17.1 x 9.4 x 8.5"

• Mini Porta Manual AZ Mount with Tripod

  Mount Type	Manual alt-azimuth
  Load Capacity	8.0 lb / 3.6 kg
  Motor	None
  GoTo Capability	None
  Altitude / Latitude Adjustment	360° rotation on both axes
  Polar Axis Scope	None
  Includes Tripod/Pier	Adjustable-height tripod Adjustable height: 27.6 - 50.4" / 70.0 - 128.0 cm
  Power Source	None
  Weight	6.0 lb / 2.7 kg, including tripod

  Box Dimensions (LxWxH)	38.0 x 10.0 x 10.0"
