User Manual for VIZIO D-Series 24" Class HD LED TV Click to enlarge the picture
Contents of the user manual for the VIZIO D-Series 24" Class HD LED
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO D-Series 24" Class HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

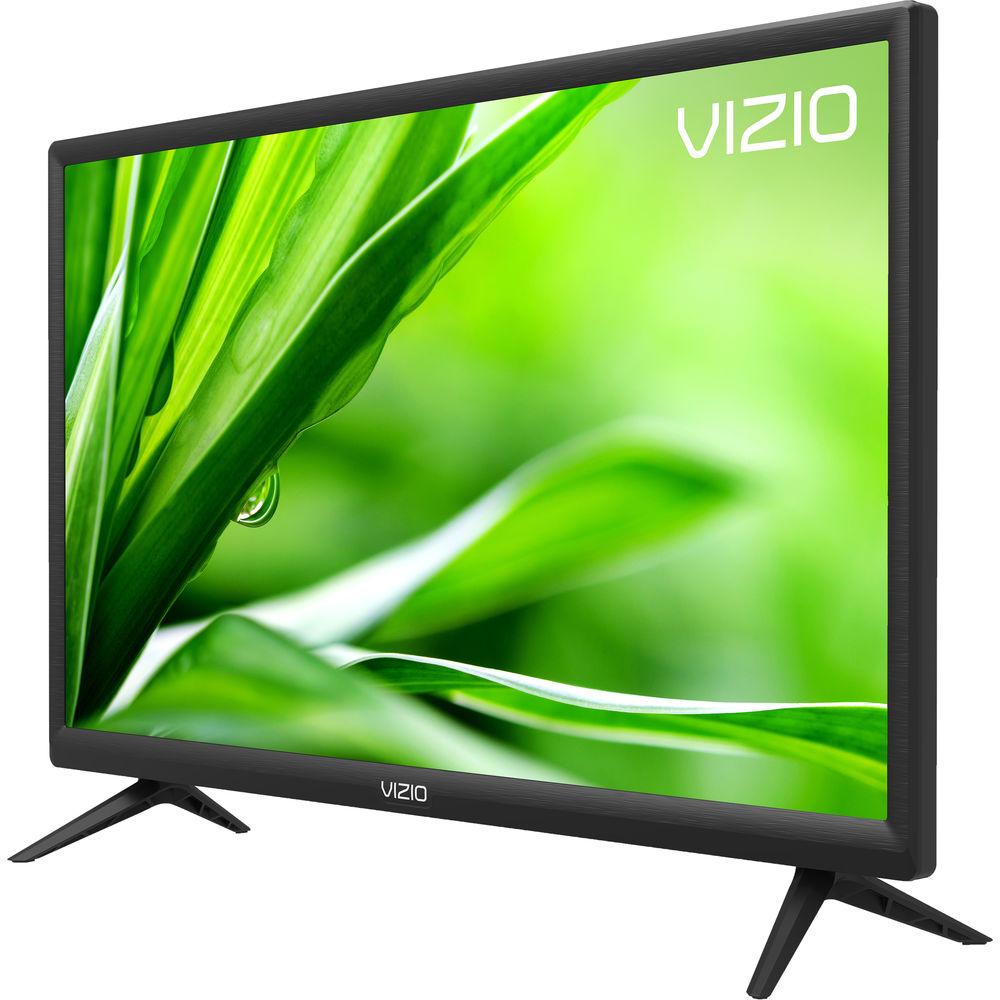

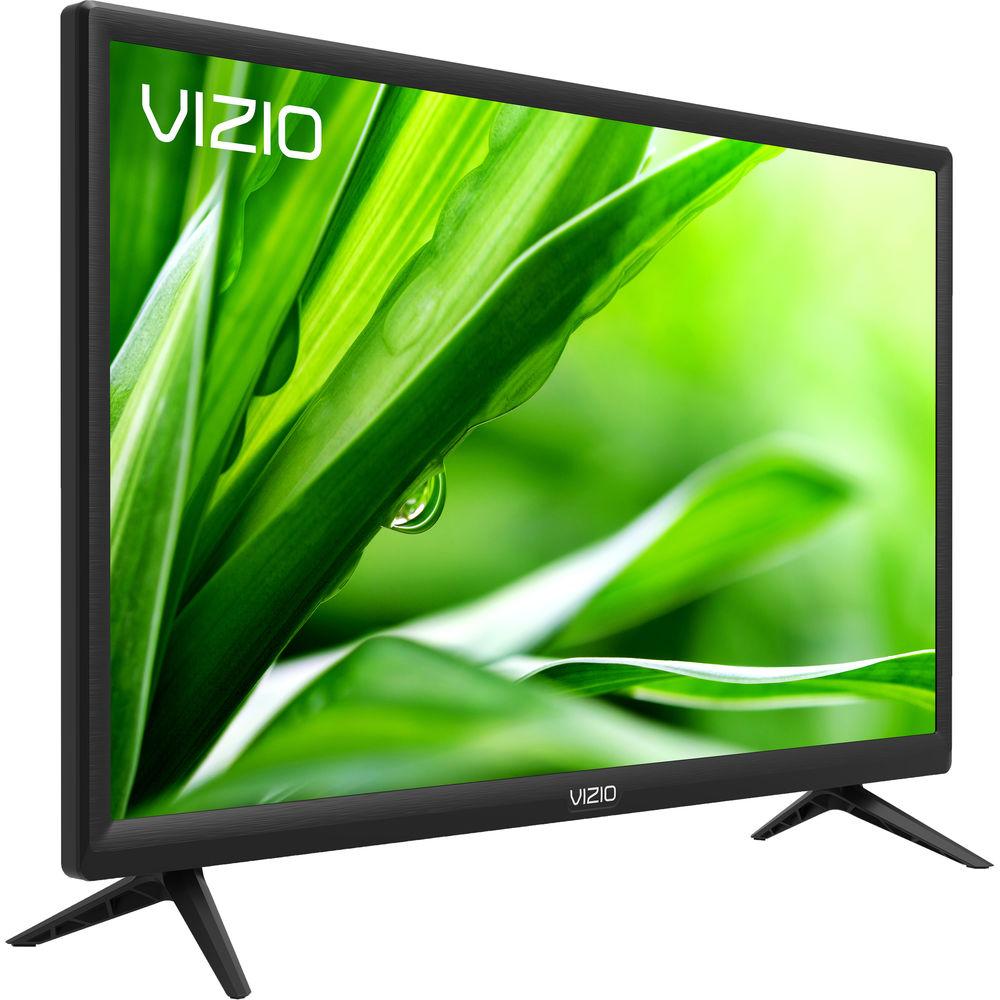

Product description The Big March TV Tournament Read More wwrteqbu Enjoy HD content with compatible source material and the VIZIO D-Series 24" Class HD LED TV. It features an LED edge-lit LCD panel to produce enhanced brightness with a slim cabinet, and a 60 Hz effective refresh rate for smooth motion. The TV has two HDMI ports to provide connections to digital HD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. DTS TruSurround offers enhanced audio from the two built-in 6W speakers. - Edge-Lit Display
- LEDs are lined up along the edge of the screen to help provide a bright image in a slim cabinet.
- High Definition
- Watch TV in clear 720p high-definition resolution with compatible media and source devices.
- Component & Composite Video Connectivity
- Connect your legacy equipment to this TV via the 1/8" jack that supports combined composite video and audio and the component video-compatible 1/8" jack. The required adapter cables are sold separately.
UPC: 845226016974 In the Box VIZIO D-Series 24" Class HD LED TV Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 wwrteqbu The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO D-Series 24" Class HD LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

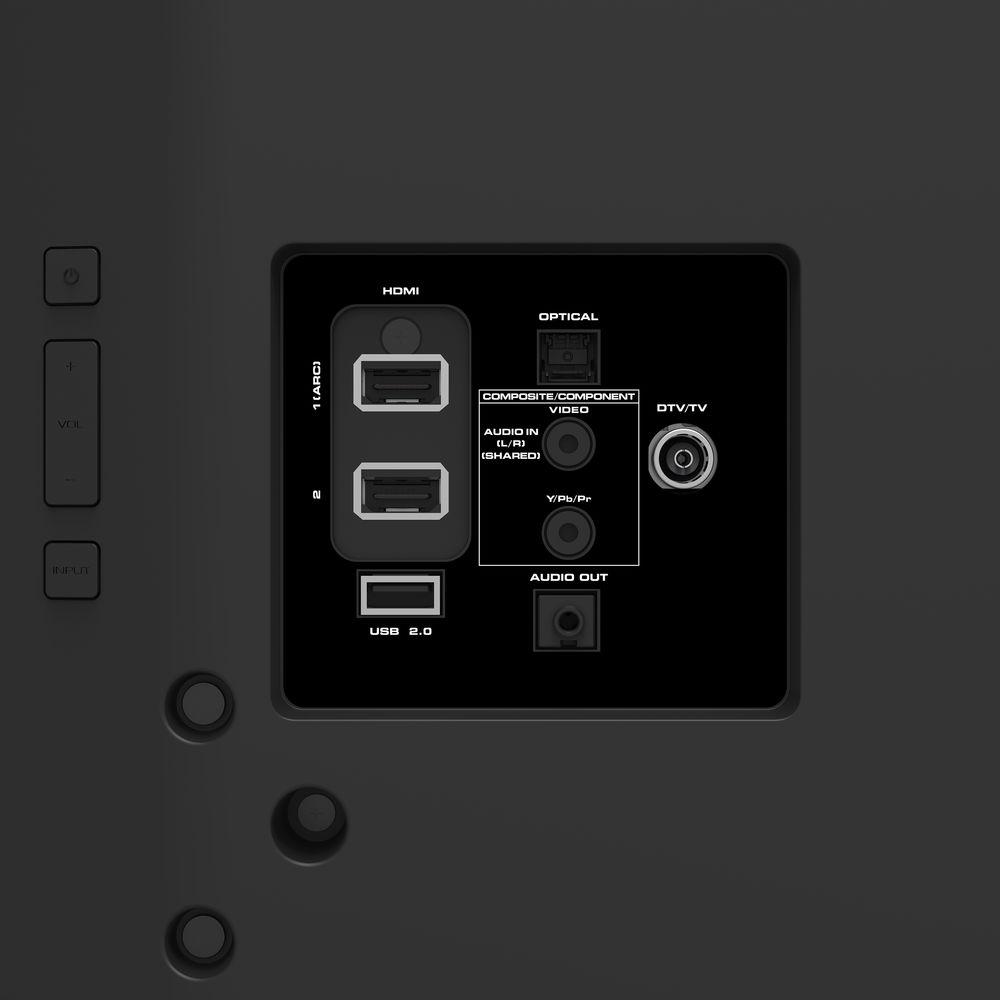

Technical parametersVIZIO D24HN-G9 Specs | | | Screen Size (Diagonal) | 23.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1280 x 720 | | HDR Compatibility | None | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 2 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video
1 x 1/8" / 3.5 mm – Video (Rear)
1 x 1/8" / 3.5 mm – Audio, Video (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio, Headphone (Rear) | | USB Ports | 1 x USB (Version Unspecified) (Rear) | | Ethernet | None | | | | Sound | Stereo | | Subwoofer | None | | Power | 12 W | | | | Virtual Assistant Support | None | | Wi-Fi | None | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 100 x 100mm | | | | Power Requirements | 120 VAC | | Power Consumption | Standby: < 0.5 W | | Dimensions (W x H x D) | 21.8 x 14.8 x 6.2" / 554.5 x 375.4 x 157.0 mm With stand
21.8 x 13.1 x 2.1" / 554.5 x 334.0 x 52.3 mm Without stand | | Weight | 6.17 lb / 2.80 kg With stand
5.95 lb / 2.70 kg Without stand | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 4.5" |
