User Manual for VIZIO D-Series 32" Class Full HD SmartCast LED TV Click to enlarge the picture
Contents of the user manual for the VIZIO D-Series 32" Class Full HD
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO D-Series 32" Class Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

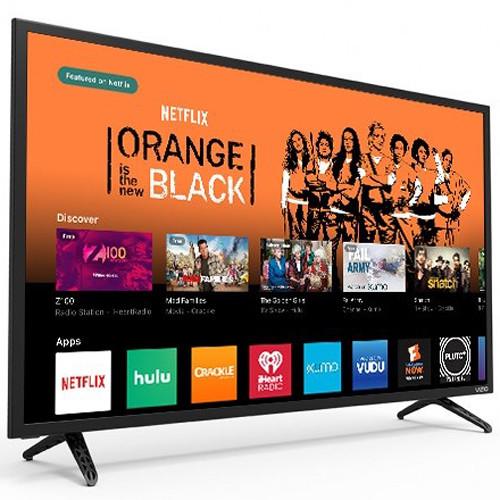

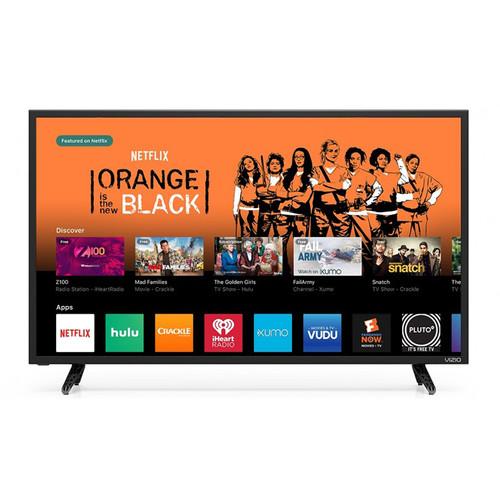

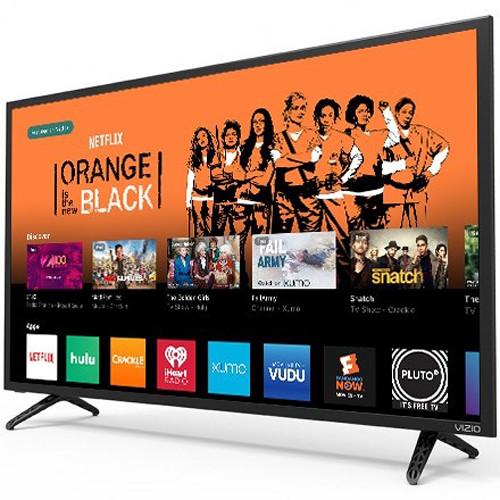

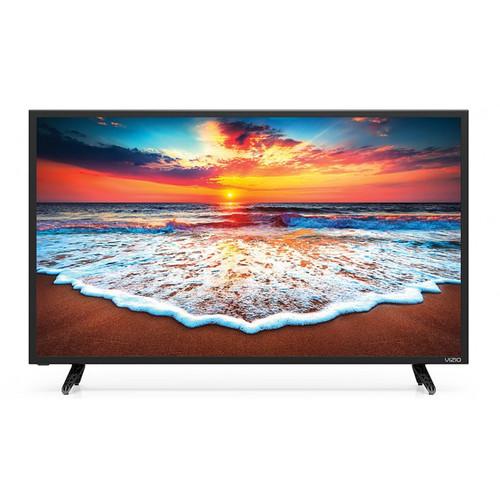

Product description The Big March TV Tournament Read More rzrqbrbabfdfcquyeqtfayxwdzzvcaytsatxx Enjoy Full HD content and enhanced light uniformity with the VIZIO D-Series 32" Class Full HD SmartCast LED TV. It features a full-array LED backlight for virtually uniform light levels and a 120 Hz effective refresh rate to digitally smooth out the blur commonly associated with fast-moving objects.
The D-Series has Chromecast built-in, allowing you to cast apps directly from your compatible smart device to the display over your Wi-Fi network. Its two HDMI ports provide connections to digital HD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. You can use your smartphone as a remote with the SmartCast app, or control the TV with your voice through your Google Assistant-enabled device. Note: A Google Assistant-enabled device is required to control the TV with the Google Assistant. - SmartCast TV

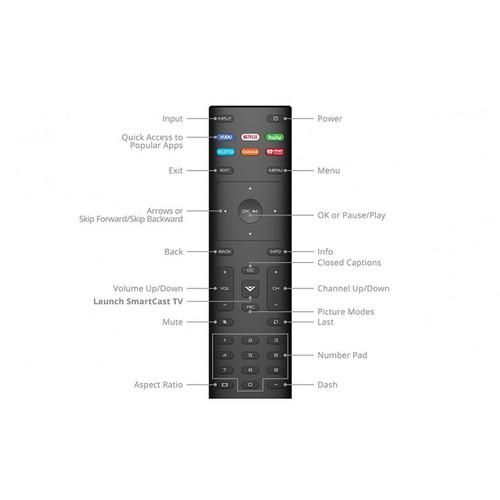

- Use the included remote to browse and launch apps directly from the TV.
- SmartCast Mobile
- Download the VIZIO SmartCast Mobile app to turn your phone into a touchscreen remote with access to more apps. Simply tap to stream content to the TV.
- Chromecast built-in
- The D-series TV has Chromecast built-in, providing access to thousands of Chromecast-enabled apps on your mobile device that you can stream right to the TV.
- Full-Array LED
- A full-array LED backlight distributes the LEDs behind the entire screen for enhanced light uniformity and picture performance.
- V6 Six-Core Processor
- The V6 six-core processor uses a quad-core GPU and a dual-core CPU designed to speed everything up, from finding content and apps to powering up the TV.
- Built-In Wi-Fi
- With 802.11n Wi-Fi built-in, you can stream from popular apps like Netflix and YouTube.
- DTS StudioSound
- Enjoy virtual surround sound from the two built-in speakers with DTS StudioSound.
- Control the TV with Your Voice Through Your Google Assistant Device
- The TV works with the Google Assistant, providing voice control through your Google Assistant-enabled device. Stream from apps of your choice, pause, or adjust the volume without lifting a finger.
UPC: 845226014277 In the Box VIZIO D-Series 32" Class Full HD SmartCast LED TV Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 14.5mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO D-Series 32" Class Full HD SmartCast LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

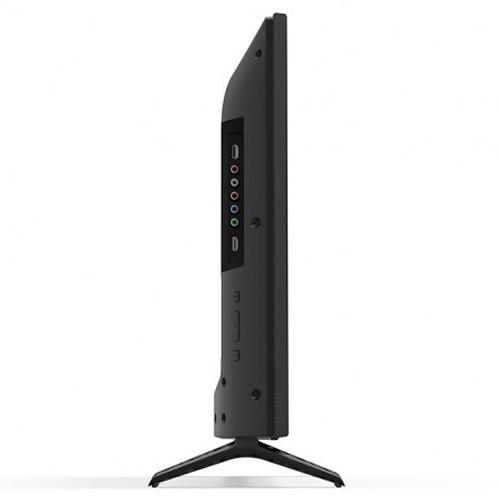

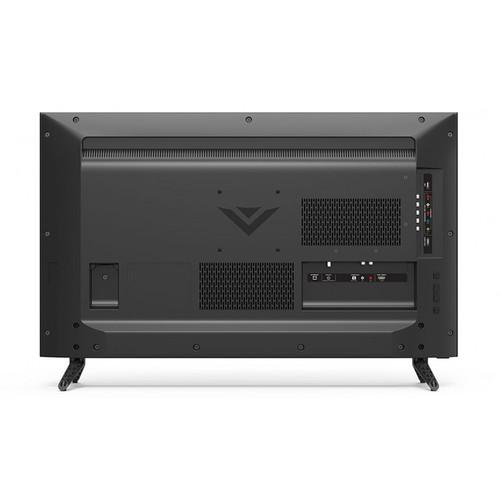

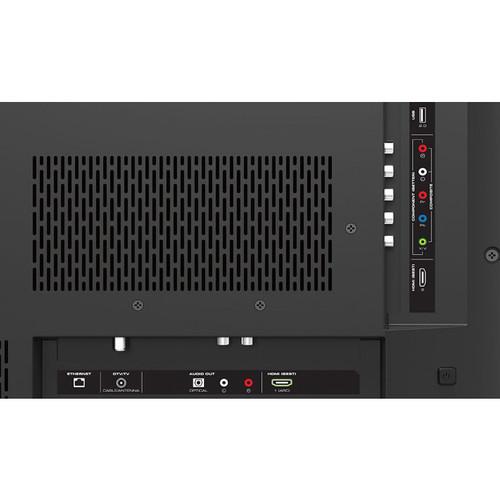

Technical parametersVIZIO D32F-F1 Specs | | | Screen Size (Diagonal) | 31.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1920 x 1080 | | HDR Compatibility | None | | Dynamic Contrast Ratio | 200,000:1 | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video
1 x RCA Component – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x RCA Stereo (L/R) – Audio (Bottom)
1 x TOSLINK Optical – Audio (Bottom) | | USB Ports | 1 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | | | Sound | Stereo | | Subwoofer | None | | Power | 10 W | | | | Virtual Assistant Support | Google Assistant | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 100 x 100mm | | | | Microphone | No | | Battery Type | 2 x AAA | | | | Power Consumption | Operational: 26.6 W
Standby: < 0.5 W | | ENERGY STAR Compliant | Yes | | Dimensions (W x H x D) | 28.8 x 18.8 x 7.9" / 73.1 x 47.8 x 20.0 cm With stand
28.8 x 17.0 x 3.0" / 73.1 x 43.1 x 7.6 cm Without stand | | Weight | 11.68 lb / 5.30 kg With stand
11.46 lb / 5.20 kg Without stand | | | | Package Weight | 15.55 lb | | Box Dimensions (LxWxH) | 32.5 x 21.0 x 9.0" |
