User Manual for VIZIO D-Series 32" Class HD Smart LED TV Click to enlarge the picture
Contents of the user manual for the VIZIO D-Series 32" Class HD Smart
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO D-Series 32" Class HD Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

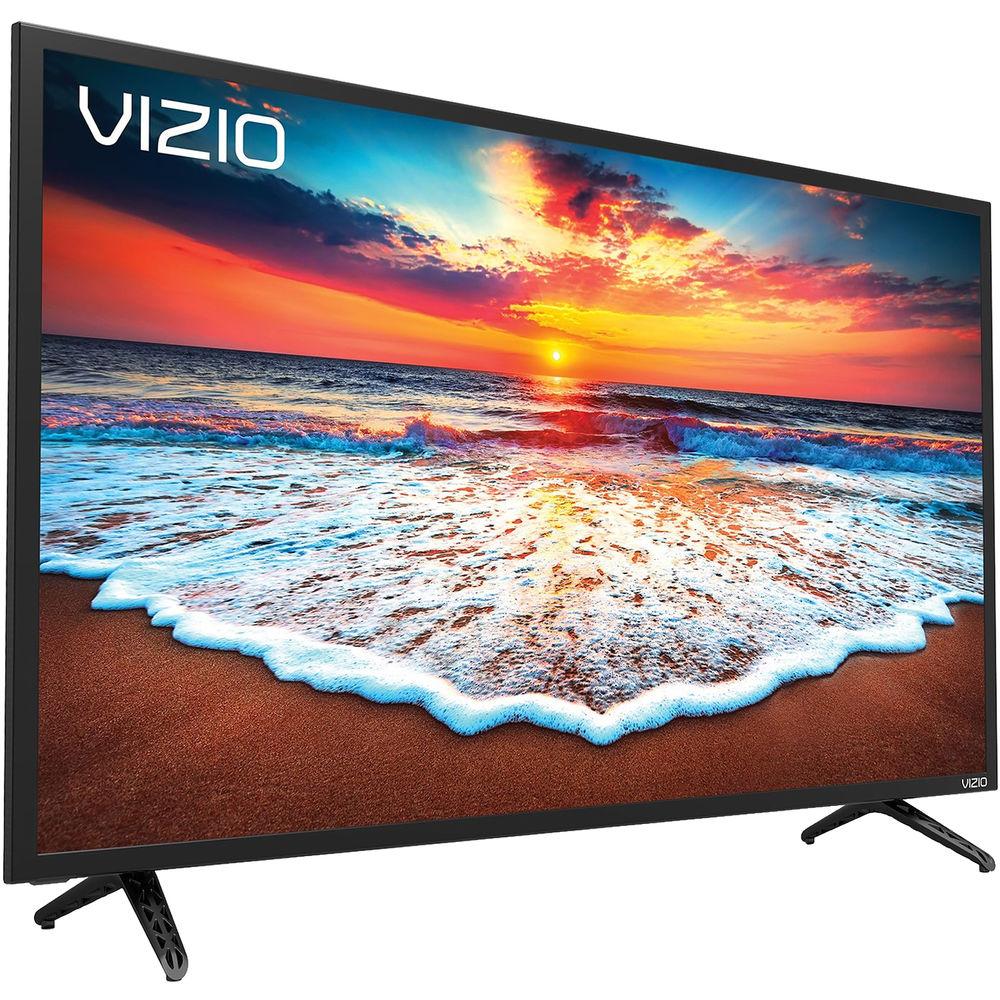

Product description The Big March TV Tournament Read More rbsvdqffvrwwssfyxbfqftbw Enjoy HD content and enhanced light uniformity with the VIZIO D-Series 32" Class HD Smart LED TV. It features a full-array LED backlight for virtually uniform light levels and a 60 Hz refresh rate for smooth motion.
The D-Series has Chromecast built-in, allowing you to cast apps directly from your compatible smart device to the display over your Wi-Fi network; you can also download apps directly to the TV. Its two HDMI ports provide connections to digital HD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. You can use your smartphone as a remote with the SmartCast Mobile app, or control the TV with your voice through your Google Assistant- or Amazon Alexa-enabled device. Note: Content acquired via certain apps may require subscription to a service. A Google Assistant- or Amazon Alexa-enabled device is required to control the TV with the Google Assistant or Alexa. - Smart TV
- Enjoy instant access to popular apps right on the TV using the included remote.
- Chromecast built-in
- Access over 200,000 TV shows and movies and over 30 million songs from over 1000 apps including Netflix, YouTube, and Hulu. Download Chromecast-enabled apps to your mobile device, then simply tap the Cast button to stream directly to the TV.
- Full-Array LED Backlight
- LEDs are evenly distributed across the panel for enhanced light uniformity, color consistency, and a more responsive picture edge-to-edge.
- High Definition
- Watch TV in clear 720p high-definition resolution with compatible media and source devices.
- VIZIO SmartCast Mobile
- This feature allows you to use your smartphone to control and stream to the TV from nearly any room in your home. Power the TV on or off, adjust the volume, switch inputs, stream, and more.
- VIZIO WatchFree
- Over 100 live and Internet streaming channels are available for free, including live news, movies, sports, comedy, music, and more.
- Voice Control
- The D series offers voice-control support for Amazon Alexa and the Google Assistant.
- Additional Features
-
- V6 six-core processor
- Wi-Fi 4 (802.11n) onboard
- DTS Studio Sound

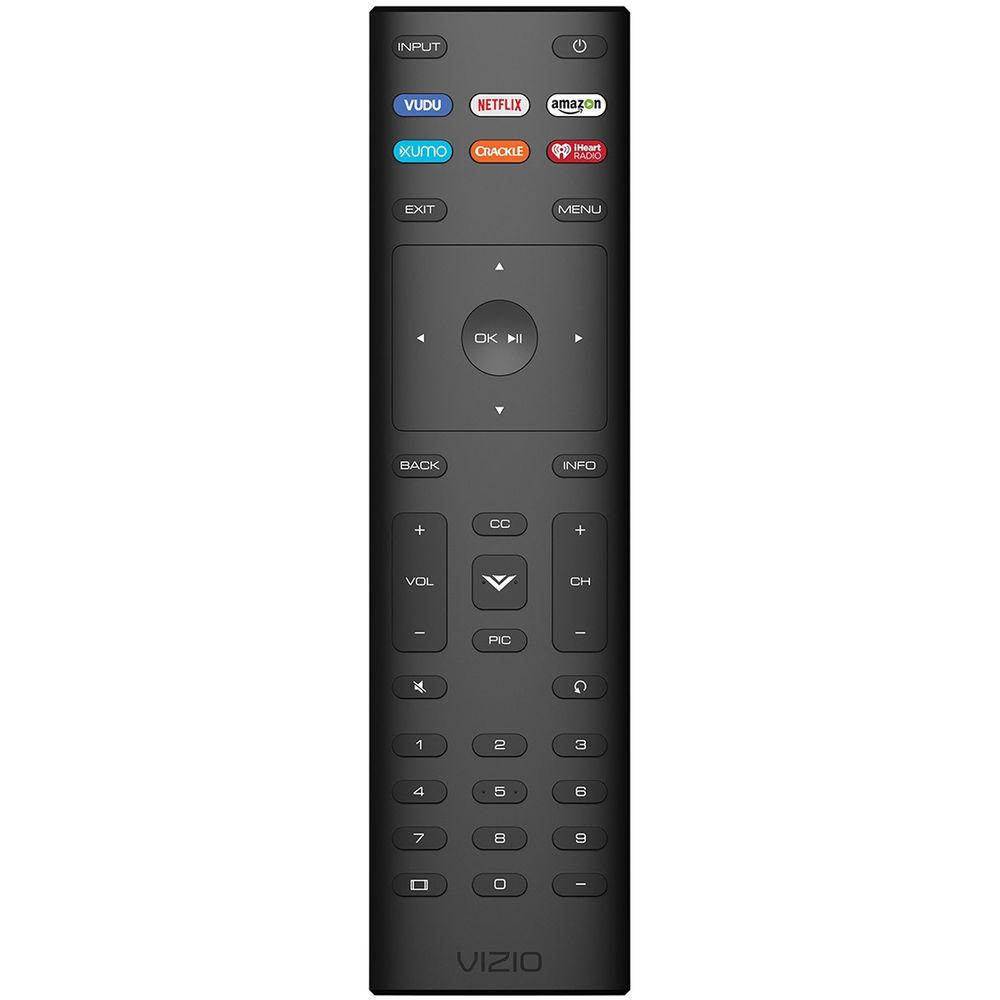

UPC: 845226016738 In the Box VIZIO D-Series 32" Class HD Smart LED TV Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 rbsvdqffvrwwssfyxbfqftbw The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO D-Series 32" Class HD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVIZIO D32H-F4 Specs | | | Screen Size (Diagonal) | 31.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1366 x 768 | | HDR Compatibility | None | | Dynamic Contrast Ratio | 200,000:1 | | Refresh Rate | 60 Hz | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video (Side)
1 x HDMI – Audio, Video (Bottom)
1 x RF Antenna – Audio, Video
1 x RCA Component/Composite Combo – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom) | | USB Ports | 1 x USB (Version Unspecified) (Side) | | Ethernet | None | | | | Sound | Stereo | | Subwoofer | None | | Power | 16 W | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | SmartCast OS | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 100 x 100mm | | | | Power Consumption | Typical: 38.8 W
Standby: < 0.5 W | | Dimensions (W x H x D) | 28.7 x 19.1 x 7.9" / 729.7 x 484.1 x 199.9 mm With stand
28.7 x 17.1 x 2.9" / 729.7 x 434.3 x 73.9 mm Without stand | | Weight | 10.36 lb / 4.70 kg With stand
9.92 lb / 4.50 kg Without stand | | | | Package Weight | 14.05 lb | | Box Dimensions (LxWxH) | 31.0 x 20.0 x 5.0" |
