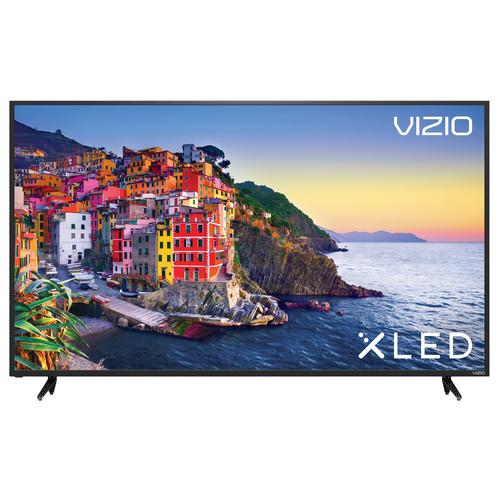

User Manual for VIZIO E-Series 80" Class HDR UHD SmartCast XLED Home Theater Display Click to enlarge the picture
Contents of the user manual for the VIZIO E-Series 80" Class HDR UHD
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO E-Series 80" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

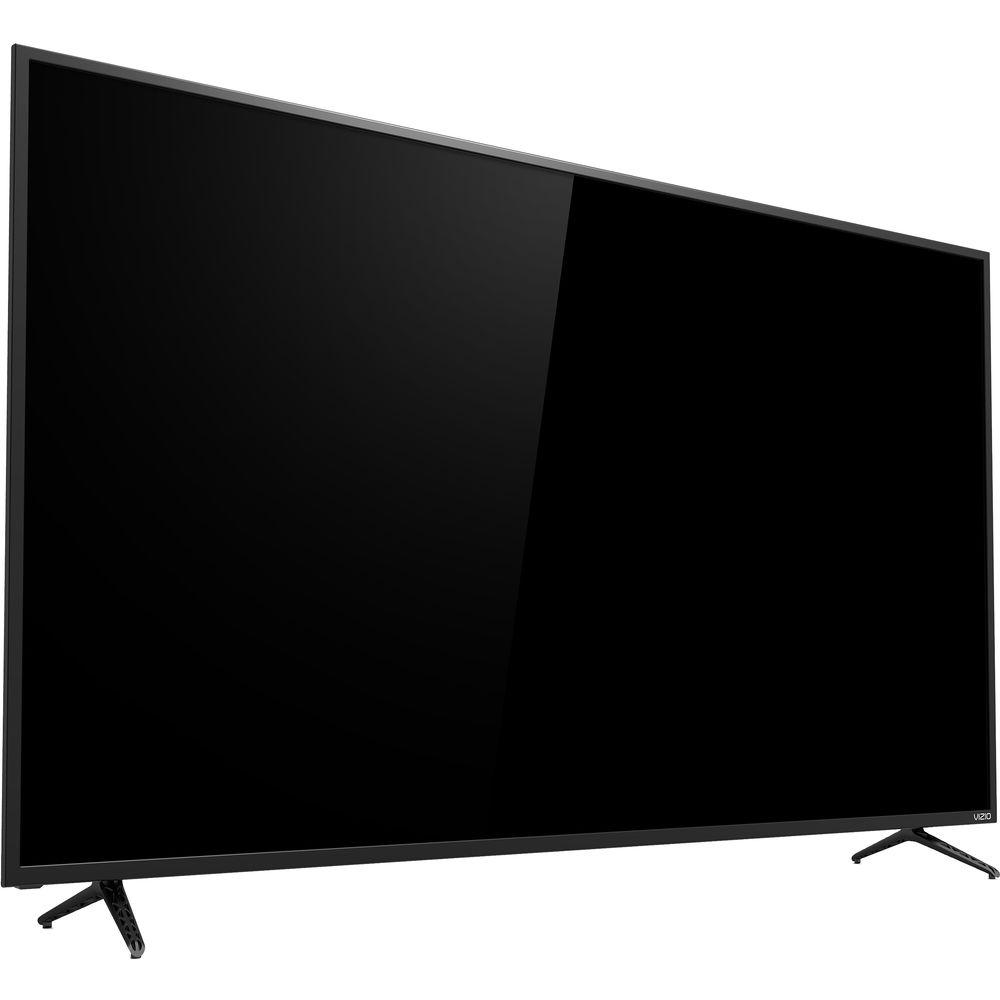

Product description The Big March TV Tournament Read More Stream multimedia content from your smart devices and view UHD images with the VIZIO E-Series 80" Class HDR UHD SmartCast XLED Home Theater Display. The full-array 80" LED display features a 3840 x 2160 resolution for viewing UHD content and features Clear Action 180 technology for reducing blur on fast-moving content. HDR10 provides a wide color gamut and vibrant colors with minimal color banding when paired with compatible source material and equipment. The E-Series features 16 active LED zones which will independently dim for darker content without affecting the rest of the image.
As a SmartCast display, Wi-Fi is built-in for mirroring your compatible smart devices to the large screen. A USB port, four HDMI ports, and a component video input provide multiple options for connecting high-resolution audio and video sources. DTS StudioSound will create a virtual surround sound experience from the built-in stereo speakers. The display is controllable with the included remote, via the VIZIO SmartCast app, or with compatible devices equipped with the Google Assistant. Note: This is a tuner-free display. If you use an external antenna to watch local over-the-air broadcast TV signals, a TV tuner is required and sold separately. Content acquired via certain apps may require subscription to a service. - Wide Color Gamut with HDR
- Experience vibrant contrast with the wider color gamut provided by High Dynamic Range.
- 16 Active LED Zones
- This E-Series display features 16 Active LED Zones to adjusts your screen's backlight to adapt to the on-screen content to deliver enhanced contrast levels, details, and black levels.
- Download, Setup, & Stream

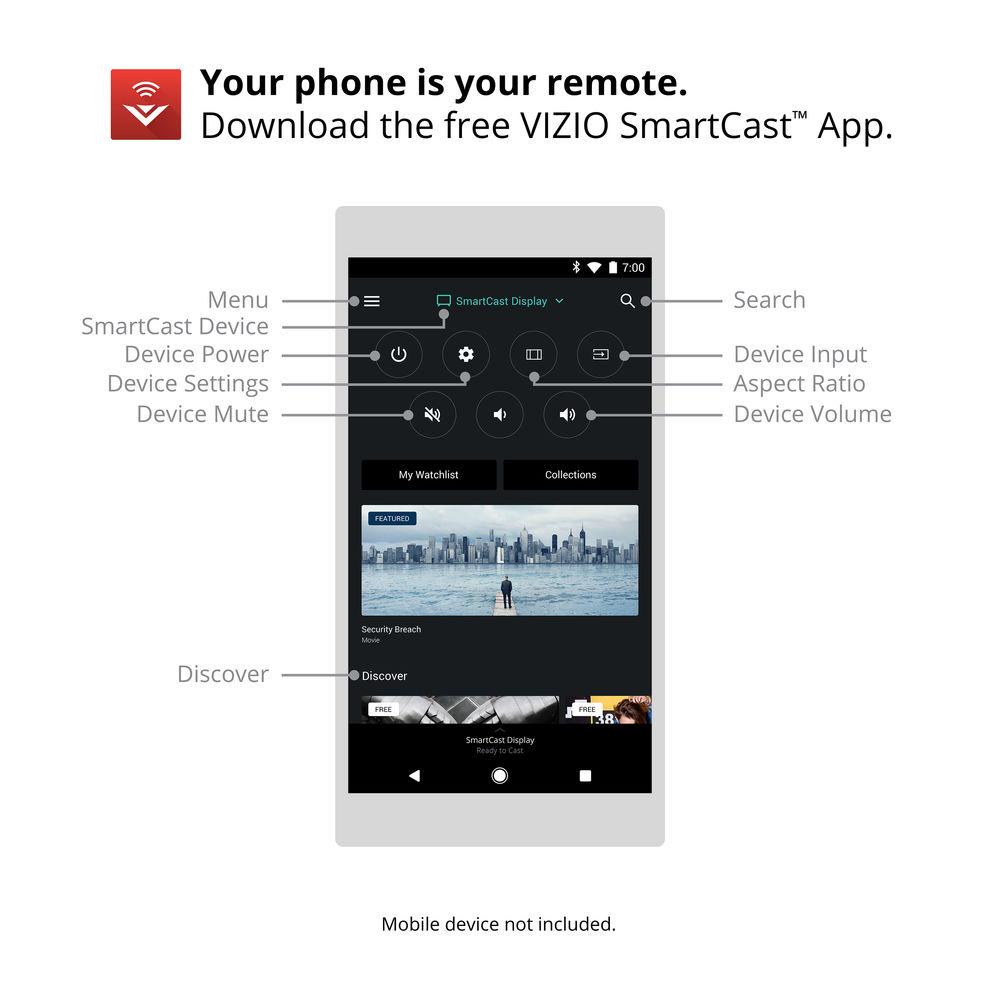

- The VIZIO SmartCast App allows you to turn your phone into a remote. Control everything as you would with a traditional button remote, and stream to your SmartCast display or speakers from nearly anywhere in your home.
- Cast from Thousands of Apps You Already Know
- With Chromecast built-in, you can cast your favorite entertainment from your phone or tablet to your E-Series display using thousands of popular apps, such as Netflix, HBO NOW, Pandora, YouTube, or Spotify.
- Works with the Google Assistant on Compatible Devices
- Control your SmartCast display using just your voice. Stream Netflix, YouTube, and more with a voice command. Play, pause, or turn up the volume, all without lifting a finger.
- Designed for Simple Casting to Your Big Screen
- Confirm that your SmartCast display and your phone/tablet are both connected to the same Wi-Fi network; download or open one of your favorite content apps, such as Netflix, HBO NOW, Pandora, YouTube, or Spotify; find what you want to watch; and look for the Cast icon located somewhere on the screen. Tap on this icon to instantly play your favorite entertainment on the display.
- UHD Upscaling with the Spatial Scaling Engine
- Watch your favorite HD and Full HD content in UHD with the Spatial Scaling Engine
- Clear Action 180
- Enjoy fast-action sports and movies with digitally enhanced clarity using image processing and a 120 Hz effective refresh rate with backlight scanning.
- V8 Octa-Core Processor
- The quad-core GPU and quad-core CPU are designed to provide fast performance and smooth onscreen graphics.
- 802.11ac Dual-Band Wi-Fi
- Dual-band Wi-Fi is designed to provide fast load times and a high-quality casting experience.
- 4 UHD-Ready HDMI Ports
- Supporting HDMI 2.0 and HDCP 2.2, the E-Series allows you to connect to UHD-enabled devices, including cable & satellite receivers, Blu-ray players, and game consoles.
- DTS Studio Sound
- Enhanced virtual surround sound audio from the display's two built-in speakers.
- Ambient Light Sensor
- Intelligent backlight sensors automatically adjust to the surrounding brightness for enhanced picture quality in virtually any level of lighting.

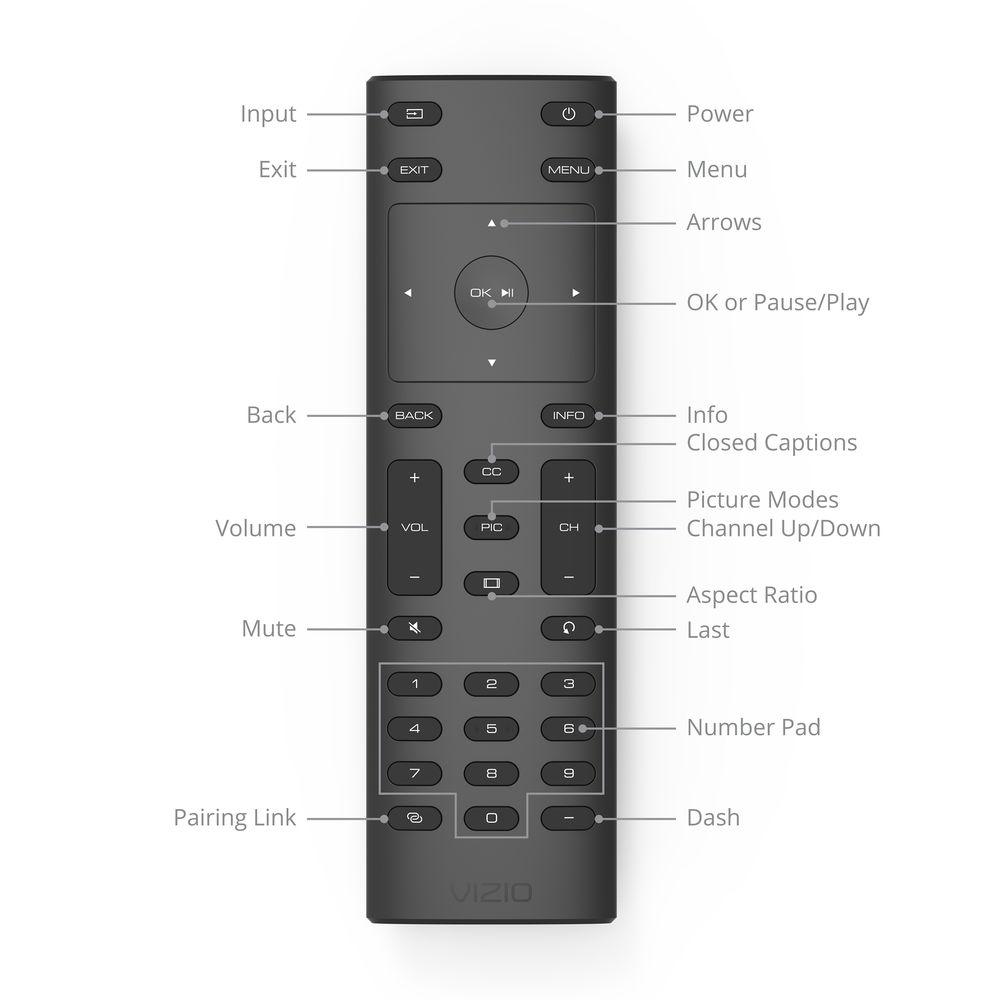

UPC: 845226014772 In the Box VIZIO E-Series 80" Class HDR UHD SmartCast XLED Home Theater Display Remote Control 2 x AAA Batteries Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO E-Series 80" Class HDR UHD SmartCast XLED Home Theater Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

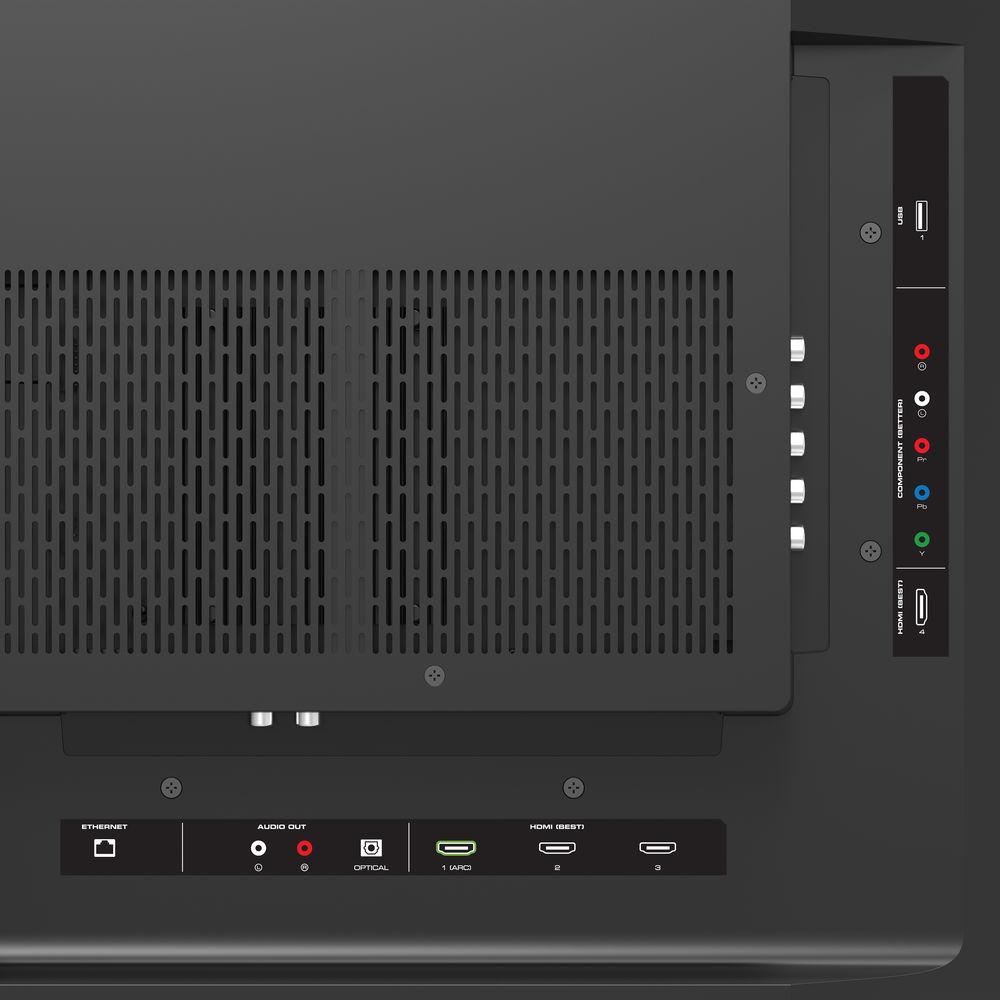

Technical parametersVIZIO E80-E3 Specs | | | Screen Size (Diagonal) | 80" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 120 Hz | | Viewing Angle (H x V) | 176 x 176° | | | | Video System | NTSC | | TV Tuner | No | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RCA Component – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom) | | USB Ports | 1 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | None | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Power Consumption | Operational: 240.0 W
Standby: < 0.5 W | | Dimensions (W x H x D) | 71.6 x 44.2 x 15.2" / 181.9 x 112.3 x 38.6 cm With stand
71.6 x 41.2 x 3.2" / 181.9 x 104.6 x 8.1 cm Without stand | | Weight | 87.74 lb / 39.80 kg With stand
85.98 lb / 39.00 kg Without stand | | | | Package Weight | 116.0 lb | | Box Dimensions (LxWxH) | 75.0 x 47.0 x 9.0" |
