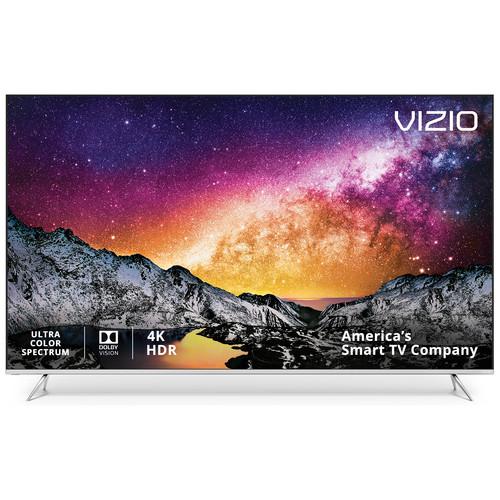

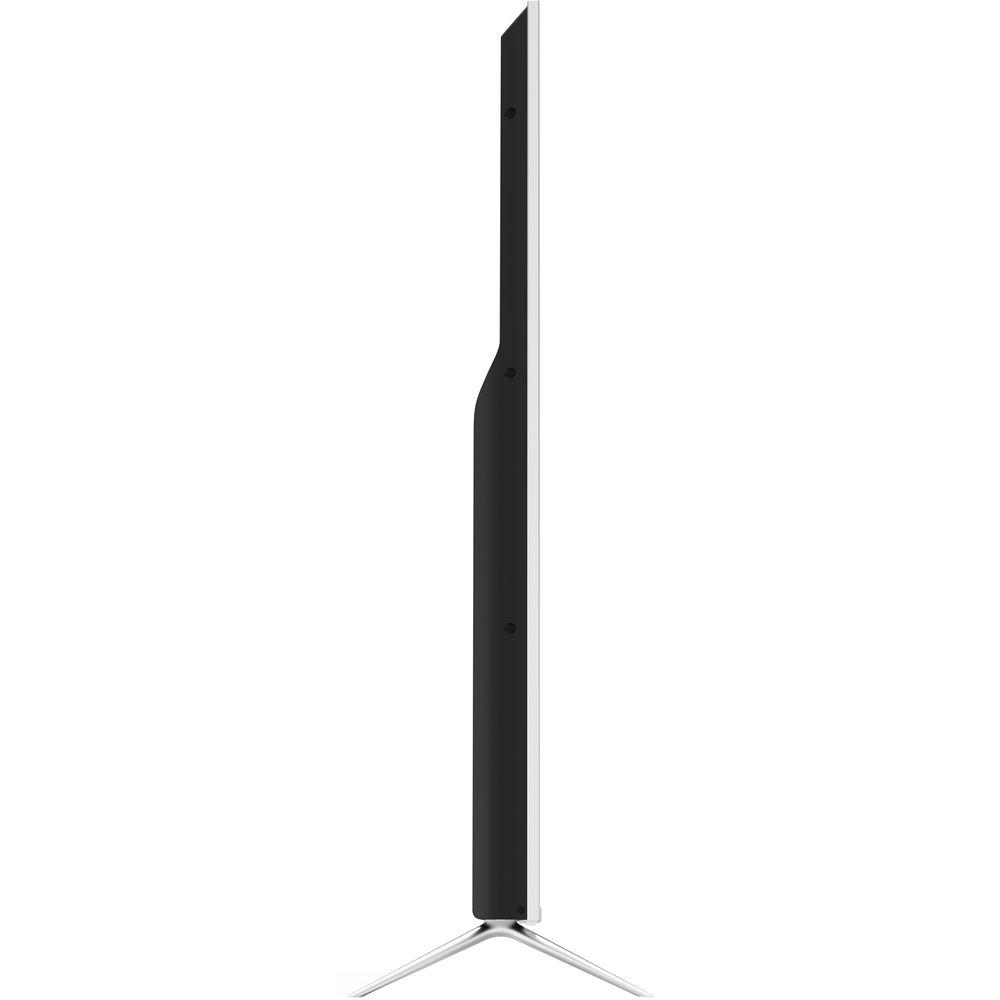

User Manual for VIZIO P-Series 55" Class HDR UHD Smart LED TV Click to enlarge the picture
Contents of the user manual for the VIZIO P-Series 55" Class HDR UHD
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO P-Series 55" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

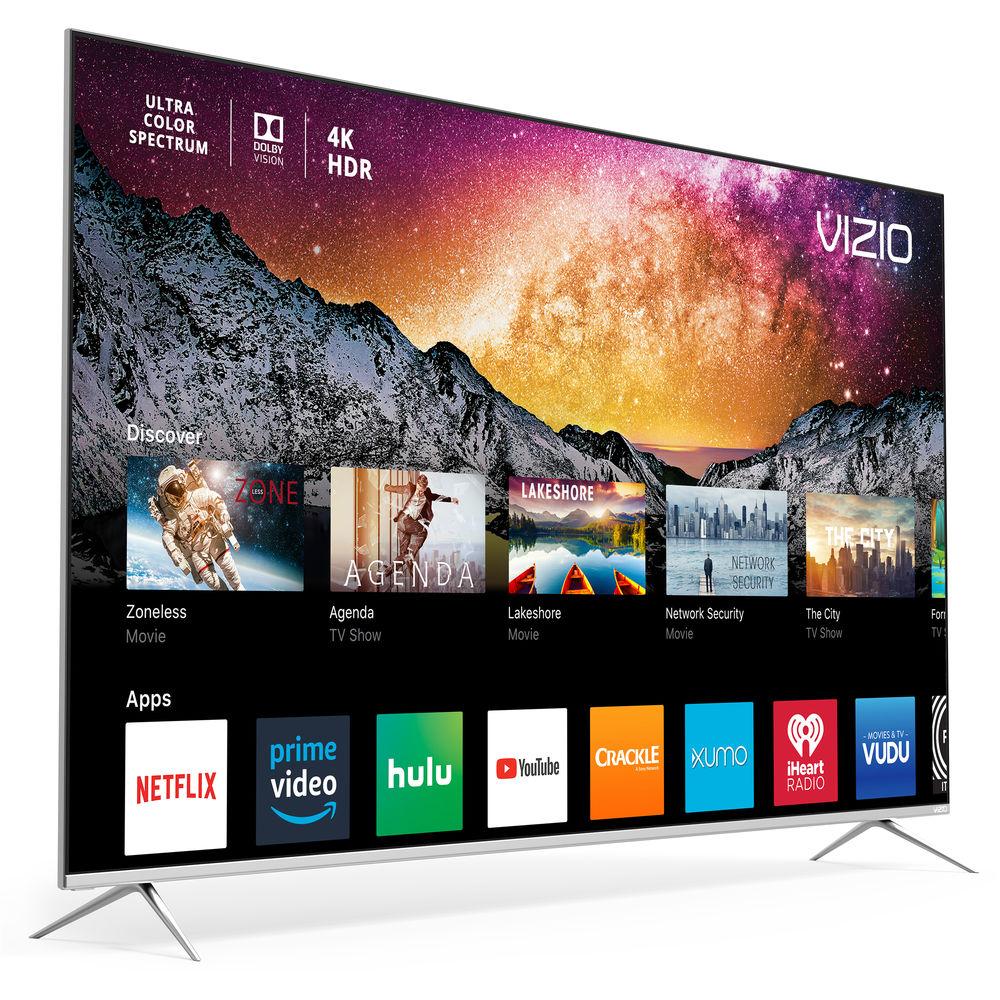

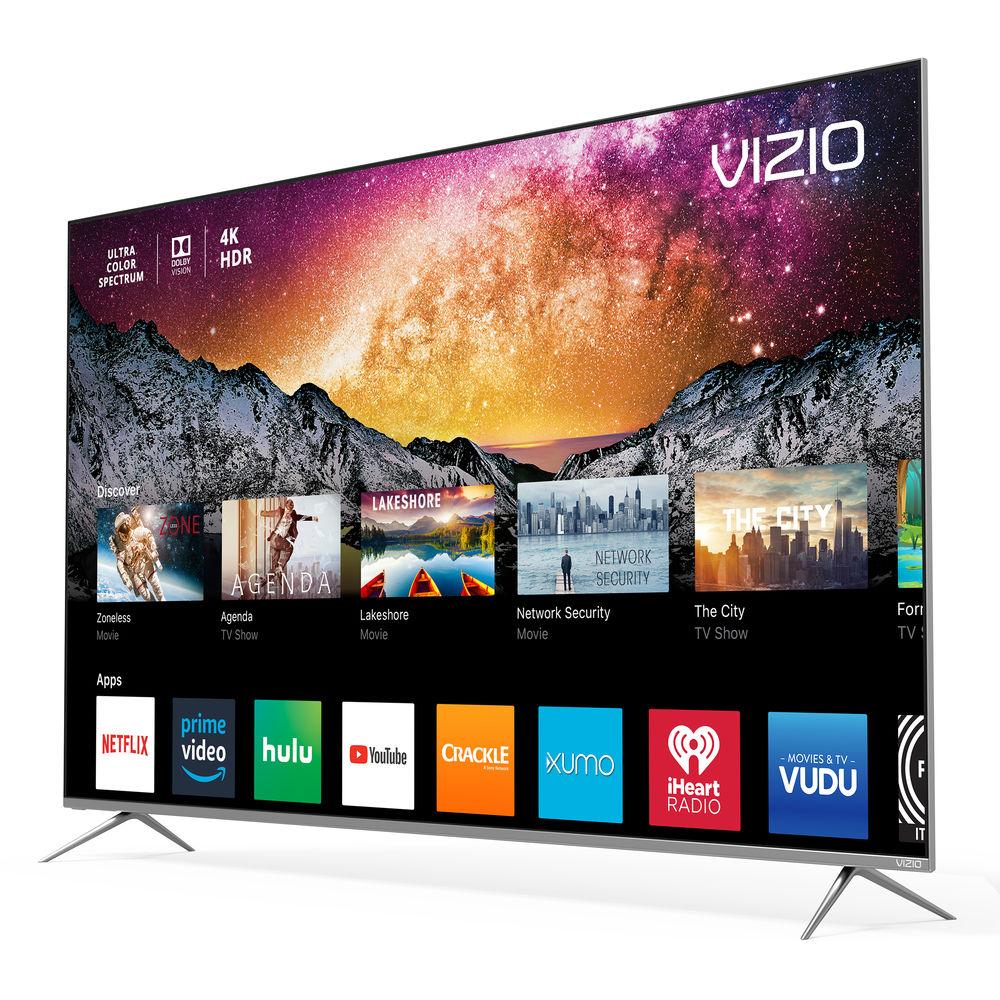

Product description The Big March TV Tournament Read More Enjoy content at four times the resolution of Full HD with the VIZIO P-Series 55" Class HDR UHD Smart LED TV. Compatibility with the HDR10, HLG, and Dolby Vision HDR formats provides a wide color gamut for vibrant color when used with compatible content and source devices. UHD upscaling with the Spatial Scaling Engine makes lower-resolution content look like UHD, and its 240 Hz effective refresh rate and Clear Action 720 technology help reduce the blur commonly associated with fast-moving on-screen objects.
The P-Series has 802.11ac Wi-Fi built-in, allowing access to apps like Netflix and YouTube; it also enables you to control and stream to the TV directly from your compatible mobile device. Its five HDMI ports provide connection to HD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. You can control the P-Series TV with your Google Assistant- or Amazon Alexa-enabled devices. Note: Content acquired via certain apps may require subscription to a service. - SmartCast OS with Google Assistant & Amazon Alexa Compatibility
- Stream from thousands of apps with Google Chromecast built-in, plus you can control the TV with just your voice and your Google Assistant- or Amazon Alexa-enabled devices. Ask your Google Assistant to stream your favorite entertainment from Netflix, YouTube, and more, or play, pause, or adjust the volume without lifting a finger. With Alexa, you can power your TV on or off, play, pause, adjust volume, and change the channel. Free automatic updates to the TV add new features and apps.
- VIZIO SmartCast App Control

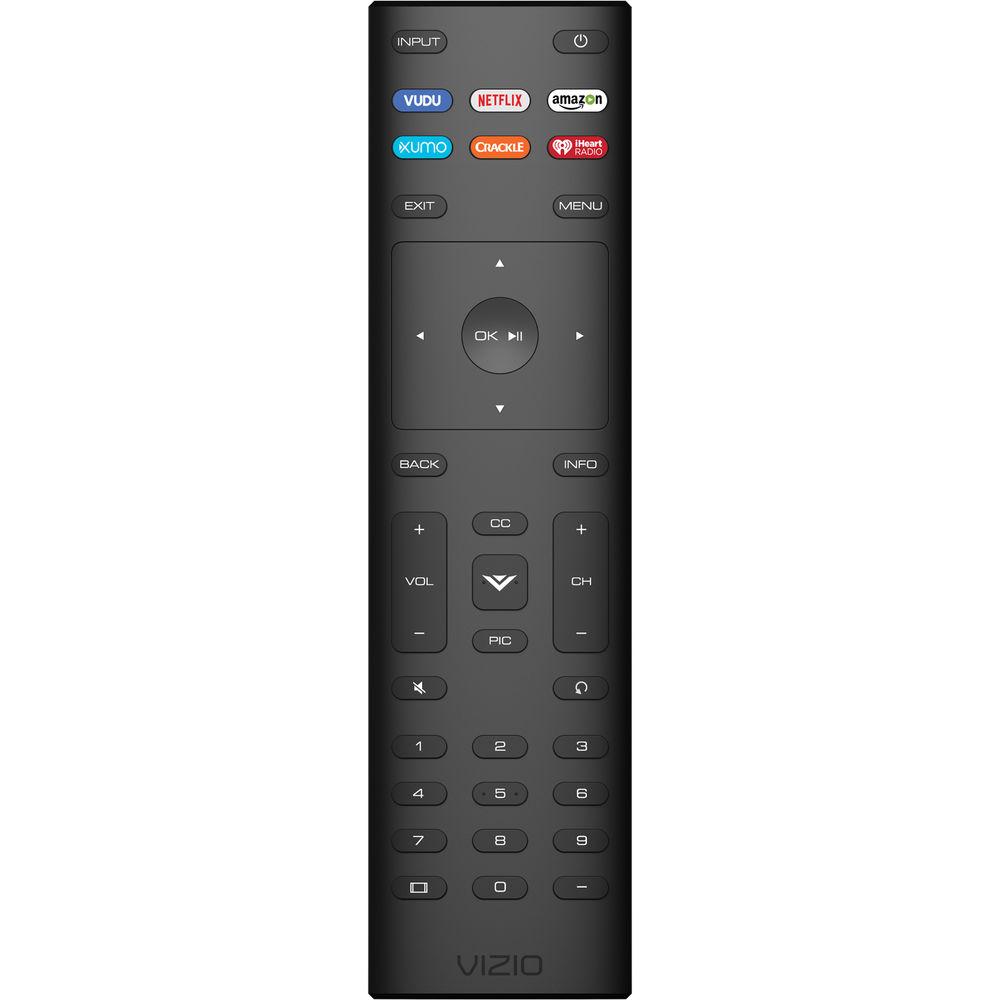

- Control your TV and discover content using just your phone. Or, for more traditional control options, the included remote control features direct app-launching buttons.
- Chromecast built-in
- Chromecast built-in allows you to stream web content, thousands of compatible entertainment apps, or your locally stored photos and videos.
- HDR & UHD
- Ultra HD and HDR from Dolby Vision, HDR10, and HLG help provide enhanced clarity, color, and contrast.
- Full-Array Backlighting
- The full-array backlight with 56 local dimming zones help produce deep blacks.
- Additional Features
-
- VA-type LED-backlit LCD panel
- Ultra Color Spectrum
- Spatial Scaling Engine for UHD upscaling
- VM50 picture processing engine
- V8 octa-core processor
- 240 Hz effective refresh rate with Clear Action 720 digital motion enhancement
- Integrated 802.11ac dual-band Wi-Fi
- Supports VP9 and HEVC (H.265) UHD formats
- HDMI-ARC
- Able to display up to 1.07 billion colors
- Ambient light sensor
UPC: 845226016684 In the Box VIZIO P-Series 55" Class HDR UHD Smart LED TV Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 dutbvqycaywfzbtruw The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 25.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO P-Series 55" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

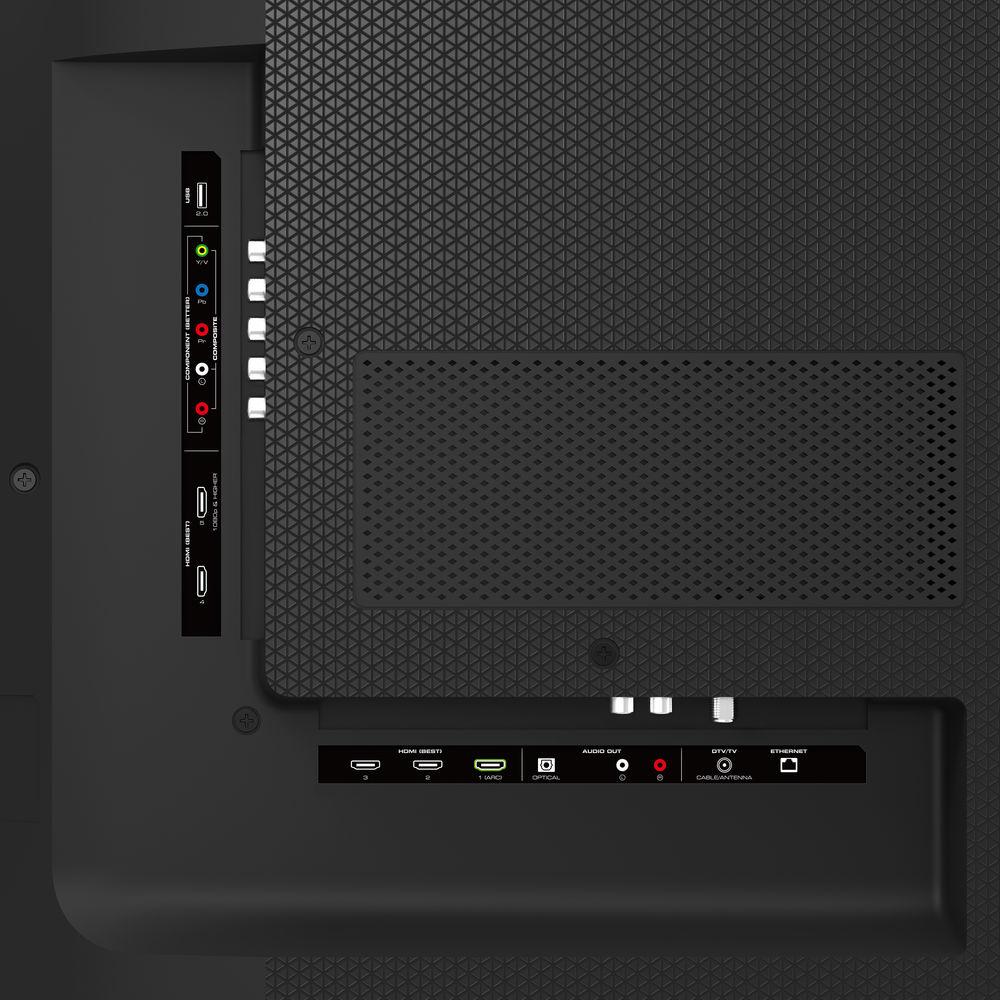

Technical parametersVIZIO P55-F1 Specs | | | Screen Size (Diagonal) | 54.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma | | Dynamic Contrast Ratio | 50,000,000:1 | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
2 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video
1 x RCA Component/Composite Combo – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x 1/8" / 3.5 mm – Audio (Bottom) | | USB Ports | 1 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | SmartCast OS | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 200 x 200mm | | | | Power Requirements | 120 VAC | | Power Consumption | Operational: 172.0 W
Standby: < 0.5 W | | Dimensions (W x H x D) | 48.5 x 30.4 x 10.0" / 123.2 x 77.3 x 25.5 cm With stand
48.5 x 28.0 x 2.6" / 123.2 x 71.2 x 6.7 cm Without stand | | Weight | 39.27 lb / 17.81 kg With stand
38.83 lb / 17.61 kg Without stand | | | | Package Weight | 53.95 lb | | Box Dimensions (LxWxH) | 55.0 x 32.0 x 8.0" |
