User Manual for VIZIO P-Series 55" Class HDR UHD SmartCast IPS XLED Pro Home Theater Display Click to enlarge the picture
Contents of the user manual for the VIZIO P-Series 55" Class HDR UHD
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO P-Series 55" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

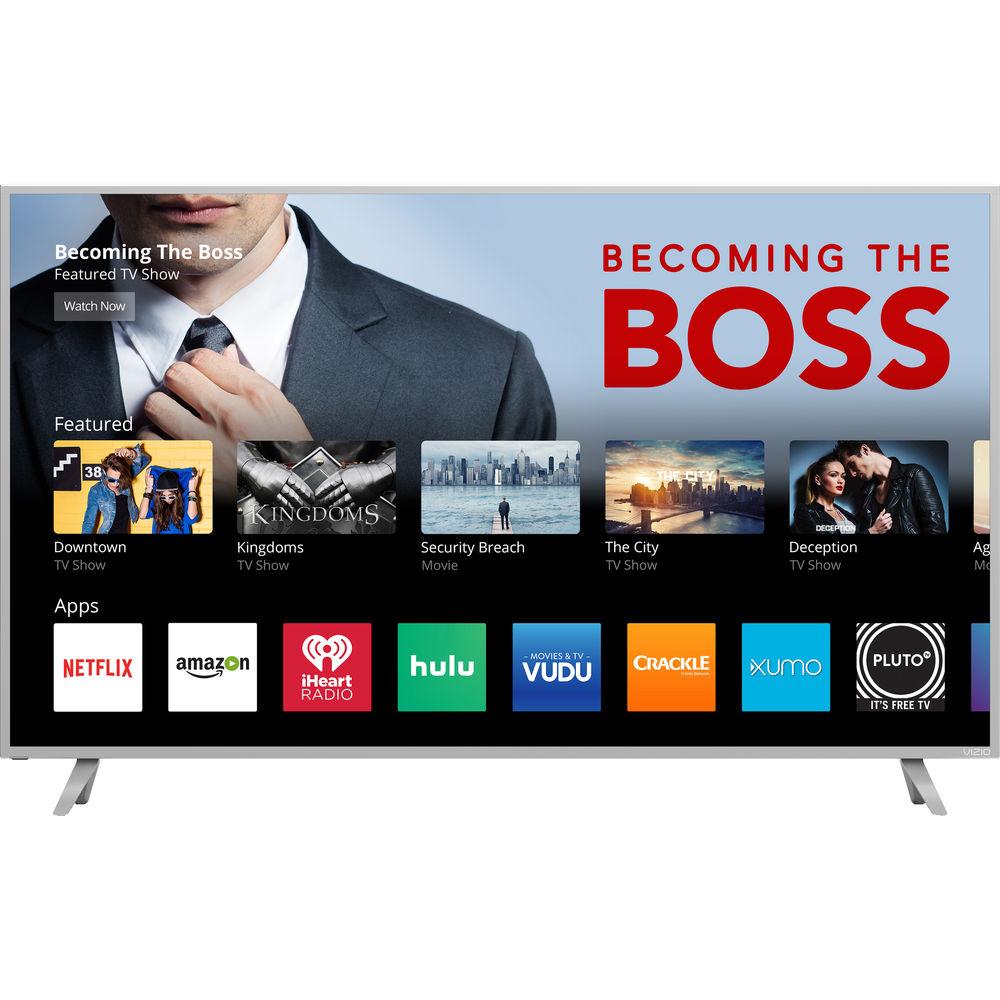

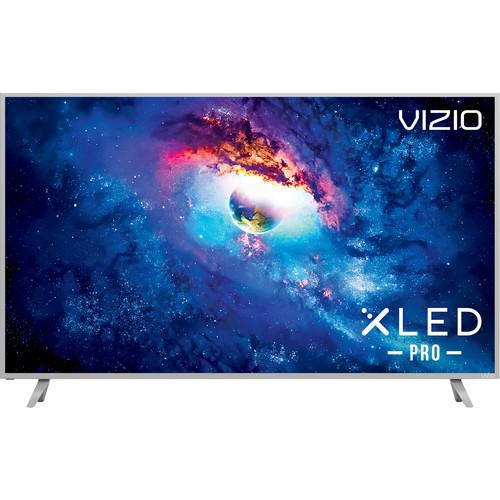

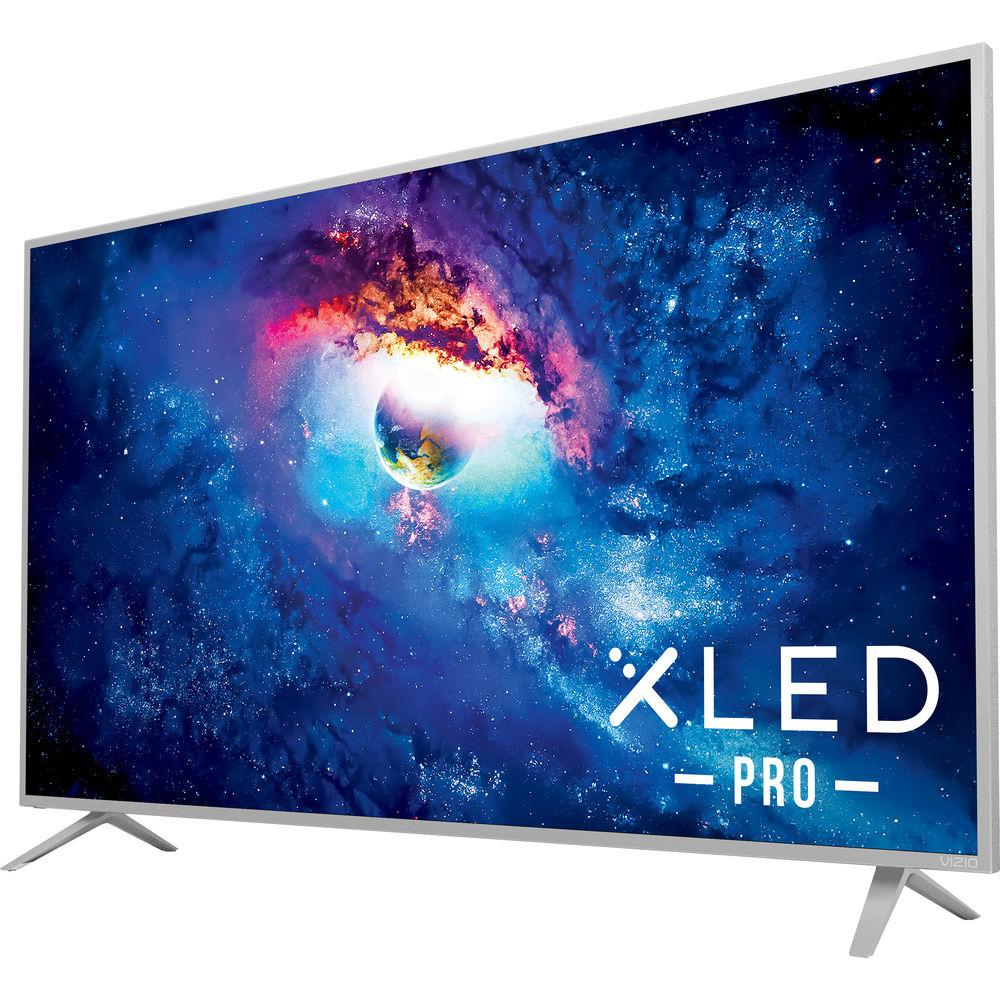

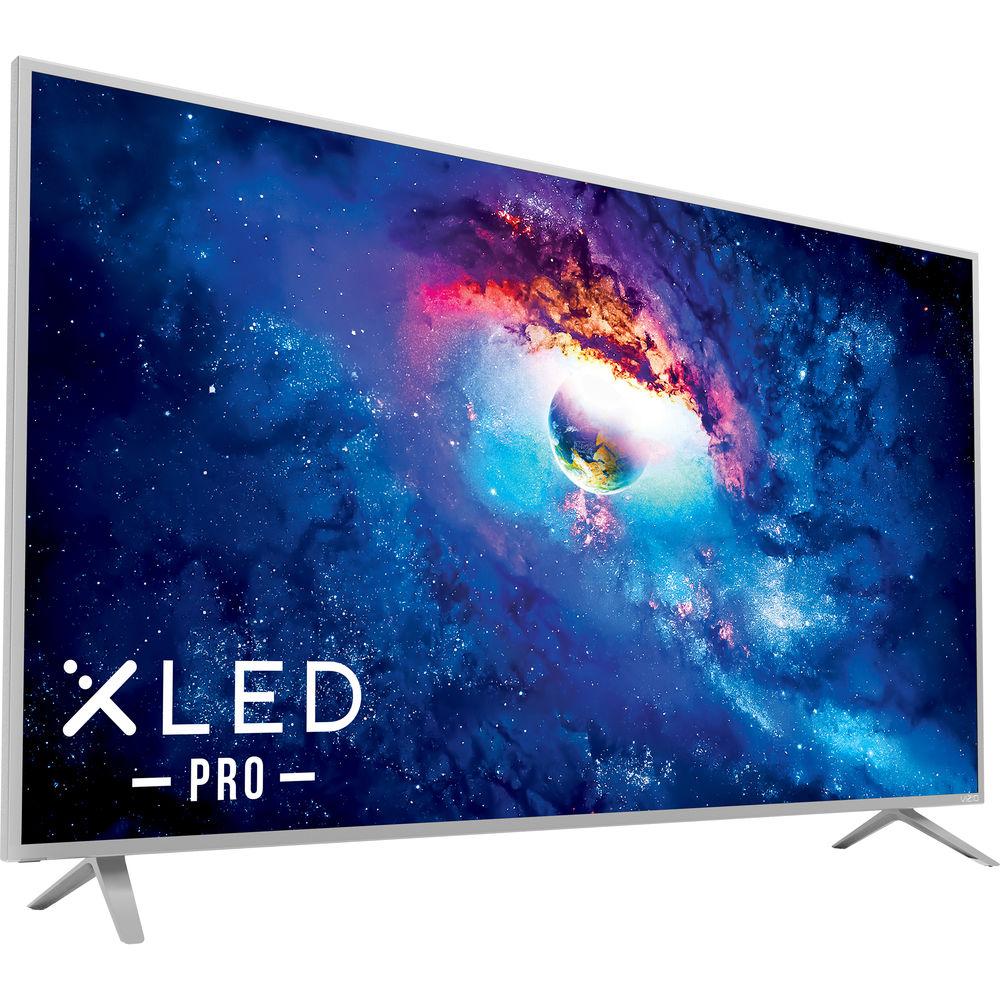

Product description The Big March TV Tournament Read More Enjoy UHD content with enhanced contrast with the VIZIO P-Series 55" Class HDR UHD SmartCast IPS XLED Pro Home Theater Display. Its 126 active LED zones will dim in places where the image is supposed to appear dark to provide the effect of an enhanced contrast ratio. The 240 Hz effective refresh rate combined with Clear Action 960 technology will help smooth out the blur commonly associated with fast-moving objects.
The P-series has Chromecast built-in, allowing you to cast apps directly from your compatible smart device to the display via Wi-Fi. Its five HDMI ports provide connections to HD and UHD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. It also features two USB ports for connecting a portable drive. You can use your smartphone as a remote with the SmartCast Mobile app. Note: This is a tuner-free display. If you use an external antenna to watch local over-the-air broadcast TV signals, a TV tuner is required and sold separately. - XLED Pro Picture
- XLED Pro full-array local dimming is designed to provide greater true-to-life clarity in 4K Ultra HD for an enhanced picture experience.
- Chromecast built-in
- With thousands of Chromecast-enabled apps, you can command your entertainment and stream content from your phone directly to your display.
- XHDR Pro
- XHDR Pro is designed to deliver a rich level of High Dynamic Range with enhanced depth, color contrast, and bright brights.
- XLED Pro
- The 126 local dimming zones of XLED Pro adapt brightness levels for dark blacks without compromising brights.
- Ultra Color Spectrum
- The P-series is designed to reveal fine details with a wide range of colors and saturation, expressing every hue, harmony, and tone accurately.
- More Ways to Discover and Control
- The P-series launches apps directly from the display, and SmartCast Mobile allows you to browse and control your favorite content from your phone.
- SmartCast TV Remote

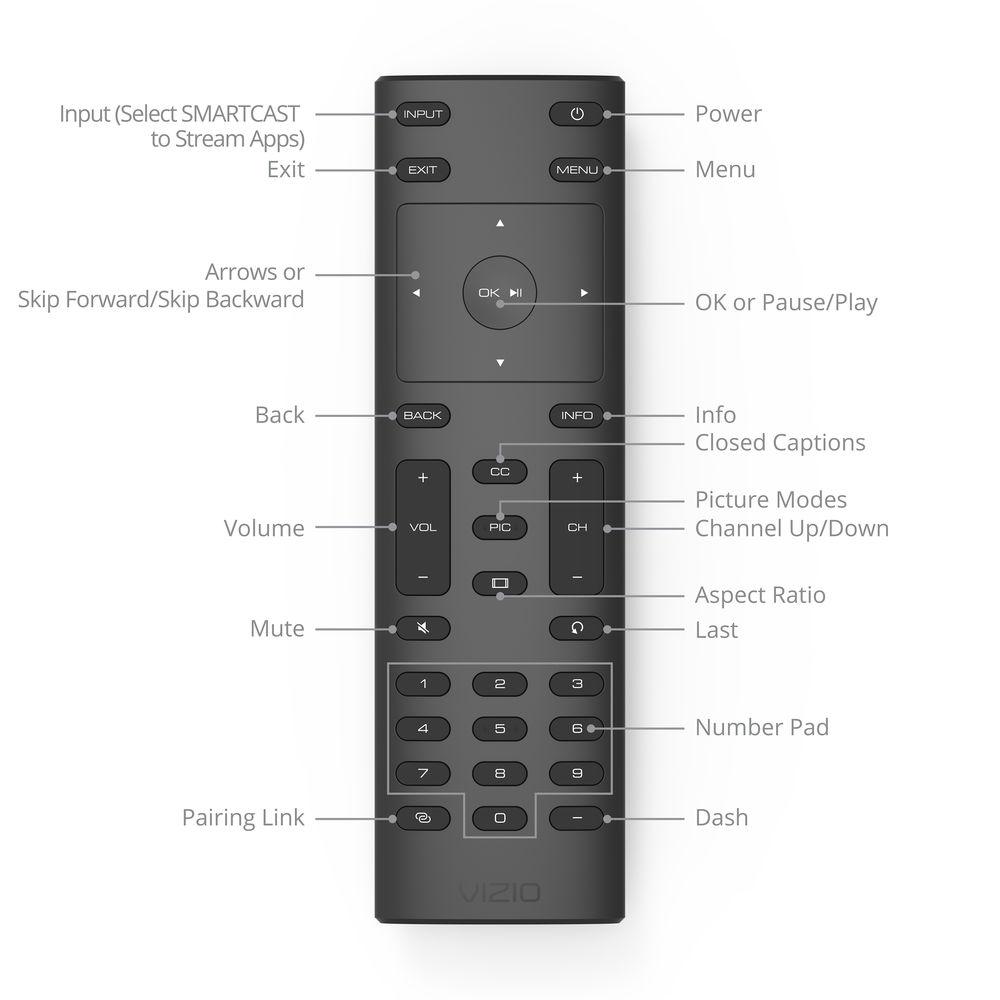

- The P-series includes a SmartCast remote to navigate your display and provide quick access to your favorite content with direct-to-app buttons.
- SmartCast Mobile
- Download VIZIO SmartCast Mobile to turn your phone into a touchscreen remote with access to more apps. Simply tap to cast content to the big screen.
- Use Your Voice to Control the Display with Your Google Home
- The P-series works with the Google Assistant on devices like the Google Home. Google Assistant is a digital ecosystem that enables you to interact with and control compatible devices simply by using your voice. Additionally, app control lets you use your smartphone to access functions on the go.
- VIZIO SmartCast TV
- SmartCast TV enables apps to be accessible through the display for simple access to your favorite TV shows, movies, and music.
- Additional Features
-
- IPS LED panel
- VM50 Engine picture processor
- 8-core display processor
- Xtreme Black Engine Pro
- HDMI ports 1 through 4 support HDMI v2.0a; port 5 supports v1.4
- HDCP version 2.2
- HDMI 1 through 4: 600 MHz pixel clock rate; 2160p @ 60 fps, 4:4:4, 8-bit / 2160p @ 60 fps, 4:2:2, 12-bit / 2160p @ 60 fps, 4:2:0, 12-bit
- HDMI 5: 370 MHz pixel clock rate; 2160p @ 60 fps, 4:2:2, 8-bit / 2160p @ 60 fps, 4:2:0, 10-bit / 1080p @ 120 fps, 4:4:4, 10-bit / 1080p @ 120 fps, 4:2:2, 12-bit
- Active Pixel Tuning
UPC: 845226015359 In the Box VIZIO P-Series 55" Class HDR UHD SmartCast IPS XLED Pro Home Theater Display Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO P-Series 55" Class HDR UHD SmartCast IPS XLED Pro Home Theater Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

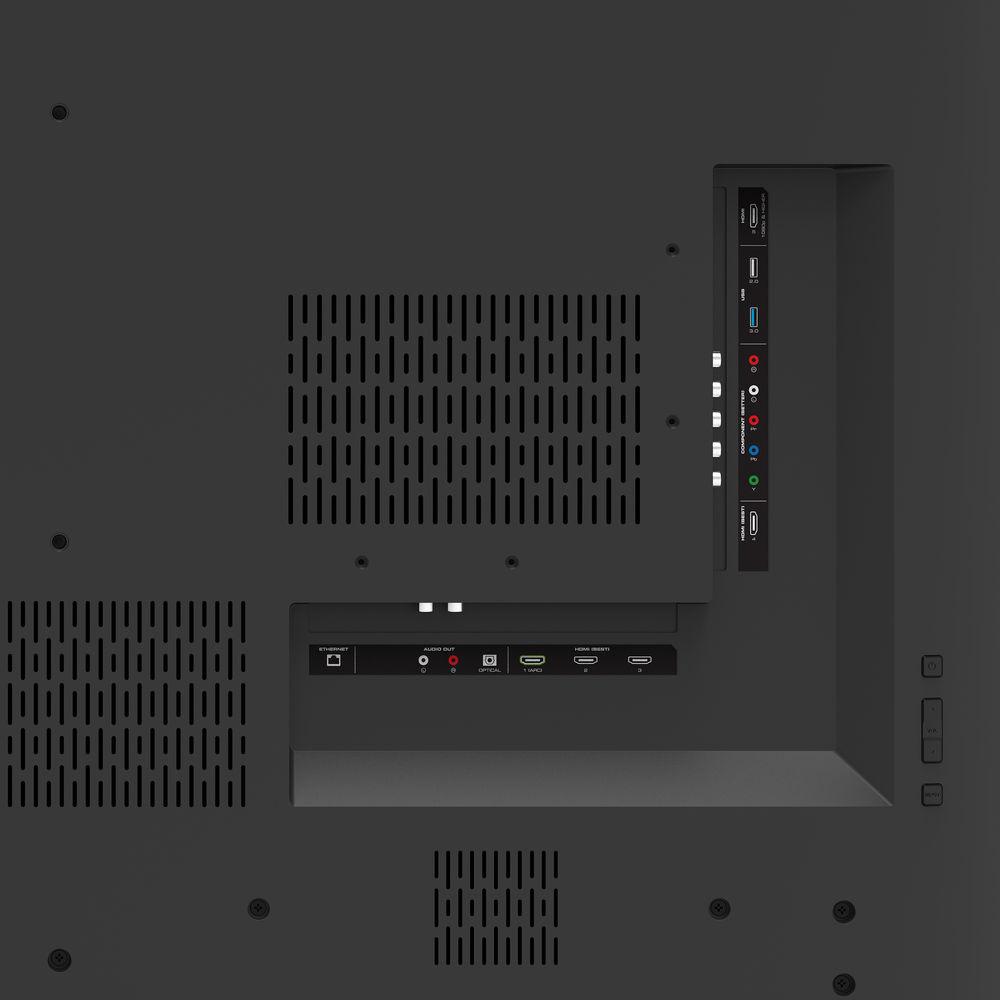

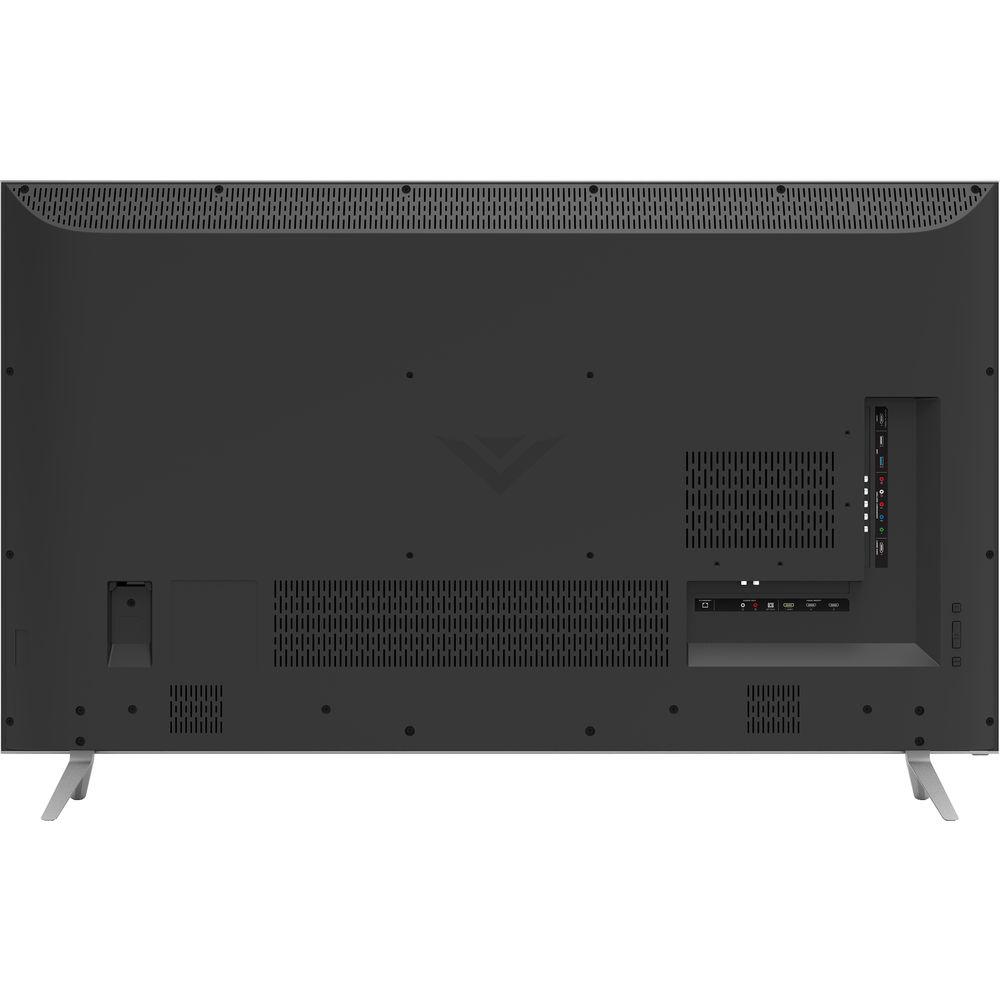

Technical parametersVIZIO P55-E1 Specs | | | Screen Size (Diagonal) | 54.64" | | Panel Type | IPS | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision | | Dynamic Contrast Ratio | 50,000,000:1 | | Display Colors | 1.07 Billion | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | None | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
2 x HDMI – Audio, Video (Side)
1 x RCA Component – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x RCA Stereo (L/R) – Audio (Bottom)
1 x TOSLINK Optical – Audio (Bottom) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 300 x 300mm | | | | Power Consumption | Operational: 114.0 W
Standby: < 0.5 W | | Dimensions (W x H x D) | 48.7 x 30.3 x 10.0" / 123.7 x 77.0 x 25.4 cm With stand
48.7 x 28.1 x 2.5" / 123.7 x 71.4 x 6.3 cm Without stand | | Weight | 41.01 lb / 18.60 kg With stand
40.12 lb / 18.20 kg Without stand | | | | Package Weight | 58.0 lb | | Box Dimensions (LxWxH) | 55.0 x 32.0 x 8.0" |
