User Manual for VIZIO P-Series Quantum 65" Class HDR 4K UHD Smart Quantum Dot LED TV Click to enlarge the picture
Contents of the user manual for the VIZIO P-Series Quantum 65" Class HDR
- Product category: Televisions VIZIO
- Brand: VIZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VIZIO Televisions
 |
User manual for the VIZIO P-Series Quantum 65" Class HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VIZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VIZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VIZIO product will considerably shorten its lifespan!
|

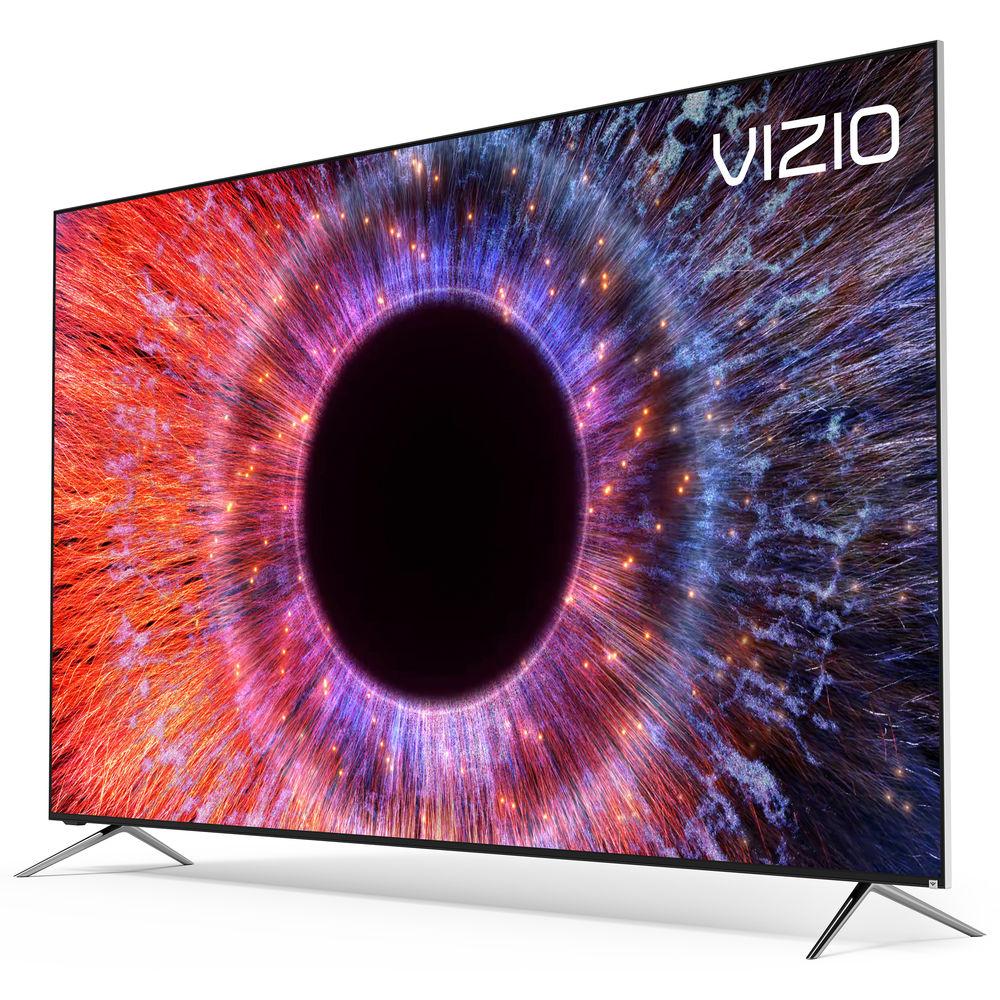

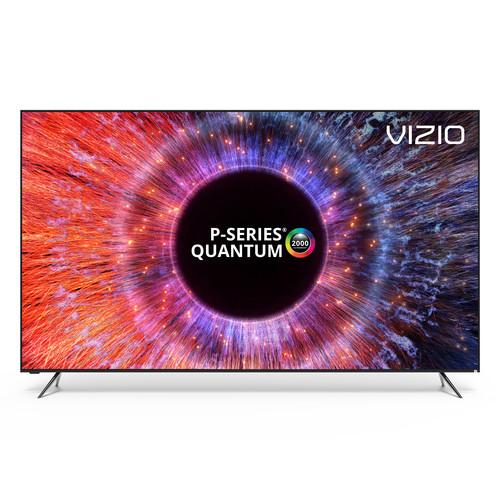

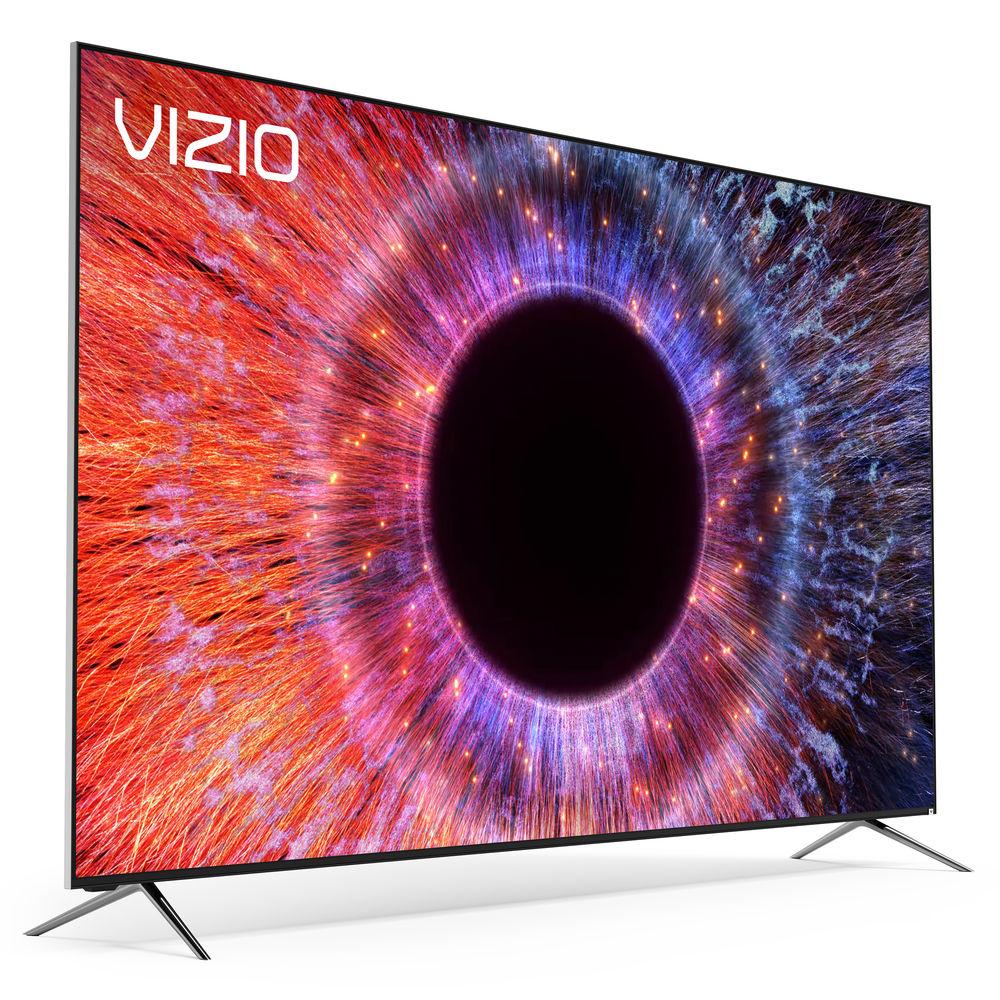

Product description The Big March TV Tournament Read More Enjoy 4K UHD content and HDR, Dolby Vision, and HLG HDR compatibility with the VIZIO P-Series Quantum 65" Class HDR 4K UHD Smart Quantum Dot LED TV. It features a Quantum Dot LED-backlit LCD panel with 192 local dimming zones to provide accurate color and enhanced contrast. Its 240 Hz effective refresh rate is augmented by Clear Action 960 technology to help provide smooth motion.
The P series Quantum has Chromecast built-in, allowing you to cast apps directly from your compatible smart device to the display over your Wi-Fi network; you can also download apps directly to the TV thanks to the onboard SmartCast OS. Its five HDMI ports provide connections to digital HD devices such as Blu-ray players, cable/satellite boxes, gaming systems, and more. You can use your smartphone as a remote with the SmartCast Mobile app, or control the TV with your voice through your Google Assistant- or Amazon Alexa-enabled device. Note: Content acquired via certain apps may require subscription to a service. A Google Assistant- or Amazon Alexa-enabled device is required to control the TV with the Google Assistant or Alexa. - Active Full Array Max
- With 192 local dimming zones and UltraBright 2000 technology, the P series Quantum produces bright white levels and deep black levels.
- Quantum Color Spectrum
- Quantum Dot technology helps produce vibrant colors.
- 4K UHD Resolution with Dolby Vision HDR
- Watch TV in clear 4K UHD resolution with the enhanced color quality of HDR with compatible media and source devices.

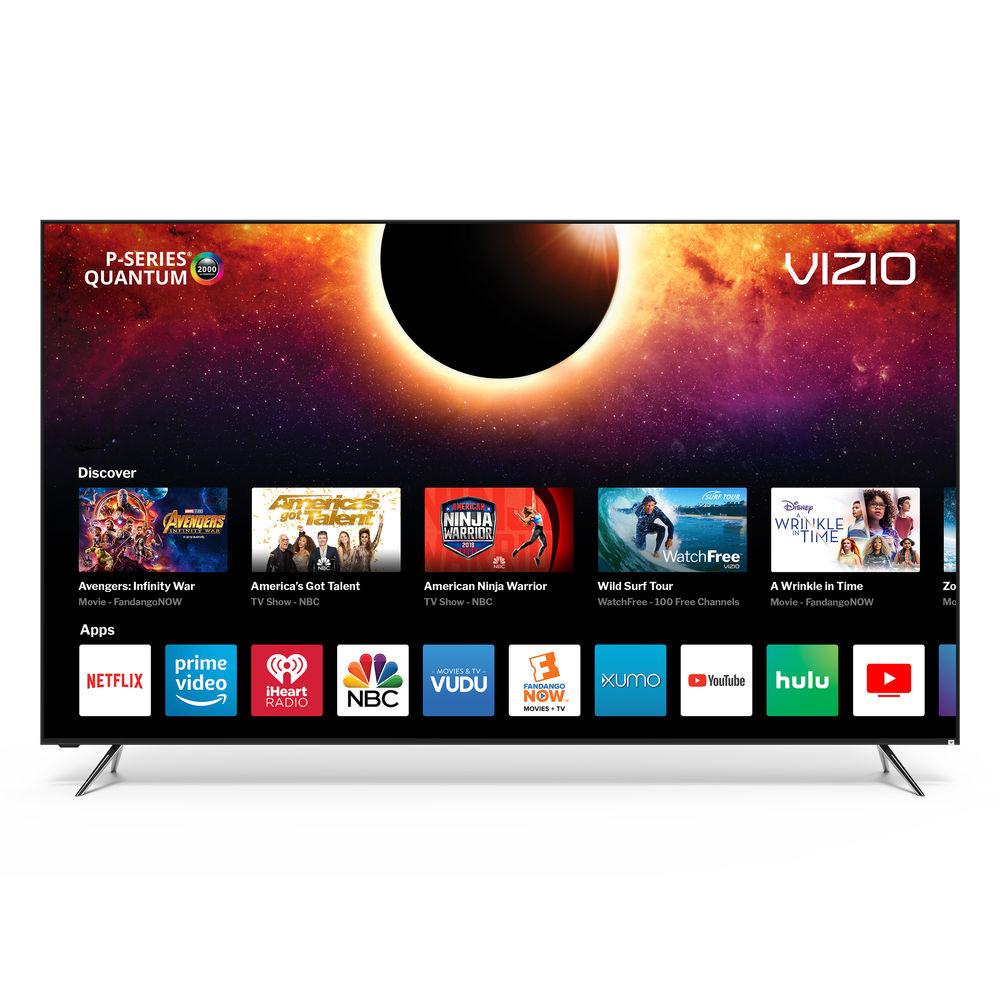

- Smart TV Powered by SmartCast OS
- Enjoy instant access to popular apps right on the TV and voice control through your Google Assistant- and Amazon Alexa-enabled devices.
- VIZIO SmartCast Mobile App
- Control your TV and discover content using your phone or remote.
- Chromecast built-in
- Access web content and thousands of entertainment apps, mirror your compatible laptop or mobile device, and enjoy music with Chromecast built-in. You can also browse the web with Google Chrome.
- Voice Control
- The P series Quantum offers voice-control support for Amazon Alexa and the Google Assistant. Alexa enables you to power the TV on or off, play or pause media, adjust the volume, and change the channel; the Google Assistant lets you play or pause your media, adjust the volume, and stream from your favorite compatible app.
- VIZIO WatchFree
- Over 100 live and Internet streaming channels are available for free, including live news, movies, sports, comedy, music, and more.
- Additional Features
-
- Spatial Scaling Engine for UHD upscaling
- VM50 Engine picture processor
- V8 octa-core processor
- Clear Action 960
- Dual-band Wi-Fi 5 (802.11ac) onboard
- Support for VP9 and HEVC (H.265) UHD codecs
- 240 Hz effective refresh rate
- DTS TruSurround

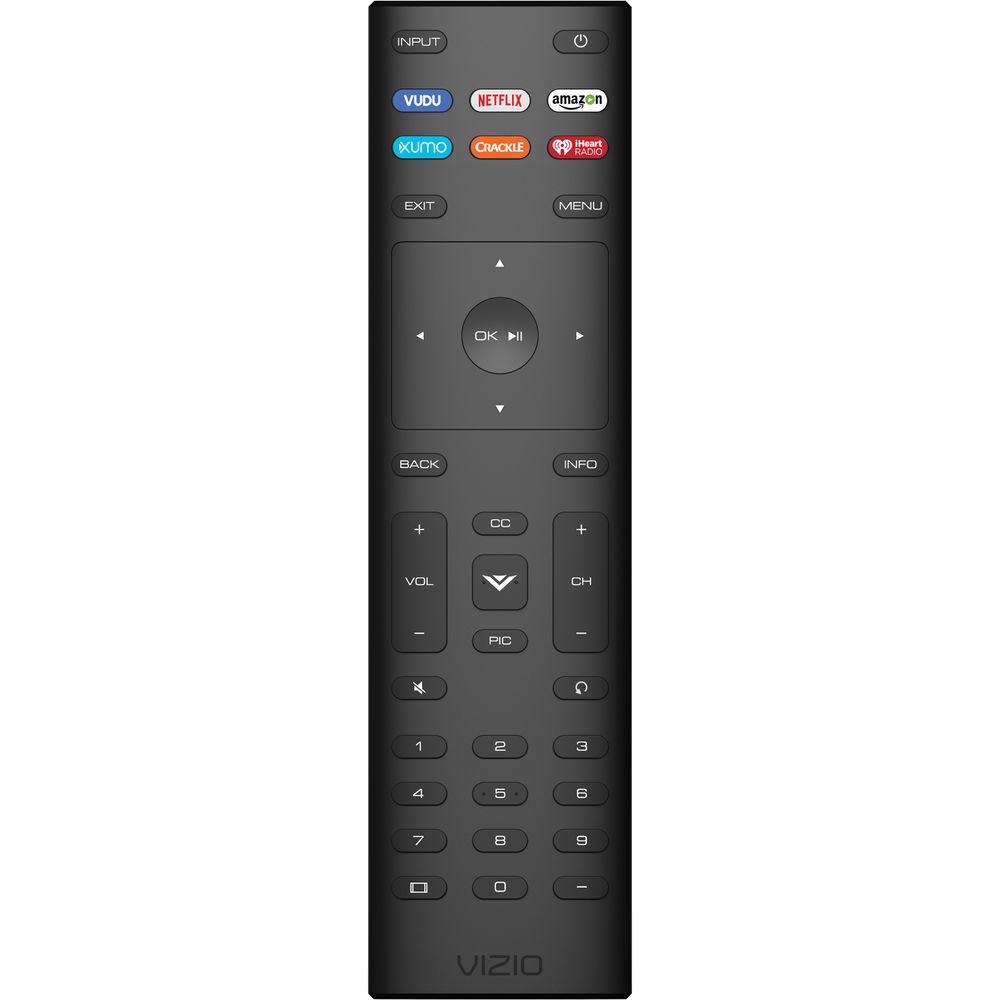

UPC: 845226016868 In the Box VIZIO P-Series Quantum 65" Class HDR 4K UHD Smart Quantum Dot LED TV Remote Control 2 x AAA Batteries Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 dvuywcsq The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 6.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the VIZIO P-Series Quantum 65" Class HDR 4K UHD Smart Quantum Dot LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

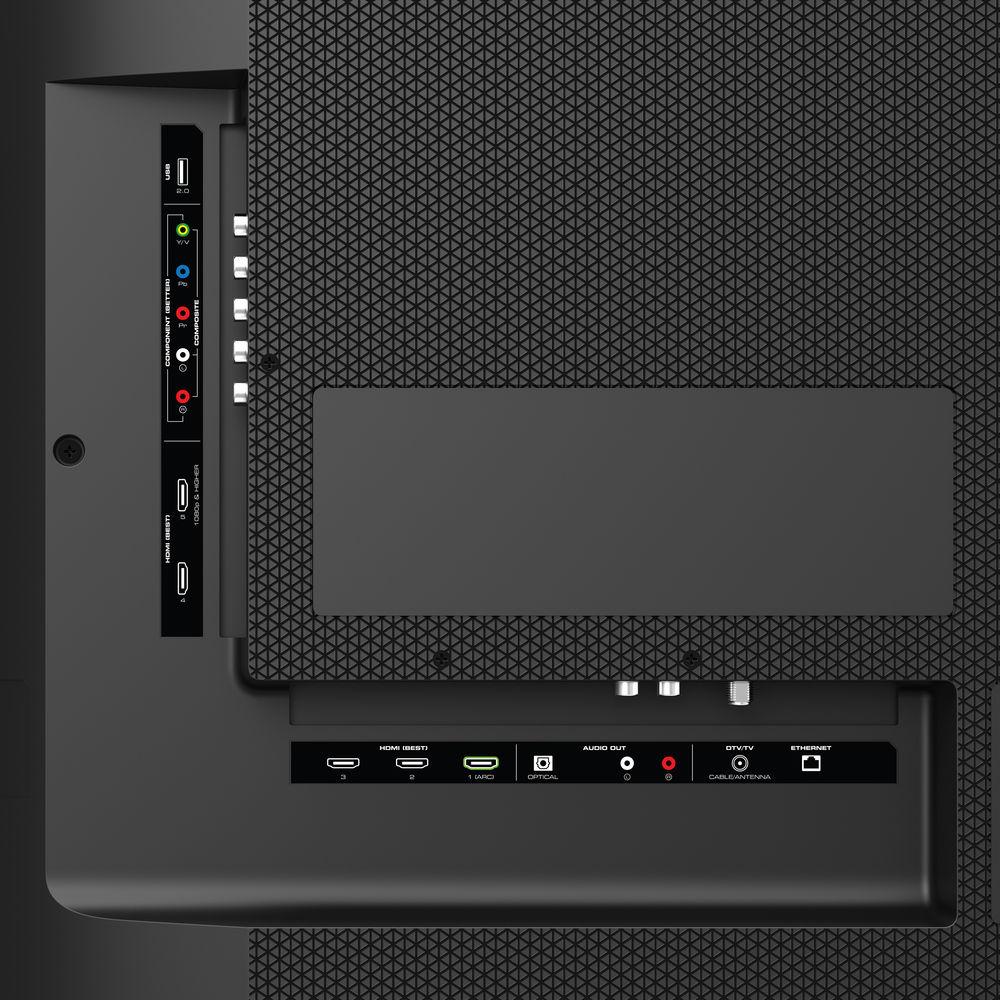

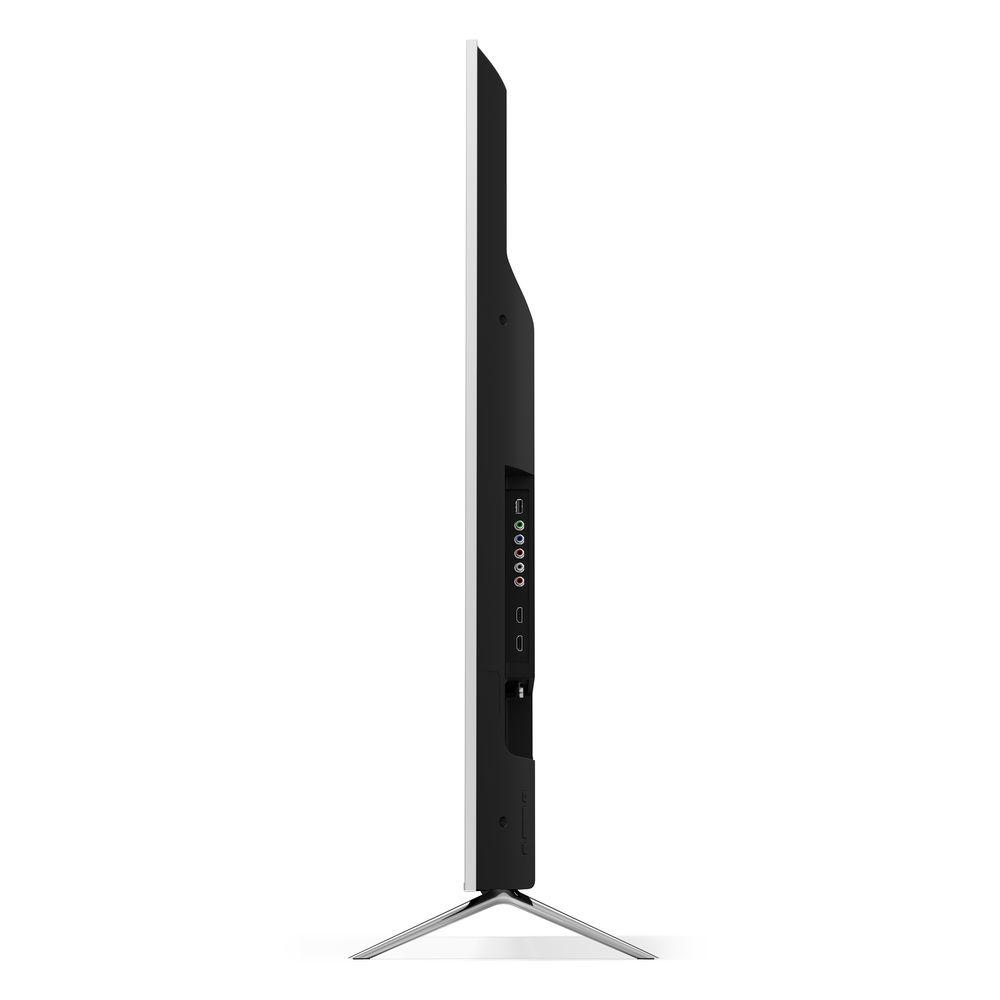

Technical parametersVIZIO PQ65-F1 Specs | | | Screen Size (Diagonal) | 64.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma | | Dynamic Contrast Ratio | 50,000,000:1 | | Display Colors | 1.07 Billion | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
2 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video
1 x RCA Component/Composite Combo – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom) | | USB Ports | 1 x USB (Version Unspecified) (Side) | | Ethernet | LAN | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | SmartCast OS | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Power Consumption | Operational: 240.0 W
Standby: < 0.5 W | | Dimensions (W x H x D) | 57.0 x 35.1 x 11.8" / 1446.8 x 891.8 x 300.0 mm With stand
57.0 x 32.7 x 2.7" / 1446.8 x 831.1 x 69.1 mm Without stand | | Weight | 59.4 lb / 26.94 kg With stand
54.06 lb / 24.52 kg Without stand | | | | Package Weight | 79.0 lb | | Box Dimensions (LxWxH) | 64.0 x 38.0 x 8.0" |
