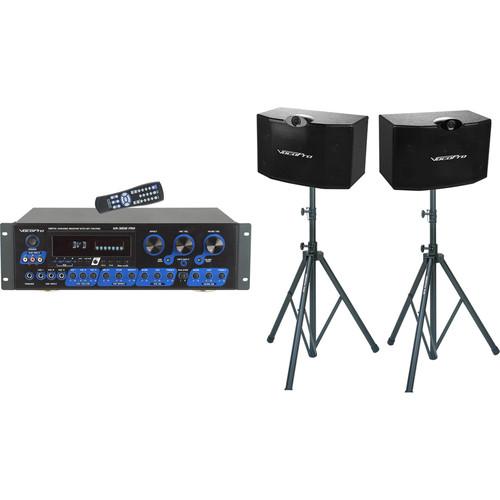

User Manual for VocoPro ASP-3808-II KTV Digital Karaoke Mixing Amplifier with Speaker Click to enlarge the picture
Contents of the user manual for the VocoPro ASP-3808-II KTV Digital Karaoke Mixing
- Product category: Portable PA Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Portable PA Systems
|
User manual for the VocoPro ASP-3808-II KTV Digital Karaoke Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The ASP-3808-II KTV Digital Karaoke Mixing Amplifier from VocoPro includes a KR-3808 PRO 300W Digital Karaoke Mixing Amplifier, a pair of SV-500 10" 3-Way Vocal Speaker, two BNB-30 Speaker Cables, and two SS-88 Speaker Stands. The KR-3808 features a 300W amplifier, inputs for up to three video/audio players, and connections for up to three microphones. Its karaoke features include a digital key control for scaling the music pitch to suite your vocal range, digital echo for adding depth and special effects to your voice, and a 1/8" audio input right on the front panel to connect your MP3 player or laptop. Each SV-500 speaker comes equipped with a 10" coated woofer with high temperature voice coil and dual 3" cone midrange drivers for enhanced fidelity. For protection against blown tweeters, the speaker features PTC protection circuitry. The included SS-88 Speaker Stands allow you to raise the SV-500 speaker. The spreading tripod legs of these speaker stands allows you to get the height you need along with maintaining the required stability. Other than these, ASP-3808-II KTV Digital Karaoke Mixing Amplifier comes with a 30' banana-to-banana cable and a mounting bracket. - KR-3808 Pro Digital Karaoke Receiver The VocoPro KR-3808 Pro Digital Karaoke Receiver delivers karaoke fun into living rooms, home theaters, bar & restaurant sound systems, portable rigs and more. The KR-3808 features a powerful 300 watt amplifier, inputs for up to 3 video/audio players and connections for up to 3 microphones. Its karaoke features include a digital key control for scaling the music pitch to suite your vocal range, digital echo for adding depth and spacial effects to your voice, and a handy 1/8" audio input right on the front panel to connect your MP3 player or laptop.
- 150W + 150W maximum power output mixing amplifier
- +/- Step digital key controller to adjust the key of the music to fit your vocal range
- Digital echo with repeat and delay controls to add depth and space to vocals
- Microphone inputs with individual volume controls
- Full-function remote control for ease of operation
- Built-in AM/FM tuner with 60 programmable station presets (30 AM, 30 FM)
- Master music and microphone volume controls
- Detachable power cable, remote control, operation manual included
UPC: 692868338083 - SV-500 10" 3-Way Vocal Speaker (Pair) The SV-500 10" Vocal Speakers from VocoPro is a pair of 3-way speakers, each with a 10" woofer with high-temperature voice coil, and dual 3" cone midrange drivers for enhanced fidelity. They also feature a center-mounted 1" cone tweeter each, with a Kapton voice coil.
- 10" coated woofer with high temperature voice coil
- Dual 3" cone midrange drivers for enhanced fidelity
- Center mounted 1" cone tweeter with Kapton voice coil
- PTC protection circuitry prevents against blown tweeters
UPC: 692868505003 In the Box Bundle Items KR-3808 Pro Digital Karaoke Receiver bzxyvswetzwqzxfcdzbewzsvrdbzzasz - Video/Stereo RCA Patch Cable
SV-500 10" 3-Way Vocal Speaker (Pair)
Also Includes - 2 x BNB-30 Speaker Cable
- 2 x SS-88 Speaker Stand
Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro ASP-3808-II KTV Digital Karaoke Mixing Amplifier with Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - KR-3808 Pro Digital Karaoke Receiver
| Power | 150W + 150W | | Connections | DVD / AV1 Video: RCA Phono x2
AV2 Video: RCA Phono x3
1/4" Phone Mic Inputs x3 Speaker Output Binding Posts L/R
AM/FM Antenna Connections 1/8" (3.5mm) MP3 Player Input
Headphone 1/4" TRS Phone Output
Audio: RCA Left / Right (Pre / Rec) | | Controls | Amplifier:
Mic Volume Controls x3 Delay, Echo and Repeat Controls
Bass, Mid, Treble Mic EQ Bass, Mid, Treble Music EQ
Balance Control Music, Mic and Effect Main Level Controls
Power Switch Scan / Tune Controls
Loud, Talk over and Input Controls FM/AM Switch
Stereo / Mono Switch Preset Switches
Remote Control: Input, Talk Over, Loud Switch
Scan, FM/AM, Memory, Stereo/Mono Switch Channel and Tuning Switches
Effect, Mic and Music Volume Switches Numerical Keypad | | | | Box Dimensions (LxWxH) | 19.9 x 16.8 x 9.1" | - SV-500 10" 3-Way Vocal Speaker (Pair)
| Power Rating | 250 W maximum/120 W RMS | | Impedance | 8 Ohms | | Sensitivity | 90 dB | | Frequency Response | 20 Hz to 25 kHz |
