User Manual for VocoPro CASAMAN-VOICE Professional Digital Karaoke Mixing Amplifier with CA-358 Vocal Speaker Package Click to enlarge the picture
Contents of the user manual for the VocoPro CASAMAN-VOICE Professional Digital Karaoke Mixing
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
 |
User manual for the VocoPro CASAMAN-VOICE Professional Digital Karaoke Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

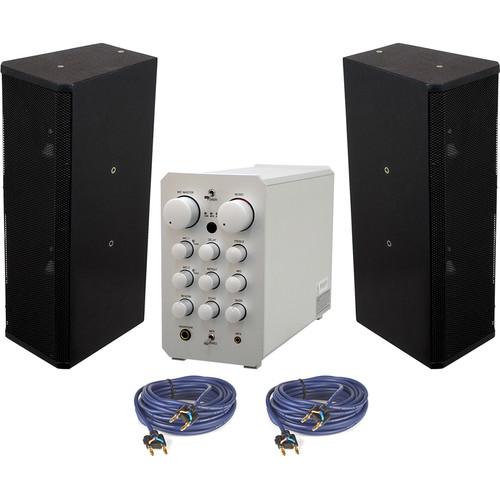

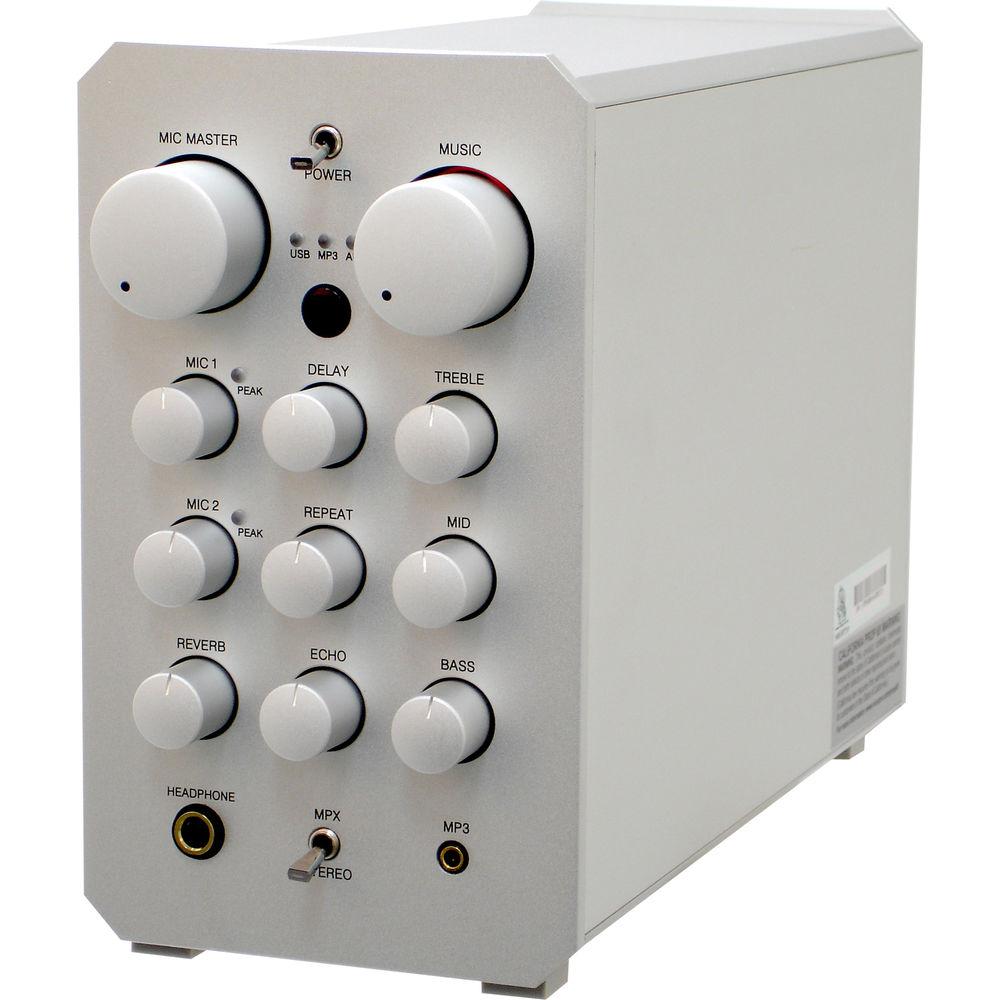

Product description The CASAMAN-VOICE Professional Digital Karaoke Mixing Amplifier Package from VocoPro includes two CA-358 Speakers and two BNB-30 Cables in addition to the 100W x 100W Amplifier. The mixing amplifier comes with two microphones inputs that can double as instrument inputs, complete with digital Reverb and Echo. A master microphone and music control make it easy to strike the right balance of volumes. If you have all your music on your laptop, you'll benefit from the USB jack that lets you stream directly into the CASAMAN. Any smartphone or tablet is compatible thanks to the 1/8" stereo input jack and the included cable. The microphone expansion bay provides the freedom to cut the microphone cords by installing a wireless microphone module, while the stereo music expansion bay is available for a Bluetooth receiver to stream music wirelessly. - Casaman Digital Mixing Amplifier with USB The Casaman Professional Digital Mixing Amplifier with USB from VocoPro is a 100 x 100 watt compact, digital vocal mixing amp that runs cool due to its Class-D power amplification module, which was developed by Icepower, a division of Bang & Olufsen. A Class-D amplifier can be smaller and yet run cooler even while being a more powerful amp.
This mixing amplifier comes with two microphone inputs, which feature DSP echo and reverb effects. These inputs can double as instrument inputs, all with the effects circuitry available. A master microphone and a music level control make it easy to achieve the right balance of volumes between the two.
A USB jack is featured so that if you have your music on your laptop, you'll benefit from streaming directly into the Casaman. The unit is even Mac compatible and, thanks to the 1/8" stereo input jack and the included cable, a smart-phone or tablet will also work with this mixer/amp.
Finally, the Casaman includes an expansion bay, which provides the freedom to cut the microphone cords by installing an optionally purchased wireless microphone module, while the stereo music expansion bay is available for a separately purchased Bluetooth receiver to stream music wirelessly.
- 2 x 100 W Power amplifier
- DSP Echo and reverb effects
- Small and powerful due to Class D Amplification
- USB Jack for direct digital connection
- 1/8" Jack for analog input
- 2 x XLR and RCA analog inputs
- Includes separate subwoofer output
- SV-408 8" 3-way vocal speaker pair available as additional optional purchase
- Optional stereo music expansion port supports VocoPro Bluetooth receiver (additional purchase)

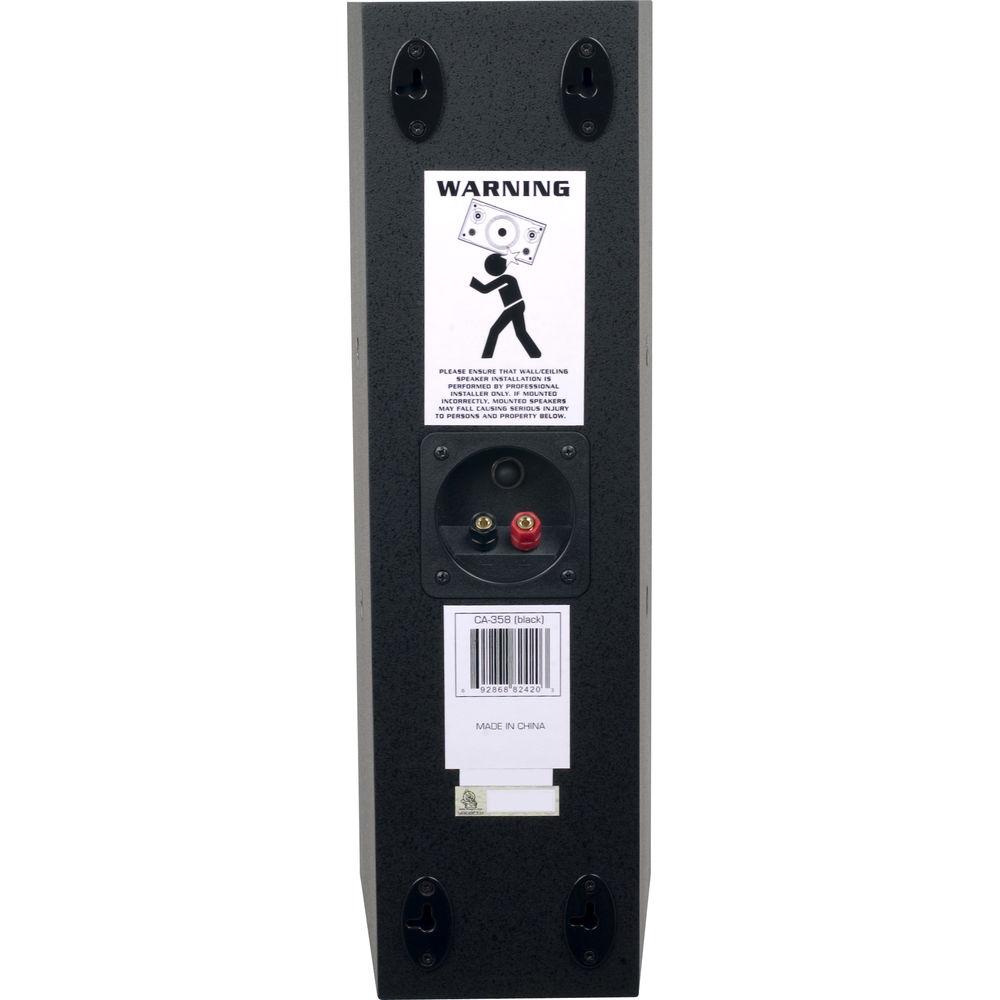

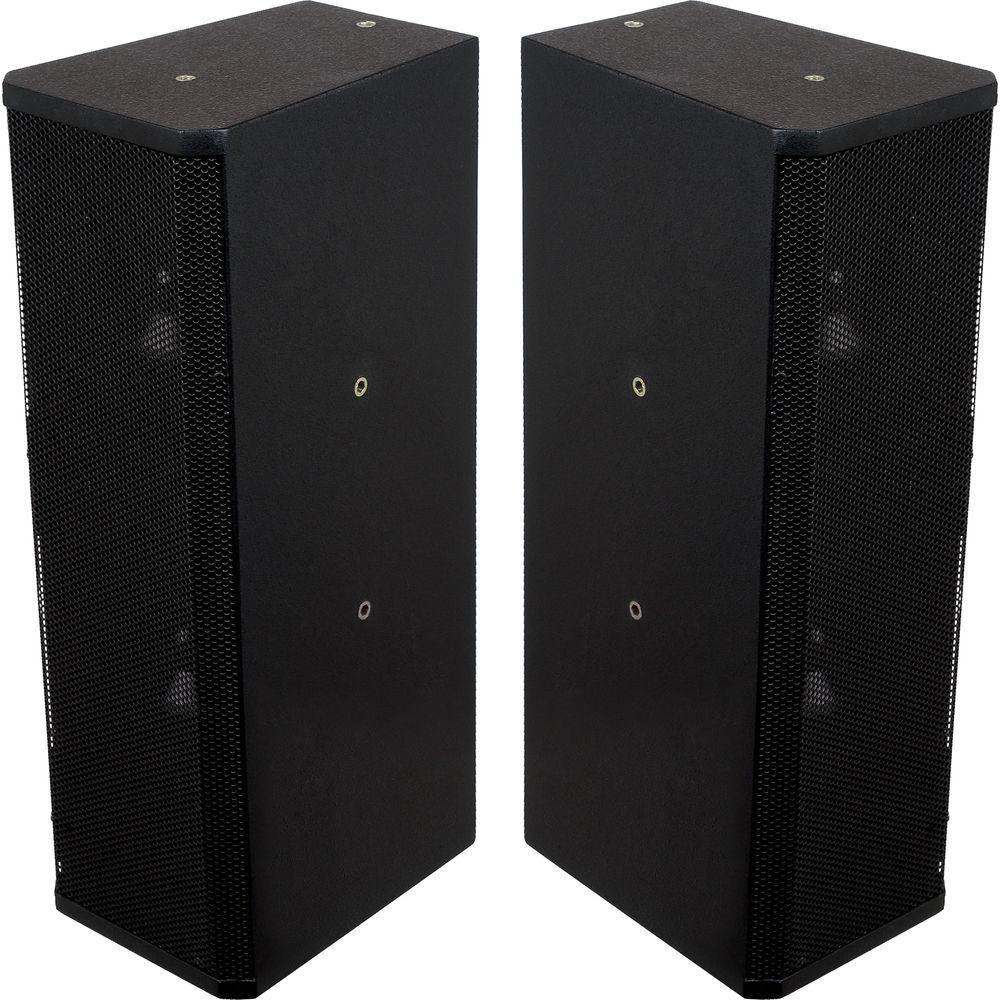

UPC: 692868227264 - CA-358 Compact Line Array Speaker with Angular Dispersion (Black) The black CA-358 Compact Line Array Speaker with Angular Dispersion from VocoPro is lightweight and delivers crisp and clear vocals. This speaker produces quality results for singing as well as speech. It is suitable for permanent installation in houses of worship or at any location that needs or demands loud and clear vocals.
- Innovative cabinet design features 4 drivers configured for angular dispersion and beam-steered for 180° projection
- Labyrinthine internal structure for balanced guided-wave acoustics

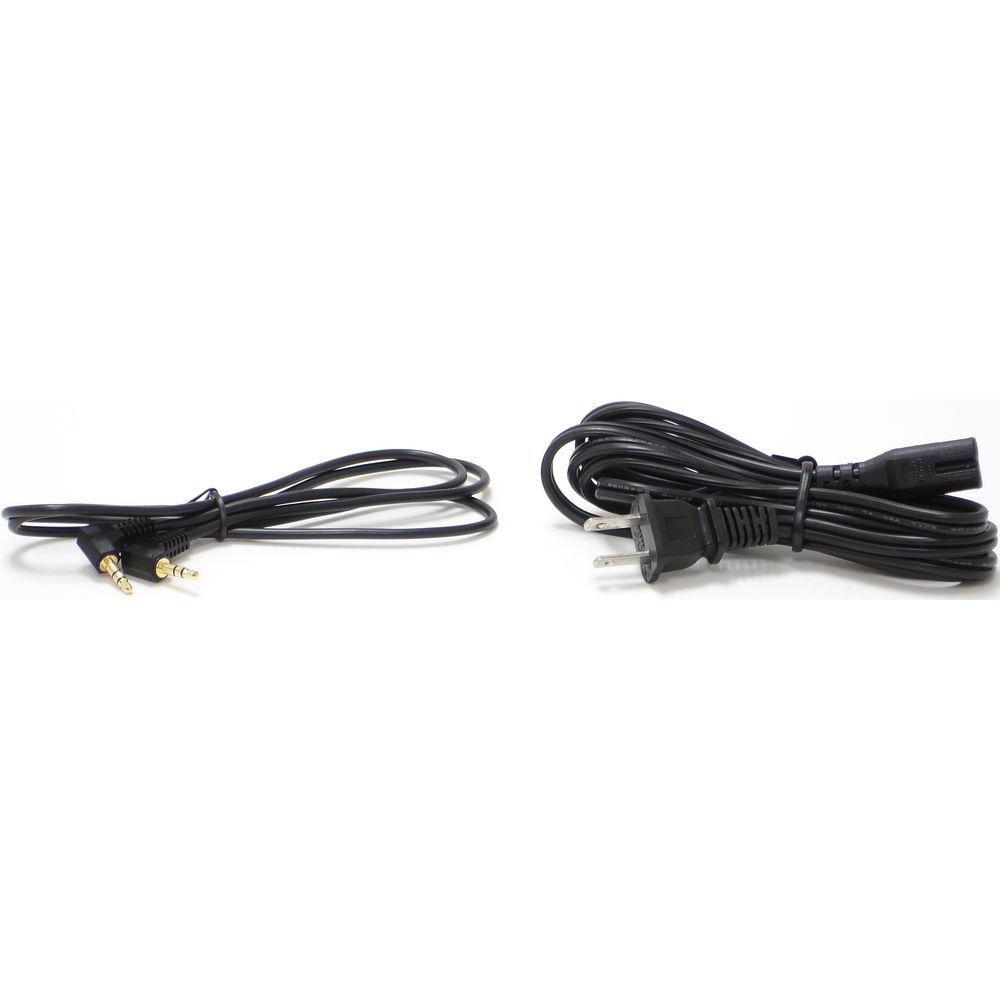

In the Box Bundle Items Casaman Digital Mixing Amplifier with USB cetuwbucrccvfesfazdfvebcfae - TRS to TRS Analog Audio Cable
2 x CA-358 Compact Line Array Speaker with Angular Dispersion (Black)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro CASAMAN-VOICE Professional Digital Karaoke Mixing Amplifier with CA-358 Vocal Speaker Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Casaman Digital Mixing Amplifier with USB
| Amplifier Power | 100 + 100 Max

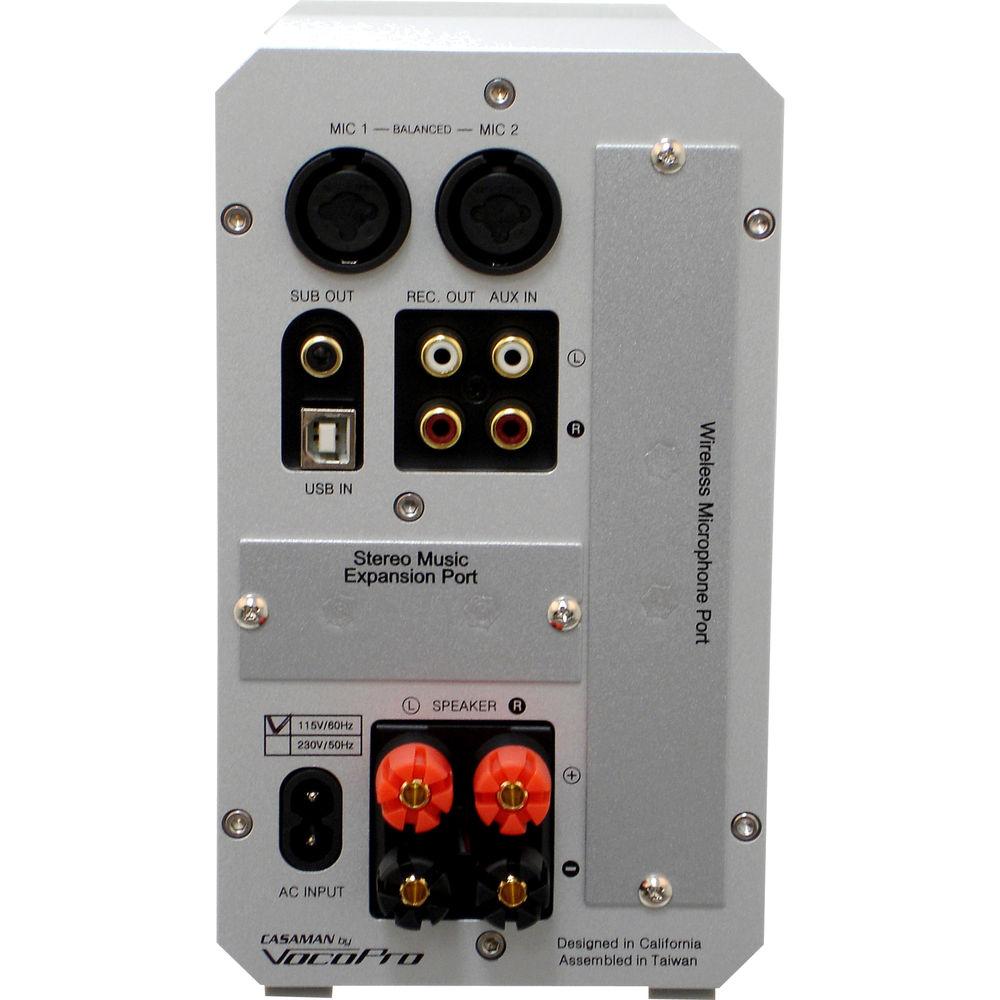

50 + 50 RMS | | Microphone Inputs | 2 1/4" / XLR combo with DSP echo and reverb effects | | USB Port | Connects to laptop computer or other USB device | | MPX Function | Supports multi-audio media | | Wireless (Features) | Optional VHF and UHF wireless mic modules available (additional purchase) | | Expansion Ports | Optional stereo music expansion port supports VocoPro Bluetooth receiver (additional purchase) | | Rear Panel Connectors | Power in
RCA L/R in
RCA L/R out
USB in
RCA Sub out
2 XLR-1/4" combo mic jacks
1/4" mic out
Speaker Out | | Front Panel Connectors | 1/8" audio in (MP3 Analog)
1/4" TRS headphone out | | Speaker Support | SV-408 8" 3-way vocal speaker pair available as additional optional purchase | | Dimensions and Weight | Not supplied by manufacturer | - CA-358 Compact Line Array Speaker with Angular Dispersion (Black)
| Driver | Celestion All-Pro AN3510 3.5" Full Range Compact Array | | Frequency Response | Flat: From 125 Hz to 20,000 Hz at 85 dB SPL | | Voice Coil | 25 mm | | Nominal Impedance | 8 Ω | | Power Capacity | RMS: 140 W
Maximum: 280 W | | Sensitivity | 87 dB | | Type | Magnet: Neodymium
Chassis: Glass-reinforced ABS | | Connections | Rear Panel: Banana speaker connector / Bare wire screw connectors | | Diameter | 3.5" (88.9 mm) |
