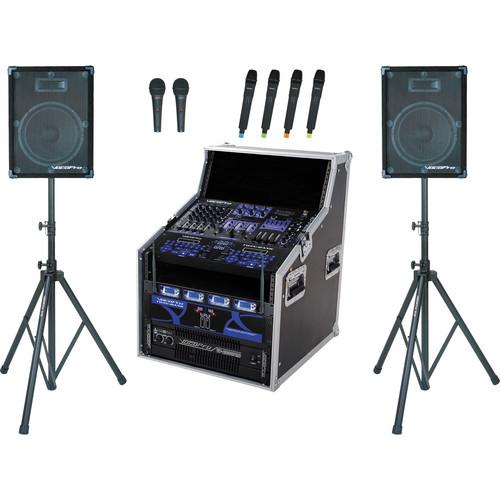

Product description The 2000W CLUB-HD9500 Professional Club System from VocoPro is a professional club system that includes a TWIN-BANK multi-format dual hard drive player, a KJ-7808 RV mixer, a VP-2100 PRO digital switching power amplifier, a UHF-5900 four-channel UHF wireless microphone system, two MK-38 wired microphones, four VX-15 15" vocal speakers, four SS-88 speaker stands, and a FC-90 flight case.
The TWIN-BANK is a professional multi-format dual hard drive player with dual USB and SD inputs and 500GB hard drives to handle large media libraries. The dual hard drive design makes this unit suitable for KJ, DJ, or VJ setups. The KJ-7808 RV is a professional KJ/DJ/VJ mixer with DSP mic effect, digital key control, and a built-in 5-band graphic equalizer.
The VP-2100 PRO is a portable digital switching power amplifier which uses digital switching technology for low-weight and reduced heat. It has a built-in clip limiter and low frequency filter. The amplifier's 100 dB s/n ratio ensures a clear and uncolored audio signal. The UHF-5900 is a UHF PLL wireless mic system that runs up to four wireless handheld transmitters (included) simultaneously. The system's frequency-scan feature automatically searches for the best available operating frequencies, minimizing setup time and RF interference noise. The frequency can also be set manually to one of the 150+ frequency options.
The two MK-38 PRO wired microphones offer -53 dB of sensitivity and a frequency response of 50 to 16 kHz. They have a black leatherette finish, and come with a 20' detachable cable each.
The VX-15 is a 15" professional vocal speaker designed with emphasis on the midrange. The speaker is protected by heavy duty carpeting, ABS corners, and a metal grill. It is equipped with strap handles on each side and a tripod adapter. The SS-88 is a black-finished speaker stand with adjustable height and stand top.
The FC-90 is an ATA-approved flight case which offers heavy-duty protection for pro-audio components. It features two spring-loaded handles on each side, and removable front & rear covers. The case is rackmountable, occupying 21 RU of rack space. TWIN-BANK - Supports AVI, VOB, MP3+G, MP3, and JPG formats
- Dual 500GB hard drives can store thousands of files
- ±12% pitch control with key-lock works on both audio and video
- ±7 step digital key control
- Dual USB thumb drive and SD card ports on the front panel for easy access to additional media
- Rear panel USB ports for data transfer to and from a computer
- Full function remote control
- 120/240 VAC and NTSC/PAL compatible for worldwide use
KJ-7808 RV - Seven-channel Pro KH/DJ/VJ Mixer with built-in Digital Key Control
- DSP Vocal Reverb with Level control
- Two main video outputs plus one separate monitor output (RCA)
- Four Mic channels, three Line / three Video inputs, two Phono, and three Video outputs
- Onboard video crossfader toggle
- Assignable 11-step Digital Key Control (works on both Audio and Mic channels)
- Professional Digital Echo with Repeat and Delay controls
- 5-band Graphic Equalizer for precise room tuning
VP-2100 PRO - Digital switching technology for low weight & reduced heat
- Stable at 2 ohms, allows driving eight 8-ohm speakers
- Built-in clip limiter and low frequency filter prevent distortion and speaker damage
UHF-5900 - Operates in the FCC compliant 600 MHz band
- Includes four UHF wireless microphones
- Frequency scan feature finds interference free frequencies
- More than 150 wireless frequencies to choose from
- LCD display windows show frequency and other information
- 19" rackmount compatible, uses only one rack space
- Independent channel power switches and volume controls
- Four XLR independent channel audio outputs
- One 1/4" mixed audio output
- Microphones use AA batteries (not included)
MK-38 PRO - Includes a Pro Mic carrying case and holder
VX-15 - Two-way 15" P.A. vocal speaker
- Carpeted with metal speaker grills
SS-88 - Stand top adjusts from 1 3/8" to 1 1/2" diameter to fit most popular speakers
- Adjustable height from 42" up to 72"
FC-90 - Heavy-duty protection for pro-audio components
- 21 RUs of rack space: 8 RU on the front and 13 RU on top
- Two spring-loaded handles on each side
- Removable front and rear covers
UPC: 692868439506 In the Box VocoPro CLUB-HD9500 Professional Club PA System (2000W) TWIN-BANK Professional Multi-Format Dual Hard Drive Player KJ-7808 RV Karaoke/DJ/VJ Mixer with 4 Mic/Line and 3 Stereo Channels VP-2100 PRO 2000W Power Amplifier UHF-5900 UHF PLL Wireless Mic System with Frequency Scan (600 MHz) 2 x MK-38 Pro Vocal Microphones 4 x VX-15 Vocal Speakers 4 x SS-88 Speaker Stands FC-90 Flight Case Limited 1-Year Standard Warranty; Extended Warranty Plans Available Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro CLUB-HD9500 Professional Club PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro CLUB-HD9500 Specs | | | Memory Size | 2 x 500 GB | | Controls | ±12% pitch control with key-lock for audio & video
±7 step digital key control | | Ports | Dual USB thumb drive and SD card ports on the front panel for easy access to additional media
Rear panel USB ports for data transfers to and from a computer | | Voltage | 120/240 VAC | | Format | Supports AVI, VOB, MP3+G, MP3, and JPG | | | | Rack Mount | 6 RU | | Channels | 4 x Microphone | | Inputs | 3 x Line
3 x Video | | Outputs | 2 x Phono
2 x Main video
1 x RCA, monitor | | Graphic Equalizer | 5-Band | | Dimensions | 19.0 x 3.5 x 9.5" (48.3 x 8.9 x 24.1 cm) | | Weight | 10.5 lb (4.8 kg) | | | | RMS Power | 1000 W + 1000 W @ 2 Ohms | | Power Output | Maximum: 2000 W + 2000 W @ 2 Ohms | | Frequency Response | 20 Hz - 20 kHz | | Signal to Noise Ratio | 100 dB | | Inputs | XLR and 1/4" | | Dimensions | 19.0 x 3.5 x 18.0" (48.3 x 8.9 x 45.7 cm) | | Weight | 25.8 lb (11.7 kg) | | | | Finish | Black leatherette | | Sensitivity | -53 dB | | Frequency Response | 50 Hz - 16 kHz | | Impedance | 500 Ohms | | Cable Length | 20.0' (6.1 m), detachable | | | | Power Rating | 600 W peak / 300 W RMS | | Impedance | 8 Ohms | | Sensitivity | 100 dB | | Frequency Response | 20 Hz - 20 kHz | | Dimensions | 28 x 20 x 17" (71.1 x 50.8 x 43.2 cm) | | Weight | 50 lb (22.7 kg) | | | | Stand Adjustments | Height: From 42 to 72" (106.7 to 182.9 cm)
Stand Top: 1 3/8 to 1 1/2" (3.5 to 3.8 cm) diameter | | | | Rack Space | 21 RU: 8 RU front + 13 RU top | | Dimensions | 27.75 x 20.50 x 28.00" (70.5 x 52.1 x 71.1 cm) | | | | Package Weight | 271.5 lb | | Box Dimensions (LxWxH) | 60.0 x 45.0 x 40.0" |
