User Manual for VocoPro DA-1000 Pro Three-Microphone Karaoke Mixer Click to enlarge the picture
Contents of the user manual for the VocoPro DA-1000 Pro Three-Microphone Karaoke Mixer
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DA-1000 Pro Three-Microphone Karaoke Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

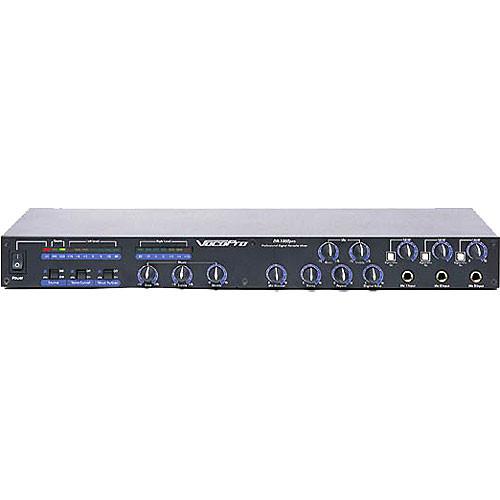

Product description The VocoPro DA-1000 Pro is a 1 RU rack-mountable karaoke mixer supporting up to three microphones and a stereo audio/video source, making it an ideal centerpiece for a home- or club-based karaoke system. Its built-in mixer provides level and 2-band EQ controls for the music and microphone inputs, as well as adjustable digital echo for the mic channels. The selectable Vocal Cancel and Vocal Partner modes remove guide vocals from multiplex karaoke media.Three front-panel 1/4" jacks accommodate dynamic microphones, while the rear-panel offers RCA sockets for composite video and stereo audio inputs. Dual video outputs and two stereo audio outputs allow versatile connectivity with televisions and stereo receivers. Seven-segment stereo meters show clear indication of output levels. The DA-1000 Pro includes a power cable and rack-mounting hardware. - Three microphone inputs with individual volume controls and echo on/off switches
- Vocal Cancel and Vocal Partner functions to delete/add guide vocals on multiplex karaoke tapes and CDs
- Bass, treble, and master level controls for mic and music signals
- CD+G and DVD source selector
- Digital echo features adjustable delay time, feedback, and level
UPC: 692868321009 In the Box VocoPro DA-1000 Pro Three-Microphone Karaoke Mixer 2 x Rack-Mounting Brackets 7 x Mounting Screws Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DA-1000 Pro Three-Microphone Karaoke Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DA-1000 Pro Specs | Inputs | 3 x 1/4" microphone inputs
4 x RCA coaxial line inputs (two stereo pairs)
2 x RCA composite video inputs | | Outputs | 4 x RCA coaxial line outputs (two stereo pairs)
2 x RCA composite video outputs | | Input Impedance | RCA: 47 kOhms
1/4": 1.5 kOhms | | Input Sensitivity | RCA: 150 mV | | Total Harmonic Distortion (THD) | RCA: <0.01%
1/4": <0.1% | | Frequency Response | RCA: 10 Hz to 20 kHz (-1 dB)
1/4": 20 Hz to 15 kHz (-3 dB) | | Signal-to-Noise Ratio (SNR) | RCA: >95 dB
1/4": >85 dB (echo off), >80 dB (echo on) | | Maximum Delay Time | 300 ms | | Equalization | Bass (Mic): ±15 dB at 80 Hz
Treble (Mic): ±15 dB at 10 kHz
Bass (Music): ±15 dB at 100 Hz
Treble (Music): ±15 dB at 10 kHz | | Power Requirement | 115/230 VAC, 50/60 Hz, 5 W | | Dimensions (W x D x H) | 19.0 x 6.0 x 1.8" / 48.3 x 15.2 x 4.4 cm (including rack ears) | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 20.7 x 9.0 x 4.7" |
