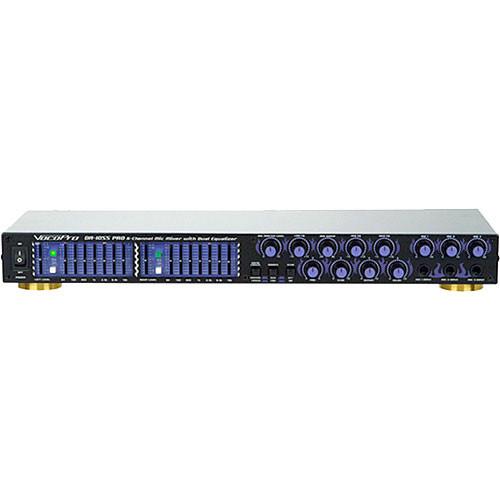

User Manual for VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer Click to enlarge the picture
Contents of the user manual for the VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro DA-1055 Pro is a karaoke mixer supporting up to six microphones and a stereo audio/video source, making it an ideal centerpiece for a home- or club-based karaoke system. Its built-in mixer provides level, pan, 3-band EQ, and adjustable digital echo for the mic signals, as well as a dual 7-band graphic EQ for the music source. The selectable Vocal Cancel mode removes guide vocals from multiplex karaoke media.Six 1/4" jacks accommodate dynamic microphones, while the rear panel offers RCA sockets for composite video and stereo audio inputs. Dual video outputs and three stereo audio outputs allow versatile connectivity with televisions and stereo receivers. Additionally, the two 1/4" microphone outputs can be routed to a large-format mixer or multitrack audio recorder. - Six microphone inputs with three level controls for dynamic microphones
- Audio/video input for CD players, DVD players, cassette recorders, and more
- Adjustable echo effect enhances vocal performances
- 3-band mic EQ and dual 7-band music EQ
UPC: 692868610554 In the Box VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DA-1055 Pro Specs | Inputs | 6 x 1/4" microphone inputs
4 x RCA coaxial line inputs (two stereo pairs)
2 x RCA composite video inputs | | Outputs | 2 x 1/4" microphone outputs
6 x RCA coaxial line outputs (three stereo pairs)
2 x RCA composite video outputs | | Input Impedance | RCA: 47 kOhms
1/4": 1 kOhm | | Total Harmonic Distortion (THD) | RCA: <0.01%
1/4": <0.1% | | Frequency Response | RCA: 10 Hz to 50 kHz (±1 dB)
1/4": 20 Hz to 20 kHz (±3 dB) | | Signal-to-Noise Ratio (SNR) | RCA: >100 dB
1/4": >85 dB (echo off), >80 dB (echo on) | | Maximum Delay Time | 300 ms | | Equalization | Bass (Mic): ±15 dB at 80 Hz
Mid (Mic): ±15 dB at 250 Hz to 6 kHz
Treble (Mic): ±15 dB at 10 kHz
Graphic EQ (Music): ±15 dB at 64 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, and 16 kHz | | Power Requirement | 115/230 VAC, 50/60 Hz, 8 W | | Dimensions (W x D x H) | 19.0 x 5.9 x 2.2" / 48.2 x 15.0 x 5.5 cm (including feet) | | Weight | 8 lb / 3.6 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 21.3 x 9.9 x 5.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to VocoPro DA-1055 Pro Six-Microphone Karaoke Mixer
| Subject: Equalizer working but all Mic Output not working | | Date: 03.11.2020 04:25:57 | Name: Sonny | | Equalizer working but all Mic Output not working | | Post reply |
