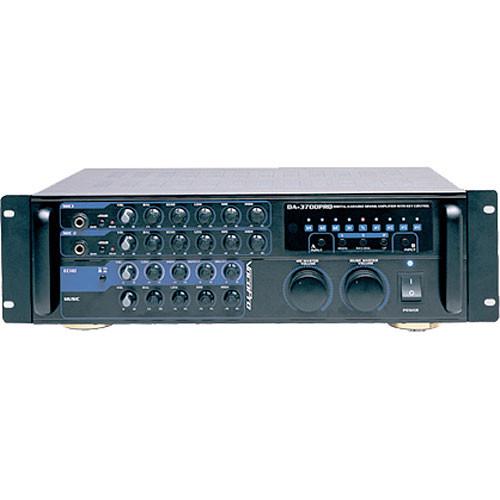

User Manual for VocoPro DA-3700 Pro Karaoke Mixing Amplifier Click to enlarge the picture
Contents of the user manual for the VocoPro DA-3700 Pro Karaoke Mixing Amplifier
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DA-3700 Pro Karaoke Mixing Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro DA-3700 Pro Mixing Amplifier is a 3 RU rack-mountable mixing amplifier offering easy mixing of mic and line sources for mobile or installed karaoke applications. It produces 120W per channel at 4 Ohms or 100W per channel at 8 Ohms to binding-post speaker outputs. It features level, -20 dB pads, balance, 3-band EQ, and adjustable digital echo for the mic signals, as well as level, balance, 3-band EQ, and a 9-step digital key control for the music source.Two front-panel 1/4" jacks accommodate dynamic microphones, while the rear panel offers RCA sockets for two sets of composite video and stereo audio inputs. Dual video outputs and three stereo audio outputs allow versatile connectivity with televisions, stereo receivers, and more. Additionally, two 1/4" microphone inserts and one stereo RCA effects loop are provided for connecting and applying outboard effects processors. The included remote control enables input switching, key changes, and volume adjustments from a distance. - Two unbalanced 1/4" microphone inputs with -20 dB pad, volume, balance, echo, and 3-band EQ controls on each channel
- 9-step digital key control to raise or lower the music pitch
- Two switchable RCA A/V inputs for sources such as DVD players, CD+G players, and VCD players
- Three pairs of stereo RCA audio outputs for connection to recording devices, amplifiers, and mixers
- Two RCA video outputs for connection to a TV or monitor device
- RCA effects loop for integration of outboard effect units
- Master volume, balance, and 3-band EQ controls for music signal
- Switchable mono/stereo echo with adjustable volume, feedback, delay time, and 2-band EQ
UPC: 692868637001 In the Box VocoPro DA-3700 Pro Karaoke Mixing Amplifier Remote Control 2 x Rack Ears Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DA-3700 Pro Karaoke Mixing Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DA-3700 Pro Specs | Inputs | 2 x 1/4" microphone inputs
4 x RCA coaxial line inputs (two stereo pairs)
2 x RCA composite video inputs
1 x 1/8" / 3.5 mm key control input | | Outputs | 2 x 1/4" microphone outputs
6 x RCA coaxial line outputs (three stereo pairs)
2 x RCA composite video outputs
4 x 2-way binding posts (one stereo speaker output) | | Sends/Returns | 2 x 1/4" TRS send/return jacks
2 x RCA coaxial sends (stereo pair)
2 x RCA coaxial returns (stereo pair) | | Maximum Output | 120 W + 120 W at 4 Ohms
100 W + 100 W at 8 Ohms | | Input Sensitivity | 1/4": <30 mV | | Total Harmonic Distortion (THD) | 0.5% | | Frequency Response | RCA: 20 Hz to 20 kHz
1/4": 100 Hz to 2.5 kHz | | Signal-to-Noise Ratio (SNR) | 65 dB (mic on)
70 dB (mic off) | | Noise Level | <10 mV | | Equalization | Bass: ±15 dB
Mid: ±12 dB
Treble: ±15 dB | | Power Requirement | 110/220 VAC, 50/60 Hz | | Power Consumption | 500 W | | Dimensions (W x D x H) | 16.0 x 14.0 x 5.5" / 40.6 x 35.6 x 14.0 cm (excluding rack ears, including feet)
19.0 x 14.0 x 5.3" / 48.3 x 35.6 x 13.3 cm (including rack ears, excluding feet) | | Weight | 16 lb / 7.3 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 15.0 x 14.0 x 5.0" |
