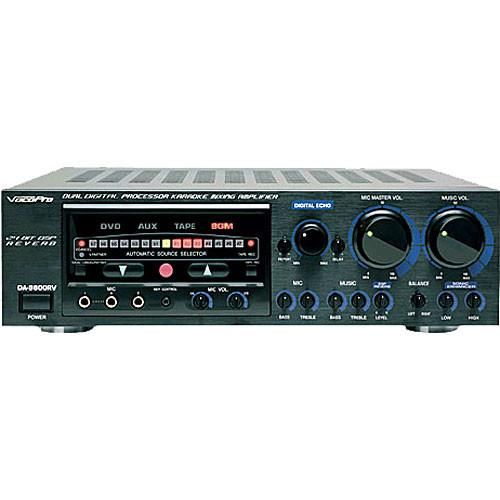

User Manual for VocoPro DA-9800RV Karaoke Mixing Amplifier with Digital Key Control Click to enlarge the picture
Contents of the user manual for the VocoPro DA-9800RV Karaoke Mixing Amplifier with
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DA-9800RV Karaoke Mixing Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro DA-9800RV is a karaoke mixing amplifier offering 600 watts of peak power at 4 Ohms and enough connections to accommodate a karaoke media player, wireless microphone system, and consumer audio/video components, for installation in home theaters, restaurants, bars, etc.While suitable for basic consumer home theater applications, the DA-9800RV hosts an array of karaoke-specific features including a built-in effects processor with reverb and echo effects, a vocal enhancer, 15-step digital key control, six 1/4" microphone inputs, and selectable vocal cancellation.Use the DA-9800RV to interface microphones, video, line-level audio sources, display, monitors, power amplifiers, speakers, and more. It includes a remote control with batteries for access to key control, mic/music volume, input selection, and other controls. - 15-step digital key control allows the key of the source music to be adjusted
- 600 watts of peak power at 4 Ohms and support for up to four speakers
- Sonic Enhancer provides adjustable high- and low-frequency controls
- DSP reverb with adjustable level
- Digital echo with adjustable level, feedback, and delay time
- Six 1/4" microphone inputs, four stereo RCA line inputs, and four composite video inputs
- Dedicated level and 2-band EQ controls for microphone and music inputs
- Effects send and return for hookup to an external effects processor
- Selectable sensitivity per source for optimization of automatic input selection
- Adjustable left/right balance
- Selectable mono/stereo BGM mode
- Line, preamp, and video output jacks
UPC: 692868298004 In the Box VocoPro DA-9800RV Karaoke Mixing Amplifier with Digital Key Control Stereo RCA Cable Remote Control 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DA-9800RV Karaoke Mixing Amplifier with Digital Key Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DA-9800RV Specs | Output Power | Continuous: 150 W + 150 W at 4 Ohms
Maximum: 300 W + 300 W at 4 Ohms | | Inputs | 6 x 1/4" microphone inputs
1 x RCA wireless mic receiver input
8 x RCA coaxial line inputs (four stereo pairs)
4 x RCA composite video inputs | | Outputs | 2 x RCA coaxial line outputs
3 x RCA coaxial preamp outputs (one mono, one stereo pair)
2 x RCA composite video outputs
4 x binding post speaker outputs (two stereo pairs) | | Effects Loop | 1 x RCA coaxial send (mono)
2 x RCA coaxial returns (one stereo pair) | | Control Ports | 1 x remote input
1 x 1/8" / 3.5 mm key control input | | Grounding Screw | 1 x rear-panel grounding screw | | DSP | 24-bit | | Frequency Response | Mic: 20 Hz to 15 kHz (+0 dB / -3 dB)
Music: 20 Hz to 40 kHz (+0 dB / -3 dB) | | EQ Section | Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz | | Input Sensitivity | Mic: 3 mV
Line: 250 mV
Video: 1 V p-p | | Input Impedance | Mic: 10 kOhms
Line: 22 kOhms
Video: 75 Ohms | | Output Level | Line: 250 mV
Preamp: 1.8 V
Video: 1 V p-p | | Output Impedance | Line/Preamp: 1 kOhm
Video: 75 Ohms | | Speaker Impedance | Speaker System 1 or 2: 4 to 16 Ohms
Speaker System 1 and 2: 8 to 16 Ohms | | Total Harmonic Distortion (THD) | 0.04% at 1 kHz (-3 dB) | | Power Requirement | 115 V: 110 to 120 VAC, 60 Hz
230 V: 220 to 240 VAC, 50 Hz
AC Outlets: 200 W maximum | | Power Consumption | 230 W | | Dimensions (W x D x H) | 17.0 x 15.0 x 5.5" / 43.2 x 38.1 x 14.0 cm | | Weight | 25 lb / 11.3 kg | | | | Package Weight | 29.8 lb | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 9.0" |
