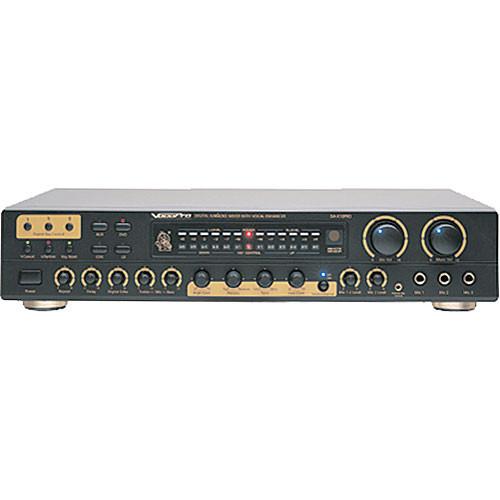

User Manual for VocoPro DA-X10PRO Three-Microphone Karaoke Mixer Click to enlarge the picture
Contents of the user manual for the VocoPro DA-X10PRO Three-Microphone Karaoke Mixer
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DA-X10PRO Three-Microphone Karaoke Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro DA-X10PRO is a karaoke mixer supporting up to three microphones and a stereo audio/video source, making it an ideal centerpiece for a home- or club-based karaoke system. Its built-in mixer provides level, 2-band EQ, adjustable digital echo and volume adjustment for the mic signals, and a 13-step digital key control for the music source. The selectable Vocal Cancel and Vocal Partner modes remove guide vocals from multiplex karaoke media.Three 1/4" jacks accommodate dynamic microphones, while the rear-panel offers RCA sockets for composite video and stereo audio inputs. Three video outputs and two stereo audio outputs allow versatile connectivity with televisions and stereo receivers. The DA-X10PRO includes a power cable, a stereo RCA audio cable, and a remote control with AAA batteries. - Vocal Enhancer with high/low contour, frequency, and process controls for optimized vocal tone
- 13-step digital key controller for transposing the key of source music to fit the natural range of your voice
- Digital echo with controls for feedback amount, delay time, and level
- Three 1/4" microphone inputs with level controls
- 2-band EQ with treble and bass controls
- Vocal Cancel function removes the guide vocal from multiplex CDs or tapes
- Vocal Partner function removes the guide vocal from multiplex CDs or tapes only when you sing
- Wireless remote control for ease of operation at a distance
- Unswitched AC outlet for powering a companion device
UPC: 692868329104 In the Box VocoPro DA-X10PRO Three-Microphone Karaoke Mixer Stereo RCA Cable Remote Control 2 x AAA Batteries Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DA-X10PRO Three-Microphone Karaoke Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DA-X10 Pro Specs Inputs | 3 x 1/4" microphone inputs 8 x RCA coaxial line inputs (four stereo pairs) 3 x RCA composite video inputs 1 x 1/8" / 3.5 mm remote key control input | Outputs | 4 x RCA coaxial line outputs (two stereo pairs) 3 x RCA composite video outputs | Input Impedance | RCA: 50 kOhms 1/4": 10 kOhms | Input Sensitivity | RCA: 150 mV 1/4": 2.5 mV | Output Sensitivity | >300 mV | Frequency Response | RCA: 20 Hz to 20 kHz (±3 dB) | Signal-to-Noise Ratio (SNR) | Expander: >65 dB | Delay Time | 100 to 200 ms | Equalization | Mic Bass: 100 Hz Mic Treble: 10 kHz Vocal Enhancer Tune: 1 to 8 kHz (adjustable HPF cutoff frequency) | Power Requirement | 117/230 VAC, 50/60 Hz | Power Consumption | 8 W | AC Outlet | 1 x unswitched (250 W total) | Dimensions (W x D x H) | 16.9 x 12.8 x 3.5" / 43.0 x 32.5 x 8.9 cm | Weight | 11 lb / 5 kg | | Package Weight | 13.75 lb | Box Dimensions (LxWxH) | 20.3 x 15.8 x 7.8" |
Rating30% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
