User Manual for VocoPro DAX-9900RV Karaoke Mixing Amplifier Click to enlarge the picture
Contents of the user manual for the VocoPro DAX-9900RV Karaoke Mixing Amplifier
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
 |
User manual for the VocoPro DAX-9900RV Karaoke Mixing Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

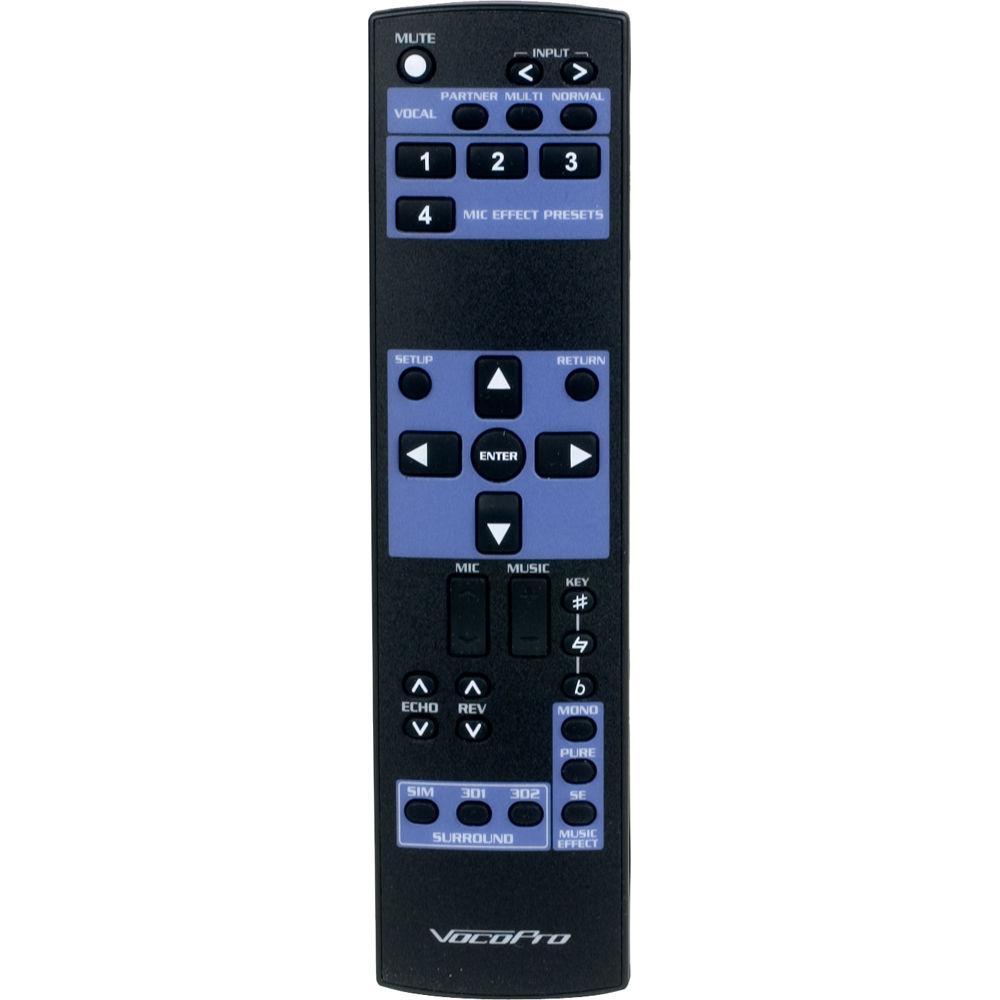

Product description The VocoPro DAX-9900RV is a karaoke mixing amplifier designed to deliver flexible multisource mixing and amplification for singers, DJs, and party-goers at clubs, homes, and special events. It features microphone, music, and video inputs, built-in effects, and pitch shifting.Plug-in up to four dynamic microphones via 1/4" jacks, a mobile device via the 3.5mm (1/8") stereo mini-jack, and a variety of audio playback units via five pairs of RCA coaxial inputs. Four composite video inputs and two composite video outs allow the connection of DVD players, projection systems, and more. Speaker terminals enable use of one or two sets of stereo speakers, and a 1/4" output is provided for a dedicated subwoofer (available separately). The DAX-9900RV pumps out 150W of amplification per channel.Selectable singing modes offer multiple methods of adjusting the main vocal level in the incoming music, which can be pitched up or down in half-step increments via the 11-step key control. Utilize the built-in equalization, echo, reverb, and music effect presets to enhance the mix. Configure and modify the DAX-9900RV's settings via its front panel or the included wireless remote. - Selectable music effect presets—Pure Direct, Multi, Partner, Sonic Enhancer, and Surround
- Raise or lower the music pitch by up to five half-steps
- Select any of five stereo input sources from the front panel
- Connect up to four dynamic microphones
- RCA preamp input and output jacks double as a stereo send/return
- Dedicated microphone, music, echo, and reverb volume controls
- Semi-parametric EQ for mic signal
- Subwoofer output offers selectable polarity and adjustable crossover frequency, balance, and level
UPC: 692868480591 In the Box VocoPro DAX-9900RV Karaoke Mixing Amplifier Remote Control Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DAX-9900RV Karaoke Mixing Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

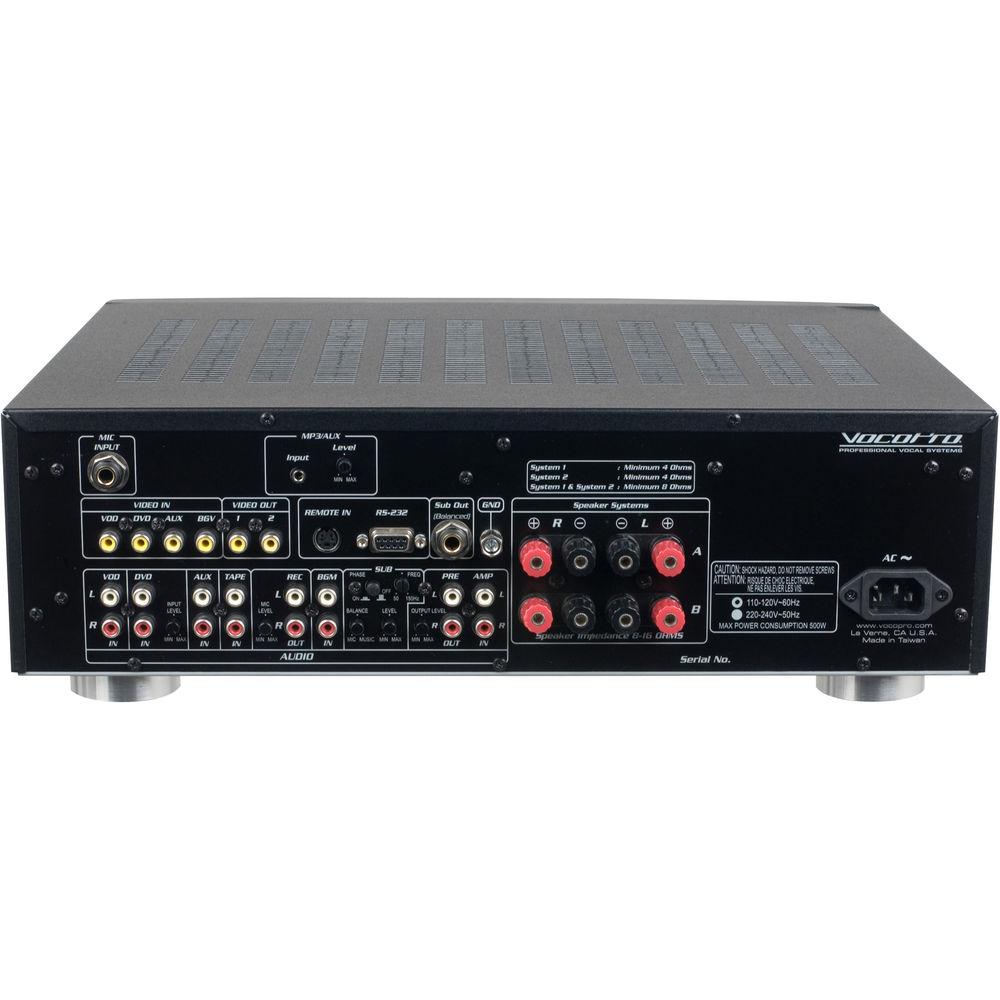

Technical parametersVocoPro DAX-9900RV Specs | Inputs | 1 x 3.5 mm (1/8") stereo
4 x 1/4" microphone
5 x stereo RCA coaxial
4 x composite video | | Outputs | 1 x stereo RCA coaxial
2 x composite video
1 x 1/4" subwoofer (balanced)
2 x stereo speaker terminal pairs | | Sends/Returns | 1 x stereo RCA coaxial preamp output (send)
1 x stereo RCA coaxial preamp input (return) | | Remote Input | 1 x RS-232
1 x mini-DIN | | Amplifier Power | 150 W RMS per channel at 8 Ohms | | Input Sensitivity | Mic: 3.5 mV
Music: 350 mV
Video: 1 Vp-p | | Input Impedance | Mic: 3.3 kOhms
Music: 33 kOhms
Video: 75 Ohms | | Output Impedance | Preamp, Sub, and Recording Outputs: 1 kOhm
Speaker Outputs: 8 to 16 Ohms
Video: 75 Ohms | | Output Level | Preamp Out: 2.8 V (overload at 9.6 V)
Sub Out: 5.2 V
Recording Out: 340 mV
Video: 1 Vp-p | | Frequency Response | Mic Input: 20 Hz to 15 kHz (-0.2 to -1 dB)
Mic Low-Cut Filter: 20 Hz to 1 kHz
Music: 20 Hz to 20 kHz (-0.5 to -1 dB)
Sub: 20 to 200 Hz | | THD | 0.05% (1 kHz, -3 dB, 8 Ohms) | | Power Requirement | 110/120 VAC, 50/60 Hz | | Power Consumption | 500 W | | Dimensions (W x H x D) | 16.9 x 5.4 x 16.3" / 429.3 x 135.9 x 414.0 mm | | Weight | 28.7 lb / 13 kg |
