User Manual for VocoPro Digital-1 Digital Wireless Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro Digital-1 Digital Wireless Handheld Microphone
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
|
User manual for the VocoPro Digital-1 Digital Wireless Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

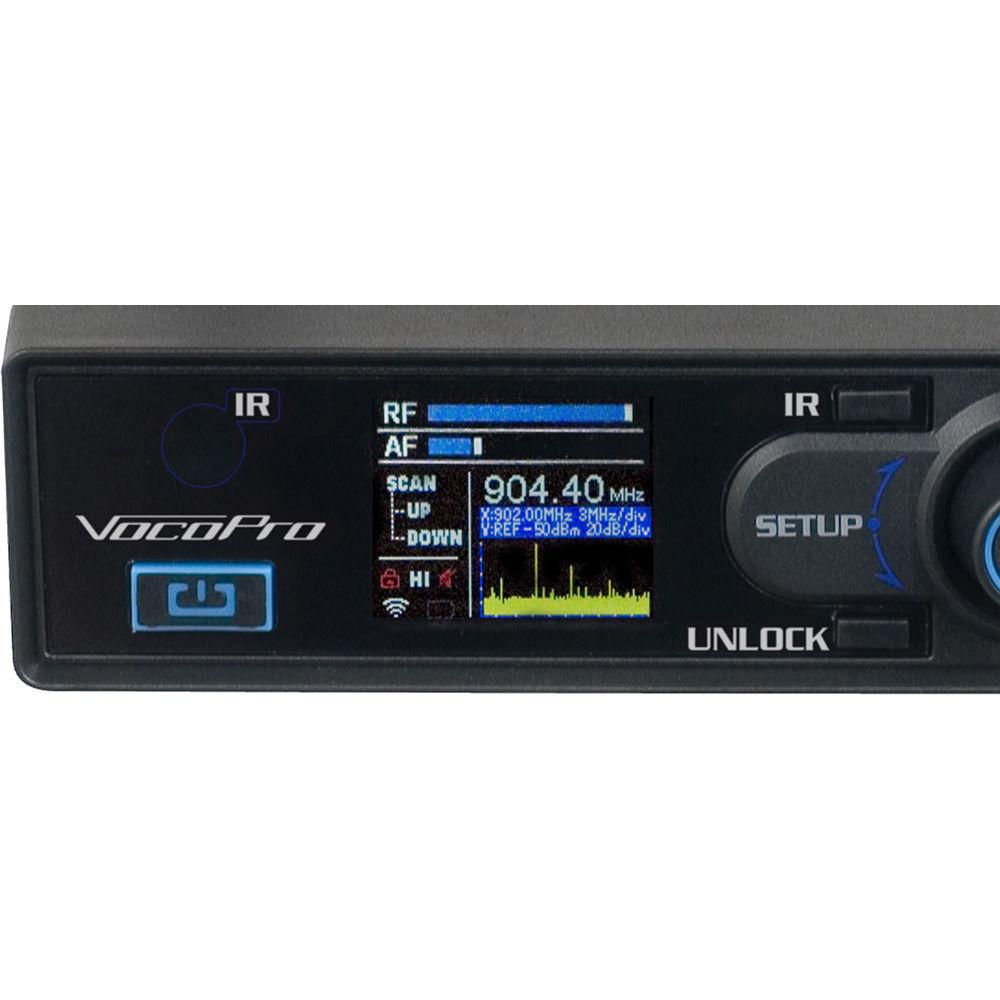

Product description The Digital-1 from VocoPro is a digital wireless handheld microphone system that utilizes mic-on-chip technology in the 900 MHz frequency band to deliver crystal-clear sound, while resisting TV and Wi-Fi interference. It is well suited for speech applications such as lectures, meetings, DJ setups, and more. The Digital-1 receiver features a high-resolution color LCD display that shows radio and audio signal strength, group & channel, and microphone battery status to monitor the battery level from the receiver. A built-in frequency spectrum analyzer with a graphic readout shows the RF environment and allows you to avoid any potential problems when setting the frequency. Furthermore, the receiver is equipped with a dual antenna diversity circuit which significantly improves signal reception. The handheld microphone is powered by a rechargeable lithium-ion battery and can deliver up to 8 hours of performance time on a full charge. Its body is made of durable aluminum to better survive the rigors of the road and minimize handling noise. - Operates in 900 MHz band – free of TV broadcast interference and does not conflict with Wi-Fi networks
- Digital PLL frequency customization to dozens of channels
- Built-in frequency analyzer with graphic readout scans RF environment to avoid potential interferences when setting frequency
- Color LCD display with signal strength and battery status indicators – operator can monitor battery status right from the receiver
- Dual-antenna diversity circuit for enhanced reception
- Built-in rechargeable battery provides up to 8 hours of continuous use on a full charge
- Digitally encrypted signal for maximum privacy
- Rugged microphone body made of durable aluminum to withstand the rigors of the road, and minimize handling noise while performing

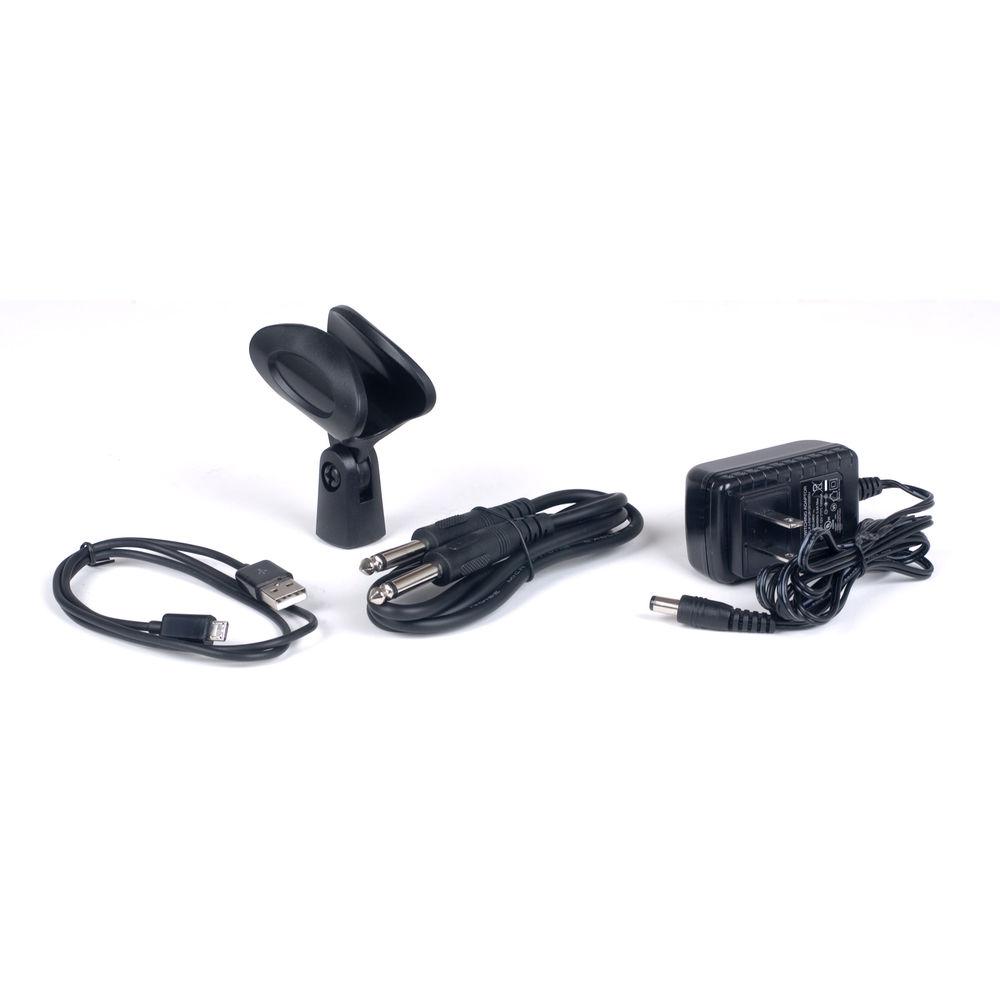

UPC: 692868344824 In the Box VocoPro Digital-1 Digital Wireless Handheld Microphone System Mic Holder 1/4" to 1/4" Audio Cable USB Charging Cable Lithium-Ion Battery Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Digital-1 Digital Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

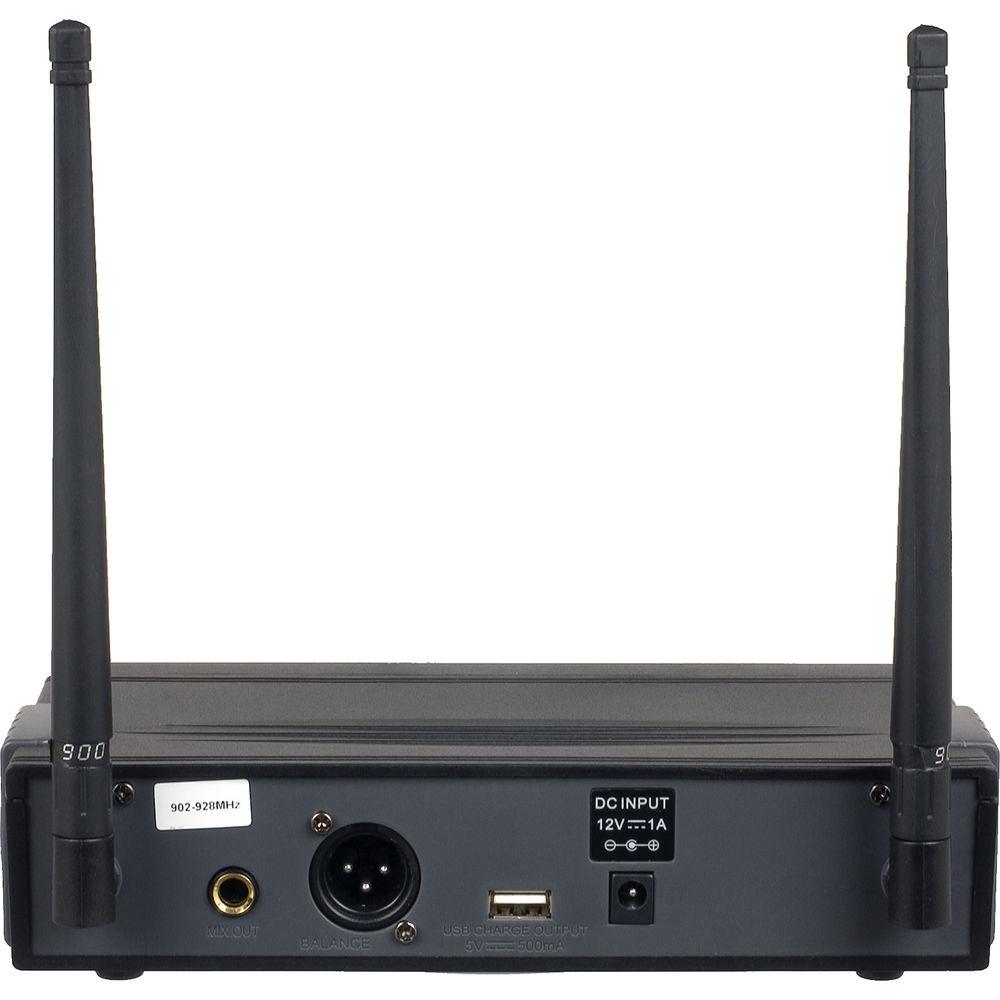

Technical parametersVocoPro DIGITAL-1 Specs | Carrier Frequency | UHF 902 to 928 MHz | Bandwidth | 26 MHz | Channel Bandwidth | 300 kHz | Preset Group | 15 groups, (6 frequencies in each group) | Dynamic Range | 96 dB | Distortion | <0.1% | Frequency Response | 30 Hz to 20 kHz (±2 dB) | Signal to Noise Ratio | 96 dB | Receiving Sensitivity | -95 dBm | Transmission Delay | <3 ms | Audio Output | 1 x 1/4" (6.3 mm) TS jack, unbalanced 1 x XLR, balanced | Power Supply | 12 VDC, 1 A | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Switch | Frequency Switch: IR sync | Output Power | 10 mW | Harmonic Radiation | <-50 dBc | Battery | 1 x 18500 lithium-ion, 1200 mAh | Battery Life | >8 hours | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Package Weight | 3.0 lb | Box Dimensions (LxWxH) | 15.2 x 11.7 x 2.8" |
