User Manual for VocoPro Digital-Play-16 Sixteen-Channel Digital Wireless System with Headsets & Lavalier Mics Click to enlarge the picture
Contents of the user manual for the VocoPro Digital-Play-16 Sixteen-Channel Digital Wireless System
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro Digital-Play-16 Sixteen-Channel Digital Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

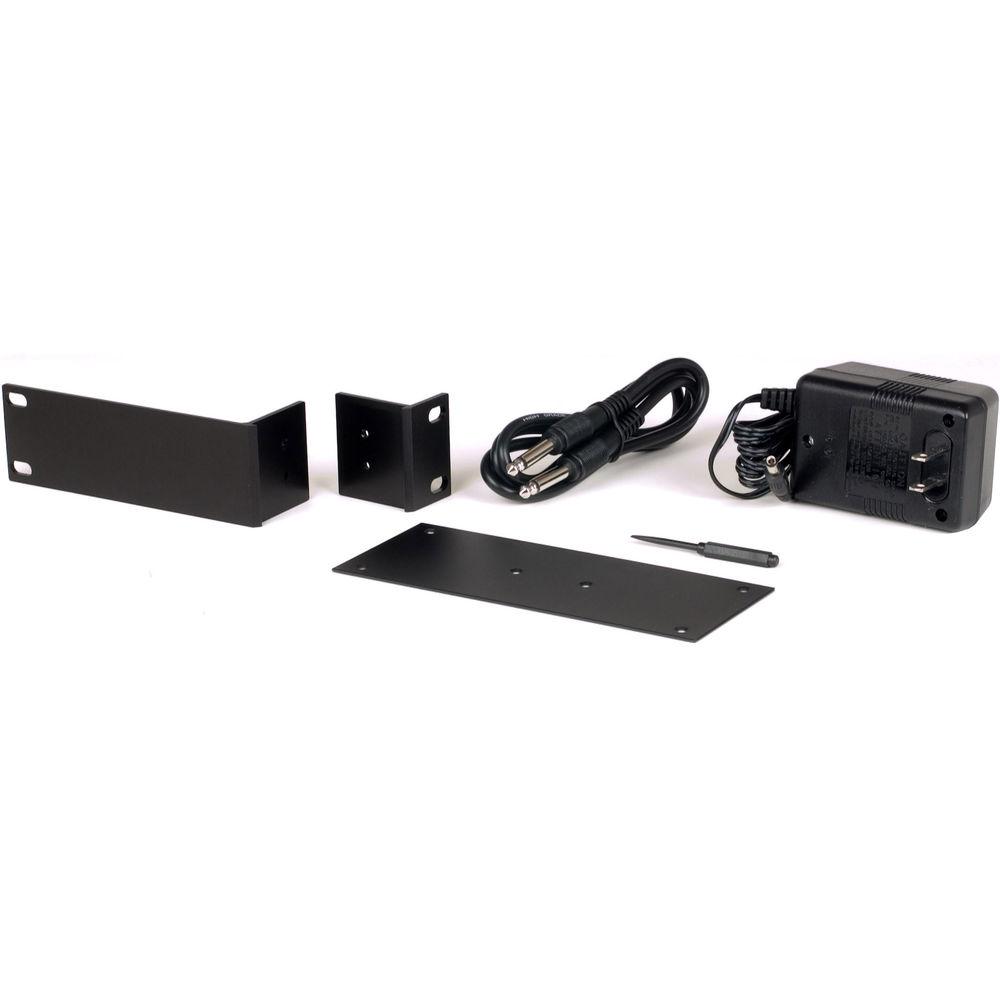

Product description Featuring sixteen bodypacks with headsets and lavalier mics, the Digital-Play-16 wireless system from VocoPro combines the convenience of simple set up & easy operation with the signal quality of 24-bit digital technology. It operates free from TV signal interference in the 900 MHz band with a transmission range of up to 200', and is well suited for applications with multiple speakers in schools, houses of worship, conferences, and more.The system includes four four-channel receivers with discrete balanced XLR outputs for each microphone and a 1/4" mixed output. Individual microphone channels feature a dedicated volume control, an RF LED that lets you know when the mic is on, and an AF LED which flashes when audio is received. Powered with two AA batteries, the bodypack transmitters are equipped with an on/off button, an LED battery indicator, and a gain-control switch.The Digital-Play-16 comes with four 4-channel XLR snake cables to individually connect each microphone signal to a mixing board, and four 1/4" unbalanced cables to patch in the microphones quickly using the four mixed outputs. To complete the package, a rackmount kit is also included for mounting the units in a road case or in a stationary rack. - Simple to set up and operate
- Sixteen battery-powered wireless bodypacks with headsets and lavalier microphones

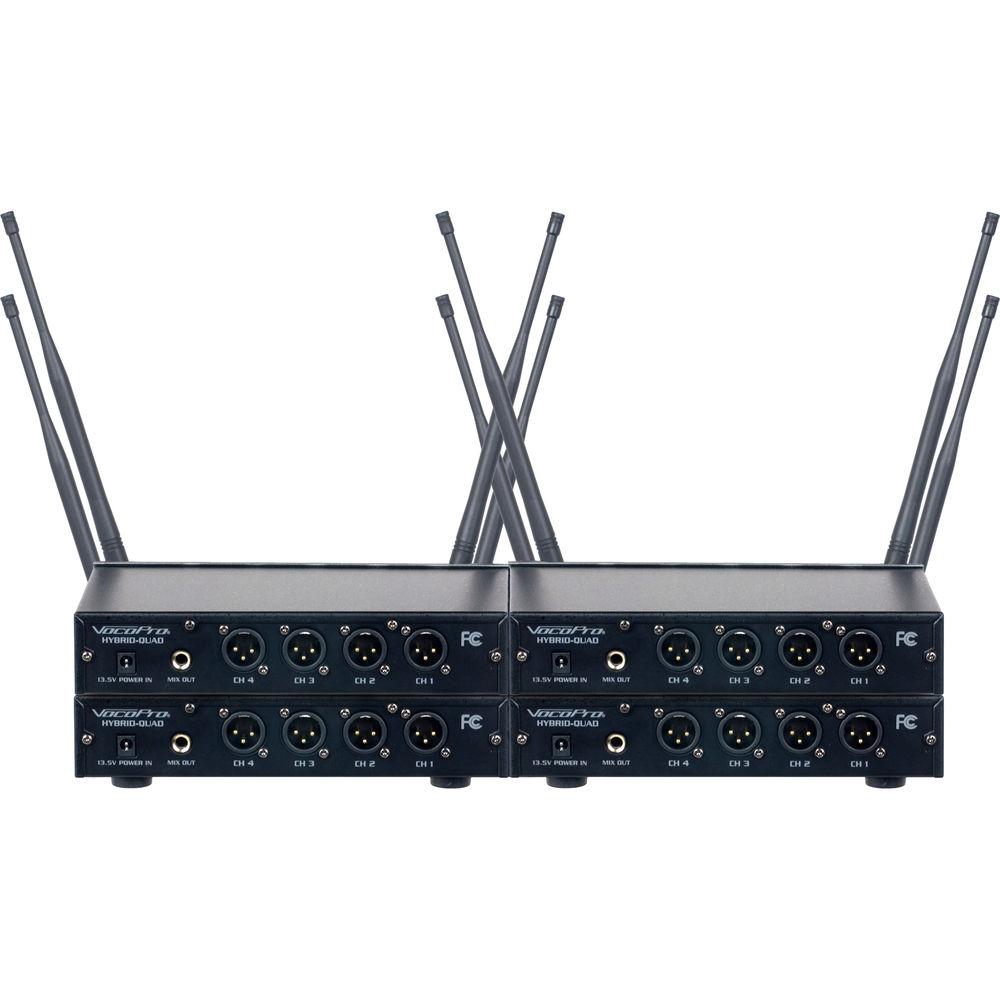

- Four four-channel receivers each with four XLR mic outputs and 1/4" mix out
- 900 MHz operation with 200' range - free from TV signal interference
- Digital-wireless with 24-bit resolution audio delivers clear signal with less noise - 50 Hz to 20 KHz frequency response
- Individual digital microphone IDs eliminates channel cross-talk
- Dedicated volume control for each mic channel
- On/off button and LED battery indicator on each microphone
- RF LED on receiver register when mic is powered on, and AF LED flashes when audio is received
- Comes with four 4-channel male XLR to female XLR snake cables and four 1/4" to 1/4" unbalanced cables

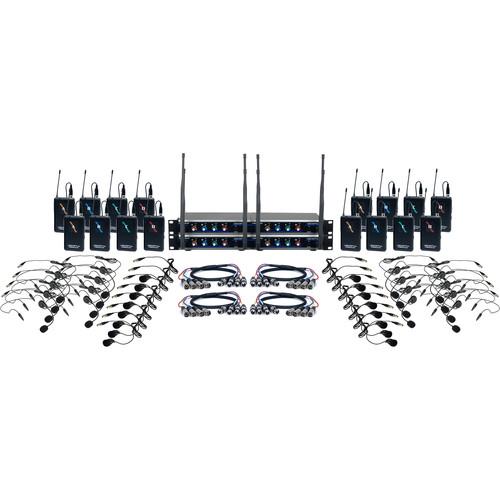

UPC: 692868167522 In the Box VocoPro Digital-Play-16 Sixteen-Channel Digital Wireless System with Headsets & Lavalier Mics 4 x Digital-Quad Receivers 16 x Wireless Bodypack Transmitters 16 x Headset Microphones 16 x Lavalier Microphones 8 x Antennas 4 x Power Adapters 4 x 4-Channel Male XLR to Female XLR Snake Cables 4 x 1/4" to 1/4" Unbalanced Cables Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Digital-Play-16 Sixteen-Channel Digital Wireless System with Headsets & Lavalier Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DIGITAL-PLAY-16 Specs | RF Carrier Frequency Range | 900 MHz | | Transmission Distance | 200' / 60 m | | # Of Channels | 16 | | Digital Audio Resolution | 24-bit | | Frequency Response | 50 Hz to 20 kHz | | Transmitters | Type: Bodypack with headset and lavalier mic
Power: 2 x AA batteries | | Output Connections | 16 x male XLR, balanced (individual mic outputs)
4 x 1/4" jack, unbalanced (mixed outputs) | | Mounting Options | Rackmount kit (included) | | Receiver Dimensions (WxHxD) | 17.00 x 1.75 x 5.25" / 43.2 x 4.44 x 13.33 cm | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 23.5 x 21.0 x 18.0" |
