User Manual for VocoPro Digital-Quad-B2 Four-Channel UHF Wireless Headset & Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro Digital-Quad-B2 Four-Channel UHF Wireless Headset
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro Digital-Quad-B2 Four-Channel UHF Wireless Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

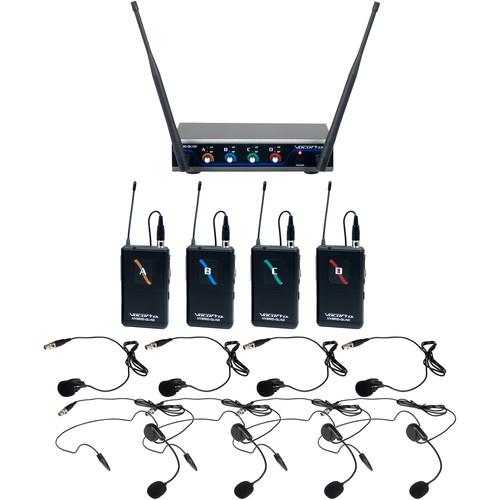

Product description Operating in the 913.3 to 925.8 MHz frequency band, the VocoPro Digital-Quad-B2 is a four-channel UHF wireless headset and lavalier microphone system offering versatility and easy setup for up to four subjects, making it ideal for singers, actors and actresses, panel speakers, and interviewers/interviewees. It includes a Hybrid-Quad receiver, four wireless bodypack transmitters, four headset microphones, and four lavalier mics, as well as a rackmount kit, the required power adapter, and a 1/4" cable. Incorporating 24-bit digital UHF technology and dual removable antennas, the receiver is designed to deliver clear and consistent signal. It features four channels, each with adjustable volume, AF and RF indicators, and a balanced XLR output. Connect the omnidirectional condenser headset or lavalier microphones to the bodypack transmitters, which utilize individual mic IDs to eliminate crosstalk. Each transmitter is powered via two AA batteries (available separately), and provides battery indication and adjustable gain. - Four headset microphones and four lavalier microphones allow versatile use for singers, guests, panelists, and more
- Four wireless bodypack transmitters with on/off switches, battery status indicators, mini-XLR inputs, and adjustable gain

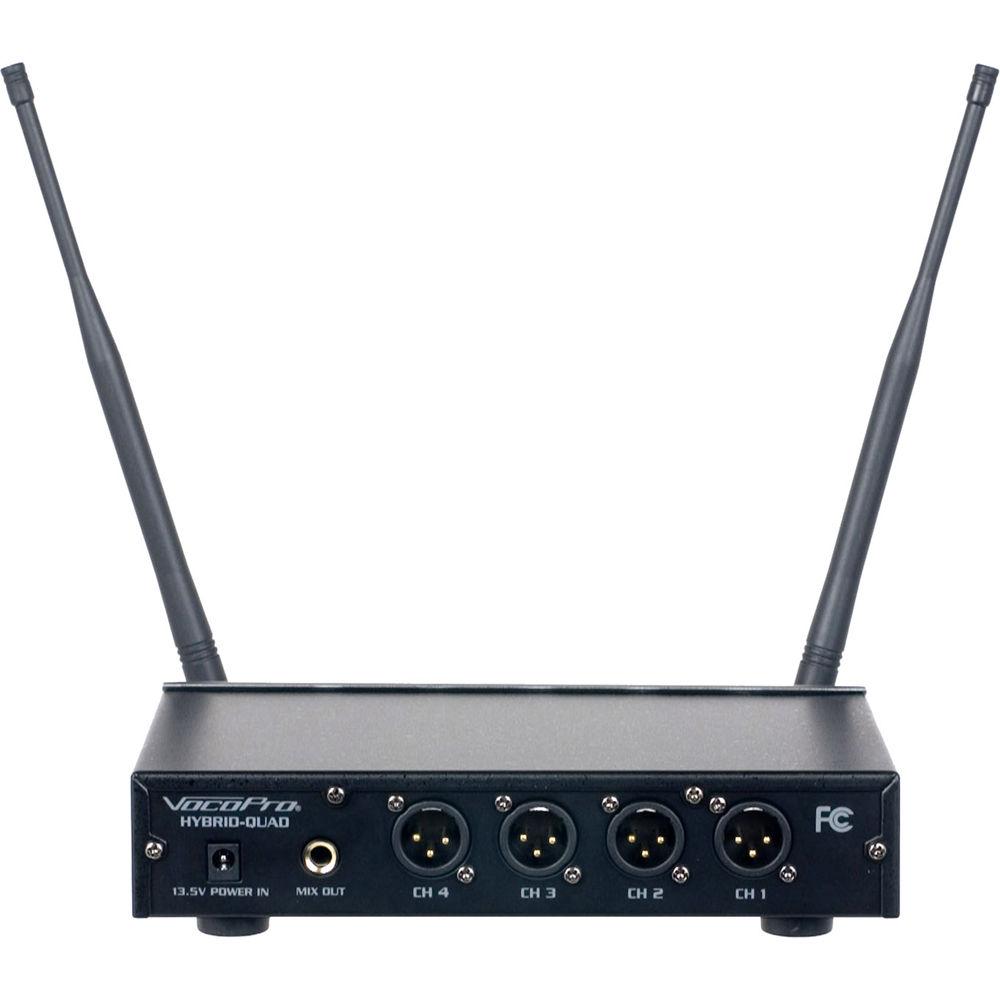

- 4-channel Hybrid-Quad receiver with balanced XLR outputs, an unbalanced 1/4" mix output, per-channel mic volume, and AF/RF LED indicators
- Wireless range up to 200'
- 24-bit technology for clean, quality signal
- Individual digital microphone IDs eliminate crosstalk between channels
- Includes rack ears for easy mounting in a standard 19" equipment rack
- Supplied mounting plate allows easy side-by-side placement of two Hybrid-Quad receivers in a rack
- Includes power adapter, antennas, and 1/4" cable

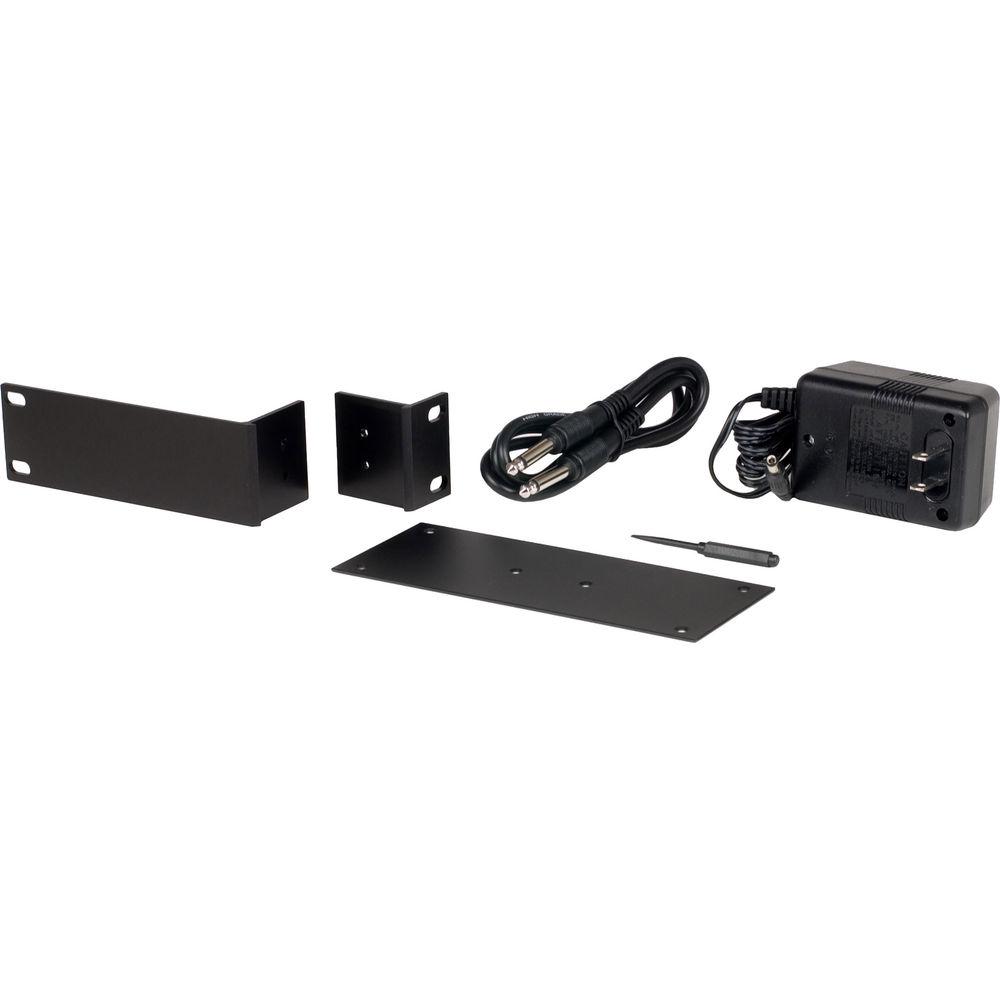

UPC: 692868228346 In the Box VocoPro Digital-Quad-B2 Four-Channel UHF Wireless Headset & Lavalier Microphone System (913.3 to 925.8 MHz) 2 x Antennas Power Adapter 1/4" Cable Long Rack Ear Short Rack Ear Mounting Plate 7 x Phillips-Head Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Digital-Quad-B2 Four-Channel UHF Wireless Headset & Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DIGITAL-QUAD-B2 Specs | | | Wireless Range | Up to 200' / 61 m | | Outputs | 4 x XLR 3-Pin Male (Balanced)
1 x 1/4" TS (Unbalanced) | | Antenna Inputs | 2 x BNC | | Power Requirement | 13.5 VDC Power Supply | | Dimensions (W x H x D) | 8.4 x 1.3 x 5.3" / 21.3 x 3.2 x 13.3 cm | | | | Transmission Frequency | 9E: 913.3 MHz
9F: 916.3 MHz
9G: 920.1 MHz
9H: 925.8 MHz | | Wireless Range | Up to 200' / 61 m | | Inputs | 1 x Mini-XLR 3-Pin Male | | Power Requirement | 2 x AA Batteries | | | | Type | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 20 kHz | | Output | Mini-XLR 3-Pin Female | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 23.0 x 13.0 x 5.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
