User Manual for VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

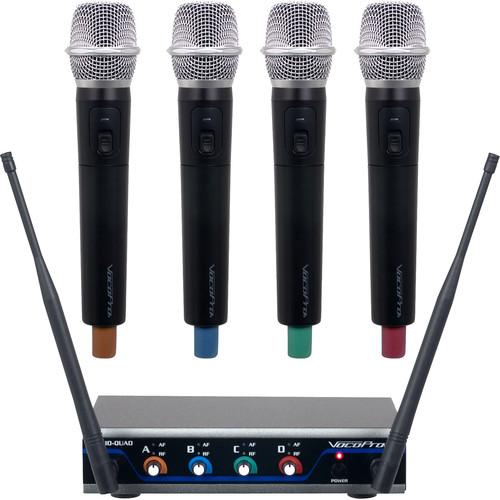

Product description Operating in the 902 to 910.7 MHz frequency band, the VocoPro Digital-Quad-H1 is a four-channel UHF wireless handheld microphone system offering versatility and easy setup for up to four subjects, making it ideal for vocalists, karaoke artists, announcers, and DJs. It includes a Hybrid-Quad receiver and four wireless handheld dynamic mics, as well as a rackmount kit, the required power adapter, and a 1/4" cable. Incorporating 24-bit digital UHF technology and dual removable antennas, the receiver is designed to deliver clear and consistent signal. It features four channels, each with adjustable volume, AF and RF indicators, and a balanced XLR output. The wireless microphones utilize individual mic IDs to eliminate crosstalk, and are powered via AA batteries (available separately). A dedicated LED on each mic indicates power and battery status. - Four wireless handheld microphones allow versatile use for singers, guests, panelists, and more
- Each microphone features an on/off switch, a battery status indicator, and a battery compartment for two AA batteries (available separately)

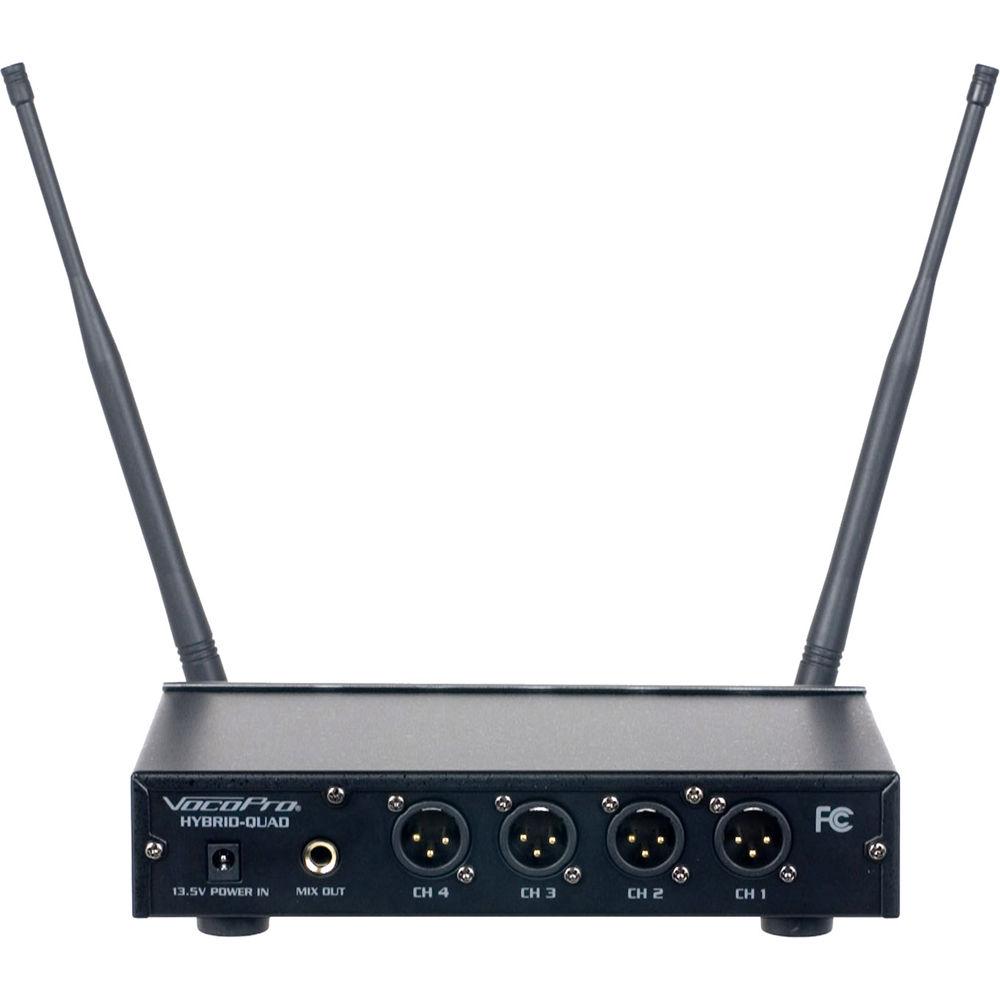

- 4-channel Hybrid-Quad receiver with balanced XLR outputs, an unbalanced 1/4" mix output, per-channel mic volume, and AF/RF LED indicators
- Wireless range up to 200'
- 24-bit technology for clean, quality signal
- Individual digital microphone IDs eliminate crosstalk between channels
- Microphones feature cardioid polar patterns for reduced pickup of off-axis sound
- Includes rack ears for easy mounting in a standard 19" equipment rack
- Supplied mounting plate allows easy side-by-side placement of two Hybrid-Quad receivers in a rack
- Includes power adapter, antennas, and 1/4" cable

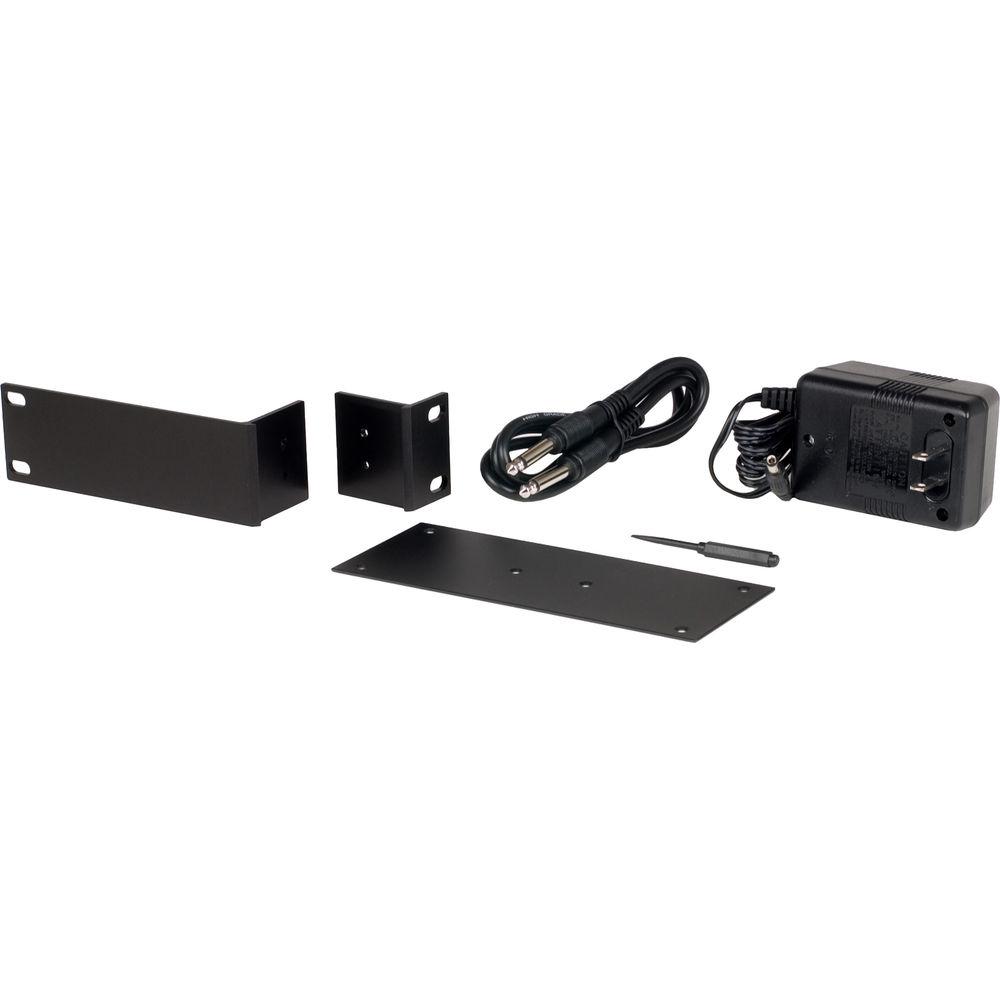

UPC: 692868418341 In the Box VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld Microphone System (902 to 910.7 MHz) 2 x Antennas Power Adapter 1/4" Cable Long Rack Ear Short Rack Ear Mounting Plate 7 x Phillips-Head Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DIGITAL-QUAD-H1 Specs | | | Wireless Range | Up to 200' / 61 m | | Outputs | 4 x XLR 3-Pin Male (Balanced)
1 x 1/4" TS (Unbalanced) | | Antenna Inputs | 2 x BNC | | Power Requirement | 13.5 VDC Power Supply | | Dimensions (W x H x D) | 8.4 x 1.3 x 5.3" / 21.3 x 3.2 x 13.3 cm | | | | Transmission Frequency | 9A: 902 MHz
9B: 904.6 MHz
9C: 907.5 MHz
9D: 910.7 MHz | | Wireless Range | Up to 200' / 61 m | | Type | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Power Requirement | 2 x AA Batteries | | | | Package Weight | 8.37 lb | | Box Dimensions (LxWxH) | 22.6 x 12.5 x 6.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to VocoPro Digital-Quad-H1 Four-Channel UHF Wireless Handheld Microphone System
| Subject: Vocopro digital-quad | | Date: 06.03.2022 13:11:01 | Name: Erica | Hello,
During service my microphones have been consistent in shutting off and the red power button starts to flicker and the only way to reset the box is to unplug it completely and plug it back in.
I don’t know why they keep shutting off. If anyone knows why please help. | | Post reply |
