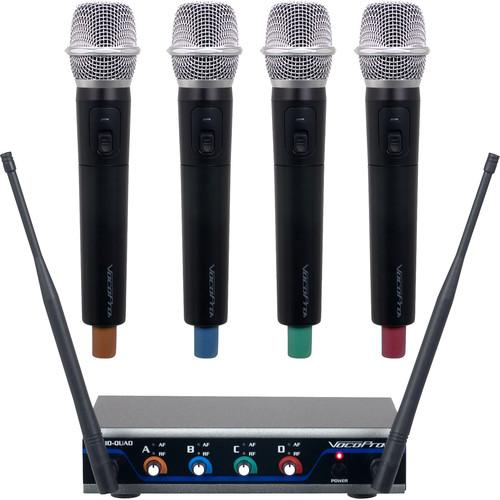

Product description Operating in the 903.1 to 912.2 MHz frequency band, the VocoPro Digital-Quad-H3 is a four-channel UHF wireless handheld microphone system offering versatility and easy setup for up to four subjects, making it ideal for vocalists, karaoke artists, announcers, and DJs. It includes a Hybrid-Quad receiver and four wireless handheld dynamic mics, as well as a rackmount kit, the required power adapter, and a 1/4" cable. Incorporating 24-bit digital UHF technology and dual removable antennas, the receiver is designed to deliver clear and consistent signal. It features four channels, each with adjustable volume, AF and RF indicators, and a balanced XLR output. The wireless microphones utilize individual mic IDs to eliminate crosstalk, and are powered via AA batteries (available separately). A dedicated LED on each mic indicates power and battery status. - Four wireless handheld microphones allow versatile use for singers, guests, panelists, and more
- Each microphone features an on/off switch, a battery status indicator, and a battery compartment for two AA batteries (available separately)
- 4-channel Hybrid-Quad receiver with balanced XLR outputs, an unbalanced 1/4" mix output, per-channel mic volume, and AF/RF LED indicators
- Wireless range up to 200'
- 24-bit technology for clean, quality signal
- Individual digital microphone IDs eliminate crosstalk between channels
- Microphones feature cardioid polar patterns for reduced pickup of off-axis sound
- Includes rack ears for easy mounting in a standard 19" equipment rack
- Supplied mounting plate allows easy side-by-side placement of two Hybrid-Quad receivers in a rack
- Includes power adapter, antennas, and 1/4" cable

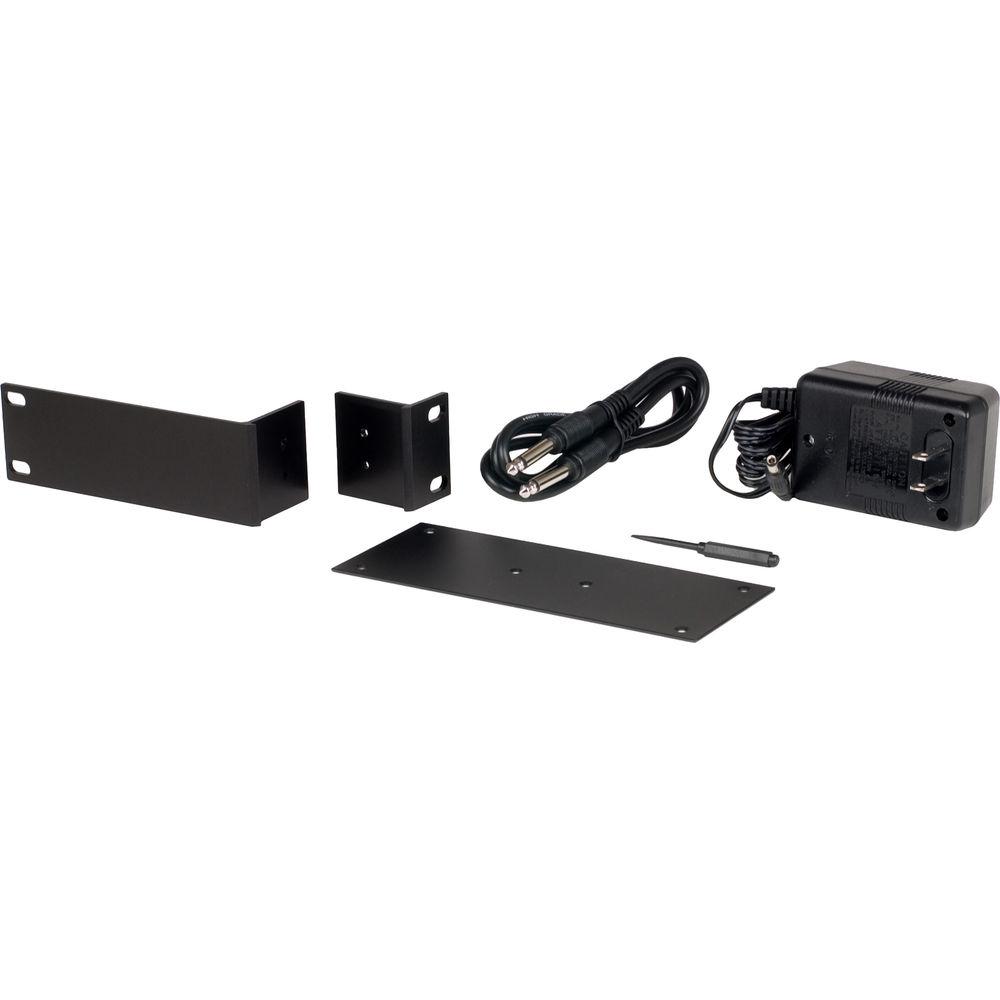

UPC: 692868438349 In the Box VocoPro Digital-Quad-H3 Four-Channel UHF Wireless Handheld Microphone System (903.1 to 912.2 MHz) 2 x Antennas Power Adapter 1/4" Cable Long Rack Ear Short Rack Ear Mounting Plate 7 x Phillips-Head Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Digital-Quad-H3 Four-Channel UHF Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

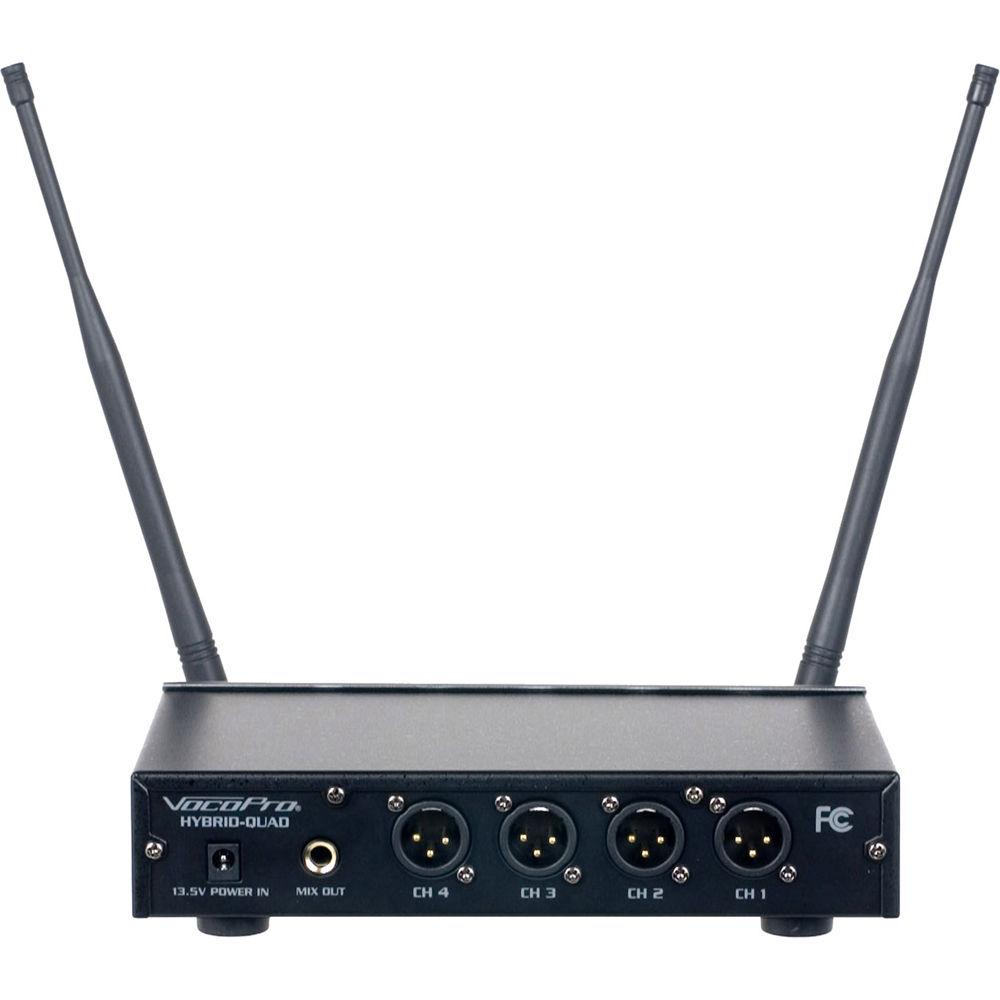

Technical parametersVocoPro DIGITAL-QUAD-H3 Specs | | | Wireless Range | Up to 200' / 61 m | | Outputs | 4 x XLR 3-Pin Male (Balanced)
1 x 1/4" TS (Unbalanced) | | Antenna Inputs | 2 x BNC | | Power Requirement | 13.5 VDC Power Supply | | Dimensions (W x H x D) | 8.4 x 1.3 x 5.3" / 21.3 x 3.2 x 13.3 cm | | | | Transmission Frequency | 9I: 903.1 MHz
9J: 905.8 MHz
9K: 908.8 MHz
9L: 912.2 MHz | | Wireless Range | Up to 200' / 61 m | | Type | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Power Requirement | 2 x AA Batteries |
