User Manual for VocoPro Drifter Rechargeable Compact 3-Way 1500W Line Array Karaoke PA System Click to enlarge the picture
Contents of the user manual for the VocoPro Drifter Rechargeable Compact 3-Way 1500W
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
 |
User manual for the VocoPro Drifter Rechargeable Compact 3-Way 1500W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

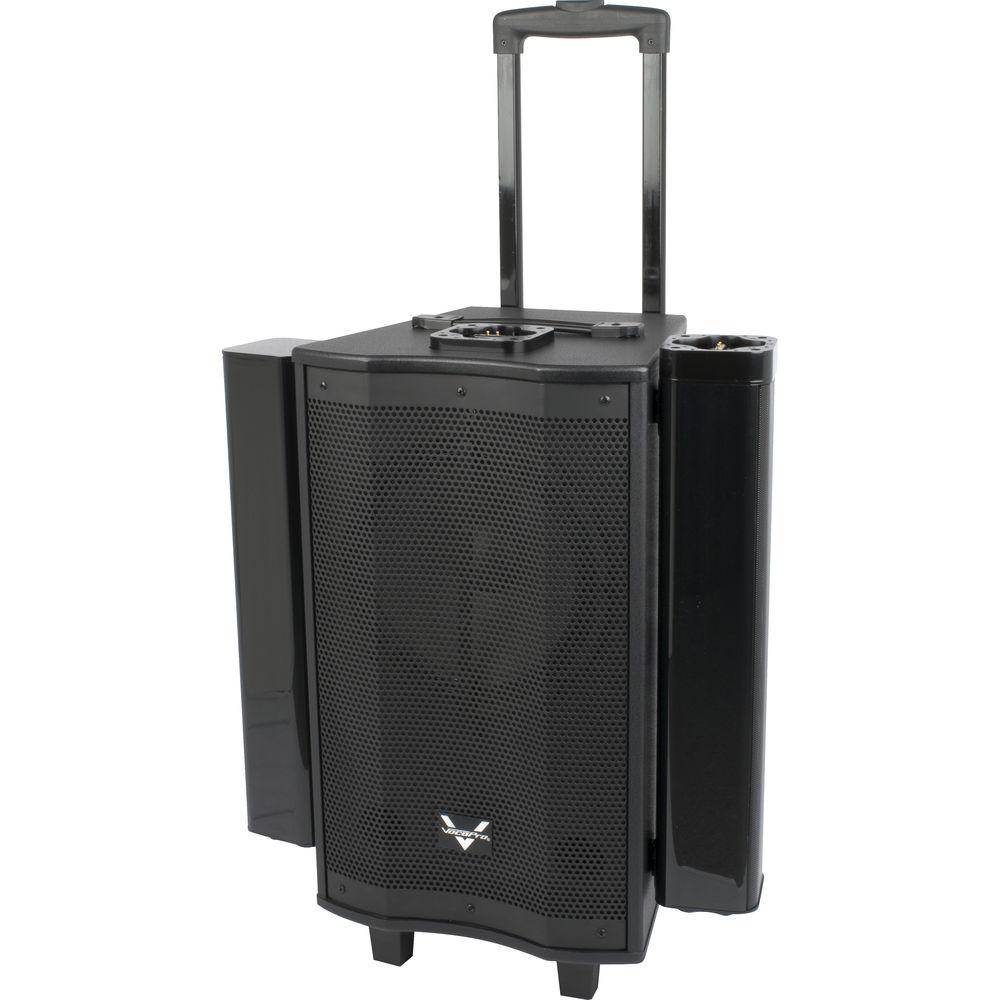

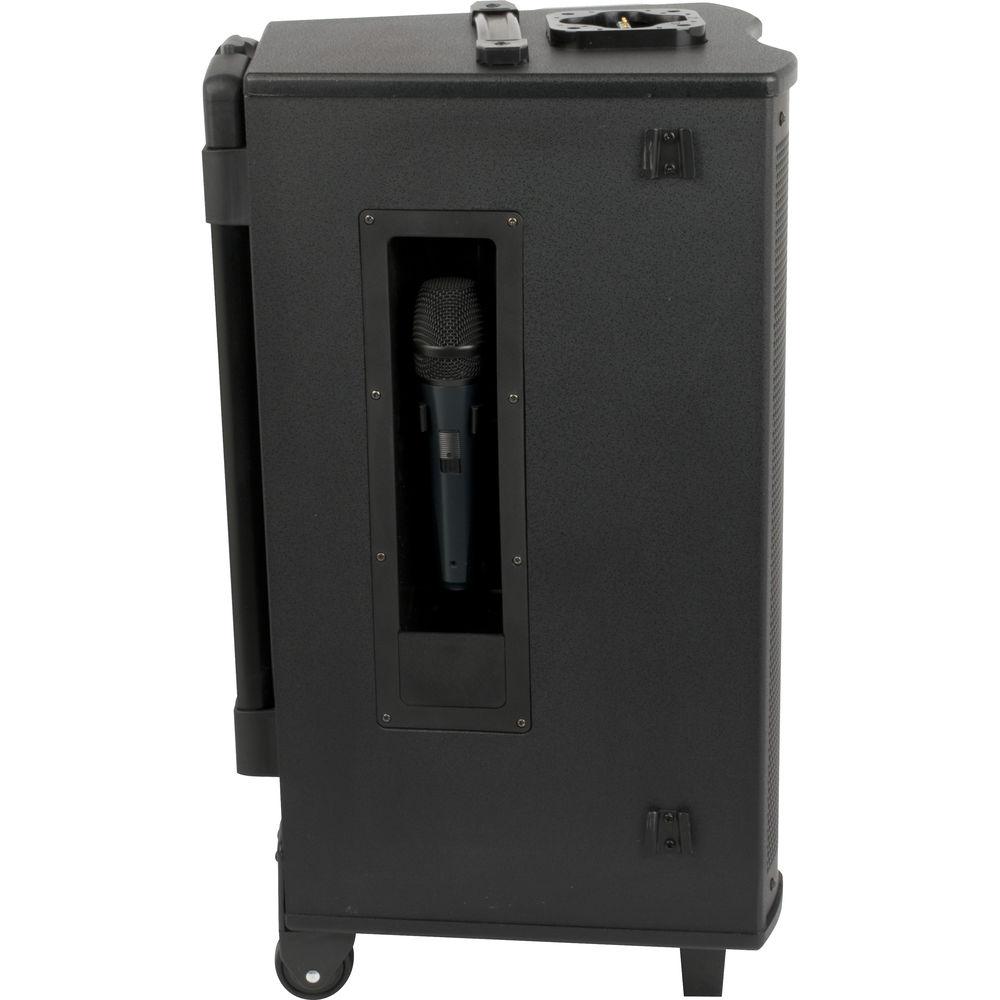

Product description The VocoPro Drifter is a rechargeable compact 3-way 1500W line array karaoke PA system offering an all-in-one solution for sound and lighting effects at parties, special events, and karaoke nights. Comprised of a base unit and two detachable speaker units, it is simple to setup and tear down. Rolling wheels, a retractable luggage handle, and a top-panel carry handle enable versatile and effective transport between gigs. Power the Drifter for up to six hours via its internal rechargeable battery, or connect it to AC power via the supplied power adapter for extended periods of use.Each detachable speaker unit incorporates three 3" midrange drivers and a 1.5" tweeter, while the base unit utilizes a 10" woofer with switchable sound-reactive LED lighting. Two 1/4" mic inputs, two 1/4" instrument inputs, and a stereo pair of RCA line inputs accommodate a variety of sound sources. Stream music from your mobile device via the built-in Bluetooth receiver, play MP3 files from a USB flash drive or microSD card, or jam along with the FM radio. Select the mic priority function to have the Drifter attenuate the music upon receiving mic signal.The built-in mixer provides level controls, echo, and three stages of equalization. Route the RCA aux output to an audio recorder or mixing console, or plug the dedicated speaker jack into an external 4- to 8-Ohm speaker to redirect the internal amplifier output to an alternate monitoring system. The Drifter includes a remote control, one handheld dynamic microphone, an XLR to 1/4" mic cable, and a 3.5mm to dual RCA audio cable. - 3-way speaker system features a base unit and two detachable speaker units
- Three 3" midrange drivers and one 1.5" tweeter in each detachable speaker unit
- Built-in Bluetooth receiver for streaming music from mobile devices
- Play MP3 files via USB flash drive or microSD card

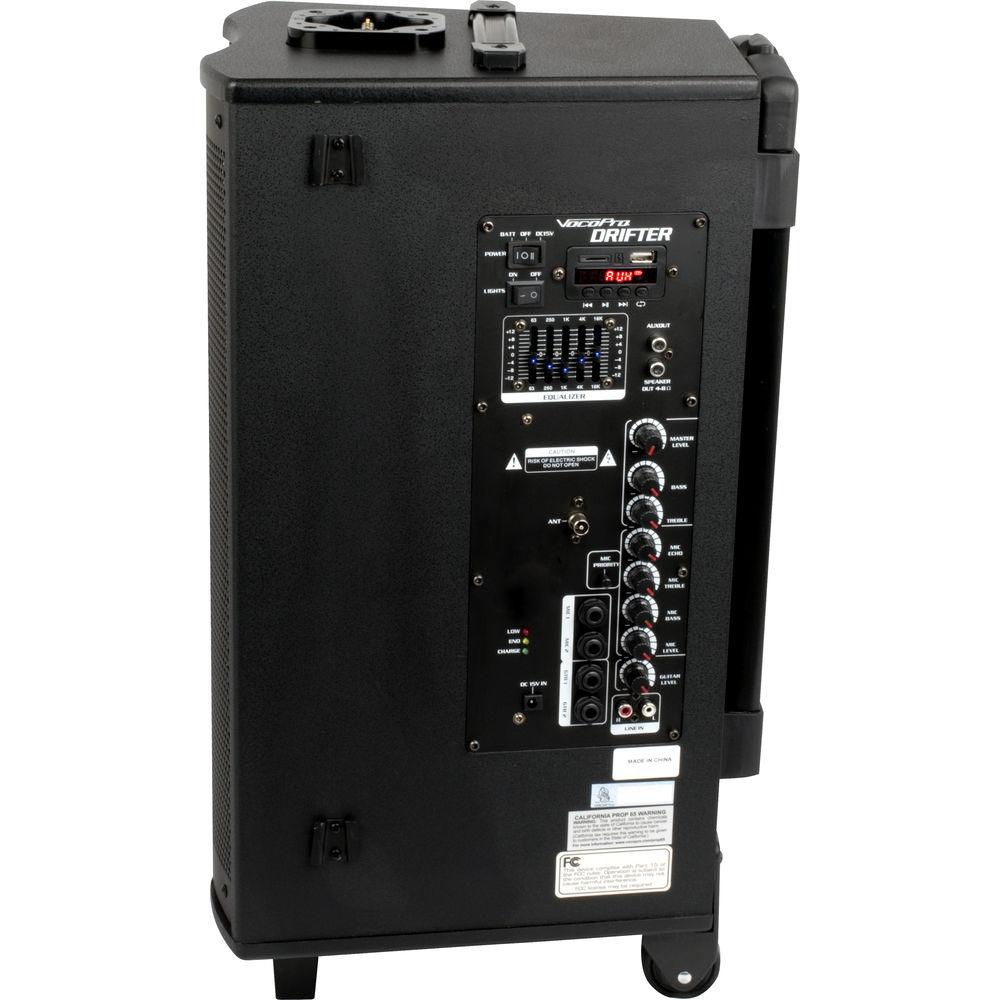

- Side-panel display and playback controls
- FM radio with detachable antenna
- Built-in mixer with mic, guitar, and master levels, 2-band EQ for mic inputs and master output, and adjustable echo level
- 5-band graphic equalizer provides up to 12 dB of boost/cut at 63 Hz, 250 Hz, 1 kHz, 4 kHz, and 16 kHz
- Switchable mic priority function automatically lowers the music level when mic signal is detected
- Switchable multicolor sound-reactive LED light
- Selectable power source (battery or power adapter)
- Internal rechargeable lead-acid battery provides up to six hours of operating time away from an electrical outlet
- 3-segment LED battery status indication

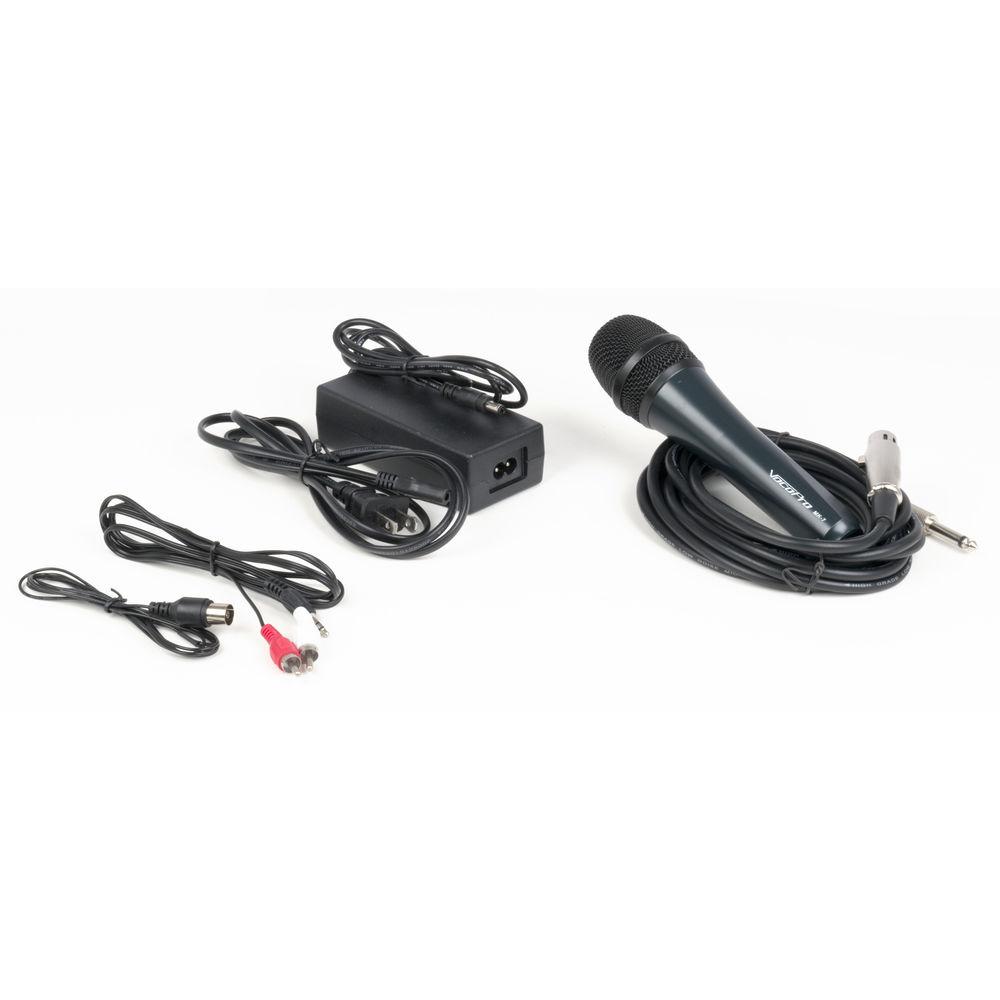

- Includes a dynamic microphone with an XLR to 1/4" mic cable, a 3.5mm to dual RCA audio cable, a remote control, and a power adapter

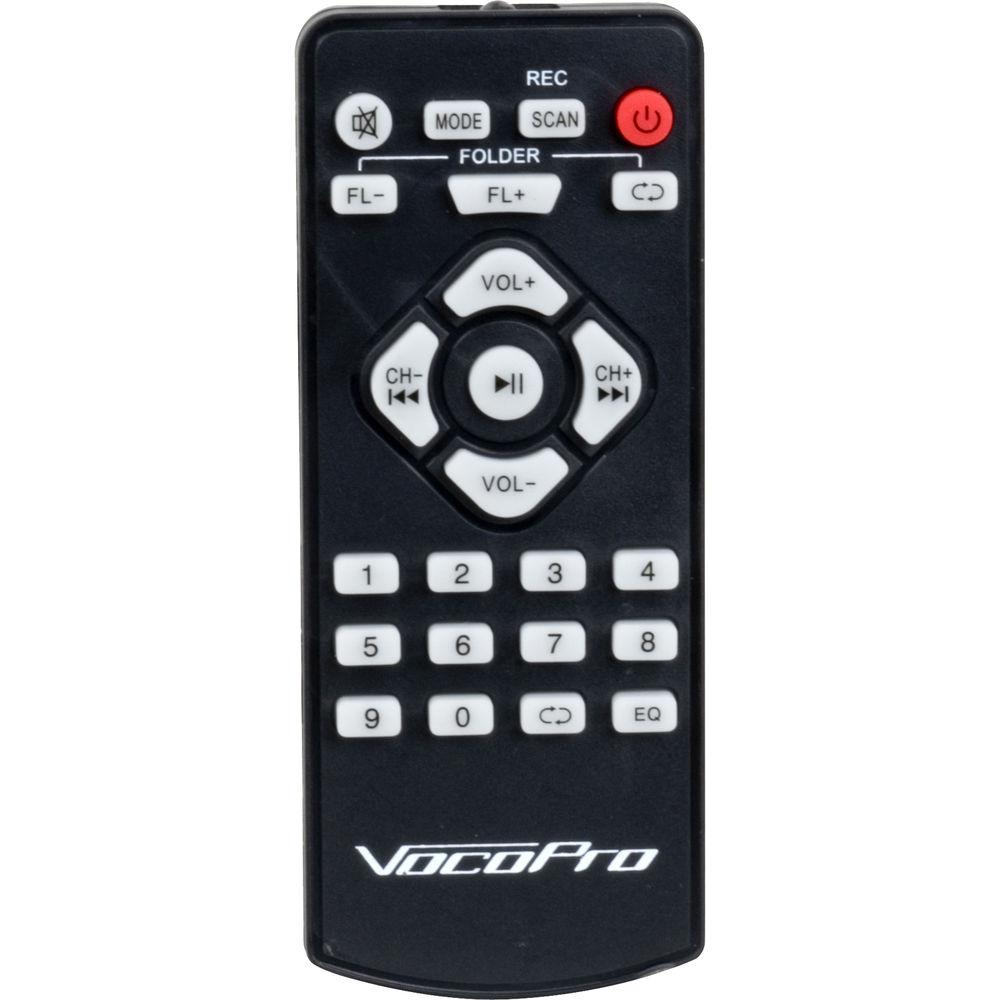

UPC: 692868374388 In the Box VocoPro Drifter Rechargeable Compact 3-Way 1500W Line Array Karaoke PA System Power Adapter Remote Control Handheld Dynamic Microphone XLR to 1/4" TS Microphone Cable 3.5mm to Dual RCA Audio Cable Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Drifter Rechargeable Compact 3-Way 1500W Line Array Karaoke PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro Drifter Specs | HF Driver | 1 x 1.5" / 3.8 cm tweeter per speaker unit | | MF Driver | 3 x 3" / 7.6 cm drivers per speaker unit | | LF Driver | 1 x 10" / 25.4 cm woofer | | Amplifier Power | 1500 W peak
120 W RMS | | Inputs | 2 x 1/4" microphone inputs
2 x 1/4" instrument inputs
2 x RCA coaxial line inputs | | Outputs | 1 x RCA coaxial mono aux output
1 x RCA coaxial mono speaker output (4 to 8 Ohms) | | Media Card Slots | 1 x microSD | | USB | 1 x USB Type-A | | Bluetooth | Built-in receiver | | Bluetooth Version | 4.0 | | Radio | FM | | Carrying / Transport Options | Rolling wheels
Retractable luggage handle
Top-panel carry handle | | Battery Type | Lead-acid | | Battery Life (approx.) | 4 to 6 hours | | Power Requirement | 15 VDC via included power adapter | | Dimensions (W x D x H) | 20 x 16 x 27" / 50.8 x 40.6 x 68.6 cm (collapsed) | | Weight | 48 lb / 21.8 kg | | | | Package Weight | 47.15 lb | | Box Dimensions (LxWxH) | 26.25 x 19.0 x 19.0" |
