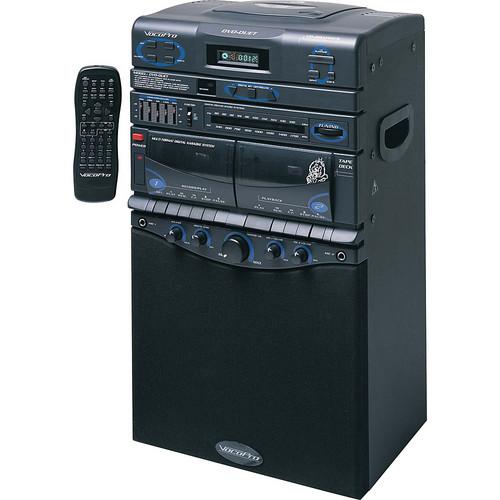

User Manual for VocoPro DVD-DUET 80W Multi-Format Music Vocal System with Built-In Speakers Click to enlarge the picture
Contents of the user manual for the VocoPro DVD-DUET 80W Multi-Format Music Vocal
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro DVD-DUET 80W Multi-Format Music Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro DVD-DUET is an 80W multi-format music/vocal system designed as an all-in-one karaoke system for parties and special events. It features a top-loading shock-resistant disc player that handles formats such as DVD, CD, MP3, and CD+G. It also comes equipped with dual cassette decks to play and record live performances and mixes from CD or cassette. There's an AM/FM tuner as well. The built-in 2-way stereo system utilizes two 4" woofers and two 1/4" tweeters driven by 40 watts per side.Two stereo pairs of RCA audio outputs are provided for connecting to a larger stereo system and an external recorder. NTSC- / PAL-switchable video outputs include an RCA composite connector, RCA component jacks, and an S-Video port. Use the supplied handheld dynamic microphones and mic cables to connect to the 1/4" microphone inputs, each with a dedicated level control. Enhance your sound via adjustable digital echo and the 5-band graphic equalizer. The integrated 12-step digital key controller allows you to easily raise or lower the pitch of CD playback. - Shock-resistant multi-format player supports DVD, CD+G, MP3, PHOTO-CD, HDCD, and most CD-R/CD-RW formats
- Multiplex mode enables easy removal of vocals when using multiplex media
- 12-step digital key controller adjusts pitch of music from the CD player
- 5-band graphic equalizer for precise tone control
- 80W 2-way stereo system with two 4" woofers and two 1/4" tweeters
- Music-only output jacks for connection to a TV's audio input
- Music plus mic mix output jacks allow connection to an external recorder or PA system
- Dual cassette decks to play and record live performances and mixes from CD or cassette
- Digital echo with level control
- Two 1/4" microphone inputs with individual volume controls
- Front-panel transport controls
- Includes a remote control for comprehensive access to the DVD-DUET's functions at a distance
UPC: 692868038907 In the Box VocoPro DVD-DUET 80W Multi-Format Music/Vocal System with Built-In Speakers 2 x Handheld Dynamic Microphones 2 x XLR to 1/4" Microphone Cables Stereo RCA Cable Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro DVD-DUET 80W Multi-Format Music Vocal System with Built-In Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro DVD-DUET Specs | | | Frequency Range | AM: 530 to 1719 kHz
FM: 87.5 to 108 MHz | | | | Output Power | 40 W + 40 W peak (THD 10%) | | Output Impedance | 8 Ohms | | Equalizer | ±10 dB at 100 Hz, 300 Hz, 1 kHz, 3 kHz, and 10 kHz | | | | Frequency Response | 125 Hz to 8 kHz | | Wow and Flutter | 0.35% | | Tape Speed | 4.75 cm/sec | | Input Power | 120 to 240 VAC, 50/60 Hz, 60 W | | | | Frequency Response | 125 Hz - 8 kHz | | Signal to Noise Ratio | 50 dB | | Wow and Flutter | Immeasurable | | D/A Conversion | 16-bit linear | | Sampling | 2-times oversampling | | | | Key Control (Transpose) | Digital Key Control: 12 steps in half-step increments | | Inputs | 2 x 1/4" microphone inputs | | Outputs | 4 x RCA coaxial (two stereo pairs)
1 x coaxial digital | | Video Outputs | 3 x RCA component (Y, Cb, Cr)
1 x RCA composite
1 x S-Video | | LF Driver | 2 x 4" / 10.2 cm woofers | | HF Driver | 2 x 0.3" / 0.6 cm tweeters | | Power Requirement | 120 VAC, 60 Hz or 240 VAC, 50 Hz | | Dimensions (H x W x D) | 22.0 x 12.5 x 9.5" / 55.9 x 31.8 x 24.1 cm | | Weight | 25 lb / 11.3 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 27.7 x 16.2 x 13.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
