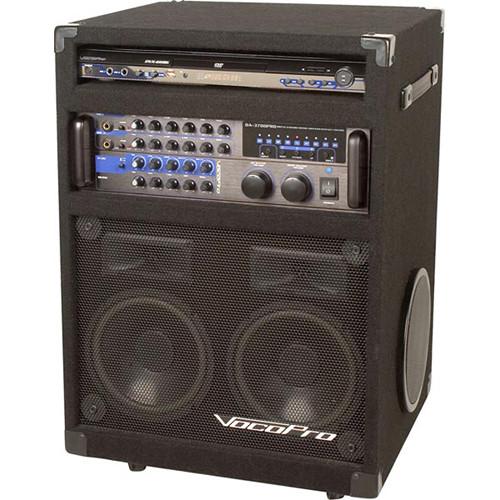

User Manual for VocoPro IDOL II 200W Digital Key Control DVD CD G CD System Click to enlarge the picture
Contents of the user manual for the VocoPro IDOL II 200W Digital Key
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro IDOL II 200W Digital Key contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The IDOL II 200W Digital Key Control DVD/CD+G/CD/System from VocoPro includes a DVX-668K Multi-Format USB, DVD, CD+G Karaoke Player, DA-3700 Pro Mixing Amplifier for Karaoke Rigs, and Professional Carpeted Road Case with Casters.The DVX-668K is more than just a full-featured karaoke player, it's a versatile home entertainment media hub for watching movies, listening to music, viewing slide shows and more. The DVX-668K is compatible with a format of compact disc called CD+G. Many titles for karaoke singing are available on CD+G that feature the instrumental music you need, and graphics that display on your TV. The DVX-668K allows you to adjust the key of the song up or down by 16%, without changing the tempo. You can even quickly loop portions of a song if you want to practice them over and over again.The DA-3700 Pro Mixing Amplifier is a rugged, rack-mountable mixing amplifier that is sure to compliment karaoke rigs for mobile or installed venue applications. The amplifier produces a powerful 200W (100W + 100W at 8 ohms) of power for sound reinforcement speakers and the mixer features two microphone inputs, two line inputs and two video I/O connections. Each channel features an EQ section and echo adjustment dial for applying just the right amount of EQ or effect to specific channels. - DVX-668K Multi-Format USB, DVD, CD+G Karaoke Player The DVX-668K from VocoPro is more than just a full-featured karaoke player, it's a versatile home entertainment media hub for watching movies, listening to music, viewing slide shows and more. Why just get a normal DVD player when you can have the DVX-668K and have a lot more fun? Two microphone inputs are featured on the front panel of the DVX-668K, so you can sing duets and have backup singers when needed. Digital echo effects are included that make your family and friends sound like super stars. The DVX-668K is compatible with a format of compact disc called CD+G. Many titles for karaoke singing are available on CD+G that feature the instrumental music you need, and graphics that display on your TV. If a singer's voice isn't in the right range of a song they want to sing, the DVX-668K allows you to adjust the key of the song up or down by 16%, without changing the tempo. You can even quickly loop portions of a song if you want to practice them over and over again. Karaoke is just the beginning of the good times you can have with the DVX-668K. It also plays DVDs, so you can watch your favorite movies in high-resolution with 5.1 surround sound. You can play CDs and listen to music on MP3s as well. You can even attach USB drives to the DVX-668K and play files, watch slide shows of your digital photos, and more.
- Plays CD+G karaoke discs, DVDs, audio CDs, MP3s, and has a USB port for attaching thumb drives and hard drives
- 2 microphone inputs and digital echo effects enable you and your friends to sing like professionals
- Features digital audio outputs, component video, and 5.1 surround sound for excellent quality sound and picture
- NTSC and PAL compatible for worldwide use (includes SCART video outputs for Europe)
- Take control from the comfort of the sofa with the included wireless remote
UPC: 692868766855 - DA-3700 Pro Karaoke Mixing Amplifier The VocoPro DA-3700 Pro Mixing Amplifier is a 3 RU rack-mountable mixing amplifier offering easy mixing of mic and line sources for mobile or installed karaoke applications. It produces 120W per channel at 4 Ohms or 100W per channel at 8 Ohms to binding-post speaker outputs. It features level, -20 dB pads, balance, 3-band EQ, and adjustable digital echo for the mic signals, as well as level, balance, 3-band EQ, and a 9-step digital key control for the music source.Two front-panel 1/4" jacks accommodate dynamic microphones, while the rear panel offers RCA sockets for two sets of composite video and stereo audio inputs. Dual video outputs and three stereo audio outputs allow versatile connectivity with televisions, stereo receivers, and more. Additionally, two 1/4" microphone inserts and one stereo RCA effects loop are provided for connecting and applying outboard effects processors. The included remote control enables input switching, key changes, and volume adjustments from a distance.
- Two unbalanced 1/4" microphone inputs with -20 dB pad, volume, balance, echo, and 3-band EQ controls on each channel
- 9-step digital key control to raise or lower the music pitch
- Two switchable RCA A/V inputs for sources such as DVD players, CD+G players, and VCD players
- Three pairs of stereo RCA audio outputs for connection to recording devices, amplifiers, and mixers
- Two RCA video outputs for connection to a TV or monitor device
- RCA effects loop for integration of outboard effect units
- Master volume, balance, and 3-band EQ controls for music signal
- Switchable mono/stereo echo with adjustable volume, feedback, delay time, and 2-band EQ
UPC: 692868637001 In the Box Bundle Items DVX-668K Multi-Format USB, DVD, CD+G Karaoke Player aedbfzzvsbesyfeudddvyyffdszuaafvzbvxf - A/V RCA Cable (Red, White, and Yellow)
DA-3700 Pro Karaoke Mixing Amplifier aedbfzzvsbesyfeudddvyyffdszuaafvzbvxf
Also Includes - Professional Carpeted Road Case with Casters
Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro IDOL II 200W Digital Key Control DVD CD G CD System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DVX-668K Multi-Format USB, DVD, CD+G Karaoke Player
| Output Connectors | 5.1 Channel Surround Sound - RCA Jacks
Left and Right Stereo - RCA Jacks
S/PDIF Digital Coaxial - RCA Jack
S/PDIF Digital Optical - Toslink Connector | | Video Outputs | Composite Video - RCA Jack
S-Video
Component (Y, Pb, Pr) - RCA Jacks
SCART (Europe) | | Resolution | 500 Lines | | Pitch Control Range | Adjust Key +/-16% Without Changing Pitch | | Loop Points | Yes | | Effects | Digital Echo | | Supported Formats | DVD, CD, CD+G, MP3, and DivX | | Signal-to-Noise Ratio | Audio = 90 dB
Video = 56 dB | | Dynamic Range | 90 dB | | Frequency Response | 96 kHz: 20 Hz - 20 kHz: +/-1dB | | Power Requirements | Voltage = 120V / 60 Hz
Consumption = 15W | | Dimensions | 17 x 1.3 x 7.8" (431.8 x 33 x 198.12 mm) | | Weight | 7 lbs (3.18 kg) | | | | Box Dimensions (LxWxH) | 18.6 x 11.7 x 4.6" | - DA-3700 Pro Karaoke Mixing Amplifier
| Inputs | 2 x 1/4" microphone inputs
4 x RCA coaxial line inputs (two stereo pairs)
2 x RCA composite video inputs
1 x 1/8" / 3.5 mm key control input | | Outputs | 2 x 1/4" microphone outputs
6 x RCA coaxial line outputs (three stereo pairs)
2 x RCA composite video outputs
4 x 2-way binding posts (one stereo speaker output) | | Sends/Returns | 2 x 1/4" TRS send/return jacks
2 x RCA coaxial sends (stereo pair)
2 x RCA coaxial returns (stereo pair) | | Maximum Output | 120 W + 120 W at 4 Ohms
100 W + 100 W at 8 Ohms | | Input Sensitivity | 1/4": <30 mV | | Total Harmonic Distortion (THD) | 0.5% | | Frequency Response | RCA: 20 Hz to 20 kHz
1/4": 100 Hz to 2.5 kHz | | Signal-to-Noise Ratio (SNR) | 65 dB (mic on)
70 dB (mic off) | | Noise Level | <10 mV | | Equalization | Bass: ±15 dB
Mid: ±12 dB
Treble: ±15 dB | | Power Requirement | 110/220 VAC, 50/60 Hz | | Power Consumption | 500 W | | Dimensions (W x D x H) | 16.0 x 14.0 x 5.5" / 40.6 x 35.6 x 14.0 cm (excluding rack ears, including feet)
19.0 x 14.0 x 5.3" / 48.3 x 35.6 x 13.3 cm (including rack ears, excluding feet) | | Weight | 16 lb / 7.3 kg | | | | Box Dimensions (LxWxH) | 15.0 x 14.0 x 5.0" |
