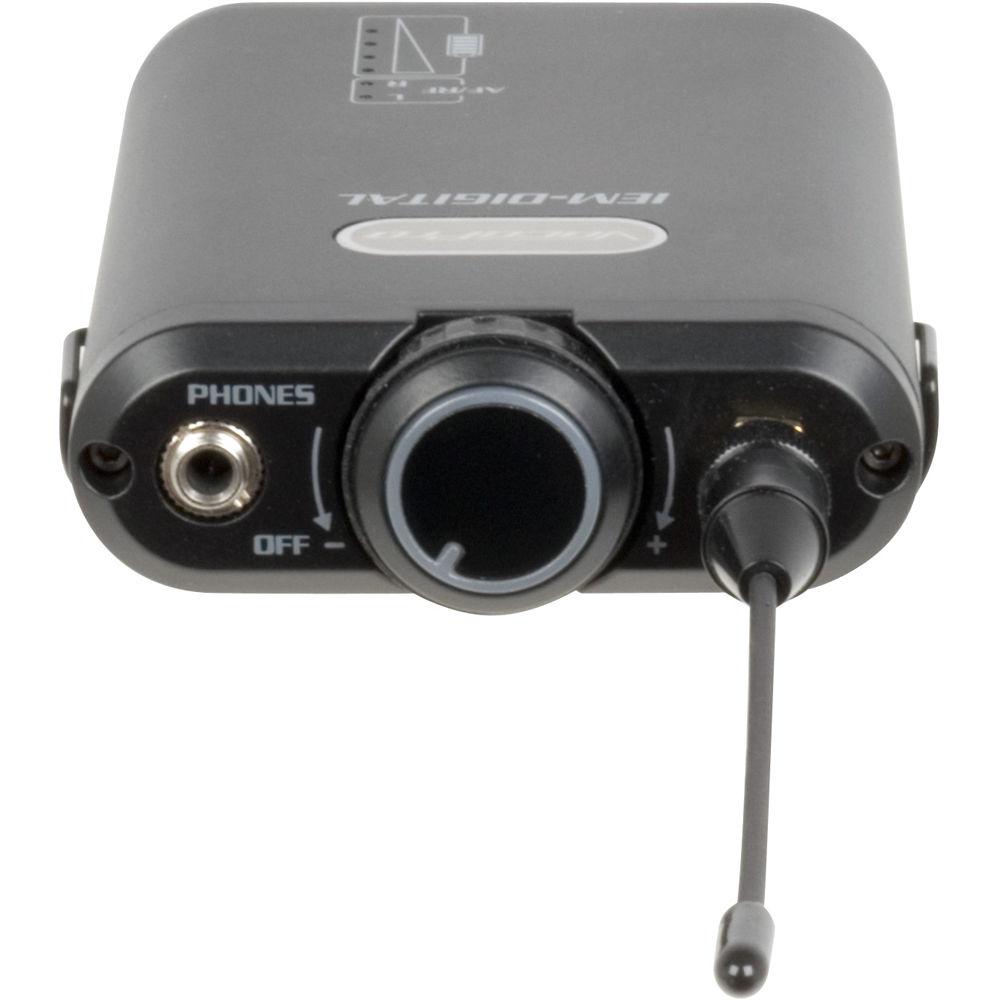

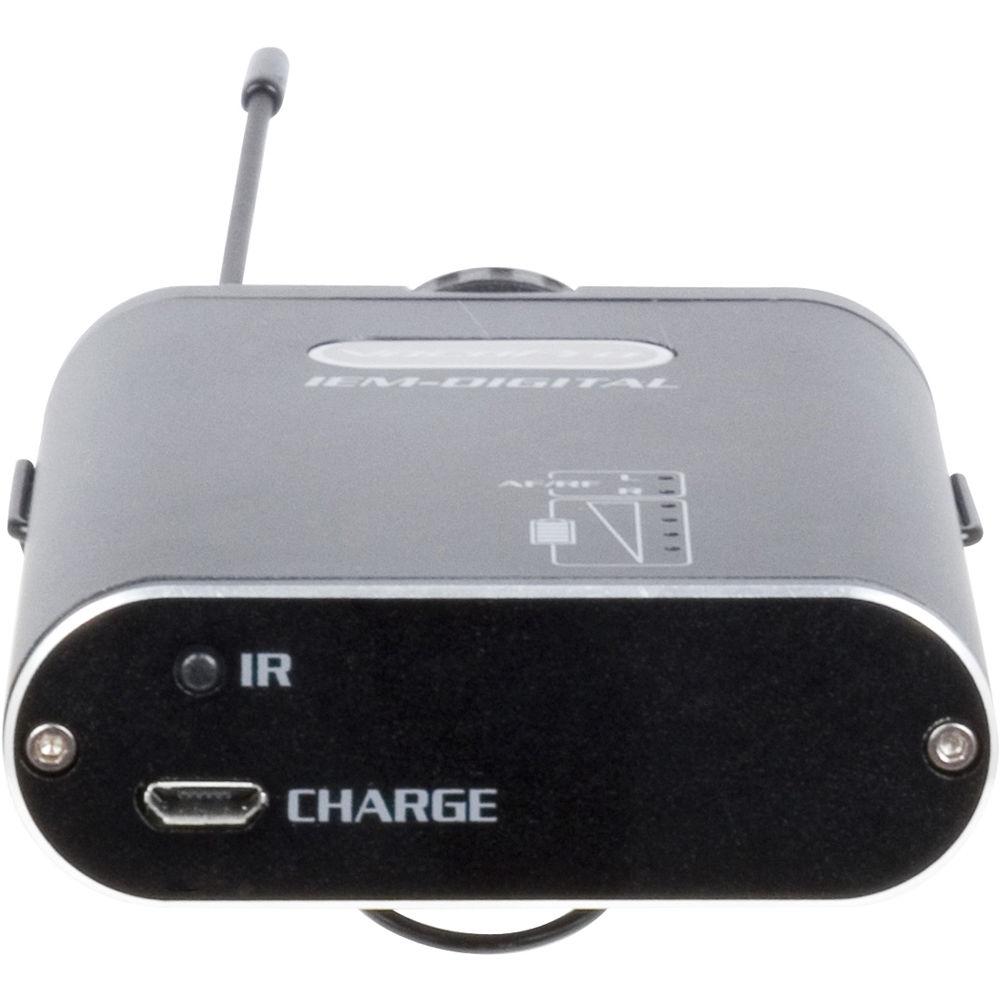

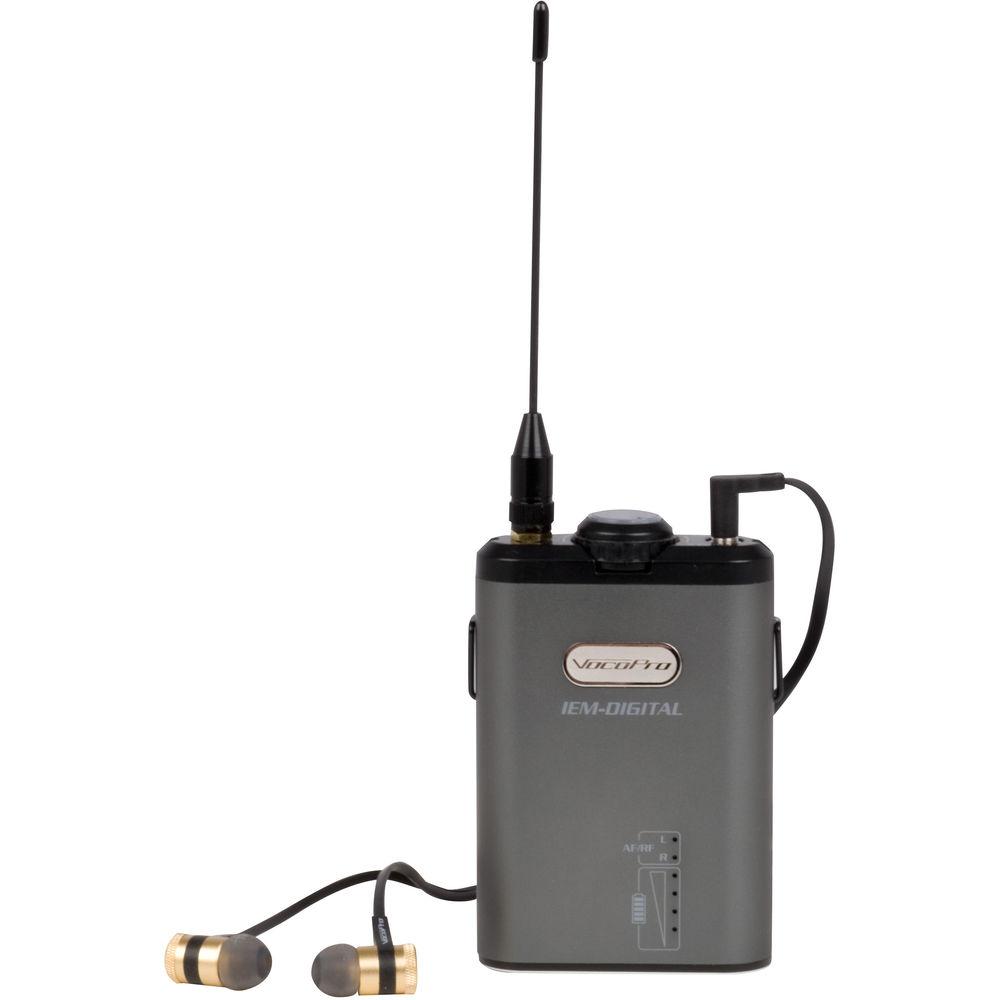

Product description The IEM-Digital 50 Wireless Stereo In-Ear Monitoring System by Vocopro offers dual mono or true stereo monitoring for vocalists and musicians in clubs, concerts, and assistive listening applications. The in-ear monitoring system is comprised of a dual-antenna transmitter with a rackmount kit and AC adapter, and 50 bodypack receivers—each with two AA rechargeable batteries, in-ear headphones with a set of eartips, and a USB cable with a wall adapter. It utilizes 24-bit digital dual-frequency technology for proper separation between the left and right channels while operating with 18 selectable channels in the 902 to 928 MHz frequency range to avoid interference. One-touch sync enables simple setup, and the selectable high- or low-transmission modes accommodate a variety of venue sizes. The transmitter's two XLR-1/4" combo inputs accept balanced or unbalanced line-level signals. Its outputs include a front-panel 1/4" TRS jack for stereo headphones and a rear-panel 3.5mm loop output for connecting to another transmitter. The bodypack receivers feature a 3.5mm TRS mini headphone jack and a micro-USB charging port. The transmitter and receivers are constructed of metal for rugged durability gig after gig. - Rugged metal construction for lasting durability
- 24-bit digital dual-frequency transmitter and receivers
- Up to 9 sets are designed to work together simultaneously
- 18 selectable frequency channels to avoid wireless RF conflict
- Supports operation in true stereo or dual mono
- Two independent channel outputs give each performer a dedicated connection
- Operates in the 902 to 928 MHz frequency range free of interference
- High- or low-transmission preference
- Instantaneous connection and setup with one-touch IR sync

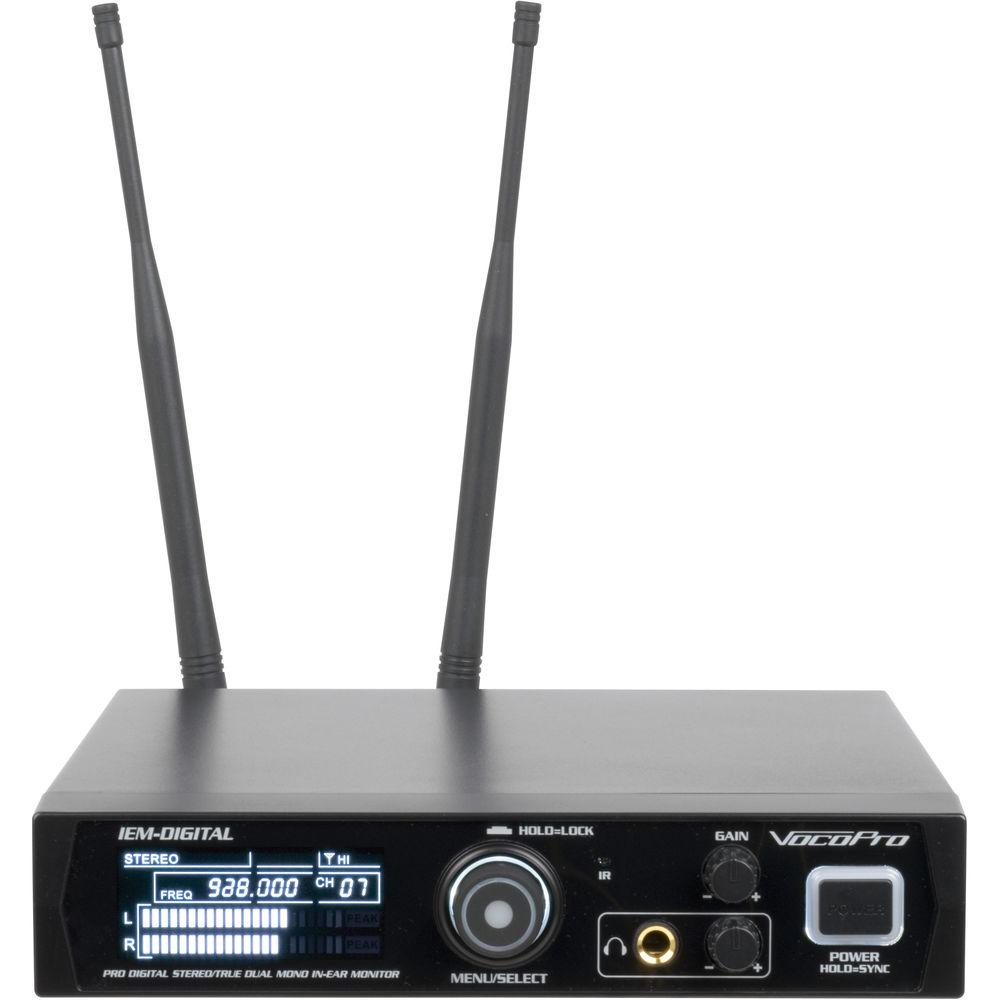

- Digital transmitter display shows frequency, channel, audio level, and more
- Adjustable gain and headphone level on transmitter
- Volume/power knob and built-in belt clip on receivers

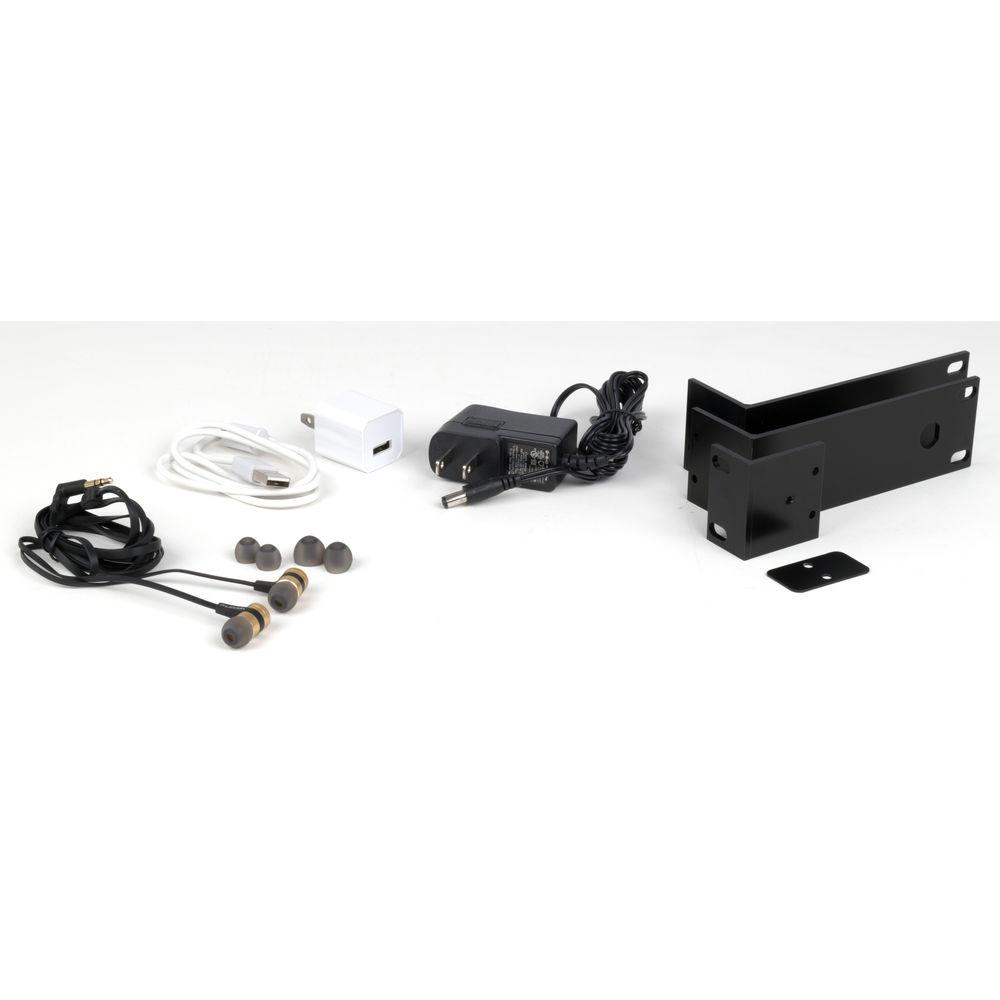

In the Box VocoPro IEM-Digital 50 Wireless Stereo In-Ear Monitoring System Power Adapter Rackmount Kit 50 x In-Ear Headphones 50 x 3 Pairs of Eartips 50 x USB Charging Cables 50 x USB Wall Adapters 50 x 2 x AA Rechargeable Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro IEM-Digital 50 Wireless Stereo In-Ear Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

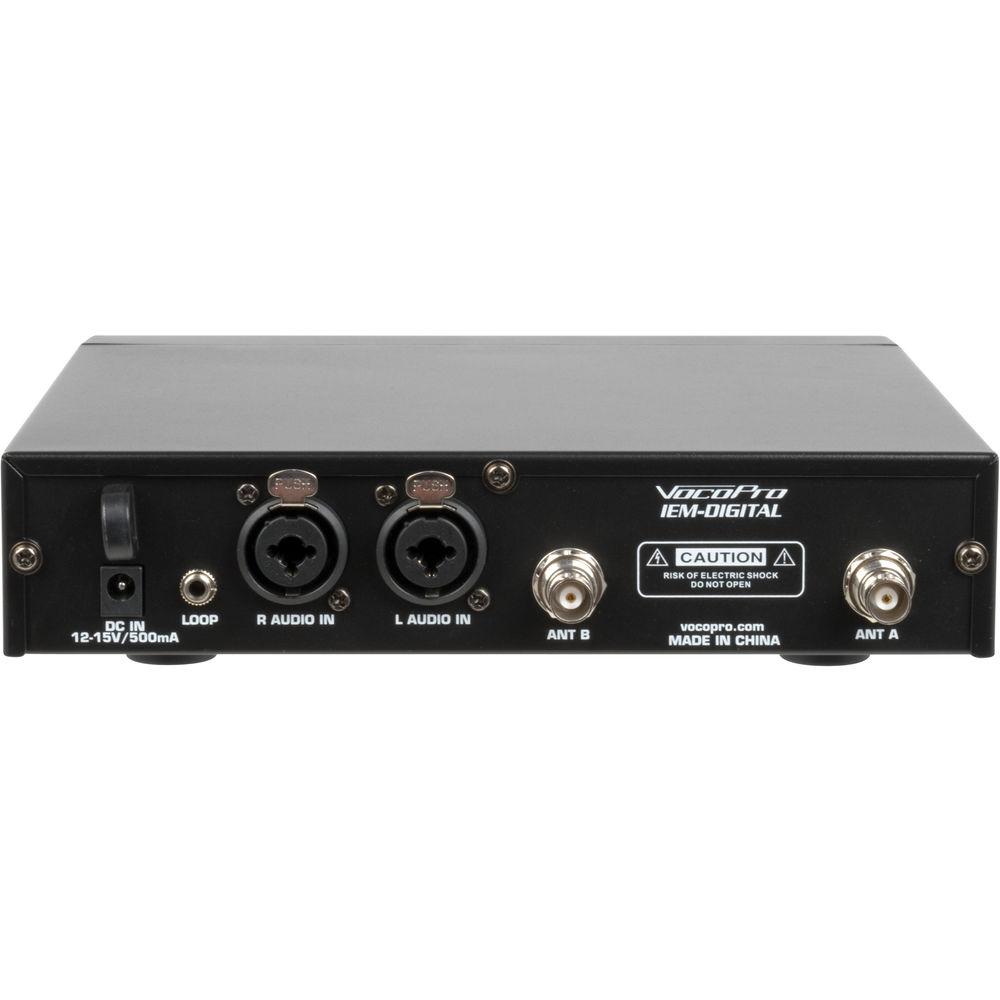

Technical parametersVocoPro IEM-DIGITAL-50 Specs | Wireless Frequency Range | 902 to 928 MHz | Channels | 18 | Bit Depth | 24 | Inputs | 2 x XLR-1/4" Combo Jacks | Outputs | 1 x 1/4" TRS Headphone Jack 1 x 1/8" / 3.5 mm Mini Jack (Loop) | Antenna Inputs | 2 x BNC Coaxial | Power Requirement | 12 to 15 VDC, 500 mA via Included Power Adapter | Construction Material | Metal | Dimensions (H x W x D) | 2.0 x 8.5 x 9.0" / 5.1 x 21.6 x 22.9 cm | Weight | 2.3 lb / 1 kg | | Wireless Frequency Range | 900 MHz | Channels | 18 | Bit Depth | 24 | Outputs | 1 x 1/8" / 3.5 mm Stereo Mini Jack | Charging Port | 1 x USB Micro-B | Power Requirement | 2 x AA Rechargeable Batteries (3.7 V, 1380 mAh) | Construction Material | Metal | Dimensions (H x W x D) | 6.4 x 2.7 x 0.9" / 16.2 x 6.9 x 2.2 cm | Weight | 0.3 lb / 0.1 kg |
