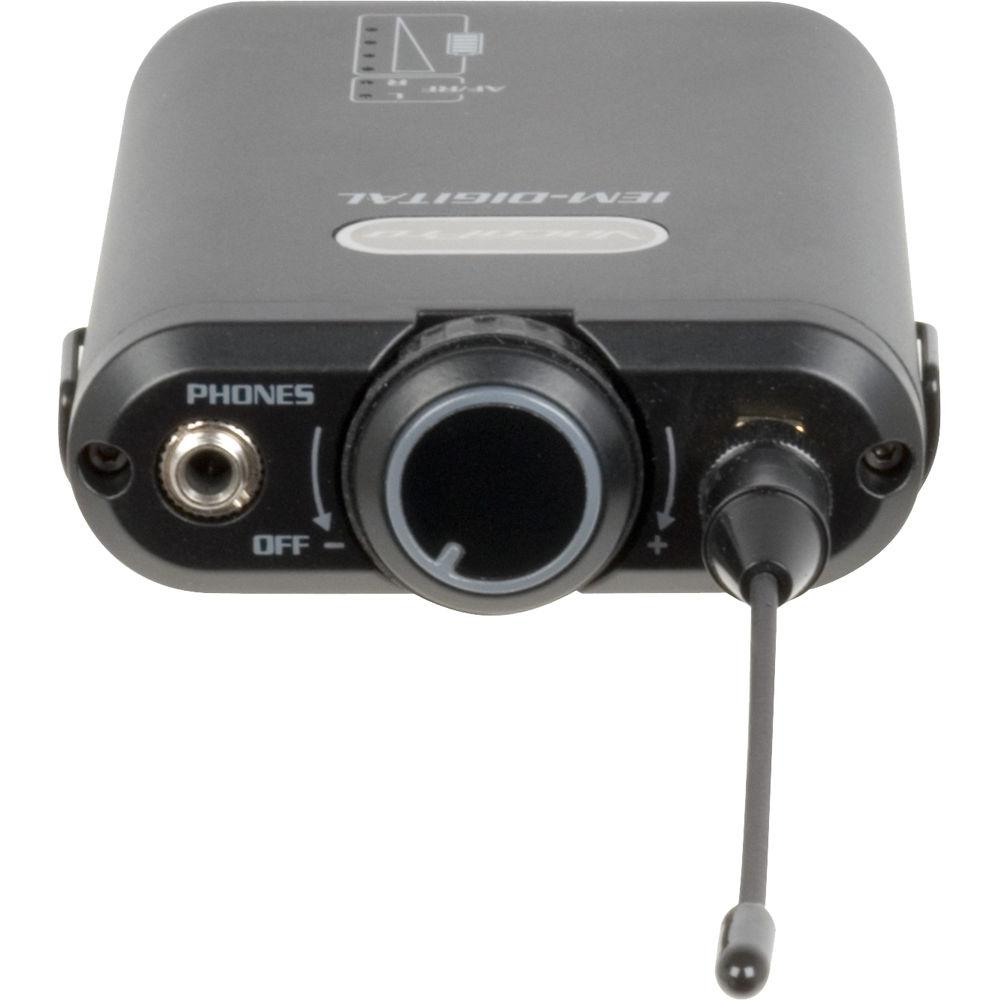

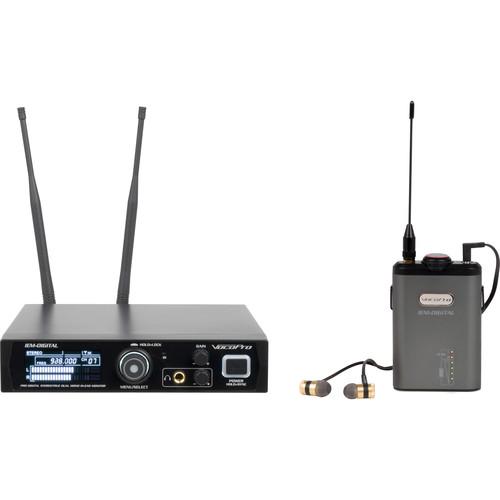

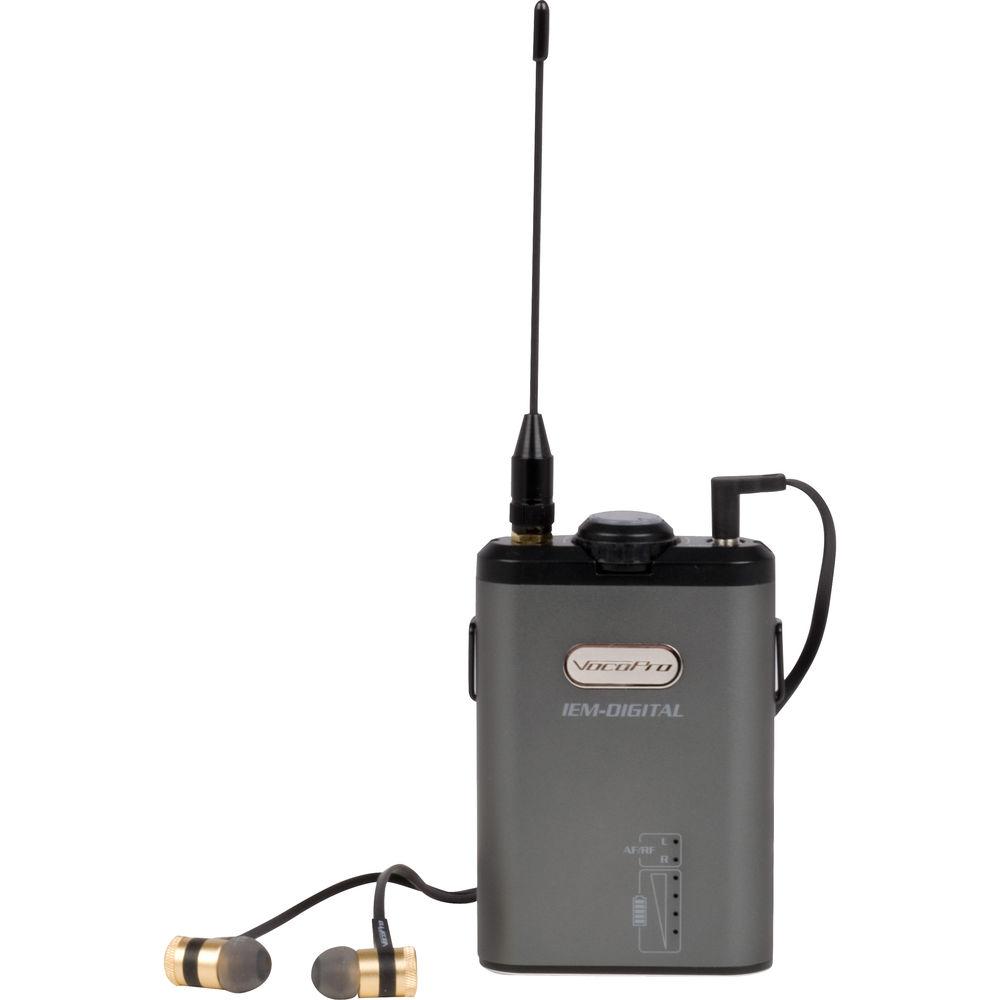

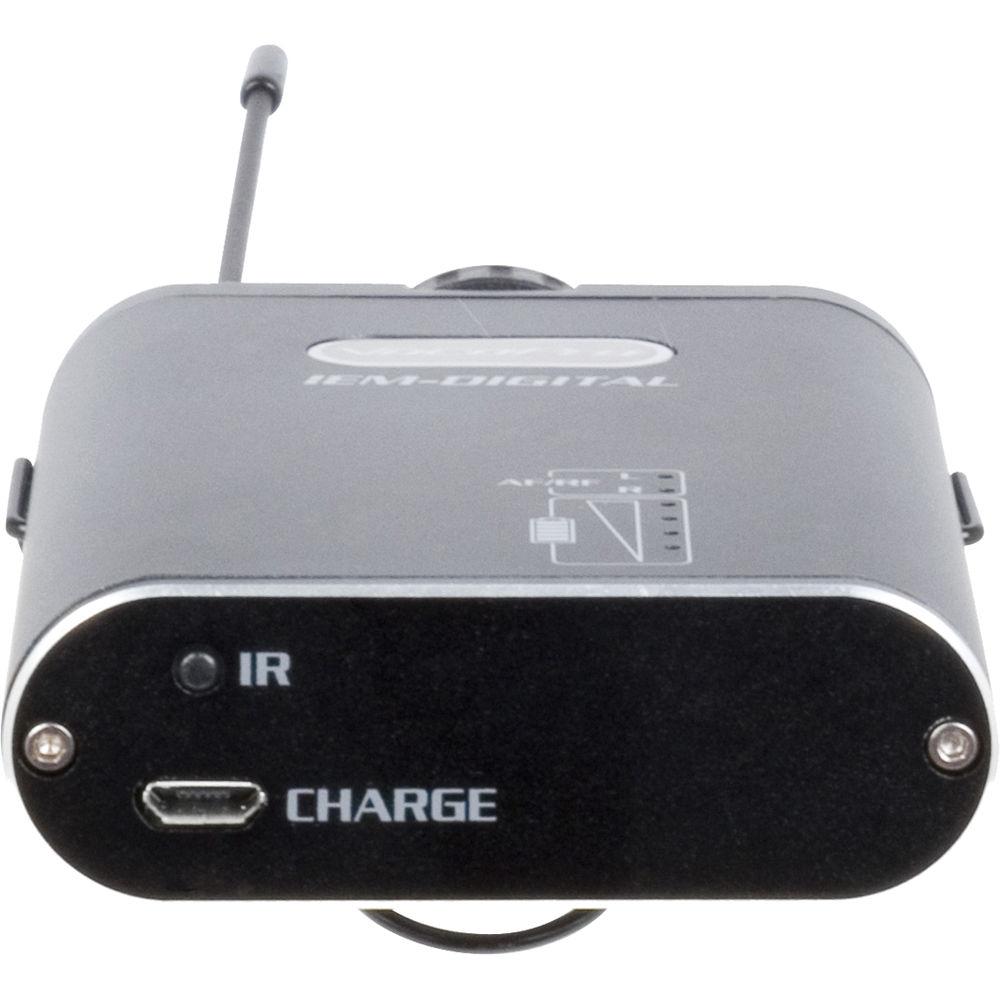

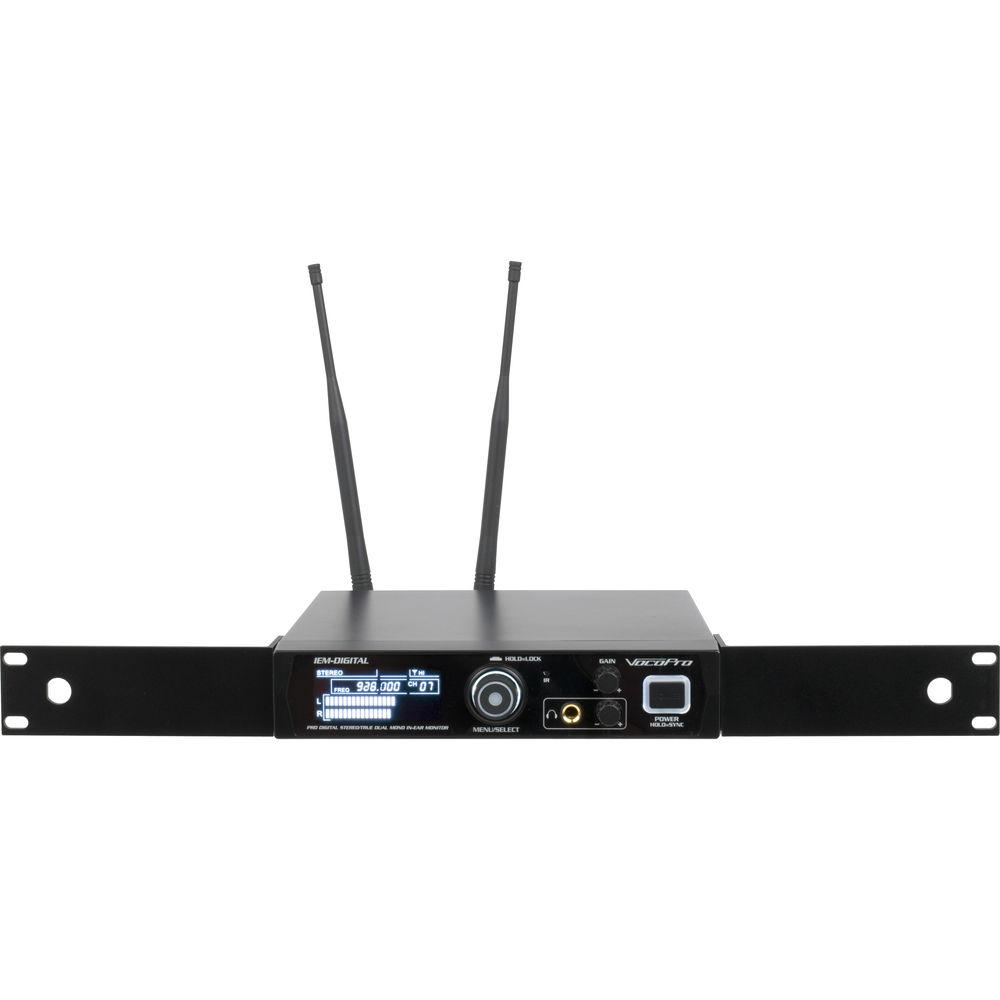

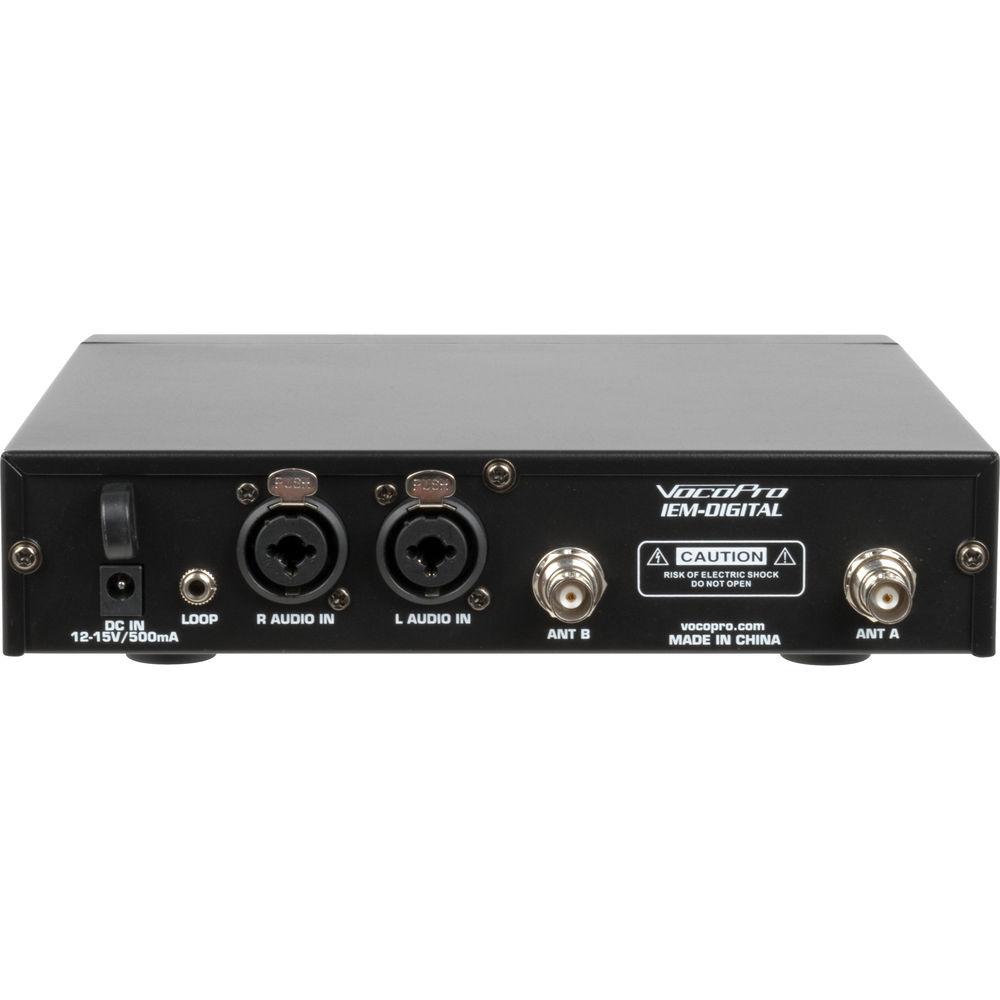

Product description The VocoPro IEM-Digital is a wireless stereo in-ear monitoring system offering dual mono or true stereo monitoring for vocalists and musicians in clubs, concerts, and houses of worship. Comprised of a dual-antenna transmitter with a rackmount kit and AC adapter, a bodypack receiver with two AA rechargeable batteries, in-ear headphones with multiple eartips, and a USB cable with a wall adapter, the IEM-Digital includes everything you need to get set up. It utilizes 24-bit digital dual-frequency technology to ensure proper separation between the left and right channels while operating with 18 selectable channels in the 902 to 928 MHz frequency range to avoid TV broadcasting interference. One-touch sync enables simple setup, and the selectable high or low transmission mode accommodates a variety of venue sizes. The transmitter's two XLR-1/4" combo inputs accept balanced or unbalanced line-level signals. Its outputs include a front-panel 1/4" TRS jack for stereo headphones and a rear-panel 3.5mm socket for connecting to another transmitter. The bodypack receiver features a 3.5mm TRS mini headphone jack and a micro-USB charging port. The transmitter and receiver are constructed of metal for rugged durability gig after gig. - Rugged metal construction for lasting durability
- 24-bit digital dual-frequency transmitter and receiver
- 18 selectable frequency channels to avoid wireless RF conflict
- Supports operation in true stereo or dual mono
- Two independent channel outputs give each performer a dedicated connection
- Operates in the 902 to 928 MHz frequency range free of TV broadcasting interference
- High or low transmission preference
- Instantaneous connection and setup with one-touch IR sync

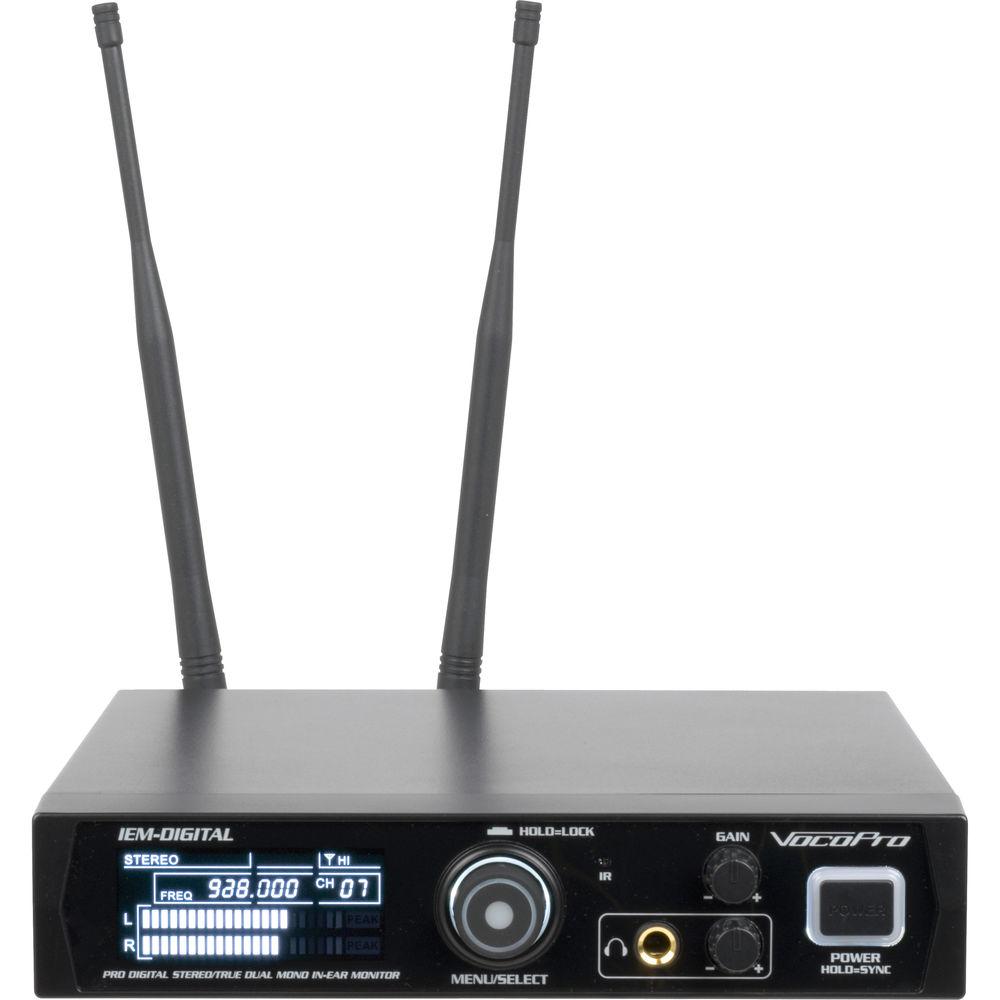

- Digital transmitter display shows frequency, channel, audio level, and more
- Adjustable gain and headphone level on transmitter
- Volume/power knob and built-in belt clip on receiver
- Includes in-ear headphones, a USB cable and wall adapter, one power adapter, two AA batteries, and a rackmount kit

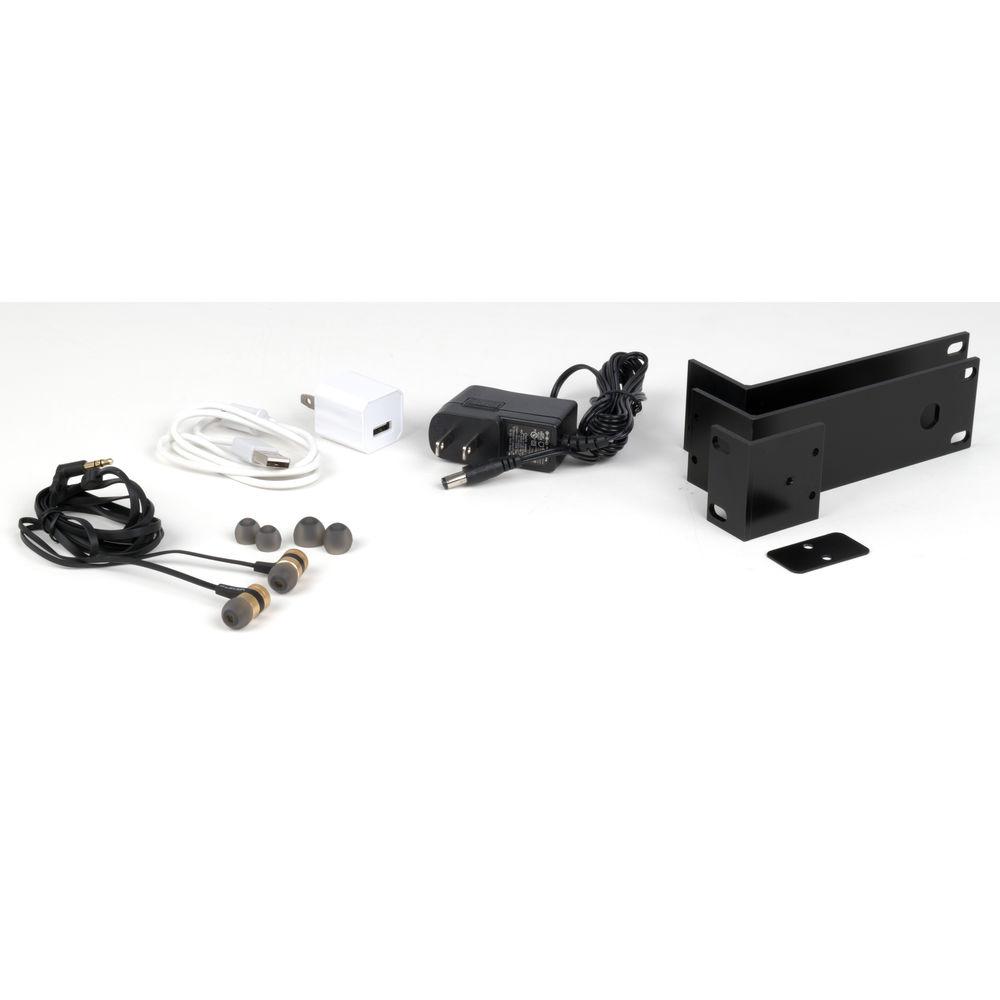

UPC: 692868436345 In the Box VocoPro IEM-Digital Wireless Stereo In-Ear Monitoring System (902 to 928 MHz) In-Ear Headphones 3 x Pairs of Eartips Rackmount Kit USB Charging Cable USB Wall Adapter Power Adapter 2 x AA Rechargeable Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro IEM-Digital Wireless Stereo In-Ear Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro IEM-Digital Specs | | | Wireless Frequency Range | 902 to 928 MHz | | Channels | 18 | | Bit Depth | 24 | | Inputs | 2 x XLR-1/4" combo jacks | | Outputs | 1 x 1/4" TRS headphone jack
1 x 1/8" / 3.5 mm mini jack (loop) | | Antenna Inputs | 2 x BNC coaxial | | Power Requirement | 12 to 15 VDC, 500 mA via included power adapter | | Construction Material | Metal | | Dimensions (H x W x D) | 2.0 x 8.5 x 9.0" / 5.1 x 21.6 x 22.9 cm (including buttons and jacks) | | Weight | 2.3 lb / 1 kg | | | | Wireless Frequency Range | 900 MHz | | Channels | 18 | | Bit Depth | 24 | | Outputs | 1 x 1/8" / 3.5 mm stereo mini jack | | Charging Port | 1 x USB Micro-B | | Power Requirement | 2 x AA rechargeable batteries (3.7 V, 1380 mAh) | | Construction Material | Metal | | Dimensions (H x W x D) | 6.4 x 2.7 x 0.9" / 16.2 x 6.9 x 2.2 cm (including antenna) | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 17.5 x 12.25 x 3.0" |
