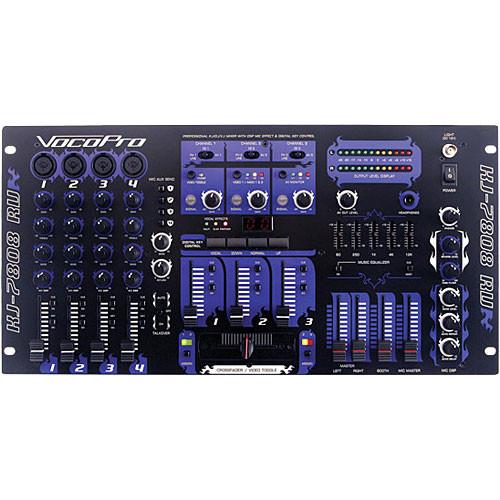

User Manual for VocoPro KJ-7808 RV Karaoke DJ VJ Mixer with 4 Mic Line and 3 Stereo Channels Click to enlarge the picture
Contents of the user manual for the VocoPro KJ-7808 RV Karaoke DJ VJ
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro KJ-7808 RV Karaoke DJ VJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VocoPro KJ-7808 RV is a 6 RU rack-mountable karaoke mixer supporting up to four microphones and three stereo audio/video sources, making it an ideal centerpiece for a home- or club-based karaoke, DJ, or VJ system. Its built-in mixer provides level, 2-band EQ, reverb, a hiss filter, and adjustable digital echo for the mic signals, as well as an assignable crossfader, a 5-band graphic EQ, and an 11-step digital key control for the music source. The selectable Multiplex and Vocal Partner modes remove guide vocals from multiplex karaoke media, while the Vocal Eliminator function partially removes lead vocals from non-multiplex sources. The switchable Talkover circuit automatically attenuates the music volume when signal is detected at the first mic input.Four XLR-1/4" combo jacks accommodate balanced or unbalanced dynamic microphones, while the rear-panel offers RCA sockets for phono inputs, CD inputs, line inputs, and composite video inputs. Three video outputs along with balanced and unbalanced outputs allow versatile connectivity with televisions, stereo receivers, mixers, and PA systems. Additionally, the 1/4" headphone output has its own level control for convenient personal monitoring. Twelve-segment meters indicate the stereo output level. - Three channels with dedicated RCA phono/line, CD, and audio/video inputs
- Four XLR-1/4" combo inputs accommodate balanced or unbalanced microphones
- 11-step digital key controller enables pitch control of the source music without affecting its tempo
- Multiplex function removes the guide vocal from multiplex CDs or tapes
- Vocal Partner function removes the guide vocal from multiplex CDs or tapes only when you sing
- Vocal Eliminator function enables partial removal of lead vocals from non-multiplex sources
- Built-in microphone DSP with reverb, hiss filter, and adjustable echo
- 5-band graphic equalizer for the music mix and 2-band EQs for each mic input
- Assignable crossfader / video toggle
- Talkover function automatically lowers the music volume when input signal is detected at the first mic input
- Three RCA composite video outputs to feed multiple video monitors
- Master, booth, record, A/V, and headphone outputs allow flexible routing to a PA system, monitors, recording devices, and headphones
- 1/4" send and return for connection of an external effects processor
- 3.5mm remote key control input
- Two ground posts for connecting to turntables
- Ground-lift switch minimizes hum
- 12-segment stereo LED output meters
- Occupies 6 RU of rack space
UPC: 692868678080 In the Box VocoPro KJ-7808 RV Karaoke/DJ/VJ Mixer with 4 Mic/Line and 3 Stereo Channels Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro KJ-7808 RV Karaoke DJ VJ Mixer with 4 Mic Line and 3 Stereo Channels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro KJM-7808 Specs Inputs | 4 x XLR-1/4" combo microphone inputs 6 x RCA coaxial phono/line inputs (three stereo pairs) 6 x RCA coaxial CD inputs (three stereo pairs) 6 x RCA coaxial A/V inputs (three stereo pairs) 3 x RCA composite video inputs 1 x 1/8" / 3.5 mm remote key control input | Outputs | 2 x XLR 3-pin male master outputs (one stereo pair) 2 x RCA coaxial master outputs (one stereo pair) 2 x RCA coaxial booth outputs (one stereo pair) 2 x RCA coaxial A/V outputs (one stereo pair) 2 x RCA coaxial record outputs (one stereo pair) 1 x 1/4" stereo headphone output 1 x 1/4" mono microphone output 3 x RCA composite video outputs | Sends/Returns | 1 x 1/4" TRS balanced send 2 x 1/4" TS unbalanced returns | Light Output | 12 VDC | Input Impedance | Mic: 1 kOhm CD/Line: 10 kOhms Phono: 47 kOhms | Input Sensitivity | Mic: 1.5 mV CD/Line: 150 mV Phono: 3 mV | Output Impedance | Master: 600 Ohms Booth: 600 Ohms Record: 600 Ohms Headphones: 32 Ohms | Output Sensitivity | Master: 1.5 V Booth: 1.5 V Record: 1.5 V Headphones: 400 mV | Maximum Output Level | +20 dBV, 8.5 Vrms (0 dBV = 1 V) | Frequency Response | 20 Hz to 20 kHz (
