User Manual for VocoPro KJM-8000 Pro Plus Professional DJ Mixer Click to enlarge the picture
Contents of the user manual for the VocoPro KJM-8000 Pro Plus Professional DJ
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro KJM-8000 Pro Plus Professional DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

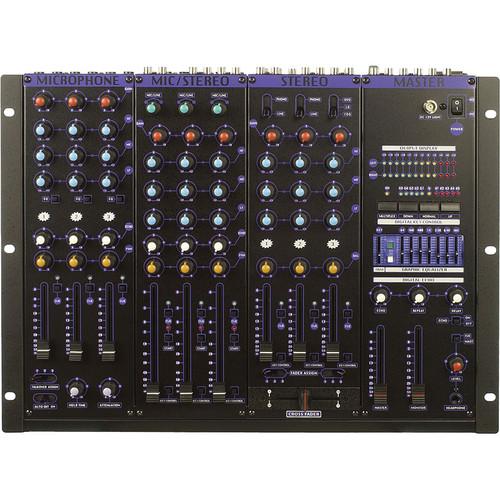

Product description The KJM-8000 Pro Plus Professional DJ Mixer from VocoPro is a DJ mixer designed to aid professional KJs and DJs in providing high quality karaoke entertainment. The mixer ships with a pre-installed Pro+ mixing module for a total of nine channels; you can choose between 6 line & 3 mic and 6 mic & 3 line input channels.
The channels accommodate phono (turntable), line audio (CD players), and video sources. DJs can also manipulate and change the singer's key with the built-in digital key controller dial. A vocal eliminator effect removes the center frequencies from standard CDs, turning them into karaoke tracks. - Nine channel professional Vocal/DJ mixer with three to six stereo and three to six mic channels
- 11 step digital key controller in half-tone per step increments selectable on all music channels
- Professional digital echo with repeat and delay controls
- Seven band graphic equalizer for precise room tuning and tone control
UPC: 692868681004 In the Box VocoPro KJM-8000 Pro Plus Professional DJ Mixer Limited 1-Year Standard Warranty; Extended Warranty Plans Available Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro KJM-8000 Pro Plus Professional DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro KJM-8000PRO+ Specs | Inputs | Microphone:
Microphone Module:
Connector: 1 x XLR jack, balanced
Input Impedance: 1.5 kΩ
Maximum Input Level: +20 dBu
Microphone/Line Module:
Connector: 1 x XLR jack, balanced
Input Impedance: 1.2 kΩ
Maximum Input Level: +20 dBu
Maximum Gain: 40 dB
Line:
Microphone Module:
Connector: 1 x 1/4 jack, balanced
Input Impedance: 10 kΩ
Maximum Input Level: +20 dBu
Microphone/Line Module:
Connector: 1 x RCA jack, unbalanced
Input Impedance: 30 kΩ
Maximum Input Level: +20 dBu
Maximum Gain: 24 dB
Stereo/Music Module:
Connector: 1 x RCA jack
Input Impedance: 30 kΩ
Maximum Input Level: +20 dBu
Phono:
Stereo/Music Module:
Connector: 1 x RCA jack
Input Impedance: 47 kΩ
Nominal Input Level: 3 mV
RIAA: +/-1 dB | | Tone | Microphone, Microphone/Line, Stereo/Music Modules:
High/Mid/Low: +/-12 dB | | Master Output | Connector: 1 x RCA jack (unbalanced 1/4)
Maximum Output: +22 dBu | | Headphone | Master Module: 30 mW/16 Ω | | Metering | Master Module: 12 Segment LED bar graph | | Maximum Delay | Master Module: 300m S (echo) | | Frequency Response | 20 Hz to 20 kHz +/- 1 dB | | THD | <0.05% | | Noise | 80 dB | | Talkover | Microphone Module:
Hold Time: Up to 6 sec
Attenuation: -4 dB to -20 dB | | Dimensions | 19 x 3.5 x 14.5" (48.3 x 8.9 x 36.8 cm) | | Weight | 15 lb (6.8 kg) | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 22.5 x 17.4 x 7.6" |
