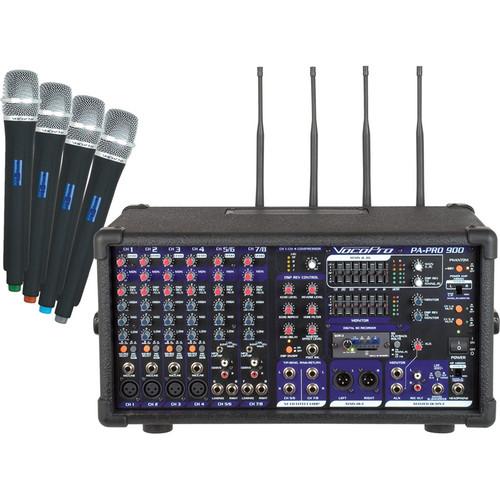

Product description The VocoPro PA-PRO 900-2 900W Professional PA Mixer is a conveniently integrated yet powerful portable PA system, well suited for public address applications, small performances, rehearsals, house-of-worship sound and more. The system features up to 900 watts of power, a 6 channel mixer, wireless microphone capability and an integrated SD-card recorder.The PA-PRO 900-2 supports up to 4 simultaneous wireless microphones and includes 4 built-in wireless receiver modules and 4 wireless handheld microphone transmitters. The mixer section features 4 mono inputs with microphone and line level inputs, and 2 stereo inputs with RCA and 1/8" MP3 device inputs. In addition to all this, the PA-PRO 900-1 features built-in reverb, echo and hiss removing DSP effects. - PA-PRO 900-2 includes SDR-3 recorder and 4 UHF modules and microphones
- 450W + 450W RMS power output (4 ohms)
- 6 channels (4 Mic/Line, 2 Stereo)
- Mic/Line channel inputs: 1/4", XLR
- Stereo channel inputs: 1/8", L/R RCA, L/R 1/4"
- Dual-mode amplifier can output in mono + monitor or stereo modes
- Independent tone, level and effect controls on all input channels
- DSP reverb, echo and hiss filter effects with On/Off switch
- Built-in compressor for microphone channels
- L/R 1/4" effect loop jacks for stereo channels
- Dual 7-band graphic EQs for main and monitor output
- 4 UHF wireless mic module ports
- SDR-3 digital SD recorder expansion port
- Balanced XLR L/R main output jacks
- Subwoofer output with 125Hz LPF and On/Off switch
- Speakon and 1/4" speaker output jacks
- Headphone output with source select
UPC: 692868726026 In the Box VocoPro PA-PRO 900-2 900W Professional PA Mixer (4 Wireless UHF Modules) 4 x UHF Receiver Module 4 x Handheld Microphone Transmitter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro PA-PRO 900-2 900W Professional PA Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro PA-PRO-900 - 2 Specs | Input | XLR Microphone: -50dBu (Rated Input), 54dB (Total Gain), 1k Ohm
1/4" Phone Line (CH 1-4): -20dBu Pad On (Rated Input), 24dB (Total Gain) 1/4" Phone Music: -22dBu (Rated Input), 26dB (Total Gain), 2.8k Ohm
RCA Line (CH 5/6 & 7/8): -22dBu (Rated Input), 26dB (Total Gain), 2.8k Ohm MP3 1/8" (3.5mm) Stereo: -24dBu (Rated Input), 28dB (Total Gain), 1.8k Ohm
1/4" Phone Stereo Effect Loop: 0dBu (Rated Input), 4dB (Total Gain), 10k Ohm 30-Pin UHF Module: -34dBu (Rated Input), 38dB (Total Gain), 1k Ohm
6-Pin SD Card: -24dBu (Rated Input), 28dB (Total Gain), 1.8k Ohm | | Output | XLR Main: +4dBu (Rated Input), 240 Ohm
1/4" Phone Monitor: +4dBu (Rated Input), 120 Ohm 1/4" Phone AUX: +4dBu (Rated Input), 120 Ohm
1/4" Phone Mono Sub: +4dBu (Rated Input), 120 Ohm 1/4" Phone TRS Headphone: 1.0V (Rated Input), 33 Ohm
RCA Rec Output: -6dBu (Rated Input), 120 Ohm | | Speaker Output | @ 4 Ohm Load
Speakon / 1/4" TS Connection: 2 x 500W (Peak) 4 Ohm
2 x 450W (AVG) 4 Ohm 2 x 435W (Rated) 4 Ohm | | Frequency Response | Mic Input CH 1-4: 10Hz - 24kHz, 0dB / -1.5dB
Stereo Input CH 5-8: 10Hz - 35kHz, 0dB / -1.5dB | | EQ Section | Channel EQ:
High: 100Hz, +15dB Mid: 2.5kHz, +/- 12dB
Low: 10kHz. +15dB | | THD | Mic Mono to Speaker Output: 42V, Less Than 0.07% THD
CH 5-8 to Speaker Output: 42V, Less Than 0.06% THD CH 1-4 to Main Mix Output: +4dBu (balanced), Less Than 0.07% THD
CH 5-8 to Main Mix Output: +0dBu (unbalanced), Less Than 0.05% THD Loop Send: 0dBu(1/4" unbalanced), Less Than 0.01% | | Noise | Amp Output: < -80dB
Mic to Main Mix: < -74dB Aux Mon Output: < -73dB
Mono Output: < -73dB Rec Out: < -72dB
Stereo Effect Loop: < -74dB Headphone: < -70dB | | EIN | -127dBu | | Compression | Min 0dB Through Max 24dB Range (Off Position) | | Crosstalk | Mono Channels: CH1/2, 2/3, 3/4 MAIN L XLR (BAL) -70dB
Stereo Channels: L/R MAIN LEFT MAIN R XLR (BAL) -70dB Stereo Channels: L/R MAIN LEFT MAIN L XLR (BAL) -70dB | | Attenuation / Gain | CH1-4 TO MAIN L/R CH LEVEL DOWN -70dB
STEREO CH5-8 TO MAIN L/R CH LEVEL DOWN -75dB | | Maximum Analog Input Level | Mic: -20dBu
CH 1-4: +10dB (PAD ON) Line 1/4" TRS(UNBAL): 0dBu
RCA: -0dBu CD / MP3: -2dBu | | Effects | Echo Delay: 40mS-242mS
Echo Repeat: 30%-80% Echo Volume: 0%-100%
Reverb Volume: 0%-100% Hiss Filter: 3kHz-8kHz
Effect Master: 0%-100% EFX DSP Control: FOOT SWITCH (1/4" TS), ON/OFF SWITCH with LED INDICATOR
EFX DSP Bus Control: EFX TO MAIN/MONITOR | | Power | AC 120V, 13A (@ RATED POWER) | | Dimensions (WxHxD) | 18.4 x 10 x 16.1" (468 x 254 x 409mm) | | Weight | 45.2lb (20.5kg)
Shipping: 47.6lb (21.6kg) | | | | Package Weight | 59.5 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 17.0" |
