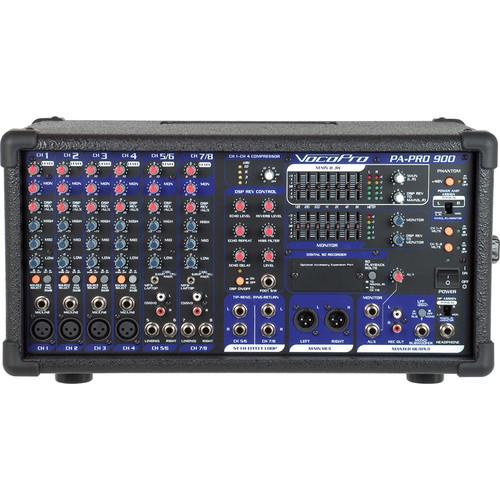

User Manual for VocoPro PA-PRO 900 900W Professional PA Mixer Click to enlarge the picture
Contents of the user manual for the VocoPro PA-PRO 900 900W Professional PA
- Product category: Sound Reinforcement Mixers VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Sound Reinforcement Mixers
|
User manual for the VocoPro PA-PRO 900 900W Professional PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The PA-PRO 900 900W Professional PA Mixer from VocoPro comes with 6 input channels, 900W power amplifier, and 4 channels of UHF wireless expandability, and can handle a multitude of applications. A digital SD recorder module (sold separately) can be easily installed to the front panel expansion port, making this an ideal tool for stage performers, singers, and orators who want to record and play back jam sessions, bed tracks, and oral presentations. Also featuring is the DSP reverb & echo effect designed specifically for vocalists. The easy-to-use single knob compressor feature for the 4 mic channels offers a complete control over your vocal output. - 450W + 450W RMS power output (4 Ohms)
- 6 channels (4 mic/line, 2 stereo)
- Mic/line channel inputs: 1/4", XLR
- Stereo channel inputs include 1/8", L/R RCA, L/R 1/4"
- Dual-mode amplifier can output in mono + monitor or stereo modes
- Independent tone, level, and effect controls on all input channels
- DSP Reverb, echo and hiss filter effects with On/Off switch
- Built-in compressor for microphone channels
- L/R 1/4" effect loop jacks for stereo channels
- Dual 7-band graphic EQs for main and monitor output
- 4 UHF wireless mic module ports (mic not included)
- SDR-3 Digital SD Recorder Expansion Port (recorder not included)
- Balanced XLR L/R main output jacks
- Subwoofer output with 125 Hz LPF and On/Off switch
- Speakon and 1/4" speaker output jacks
- Headphone output with source select
UPC: 692868726002 In the Box VocoPro PA-PRO 900 900W Professional PA Mixer Limietd 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro PA-PRO 900 900W Professional PA Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro PA-PRO-900 Specs | Input | XLR Microphone: -50 dBu (rated input), 54 dB (total gain), 1 kOhm
1/4" Phone Line (Channel 1 to 4): -20 dBu Pad On (rated input), 24 dB (total gain)
1/4" Phone Music: -22 dBu (rated input), 26 dB (total gain), 2.8 kOhms
RCA Line (CH 5/6 & 7/8): -22 dBu (rated input), 26 dB (total gain), 2.8 kOhms
MP3 1/8" (3.5mm) Stereo: -24 dBu (rated input), 28 dB (total gain), 1.8 kOhms
1/4" Phone Stereo Effect Loop: 0 dBu (rated input), 4 dB (total gain), 10 kOhms
30-Pin UHF Module: -34 dBu (rated input), 38 dB (total gain), 1 kOhm
6-Pin SD Card: -24 dBu (rated input), 28 dB (total gain), 1.8 kOhms | | Output | XLR Main: +4 dBu (Rated Input), 240 Ohms
1/4" Phone Monitor: +4 dBu (Rated Input), 120 Ohms
1/4" Phone AUX: +4 dBu (Rated Input), 120 Ohms
1/4" Phone Mono Sub: +4 dBu (Rated Input), 120 Ohms
1/4" Phone TRS Headphone: 1.0 V (Rated Input), 33 Ohms
RCA Rec Output: -6 dBu (Rated Input), 120 Ohms | | Speaker Output | @ 4 Ohm Load
Speakon / 1/4" TS Connection: 2 x 500 W (Peak) 4 Ohms
2 x 450 W (AVG) 4 Ohms 2 x 435 W (Rated) 4 Ohms | | Frequency Response | Mic Input Channel 1 to 4: 10 Hz to 24 kHz, 0 dB/-1.5 dB
Stereo Input Channel 5 to 8: 10 Hz to 35 kHz, 0 dB/-1.5 dB | | EQ Section | Channel EQ:
High: 100 Hz, +15 dB Mid: 2.5 kHz, +/- 12 dB
Low: 10 kHz +15 dB | | THD | Mic Mono to Speaker Output: 42 V, less than 0.07% THD
CH 5 to 8 to Speaker Output: 42 V, less than 0.06% THD
CH 1 to 4 to Main Mix Output: +4 dBu (balanced), less than 0.07% THD
CH 5 to 8 to Main Mix Output: +0 dBu (unbalanced), less than 0.05% THD
Loop Send: 0 dBu (1/4" unbalanced), less than 0.01% | | Noise | Amp Output: < -80 dB
Mic to Main Mix: < -74 dB Aux Mon Output: < -73 dB
Mono Output: < -73 dB Rec Out: < -72 dB
Stereo Effect Loop: < -74 dB Headphone: < -70 dB | | EIN | -127 dBu | | Compression | Minimum: 0 dB
Maximum: 24 dB range (Off position) | | Crosstalk | Mono Channels: Channels 1/2, 2/3, 3/4 Main Left XLR (Balanced) -70 dB
Stereo Channels: L/R Main Left, Main Right XLR (Balanced) -70 dB Stereo Channels: L/R Main Left, Main Left XLR (Balanced) -70 dB | | Attenuation / Gain | Channel 1 to 4 to Main Left/Right channel level down -70 dB
Stereo Channel 5 to 8 to Main Left/Right channel level Down -75 dB | | Maximum Analog Input Level | Mic: -20 dBu
Channel 1 to 4: +10 dB (Pad On) Line 1/4" TRS (unbalanced): 0 dBu
RCA: -0 dBu CD / MP3: -2 dBu | | Effects | Echo Delay: 40 to 242 ms
Echo Repeat: 30 to 80%
Echo Volume: 0 to 100%
Reverb Volume: 0 to 100%
Hiss Filter: 3 kHz to 8 kHz
Effect Master: 0 to 100%
EFX DSP Control: Foot switch (1/4" TS), On/Off switch with LED indicator
EFX DSP Bus Control: EFX to Main/Monitor | | Power | 120 VAC, 13 A (@ Rated power) | | Dimensions (W x H x D) | 18 x 10 x 16" (47 x 25 x 41 cm) | | Weight | 45.2 lb (20.5 kg) |
