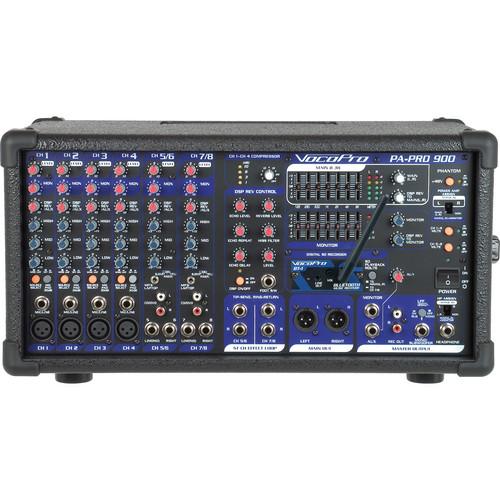

User Manual for VocoPro PA-PRO-900 BT Professional PA Mixer with Bluetooth Receiver Click to enlarge the picture
Contents of the user manual for the VocoPro PA-PRO-900 BT Professional PA Mixer
- Product category: Karaoke VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Karaoke
|
User manual for the VocoPro PA-PRO-900 BT Professional PA Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The 900W PA-PRO-900 BT Professional PA Mixer from VocoPro is a portable PA system with a Bluetooth receiver. The PA system offers up to 900W of power, a six channel mixer, and an SDR-3 digital SD recorder expansion port (SD recorder sold separately). It also features four UHF wireless microphone module ports, which support up to four simultaneous wireless microphones (sold separately).
The mixer input section has four mono microphone/line level input channels (ch. 1 - 4) and two stereo input channels (ch. 5/6 - 7/8). The four mono channels feature one balanced XLR-mic level input and one balanced or unbalanced 1/4"-line level input. The stereo input channels feature two mono 1/4" jacks (L/R), two mono RCA jacks (L/R), and one stereo 1/8". The PA-PRO-900 BT features built-in DSP reverb, echo, and hiss removing effects. - BT-1 Bluetooth receiver to play music wirelessly from Bluetooth compatible devices
- 450W and 450W RMS power output (4Ω)
- Six input channels (four mic/line, two stereo)
- Mic/line channel inputs: 1/4", XLR
- Stereo/line channel inputs: 1/8", L/R RCA, L/R 1/4"
- Dual-mode amplifier can output in mono & monitor, or stereo mode
- Independent tone, level, and effect controls on all input channels
- DSP reverb, echo, and hiss filter effects with on/off switch
- Built-in compressor for microphone channels
- L/R 1/4" effect loop jacks for stereo channels
- Dual seven-band graphic EQs for main and monitor output
- Four UHF wireless microphone module ports
- SDR-3 Digital SD recorder expansion port
- Balanced XLR L/R main output jacks
- Subwoofer output with 125 Hz LPF and on/off switch
- Speakon and 1/4" speaker output jacks
- Headphone output with source select
UPC: 692868772726 In the Box VocoPro PA-PRO-900 BT Professional PA Mixer with Bluetooth Receiver (900W) Limited 1-Year Standard Warranty; Extended Warranty Plans Available Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro PA-PRO-900 BT Professional PA Mixer with Bluetooth Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro PA-PRO-900-BT Specs | Inputs | XLR Microphone: -50 dBu (rated input), 54 dB (total gain), 1 kOhm
1/4" Phone Line (Ch 1 - 4): -20 dBu pad on (rated input), 24 dB (gain)
1/4" Phone Music: -22 dBu (rated input), 26 dB (gain), 2.8 kOhms
RCA Line (Ch 5/6 and 7/8): -22 dBu (rated input), 26 dB (gain), 2.8 kOhms
MP3 1/8" (3.5 mm) Stereo: -24 dBu (rated input), 28 dB (gain), 1.8 kOhms
1/4" Phone Stereo Effect Loop: 0 dBu (rated input), 4 dB (gain), 10 kOhms
30-Pin UHF Module: -34 dBu (rated input), 38 dB (gain), 1 kOhm
6-Pin SD Card: -24 dBu (rated input), 28 dB (gain), 1.8 kOhms
Bluetooth:
Back: 1 x DC barrel, power input | | Outputs | XLR Main: +4 dBu (rated input), 240 ohms
1/4" Phone Monitor: +4 dBu (rated input), 120 ohms
1/4" Phone AUX: +4 dBu (rated input), 120 ohms
1/4" Phone Mono Sub: +4 dBu (rated input), 120 ohms
1/4" Phone TRS Headphone: 1.0 VDC (rated input), 33 ohms
RCA Rec Output: -6 dBu (rated input), 120 ohms
Bluetooth:
Front: 1 x 1/8" phone jack audio output
Back: 1 x 6-pin terminal, system interface data port | | Speaker Output | @ 4 ohms load
Speakon and 1/4" TS Connection:
2 x 500 W (peak) 4 ohms
2 x 450 W (AVG) 4 ohms
2 x 435 W (rated) 4 ohms | | Frequency Response | Mic Input Ch 1 - 4: 10 Hz - 24 kHz, 0 dB/-1.5 dB
Stereo Input Ch 5 - 8: 10 Hz - 35 kHz, 0 dB/-1.5 dB | | EQ Section | Channel EQ:
High: 100 Hz, +15 dB
Mid: 2.5 kHz, +/- 12 dB
Low: 10 kHz. +15 dB | | THD | Mic Mono to Speaker Output: 42 VDC, less than 0.07%
Ch 5 - 8 to Speaker Output: 42 VDC, less than 0.06%
Ch 1-4 to Main Mix Output: +4 dBu (balanced), less than 0.07%
Ch 5 - 8 to Main Mix Output: +0 dBu (unbalanced), less than 0.05%
Loop Send: 0 dBu (1/4" unbalanced), less than 0.01% | | Noise | Amp Output: Less than -80 dB
Mic to Main Mix: Less than -74 dB
Aux Mon Output: Less than -73 dB
Mono Output: Less than -73 dB
Rec Out: Less than -72 dB
Stereo Effect Loop: Less than -74 dB
Headphone: Less than -70 dB | | EIN | -127 dBu | | Compression | Min 0 dB through max 24 dB range (off position) | | Crosstalk | Mono Channels: Ch 1/2, 2/3, 3/4 main L XLR (balance) -70 dB
Stereo Channels: L/R main L main R XLR (balance) -70 dB
Stereo Channels: L/R main L main L XLR (balance) -70 dB | | Attenuation / Gain | Ch 1 - 4 to main L/R ch level down -70 dB
Stereo 5 - 8 to main L/R ch level down -75 dB | | Maximum Analog Input Level | Mic: -20 dBu
Ch 1-4: +10 dB (pad on)
Line 1/4" TRS (Unbalanced): 0 dBu
RCA: -0 dBu
CD/MP3: -2 dBu | | Effects | Echo Delay: 40 - 242 mS
Echo Repeat: 30% - 80%
Echo Volume: 0% - 100%
Reverb Volume: 0% - 100%
Hiss Filter: 3 - 8 kHz
Effect Master: 0% - 100%
EFX DSP Control: Foot switch (1/4" TS), on/off switch with LED indicator
EFX DSP Bus Control: EFX to main/monitor | | Power | 120 VAC, 13 A (@ rated power) | | Dimensions | 19.0 x 11.8 x 10.0" (48.3 x 29.8 x 25.4 cm) | | Weight | 46.0 lb (20.9 kg) | | | | Package Weight | 53.65 lb | | Box Dimensions (LxWxH) | 24.0 x 17.5 x 16.0" |
