User Manual for VocoPro Professional PLL Wireless In-Ear Monitor Package with Stationary Transmitter and Receiver Click to enlarge the picture
Contents of the user manual for the VocoPro Professional PLL Wireless In-Ear Monitor
- Product category: In-Ear Monitoring Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro In-Ear Monitoring Systems
 |
User manual for the VocoPro Professional PLL Wireless In-Ear Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

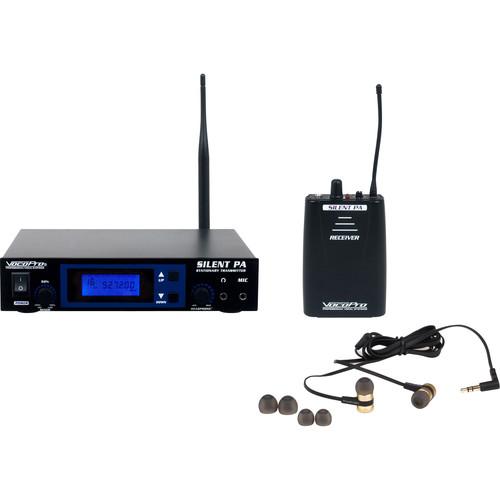

Product description The Professional PLL Wireless In-Ear Monitor Package from VocoPro includes the SilentPA-ST16-Channel UHF Wireless Audio Broadcast System Stationary Transmitter, the SilentPA 16-Channel UHF Wireless Bodypack Receiver, and a pair of IE-9 Professional In-Ear Stereo Earphones. The IE-9 Professional In-Ear Stereo earphones have a rugged metal housing with a single high-output driver inside designed to deliver remarkably loud and clear sound for live monitoring applications. - SilentPA-ST16-Channel UHF Wireless Audio Broadcast System Stationary Transmitter The VocoPro SilentPA-ST 16-Channel Stationary Transmitter accepts both microphone and balanced line input signals with a mix level control. It accepts up to three mics with three XLR-1/4" combo jacks and one 1/8" mic input. It also features a 1/8" line input on the rear panel and a 1/8" stereo headphone output on the front panel. The transmitter also accepts powered mics via the XLR combo jacks. The stationary transmitter works on the 900 MHz frequency band as part of the SilentPA 16-channel UHF wireless broadcast system. Up to 16 transmitters can be tuned to 16 unique channels in the system, which supports an unlimited number of receivers. The stationary transmitter can be mounted in standard 19" racks using the included rack mounting kit.
- Operates in 900 MHz band, free of TV station interference
- Mixing function to combine microphone and music signals
- Front panel 1/8" stereo headphone jack outputs both mic and music signal
- XLR jacks accept powered microphones (when input selector switch is at 48V Phantom)
- 19" rack mountable (mounting kit included)

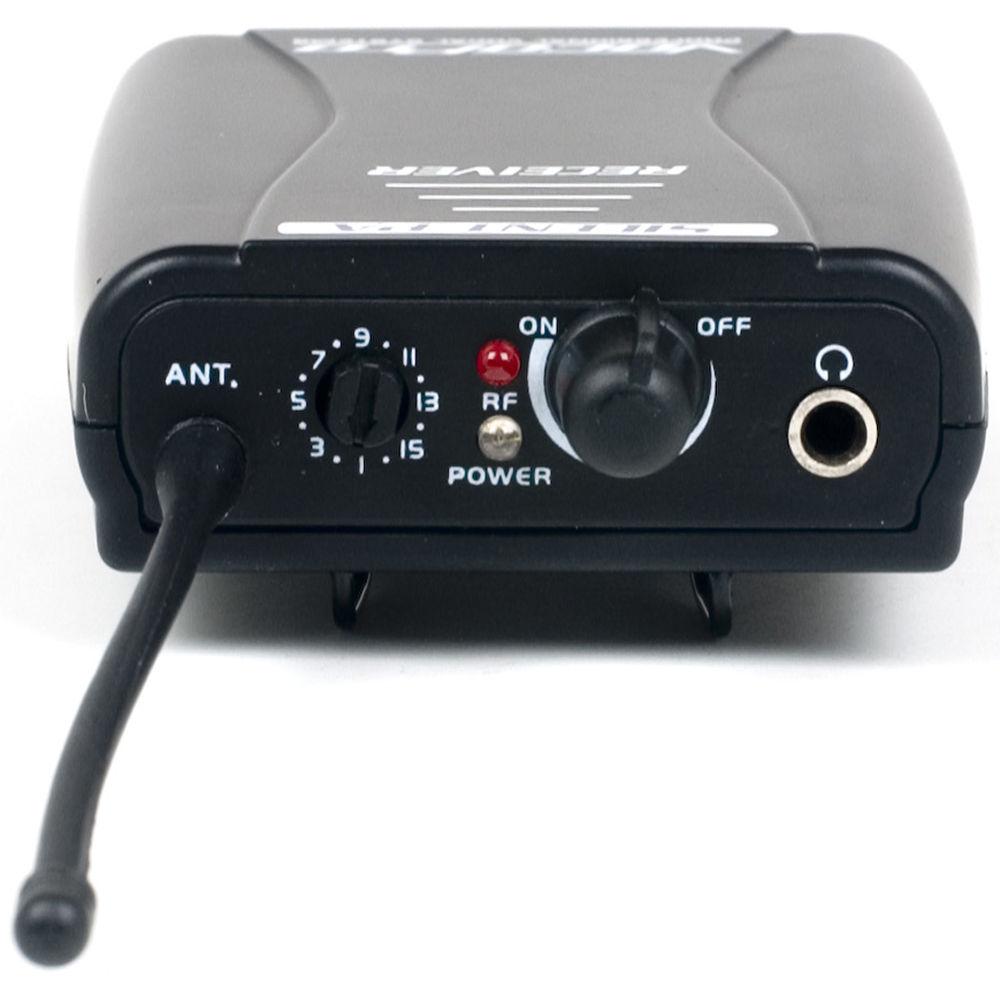

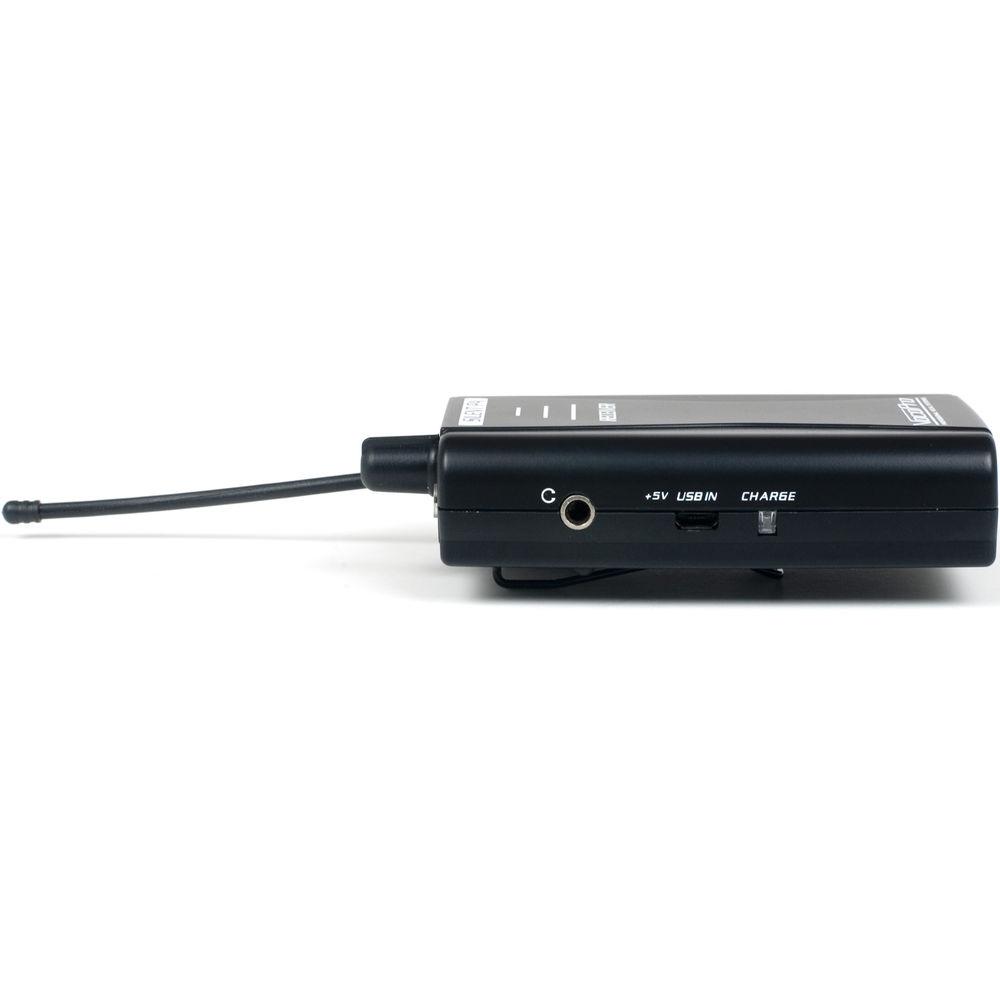

UPC: 692868668722 - SilentPA 16-Channel UHF Wireless Bodypack Receiver Provided by third party: Have you ever tried to use a PA system in a place with strict sound restrictions? Or want to do a voice presentation to a group of people in a place with loud background noise? Now you can speak or perform to an unlimited number of people and be heard loud and clear, without disturbing others, with VocoPro's new wireless audio broadcast system, the SilentPA.
The SilentPA is the first of its kind with 16 easily adjustable channels. It allows up to 16 transmitters to broadcast, each on a unique frequency, to an unlimited number of receivers; the listeners can then tune into the program they wish to listen to. This could be different bands performing simultaneously in the same hall, a House Of Worship broadcasting their sermon in different languages or a backyard concert in a crowded neighborhood. The SilentPA has an untold number of applications.
There are two types of transmitters available for the SilentPA. The Stationary Transmitter allows both a microphone and a balance line input signal with a Mix Level control. Or use the portable solution, the Bodypack Transmitter equipped with a microphone and 1/8" stereo inputs; so it's good for both music and voice transmission. The bodypack receiver includes two (2x) 1/8" Stereo Outputs, so it's easy to monitor the program AND record the performance on a separate recording device.
- Key Features
-
- Operates in 900Mhz band, free of TV station interference
- Utilizes UHF technology for greater reliability and operating range than VHF or 2.4Ghz
- Bodypack receiver has two dedicated audio outputs
- Stationary transmitter equipped with mixing function to combine microphone and music signals
- Lavaliere microphone included with bodypack transmitter

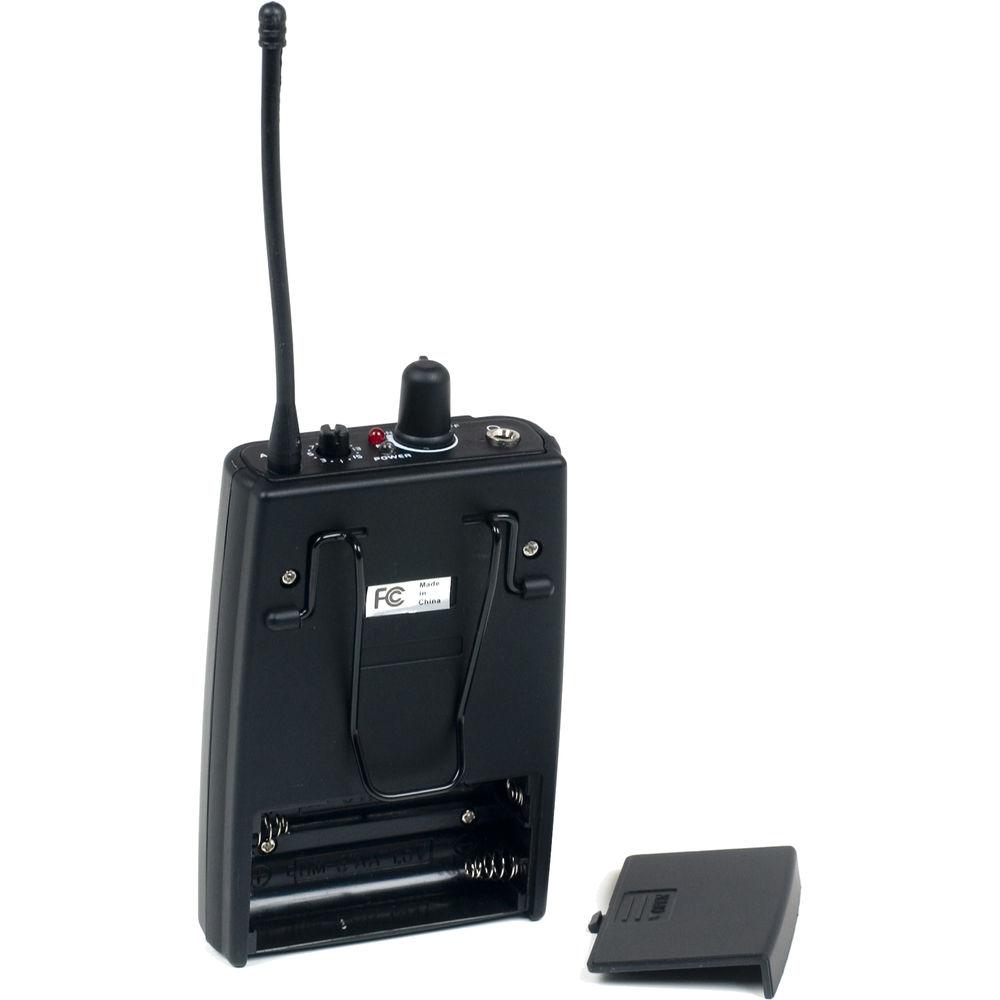

- Bodypack transmitter/receiver powered by two (2x) AA, alkaline or rechargeable, batteries
UPC: 692868668920 In the Box Bundle Items SilentPA-ST16-Channel UHF Wireless Audio Broadcast System Stationary Transmitter evyauxffcffevybzwdwwvsqyveqcscrrybyv SilentPA 16-Channel UHF Wireless Bodypack Receiver evyauxffcffevybzwdwwvsqyveqcscrrybyv
Also Includes - IE-9 Professional In-Ear Stereo Earphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Professional PLL Wireless In-Ear Monitor Package with Stationary Transmitter and Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SilentPA-ST16-Channel UHF Wireless Audio Broadcast System Stationary Transmitter
| Frequency Band | 900 MHz | | Front Panel I/O & Controls | Power switch
Mixer knob
Frequency display
Channel selectors
Headphone volume knob
1 x 1/8" stereo jack (output)

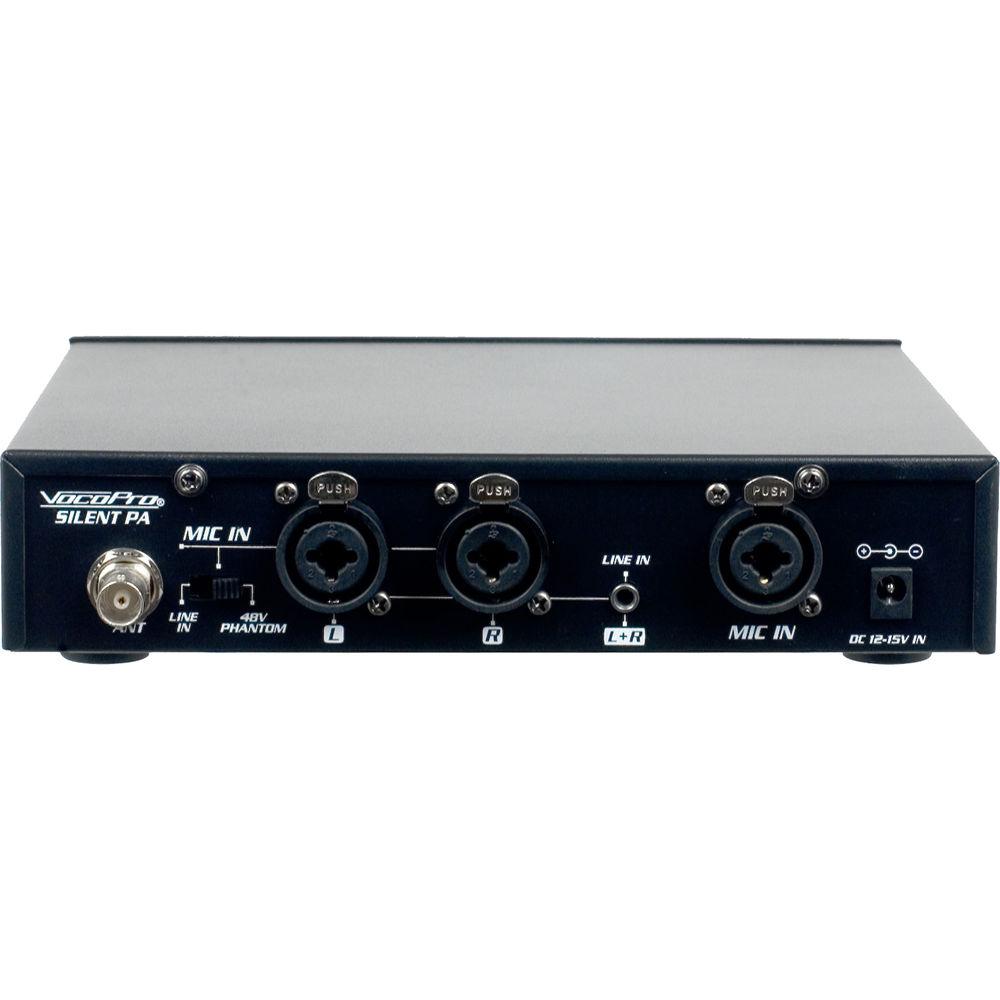

1 x 1/8" stereo mic in | | Rear Panel I/O & Controls | 1 x Antenna connector
1 x 1/8" stereo input
2 x Combo XLR-1/4" L/R mic/line jacks
1 x 1/8" stereo line input
1 x Combo XLR-1/4" mic input jack
1 x 12-15 VDC jack
Input selector | | Power Input | 12 to 15 VDC | | Rackmountable | 19" rackmountable (brackets included) | | Dimensions and Weight | Not specified by manufacturer | - SilentPA 16-Channel UHF Wireless Bodypack Receiver

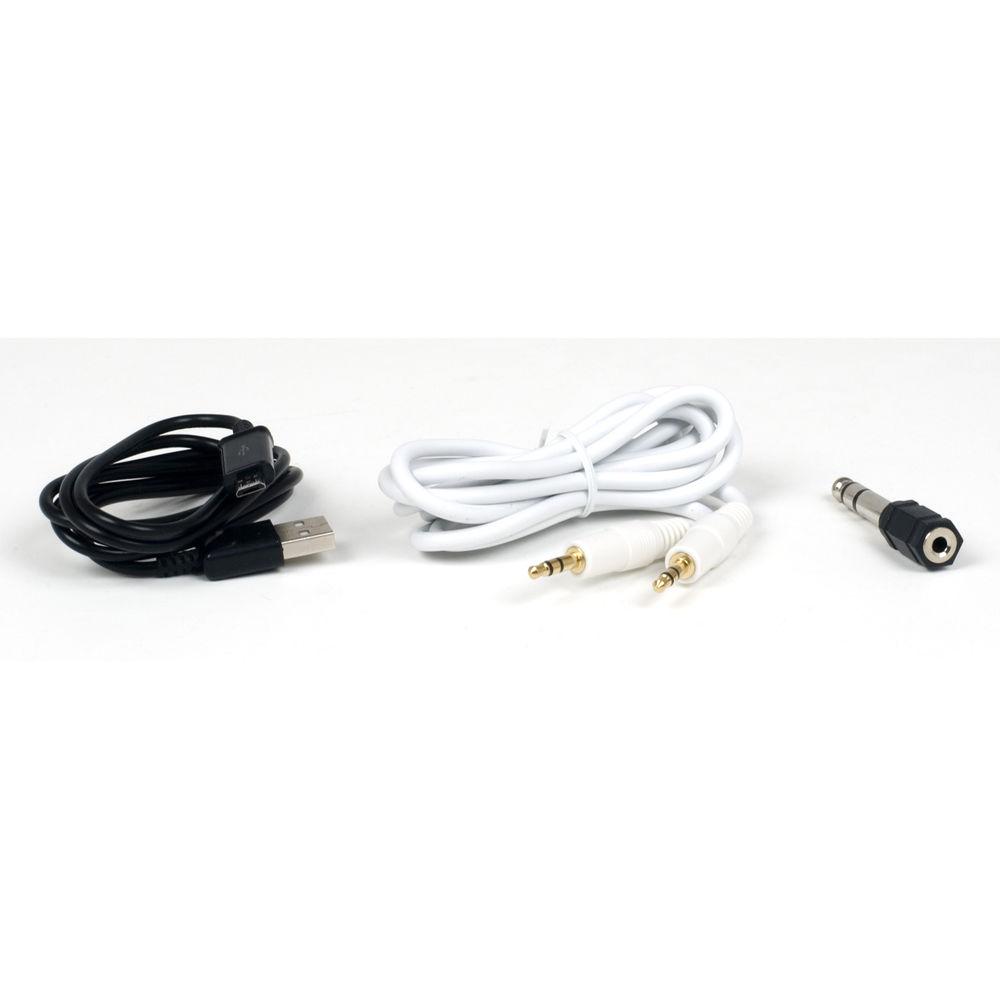

| | | Product Type | Wireless audio receiver | | Intended For | Wireless microphone system | | Frequency Range | 900 MHz | | Package Content | Wireless audio receiver, 1/8" to 1/4" adapter plug, 1/8" audio cable | | | | Box Dimensions (LxWxH) | 8.45 x 4.7 x 4.35" |
