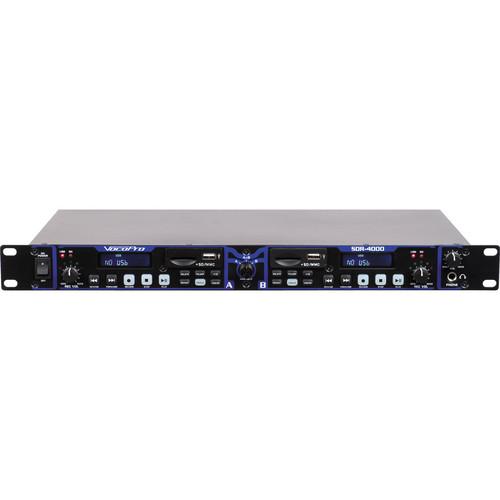

Product description The SDR-4000 Dual Digital USB / SD Audio Recorder & Player from VocoPro is a standalone unit that offers real-time, high-quality digital audio recording and dual-side playback. The recorder enables high-fidelity recording onto both SD / SDHC cards and USB drives with capacities of up to 32GB. Additionally, it sports an easy-adjust recording level control that helps to monitor audio levels and eliminate distortions.

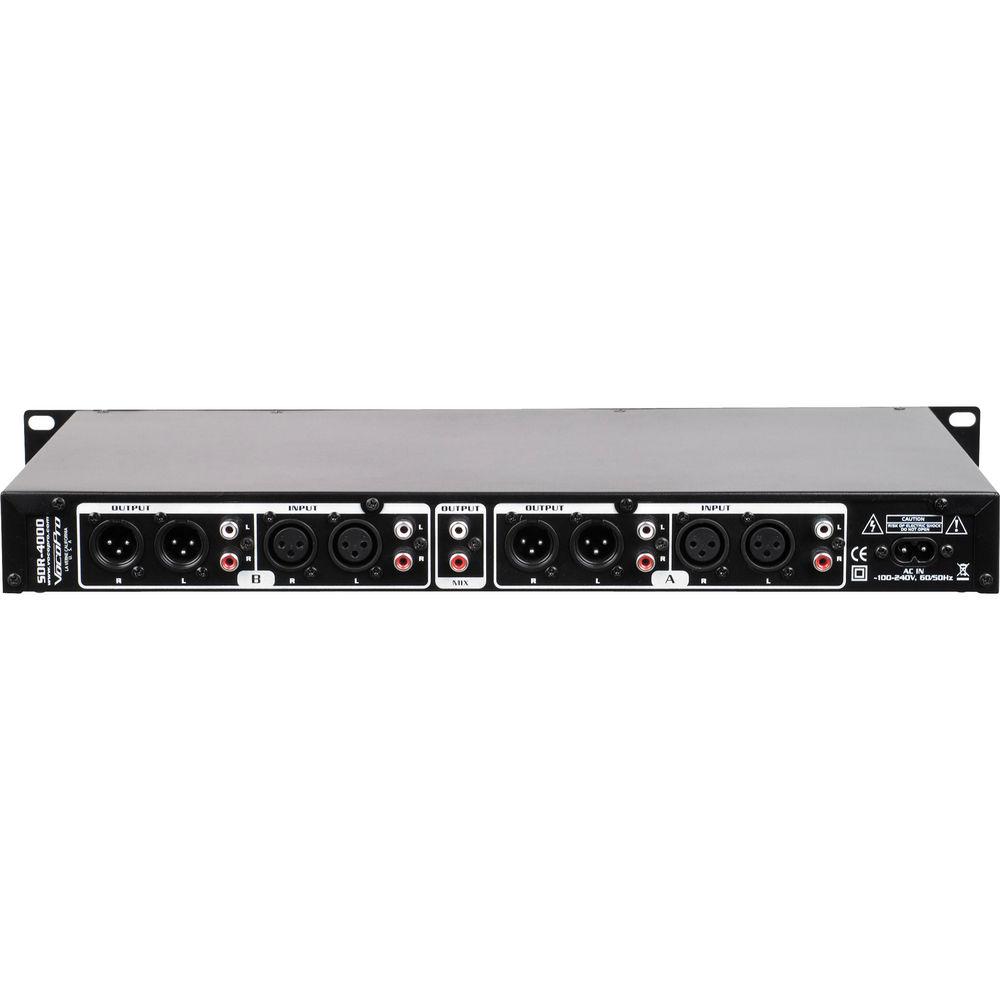

The unit can also turn into a dual-side audio player with both single and repeat playback modes for easy digital playback. The rear panel features individual and mixed RCA and individual XLR inputs and outputs. It also comes with a 1/4" headphone jack with volume control for convenient monitoring.
The SDR-4000 Recorder and Player features a slim 1 RU design that allows it to fit into any standard equipment rack for easy installation. The user-friendly operation is similar to that of 2 cassette decks. This makes it suitable not only for performers, but also places of worship, businesses, schools, etc. for recording and playback applications such as band rehearsals, sermons, presentations, lessons, and more. - Records 192 kb/s audio files directly to an SD card or USB drive via RCA or XLR line in jacks
- Compatible with SD / SDHC cards and USB drives with a storage capacity of up to 32GB
- Dual recorder design allows for independent recording / playback on each side
- Can record any audio signal from a device with RCA outputs or balanced XLR outputs
- Other connections can include direct output from a computer or mp3 player
- Using a stereo RCA to RCA cable, you can connect the audio outputs on one side (side A) to the other side's audio input jacks (side B)
- You can connect the audio output from each side independently to a mixer
- Can be used as a dual USB / SD player in conjunction with DJ-style mixers with a crossfader
- Individual record level controls and records level LEDs for precise level control Delete recorded files directly from the recorder
- Delete recorded files directly from the recorder
- Fully featured playback with single and repeat playback modes
- Individual RCA and XLR input / output jacks
- Mixed RCA output jacks with toggle switch
- Backlit buttons for use is low-light areas
- 1/4" headphone jack with volume control
- Slim 1RU rack-mountable chassis
- Compatible with 110 to 220V power supply

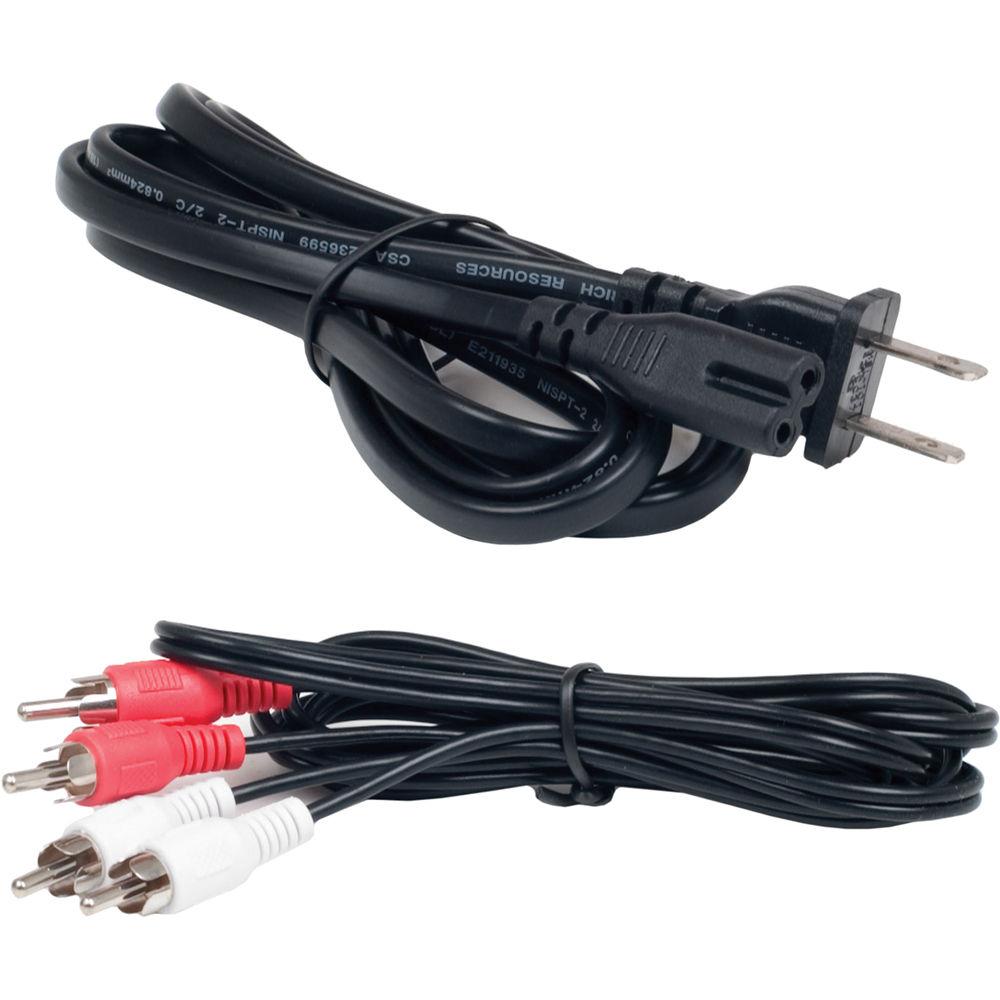

UPC: 692868007378 In the Box VocoPro SDR-4000 Dual Digital USB / SD Audio Recorder & Player Power Cable (6') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro SDR-4000 Dual Digital USB SD Audio Recorder & Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro SDR-4000 Specs | Channels | 2 (stereo) | | Recording Format | MP3: 192 kb/s | | Media | Recording Media:
SD (64 MB to 2 GB), SDHC (4 to 32 GB)
Any FAT-USB drive supported | | Input / Output | Front Panel:
SD card slot
USB port
1/4" headphone jack
Rear Panel:
Input: 4 x 3-pin XLR (balanced)
4 x RCA (unbalanced)
Output: 4 x 3-pin XLR (balanced)
4 x RCA (unbalanced)
MIX Output: 2 x RCA
1 x Power in | | USB Compatibility | USB 1.0, 1.1 The recorder does not support USB 2.0. | | Sampling Rate | 44.1 / 48 kHz, 16-bit | | Dynamic Range | ≥75 dB | | THD + N | 1% | | Frequency Response | 20 Hz to 18 kHz | | Input Impedance | 10 kΩ | | Nominal Input Level | ≥1.5 V | | Output Impedance | 32 to 64 Ω (stereo) | | Maximum Output | Line (10 kΩ): 0.7 V RMS (-3 dBV) | | Power Source | 500 mA, 5 VDC | | Dimensions (L x W x H) | 7.0 x 10.0 x 12.0" (17.7 x 25.4 x 30.4 cm) | | Weight | 9 lb (4 kg) | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 20.2 x 13.7 x 3.8" |
