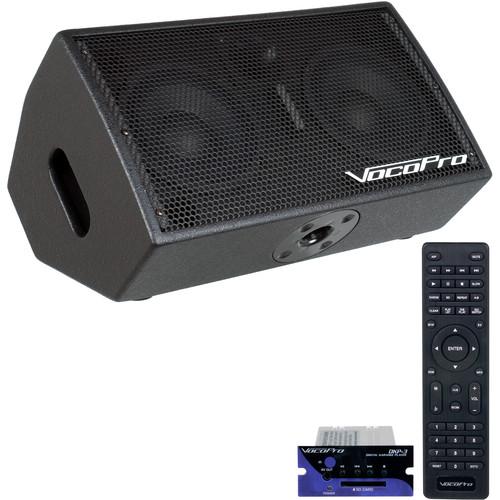

Product description The VocoPro Stageman-Karaoke System consists of their Stage-Man and the DKP-3 combined. The Stage-Man is a 200W-powered wedge monitor that can double as a practice amp at home. This is achieved by placing a heavy duty 200W amplifier and matched full-range speakers into the smallest wedge possible. When the show is over, the wedge fits in a practice room at home where it will help you fine-tune your craft. Singers will love the DSP effects that are designed especially for vocals, including reverb and hiss filtering. Another feature is the ability to digitally record your performances and rehearsals to SD card. The digital SD card recorder is also a player, so you can not only record, but also use it to playback tracks for practice or performances. The DKP-3 is a player that uses SD Cards as media. It's a solid-state unit that will handle transit and knocks better than traditional mechanical-based platforms such as CD and hard-drive players. With the ability to read SD cards up to 32GB, you'll be able to carry thousands of songs easily. The Auto-Numbering function will keep your files labeled neatly, enabling quick access to any track from the remote control. The DKP-3 supports AVI and MP3+G as well MP3 audio files. If you have an existing CD+G collection, the included CDG-to-AVI conversion software will save those tracks as files on your computer, providing an invaluable tool to use your existing karaoke library with the DKP-3. This player can be used as a stand-alone unit and patch into any existing sound system with microphone inputs and a display monitor to get the party started; or it can be plugged into any VocoPro system with a Stereo Expansion Bay. - Stage-Man Features:
-
- Small wedge design easily transports from stage to studio and can be mounted on a speaker stand for loudspeaker applications
- Built-in digital SD recorder to conveniently capture all performances and practice sessions
- Full compliment of DSP effects with ON/OFF switch designed especially for vocals and spoken word
- Three channels with connections for 2 microphones, MP3 player/laptop, and stereo audio devices
- Individual loop jacks on each channel for connecting to external effect devices
- Five-band equalizer to fine-tune source music
- Retain full control over your vocal sound on stage without the need of a sound man
- DKP-3 Features:
-
- Plays songs from SD Cards up to 32GB
- Auto-number function makes searching and queuing songs easy
- Supports AVI, MP3+G and many other video formats
- Can be used as a stand alone unit or fit into any compatible VocoPro with a Stereo Expansion Bay
UPC: 692868782435 In the Box VocoPro Stageman-Karaoke System Limited 1-Year Warranty, Extendable to 2 and 3 Years Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro Stageman-Karaoke System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro STAGE-MAN-KARAOKE Specs | | | Inputs | Mic Input: (CH1-CH2) XLR (BAL)connection: 50 dBu level, 54 dB total gain, 1 kOhm impedance
Mic Input: (CH1-CH2) 1/4" TRS (Bal./Unbal.) connection - 50 dB ul evel, 54 dB total gain,1 kOhm impedance
Music Ch 3 connection: -22 dBu level, 26 dB total gain, 2.7 Kohm impedance
CD: RCA Stereo (Unbal.) connection -24 dBu level, 26 dB total gain, 2.2 kOhm impedance
Main Mix input: XLR (BAL) connection -10 dBu level, 14 dB total gain,3 kOhm impedance
Effect loop: (CH 1, 2, 3) 1/4" Unbal. Tip sned/Ring return connection -6 dBu level, 10 dB total gain, 10 kOhm impedance
UHF Module 30 Card Edge connection -28 dBu level, 32 dB total gain,1 kOhm impedance
SD Card Module: 6 Pin Wire Connect connection -24 dBu level, 28 dB total gain, 1.8 kOhm impedance
| | Output | Main Mix Output: XLR (BAL) connection 4 dBu level, 240 ohm impedance
Headphone Output: 1/4" Unbal. Tip sned/Ring return connection -6 dBu level, 33 ohm impedance
| | Power Output | Output power: EIA @ THD +N = 1% 200 W @ 4 ohms, 28.26 V
Output power rated: FTC @ THD + N =0.1% 185 W @ 4 ohms, 26.83 V
Power bandwidth rated: (0 dB / - 1.0 dB) 20 Hz-30 KHz @ 4 ohms, 26.83 V
Frequency response: 1 W (0 dB / - 1.5 dB) 20 Hz-40 KHz @ 4 ohms, 2 V
| | Frequency Response | Mic in unity gain (-30 dBu) to Main mix
OUTPUT @ +4 dBu /Music in unity gain (0 dBu)
Mic input CH 1 & 2: 20 to 40 KHz 0/ -1.5 dB
Music input CH 3: 10 Hz to 40 KHz 0/-1.5 dB
MIC IN MAX GAIN (-50 dBu) to MAIN MIX OUTPUT @ +4 dBu MUSIC IN MAX GAIN (-22 dBu)
Mic input CH 1 & 2 20 Hz-34 KHz 0/-3dB
Music input CH 3 10 Hz-35 KHz 0 dB /-1.5dB

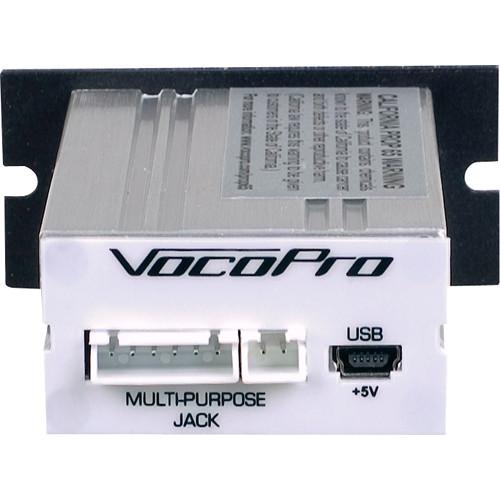

| | Dimensions | 181 x 98 x 106" (460 x 250 x 270 cm) | | Weight | 34.17 lb (15.50 kg) | | | | Connections | Multi-purpose jack
USB power jack
|
