Product description The VocoPro UDH-4-Ultra 4-Channel Wireless Mic System with Handheld, Headset & Lav Mics, and Stage Accessories Kit from B&H offers musicians, presenters, or actors a cost-effective, all-in-one solution for transporting and setting up a four-microphone wireless system when performing on stage in small clubs, schools, houses of worship, and more.
This flexible kit comes with a 4-channel wireless receiver, four handheld microphones, and four bodypack transmitters, each with a headset mic, lavalier mic, and instrument cable. Use the tripod stands and mic clips to position your handheld mics on stage. The individually colored foam windscreens let you quickly identify the microphones on a crowded stage.Four XLR mic cables and two 1/4" cables give you a variety of options for connecting the receiver to a mixer or PA system. Also included are three padded bags for the receiver, mics, and stands so you can safely carry the system to your show or store it between events. - VocoPro UDH-4-Ultra Four-Channel UHF System with Handheld Mics, Bodypack with Headsets & Lav Mics The 900 MHz UDH-4-Ultra Four-Channel UHF System from VocoPro includes a four-channel receiver, four handheld microphones, four bodypack transmitters, four headset microphones, four lavalier mics, and four instrument cables. It can be used to mix and match handheld microphones with headsets, lavalier mics, or instruments for schools, houses of worship, rehearsals, and any other sound reinforcement application.The UDH-4-Ultra allows you to put up a total of four singers or instruments simultaneously on fixed wireless channels. It is a reliable all-in-one system that can go from a choir performance to a band gig without missing a beat. Free yourself from wires on stage for public speakers and performers alike.
- Four-channel receiver allows users to mix and match between handheld microphones and bodypacks using lavalier mics or headsets.
- New Mic-on-Chip wireless technology for clean and stable audio across the 200' range.
- Operates in the 900 MHz band away from TV broadcast interference.
- Plug-and-play design requires no microphone set-up.
UPC: 692868463839 - VocoPro BAG-44 Heavy-Duty Wireless Carrying Bag The BAG-44 Heavy-Duty Wireless Carrying Bag from VocoPro is a soft nylon bag with large carry straps, zippered enclosures on the top and bottom, and a zippered accessory pocket with the VocoPro logo on the front. It can be used to carry a 1 RU wireless system and four handheld or bodypack transmitters such as the VocoPro UHF-5800, UHF-5800, UHF-5816, UHF-5900, UDH-Choir-4, UDH-Play-4, and VHF-4000 wireless microphone systems.
- Bag holds a 1 RU spaced wireless microphone receiver and four handheld or bodypack transmitters
- Fits: UHF-5800, UHF-5808, UHF-5816, UHF-5900, UDH-Choir-4, UDH-Play-4, and VHF-4000 wireless systems
UPC: 692868224447 - VocoPro Bag-4 Heavy-Duty Carrying Bag for Mics (Black/Red Trim) The black with red trim Bag-4 Heavy-Duty Carrying Bag for Mics from VocoPro is a handy way to transport and store your mics. With its capacity for 4 mics, each one is supported within a separate foam slot so there's no danger of your gear rubbing together. The polyester bag is secured with a dual zipper and carried by two top handles. The front of the bag has a convenient zippered storage pocket for small items.
- Each mic is held separately in an upright position in its own foam slot
- Front zippered accessory pocket
UPC: 692868100048 - 4 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- 4 x On-Stage MY110 Wireless Rubber Microphone Clip The MY110 Wireless Rubber Microphone Clip from On-Stage is designed for use with wireless handheld microphones.
- Compatible with most handheld wireless microphones
UPC: 659814061013 - On-Stage SSB6500 Speaker Stand Bag The On-Stage SSB6500 Speaker Stand Bag is a rugged padded nylon bag that provides ample room for either two speaker stands, six mic stands or various drum hardware. It features an adjustable shoulder strap with metal clip for fast removal and also includes two hand straps for convenient handling. A heavy-gauge 2-pull zipper allows the bag to be opened from the center. All seals are crafted with corded piping that gives the bag its rigid shape.
- Heavy duty nylon speaker stand bag.
- Heavy gauge 2 pull zipper closure.
- Two hand straps ensure a well-balanced load.
- An adjustable shoulder strap with metal clips for easy removal is included.
- Compatible with;
-
- On-Stage SS7730 (2), SS8800B+ (2) or SS7761B (2) speaker stands
UPC: 659814355433 - 4 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - 2 x Kopul Premium Performance 3000 Series 1/4" Male to 1/4" Male Instrument Cable (6') The 6' Premium Performance 3000 Series 1/4" Male to 1/4" Male Instrument Cable from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in applications for live stage, theater, rehearsals, recordings, and more.Kopul's 3000 Series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell and chuck-style strain relief.The 24-gauge annealed-copper conductors with dense spiral copper shielding, as well as a conductive PVC, and PE insulation make the Premium Performance 3000 Series instrument cable a flexible, quiet cable that ensures excellent transfer of the audio signal.
- Protection Against Interference
- Dense spiral copper shielding with 95% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
- 24-AWG Copper Conductor
- The 24-gauge annealed copper provides excellent signal conductivity
- PVC Shield and PE Insulation
- The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
- Gold-Plated Connectors
- Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
- Flexible
- A PVC jacket offers protection for the cable while maintaining its flexibility
- Chuck-Style Strain Relief
- Chuck-style strain relief offers a secure connection between the connector and the cable
UPC: 847628590755 - On-Stage 9-Color Foam Windscreen Pack The 9-Color Foam Windscreen Pack from On-Stage features red, blue, black, yellow, orange, gray, green, brown, and purple windscreens, which are great for helping to distinguish between mics on a crowded stage. Ideal for reducing wind and breath noise, and for keeping your mics clean, the flexible foam material fits most popular handheld microphones.
- Red, blue, black, yellow, orange, gray, green, brown, and purple colors included

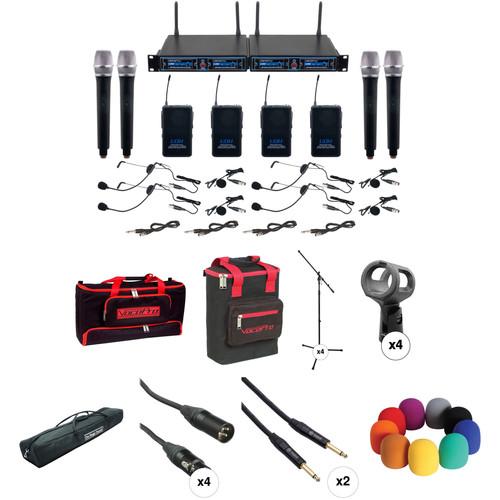

UPC: 659814120888 In the Box - UDH-4-Ultra Four-Channel UHF System with Handheld Mics, Bodypack with Headsets & Lav Mics brqrucbvaadfzxcbusyfdqywtdszdedsbeww
- UDH Receivers
- 4 x UDH Handheld Microphones
- 4 x UDH Bodypack Transmitters
- 4 x Headset Microphones
- 4 x Lavalier Microphones
- 4 x XLR to 1/4" Instrument Cables
- 4 x Antennas
- 2 x Rack Ears
- 2 x AC Power Adapters
- Limited 1-Year Warranty
- BAG-44 Heavy-Duty Wireless Carrying Bag
- Bag-4 Heavy-Duty Carrying Bag for Mics (Black/Red Trim)
- 4 x Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- 4 x On-Stage - MY110 Wireless Rubber Microphone Clip
- On-Stage - SSB6500 Heavy Duty Speaker Stand Bag - for 2 Speaker Stands or up to 6 Microphone Stands
- 4 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black brqrucbvaadfzxcbusyfdqywtdszdedsbeww
- 2 x Kopul - Premium Performance 3000 Series 1/4" Male to 1/4" Male Instrument Cable (6')
- On-Stage - 9-Color Foam Windscreen Pack
