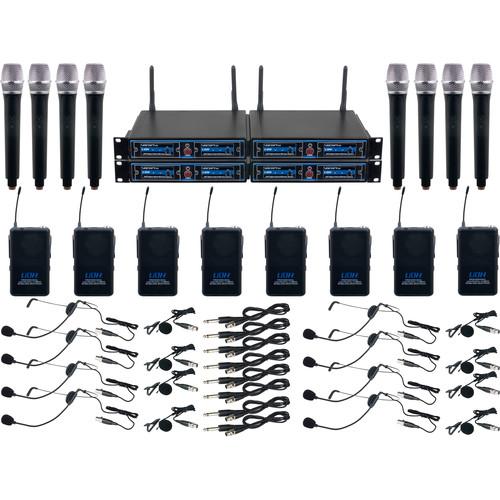

Product description The 900 MHz UDH-8-Ultra Eight-Channel UHF System from VocoPro includes an eight-channel receiver, eight handheld microphones, eight bodypack transmitters, eight headset microphones, eight lavalier mics, and eight instrument cables. It can be used to mix and match handheld microphones with headsets, lavalier mics, or instruments for schools, houses of worship, rehearsals, and any other sound reinforcement application.The UDH-8-Ultra allows you to put up a total of eight singers or instruments simultaneously on fixed wireless channels. It is a reliable all-in-one system that can go from a choir performance to a band gig without missing a beat. Free yourself from wires on stage for public speakers and performers alike. - Eight-channel receiver allows users to mix and match between handheld microphones and bodypacks using lavalier mics or headsets.
- New Mic-on-Chip wireless technology for clean and stable audio across the 200' range.
- Operates in the 900 MHz band away from TV broadcast interference.
- Plug-and-play design requires no microphone set-up.

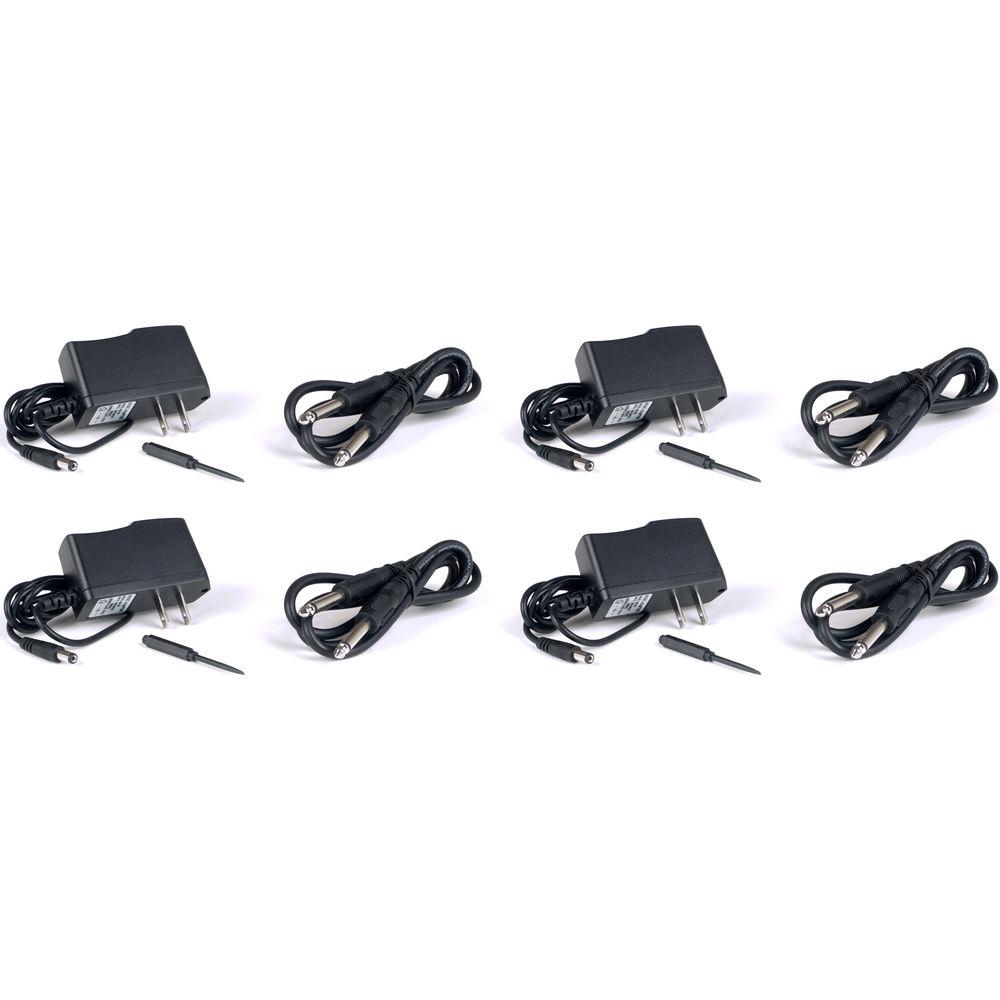

UPC: 692868863837 In the Box VocoPro UDH-8-Ultra Eight-Channel UHF System with Handheld Mics, Bodypack with Headsets & Lav Mics 2 x UDH Receivers 8 x UDH Handheld Microphones 8 x UDH Bodypack Transmitters 8 x Headset Microphones 8 x Lavalier Microphones 8 x XLR to 1/4" Instrument Cables 8 x Antennas 4 x Rack Ears 4 x AC Power Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UDH-8-Ultra Eight-Channel UHF System with Handheld Mics, Bodypack with Headsets & Lav Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UDH-8-ULTRA Specs | Frequency Band | 900 MHz | | Switch / Buttons | Receiver:
Power On/Off
Volume Knob Controls Volumes on Mic Channels 1 to 4 (Receiver Unit)
Transmitter Bodypack:
Power On/Off
Gain Button Controls Overall Volume Output of Bodypack
Handheld Microphone:
Power On/Off and Mute Switch | | LED Indicators | Each Receiver Unit:
4 x RF: Mic Status
4 x AF: Mic Transmission
Transmitter Bodypack:
Power LED: Indicates Battery Level
Dual-Color LED for Battery Status: Flashes Solid Green for Charged Batteries and Blinks Red for Low Batteries
Handheld Microphone:

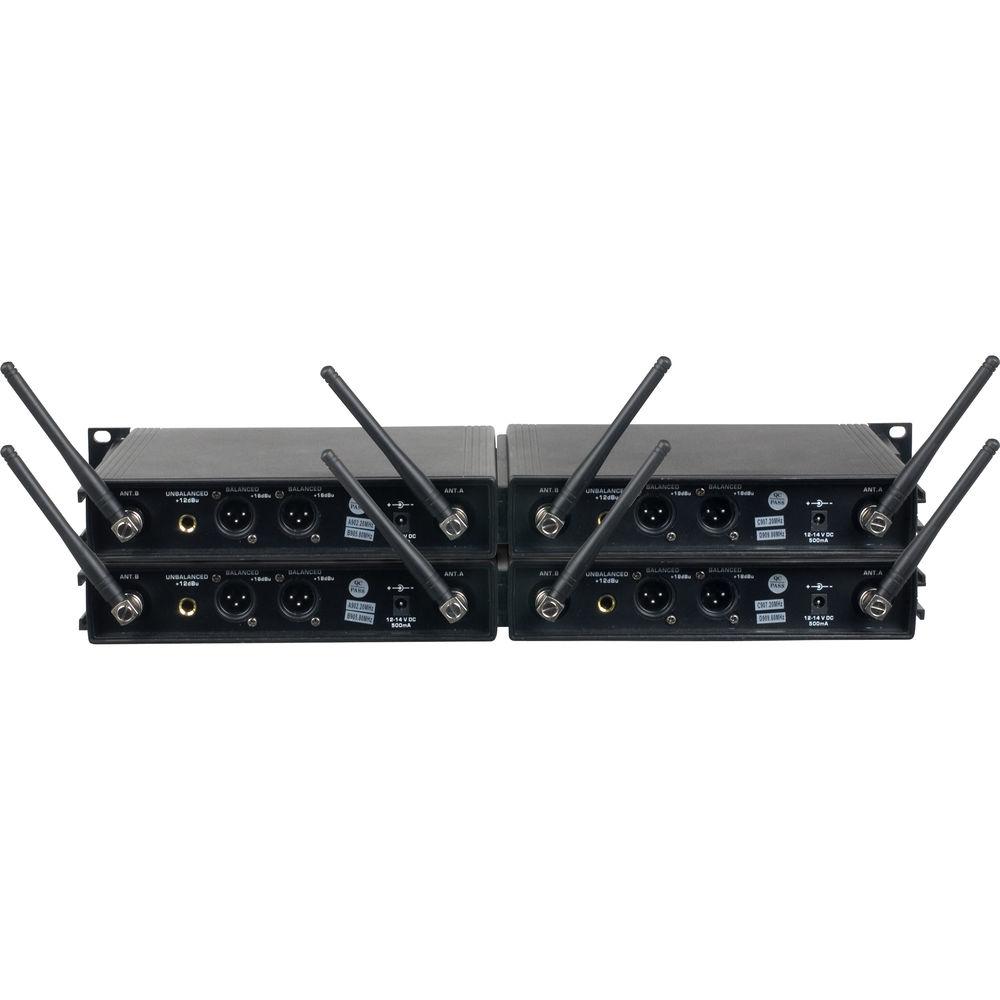

Battery LED: Indicates Low-Battery Status | | Input Connector | Each Receiver Unit:
1 x Power In
2 x BNC for Antennas
Each Bodypack:
1 x Mini-XLR Jack | | Outputs | Each Receiver Unit:
4 x XLR Channel (Balanced, +18 dBu) Out
2 x 1/4" (Unbalanced, +12 dBu) | | Power Supply | Each Receiver: 12 to 14 VDC, 500 mA | | Battery | Each Bodypack and Handheld Unit Operates on 2 AA Batteries (Not Included) | | Dimensions | Receiver Unit: 8.63 x 1.56 x 6.75" / 21.91 x 3.97 x 17.15 cm | | Weight | Not Specified by the Manufacturer | | | | Package Weight | 20.1 lb | | Box Dimensions (LxWxH) | 28.75 x 12.0 x 6.0" |
