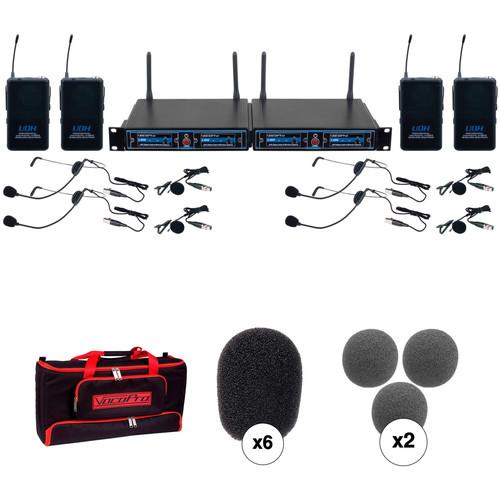

Product description The VocoPro UDH-Play 4 Four-Channel UHF Headset and Lapel Wireless Microphone Kit from includes two UDH-Dual receivers with AC power adapters, four UDH bodypack transmitters, four headset microphones, and four lapel microphones. Accessories include: two 1/4 to 1/4" mono patch cables, a BAG-44 heavy-duty carrying bag, two (3-pack) Auray WLF-014-3 windscreens for 1/4" diameter mics, and two (3-pack) Auray Wlf-038-3R foam windscreens for 3/8" diameter microphones. This easy-to-use package is appropriate for musicians, entertainers, schools, and houses of worship. Operating in the 900 MHz frequency band, which is free of TV station interference, the VocoPro UDH-Play 4 Headset and Lapel Wireless Microphone Kit combines analog UHF transmission technology with a DSP chip that replaces hundreds of analog components. The all-in-one wireless Mic-On-IC chip has a pre-amp, compressor, and expander onboard. It offers a reliable setup for several multiple-channel applications. The plug-and-play design requires no microphone syncing or setup. - VocoPro UDH-PLAY 4 - Four-Channel UHF Headset and Lapel Wireless Microphone Package The UDH-PLAY 4 UHF Headset and Lapel Wireless Microphone Package from VocoPro is a four-channel microphone system that operates in the 900 MHz band, making it immune to TV broadcast interference. This package includes two dual receivers, four bodypack transmitters, four headset microphones, four lapel microphones, two power adapters, and two 1/4" patch cables. By combining VocoPro's analog UHF transmission technology with a DSP chip that replaces hundreds of analog components, the UDH wireless system offers a reliable setup for a variety of multiple-channel applications. This easy-to-use package is ideal for musicians, entertainers, schools, and houses of worship.
- Operates in the 900 MHz band, which is free of TV station interference
- All-in-one wireless Mic-On-IC has a pre-amp, compressor, and expander onboard
- Uses analog UHF transmission technology for better range and reliability
- Plug and Play design requires no microphone syncing set-up
- Fits standard-sized 19" rack cases
UPC: 692868475290 - VocoPro BAG-44 Heavy-Duty Wireless Carrying Bag The BAG-44 Heavy-Duty Wireless Carrying Bag from VocoPro is a soft nylon bag with large carry straps, zippered enclosures on the top and bottom, and a zippered accessory pocket with the VocoPro logo on the front. It can be used to carry a 1 RU wireless system and four handheld or bodypack transmitters such as the VocoPro UHF-5800, UHF-5800, UHF-5816, UHF-5900, UDH-Choir-4, UDH-Play-4, and VHF-4000 wireless microphone systems.
- Bag holds a 1 RU spaced wireless microphone receiver and four handheld or bodypack transmitters
- Fits: UHF-5800, UHF-5808, UHF-5816, UHF-5900, UDH-Choir-4, UDH-Play-4, and VHF-4000 wireless systems
UPC: 692868224447 - 2 x Auray WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack) The Auray WLF Series Foam Windscreens are designed to reduce unwanted vocal pops and broadband wind noise with minimal high frequency loss. This WLF-014-3 Foam Windscreen is designed for use with headset and lavalier mics with a 1/4" diameter. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. Whether used on headset, or lavalier microphones, these windscreens are effective in minimizing wind noise and plosive sounds. They are most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a notable reduction in wind noise, with very slight dampening of high frequencies. For most applications, this is a worthwhile exchange. The WLF-014-3's foam is hypoallergenic and helps prevent moisture and dirt from damaging your microphone. The windscreens are designed to fit microphones from Audio-Technica, Audix, Beyerdynamic, Electro-Voice, Shure and others. The WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones are an effective solution for basic wind protection.
- Fits these and other similar sized microphones:
-
- Audio-Technica ATM15, ATM73a, Pro7a, AT803, AT830, AT831, AT837, AT855, AT859
UPC: 847628562899 - 2 x Auray WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones (Round Shape, 3 Pack) The Auray WLF Series Foam Windscreens are designed to reduce unwanted vocal pops and broadband wind noise with minimal high frequency loss. This round shaped WLF-038-3R Foam Windscreen is designed for use with headset, podium and lavalier mics with a 3/8" diameter. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. Whether used on headset, podium or lavalier microphones, these windscreens are effective in minimizing wind noise and plosive sounds. They are most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a notable reduction in wind noise, with very slight dampening of high frequencies. For most applications, this is a worthwhile exchange. The WLF-038-3R's foam is hypoallergenic and helps prevent moisture and dirt from damaging your microphone. The windscreens are designed to fit microphones from AKG, Audio-Technica, Audix, Beyerdynamic, Electro-Voice, Sennheiser, Sony, Shure and others. The WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones are an effective solution for basic wind protection.
Fits these and other similar sized microphones: - Sony: ECM44, ECM55, ECM66, ECM166
- Audio-Technica: AT803B, AT853, AT855, AT857, AT859, ATM35
- Shure: MX183, MX184, MX185, MX412, SM83, SM84, SM98, SM99, 839W, EZG, EZO
- Audix: ADX20, ADX112, ADX118
- Beyerdynamic: MCE10, MCE52, SHM 22, SHM 88
- Electro-Voice: CH230, Co90, Co94, Co100, CP212, CP218, CS200, RE98
UPC: 847628563018 In the Box - UDH-PLAY 4 - Four-Channel UHF Headset and Lapel Wireless Microphone Package xxfauzvc
- 2 x UDH Dual Receivers
- 2 x Power Adapters
- 4 x UDH Bodypack Transmitters
- 4 x Headset Microphones
- 4 x Lapel Microphones
- 2 x 1/4 to 1/4" Mono Patch Cables
- Limited 1-Year Warranty
- BAG-44 Heavy-Duty Wireless Carrying Bag
- 2 x Auray - WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack)
- 2 x Auray - WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones (Round Shape, 3 Pack)
Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UDH-Play 4 Four-Channel UHF Headset and Lapel Wireless Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VocoPro UDH-PLAY 4 - Four-Channel UHF Headset and Lapel Wireless Microphone Package
| | | Frequency Band | 900 MHz band | | Rear Panel Connectors | XLR, channel 1 output
XLR, channel 2 output
1/4" phone jack, unbalanced output
DC power input | | | | Box Dimensions (LxWxH) | 16.5 x 12.6 x 6.5" | - VocoPro BAG-44 Heavy-Duty Wireless Carrying Bag
| | | Box Dimensions (LxWxH) | 21.9 x 14.9 x 6.7" | - 2 x Auray WLF-014-3 Foam Windscreens for 1/4" Diameter Microphones (3 Pack)
| Diameter | 1/4" | | Construction | Foam | | | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 0.9" | - 2 x Auray WLF-038-3R Foam Windscreens for 3/8" Diameter Microphones (Round Shape, 3 Pack)
| Compatible Mic Diameter | 0.38" / 9.5 mm | | Material | Foam | | | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 1.0" |
