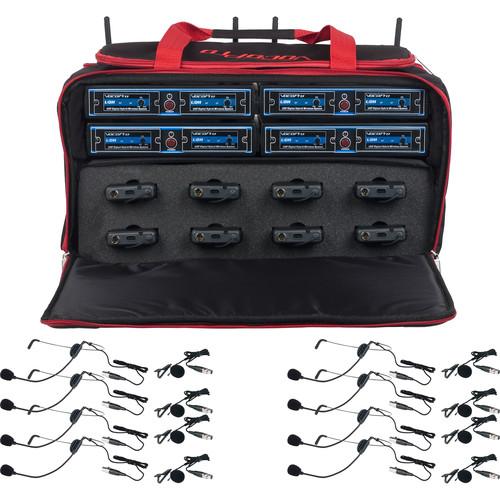

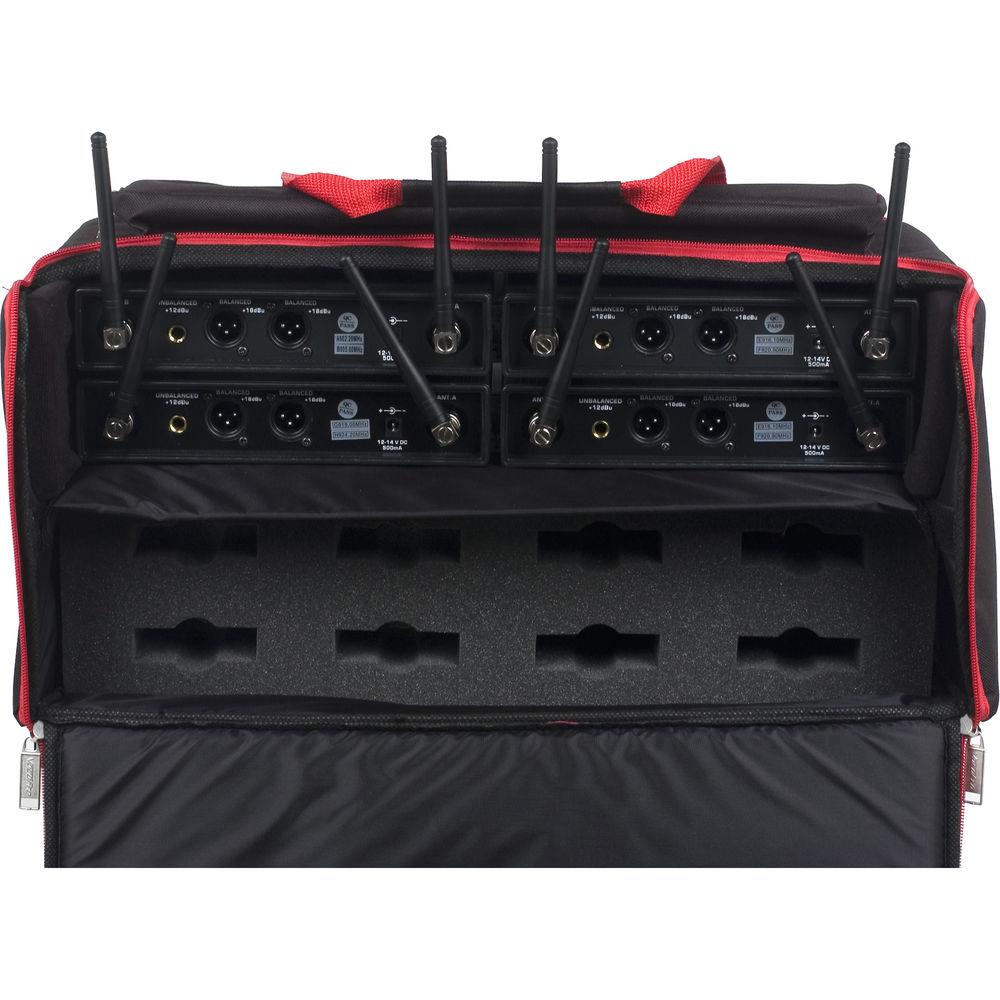

Product description The 8-Channel Wireless Headset/Lapel Microphone System from VocoPro includes four UDH-DUAL-B systems pre-installed in a custom gig bag to give you a 8-channel system. Everything needed to set up is right there in the bag; you just need to connect the included XLR cable and get started. This system includes four dual receivers, eight bodypack transmitters, eight headset microphones, eight lavalier microphones, four power adapters, and four 1/4" patch cables. This 8-channel wireless system combines digital signal processing technology with a traditional analog UHF transmitter. It operates on B2 (907.2 / 909.8 MHz) and B4 (919 / 924.2 MHz) frequency channels. It is suitable for places that do not have a dedicated sound technician like schools, places of worship, and more, or production rental companies. Each of the transmitter backpack runs on two AA alkaline or rechargeable batteries (not included) and is built with an on/off switch, a mini-XLR jack for the mic input, and a volume control knob. In addition, a dual-color single LED indicates when power is on and flashes solid green for healthy batteries. It blinks red when the batteries are low and require changing. - Operates in the 907.2 / 909.8 MHz frequency band, which is free of TV station interference
- 4-channel wireless headset/lapel microphone system
- Receivers and accessories come pre-installed in a road-ready gig bag
- All-in-one wireless Mic-On-IC, which has a pre-amp, compressor, and expander onboard
- Uses analog UHF transmission technology for better range and reliability
- Plug and play design requires no microphone syncing setup

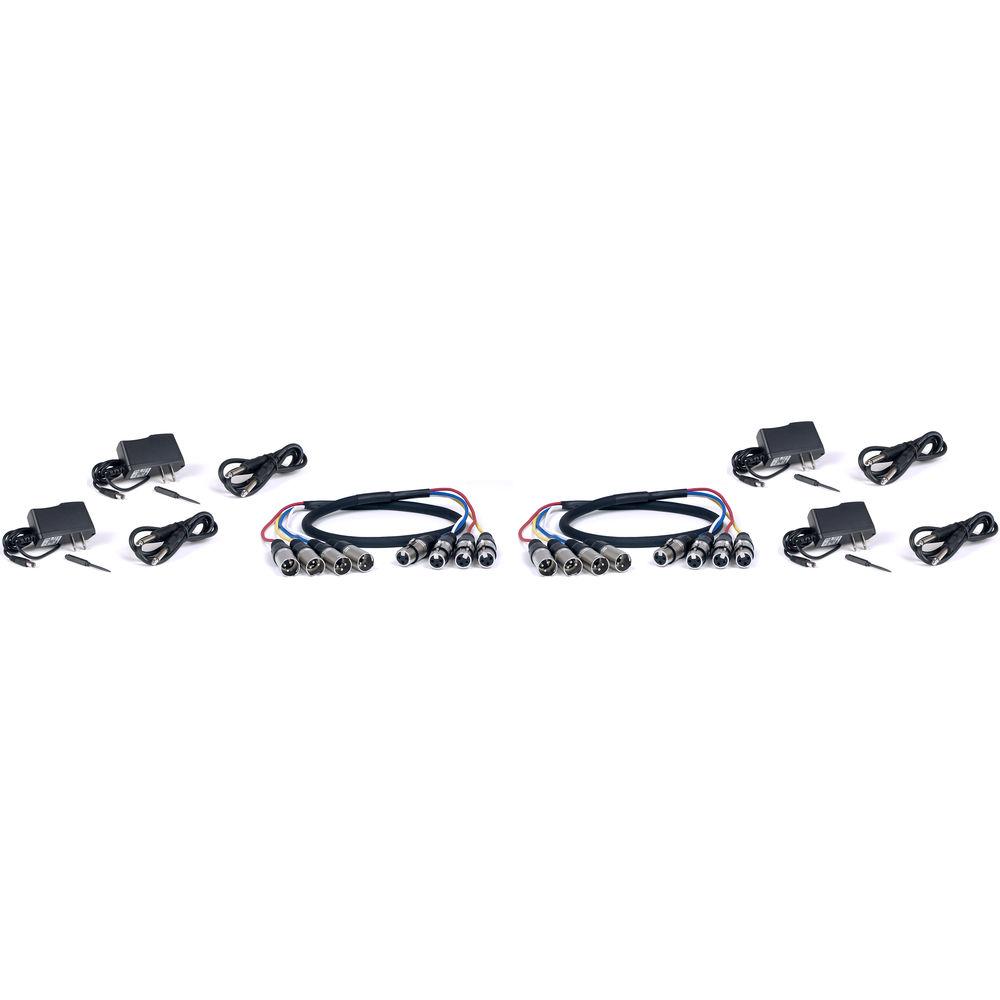

UPC: 692868864285 In the Box VocoPro UDH-PLAY-8-MIB 8-Channel Wireless Headset/Lapel Microphone System in a Bag (Frequency Channel: B2 & B4) 4 x UDH Receiver 8 x UDH Bodypack Transmitter 8 x Headset Microphone 8 x Lavalier Microphone 8 x Antenna 4 x AC Power Adapter 4 x 1/4" to 1/4" Mic Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UDH-PLAY-8-MIB 8-Channel Wireless Headset Lapel Microphone System in a Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UDH-PLAY-8-MIB Specs | Channel Frequency | B2: 907.2 / 909.8 MHz
B4: 919 / 924.2 MHz | | Switch / Buttons | Power on/off (both receiver and transmitter units)
Volume knob controls volumes on Mic channel 1 & 2 (receiver unit)
Gain button controls overall volume output of bodypack (transmitter unit) | | LED Indicators | Each Receiver:
2 x RF: Mic status
2 x AF: Mic transmission
Each Transmitter Bodypack:
Power LED: Indicates battery level
Dual-Color LED for Battery Status: Flashes solid green for charged batteries and blinks red for low batteries | | Input Connector | Each Receiver:
1 x Power in
2 x BNC for Antennas
Each Transmitter Bodypack:
1 x Mini-XLR jack | | Outputs | Each Receiver:
1 x XLR channel 1 (balanced, +18 dBu) out
1 x XLR channel 2 (balanced, +18 dBu) out
1 x 1/4" (unbalanced, +12 dBu) | | Power Supply | Each Receiver: 12 to 14 VDC, 500 mA | | Battery | Transmitter units operate on 2 AA batteries (not included) | | Dimensions | Not Specified by the Manufacturer | | Weight | Not Specified by the Manufacturer | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 22.0 x 17.7 x 10.2" |
