User Manual for VocoPro UHF-3200-9 UHF Dual-Channel Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro UHF-3200-9 UHF Dual-Channel Wireless Microphone
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro UHF-3200-9 UHF Dual-Channel Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

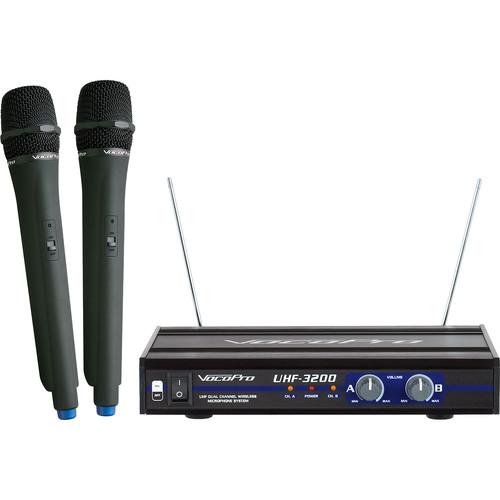

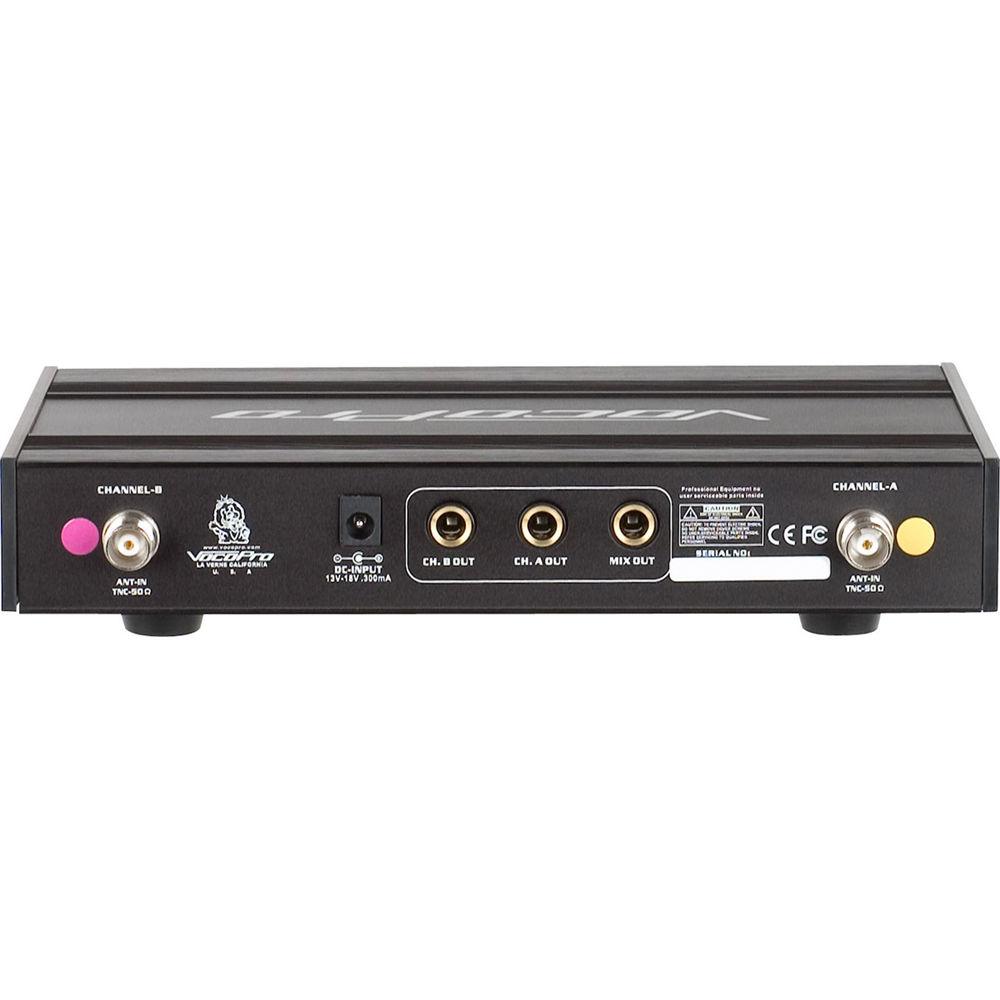

Product description The UHF-3200-9 UHF Dual-Channel Wireless Microphone System from VocoPro is a dual-handheld wireless system that operates on the less crowded UHF frequency band offering you clearer and interference-free reception. The system can be used in outdoor or indoor environments to capture audio for presentation, vocal, speech, and sound reinforcement applications.The UHF-3200 receiver is equipped independent volume controls, two separate 1/4" output connectors, and a mixed output 1/4" connector. It sports dual antennas for clear and natural signal reception.Furthermore, each microphone features a low-battery LED indicator and rugged grilles to protect the cartridge and help prevent it from rolling on flat surfaces. An AC power adapter, four 1.5V AA batteries, and a 3' 1/4" to 1/4" male output cable are also included. - Complies with FCC frequency rules

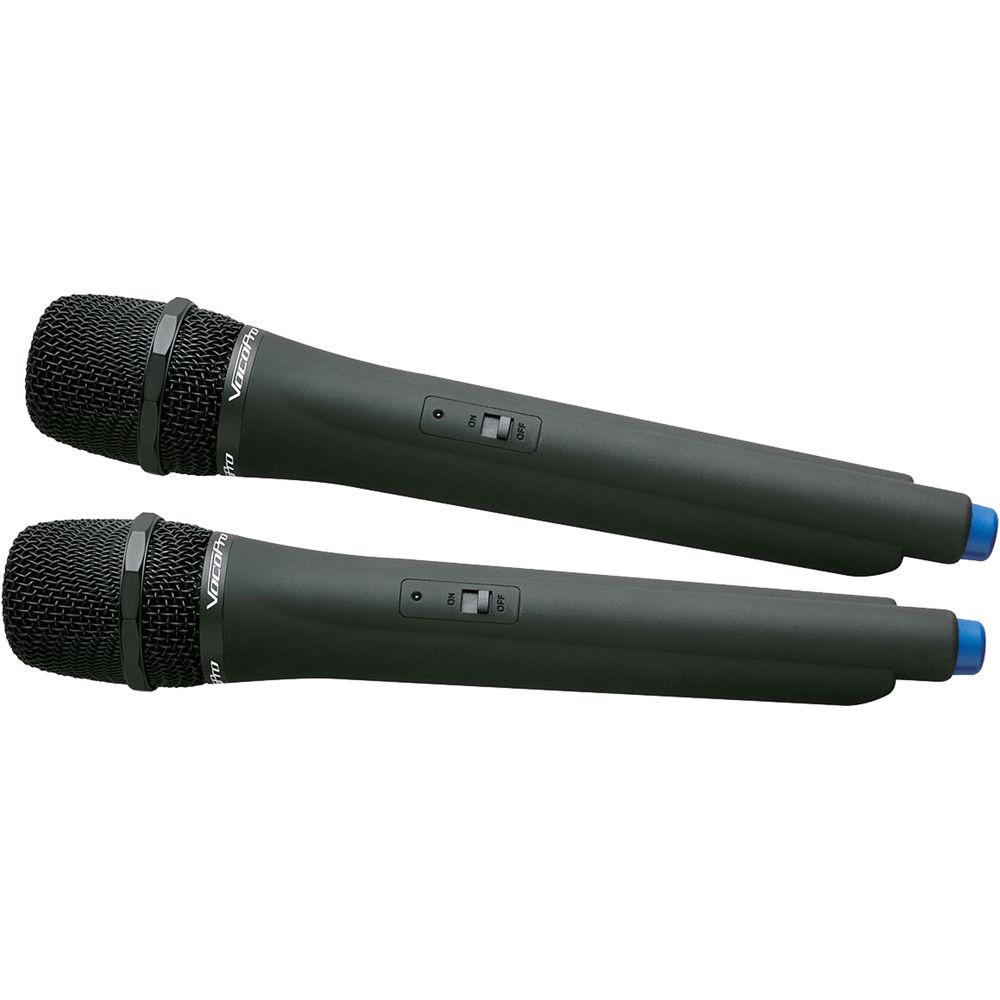

- Two wireless handheld mics included
- Individual volume controls for precise vocal balancing
- Two unbalanced mic outputs (1/4") and 1 mixed output (1/4")
- Dual antennas provide clear signal reception
- Rugged microphone grilles protect the microphone cartridge and prevent the mic from rolling
- Low-battery LED indicator on microphone
- Rugged metal receiver chassis
- Interference-resistant UHF band operation

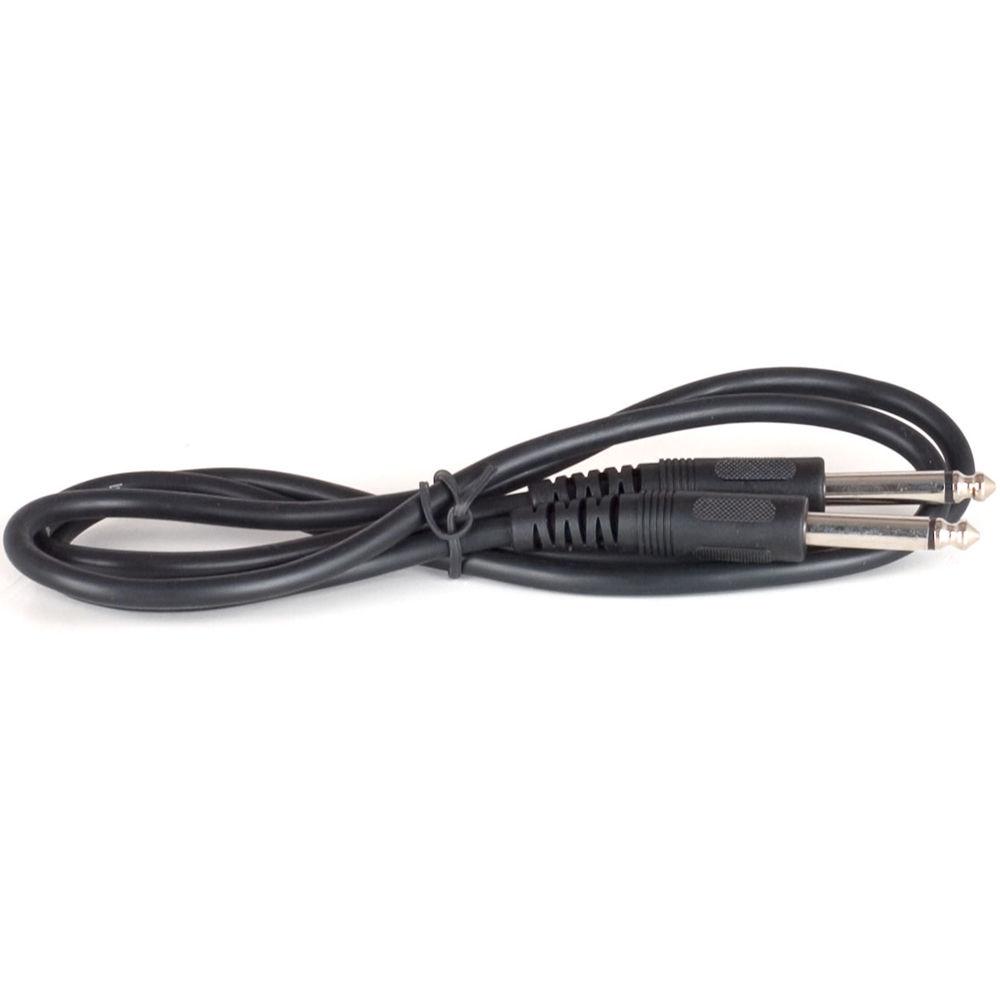

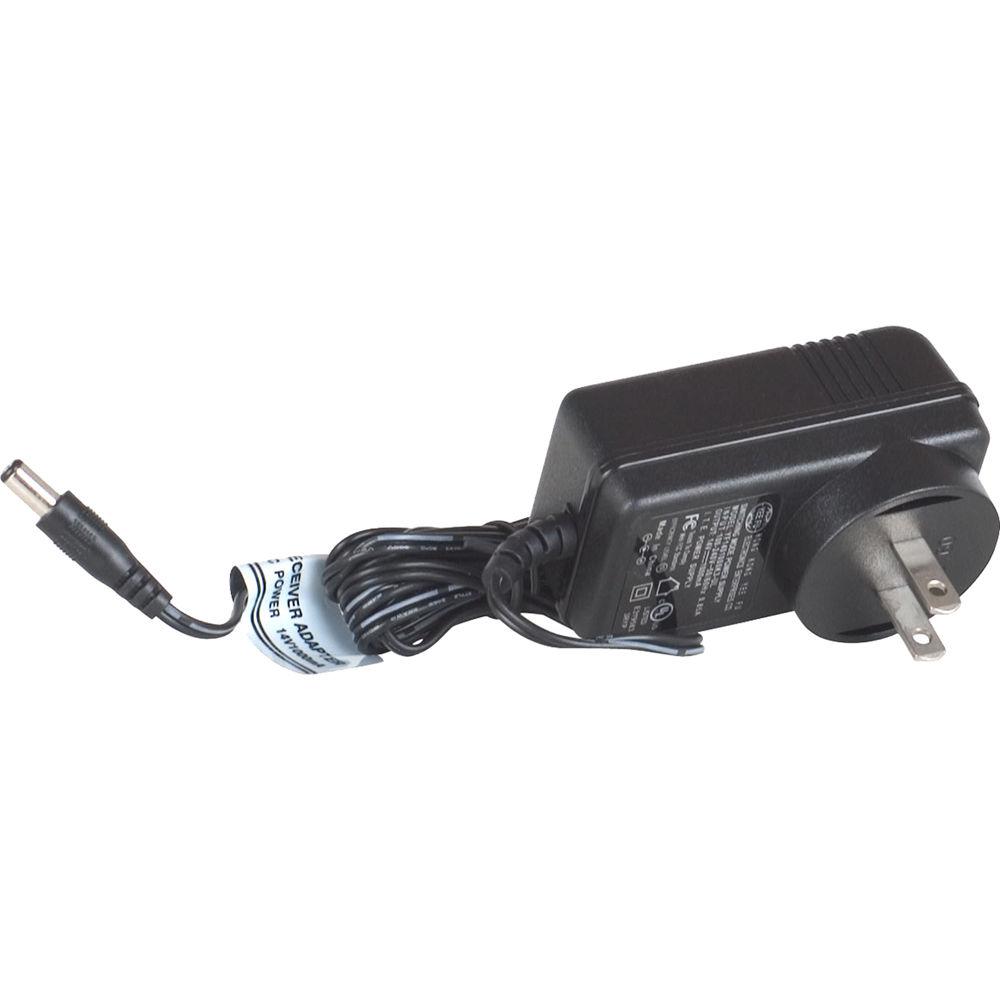

UPC: 692868932335 In the Box VocoPro UHF-3200-9 UHF Dual-Channel Wireless Microphone System (9E/9F: 913.3/916.3 MHz) 2 x Antennas 2 x Wireless Handheld Microphones Wireless Receiver AC Power Adapter 3 ft 1/4" Audio Cable 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UHF-3200-9 UHF Dual-Channel Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UHF-3200-9 (9E,9F) Specs | | | Carrier Frequency | 913.3/916.3 MHz | | Frequency Setting | 9E/9F | | Frequency Stability | 0.002% | | Power Output | 30 mA | | Current Drain | 55 mA | | Maximum Distance | 197.0' / 60.0 m | | Battery | 2 x AA 1.5 V | | Dimensions (W x H) | 1.4 x 9.5" / 3.6 x 24.1 cm | | Weight | Not Specified by Manufacturer | | | | Sensitivity | 2 uV @ Sinad-12 dB | | Spurious Rejection | 75 dB | | Image Rejection | 85 dB | | Signal to Noise Ratio | > 105 dB | | Maximum Output | Mix: 0 to 200 mV
Separate: 0 to 400 mV | | Power | 12 to 15 VDC | | Power Consumption | 3 W | | Dimensions (W x D x H) | 8.5 x 5.5 x 1.7" / 21.6 x 14.0 x 4.3 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.43 lb | | Box Dimensions (LxWxH) | 15.5 x 13.2 x 3.9" |
