User Manual for VocoPro UHF-5800-9 PRO 4-Channel UHF Wireless Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro UHF-5800-9 PRO 4-Channel UHF Wireless
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro UHF-5800-9 PRO 4-Channel UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

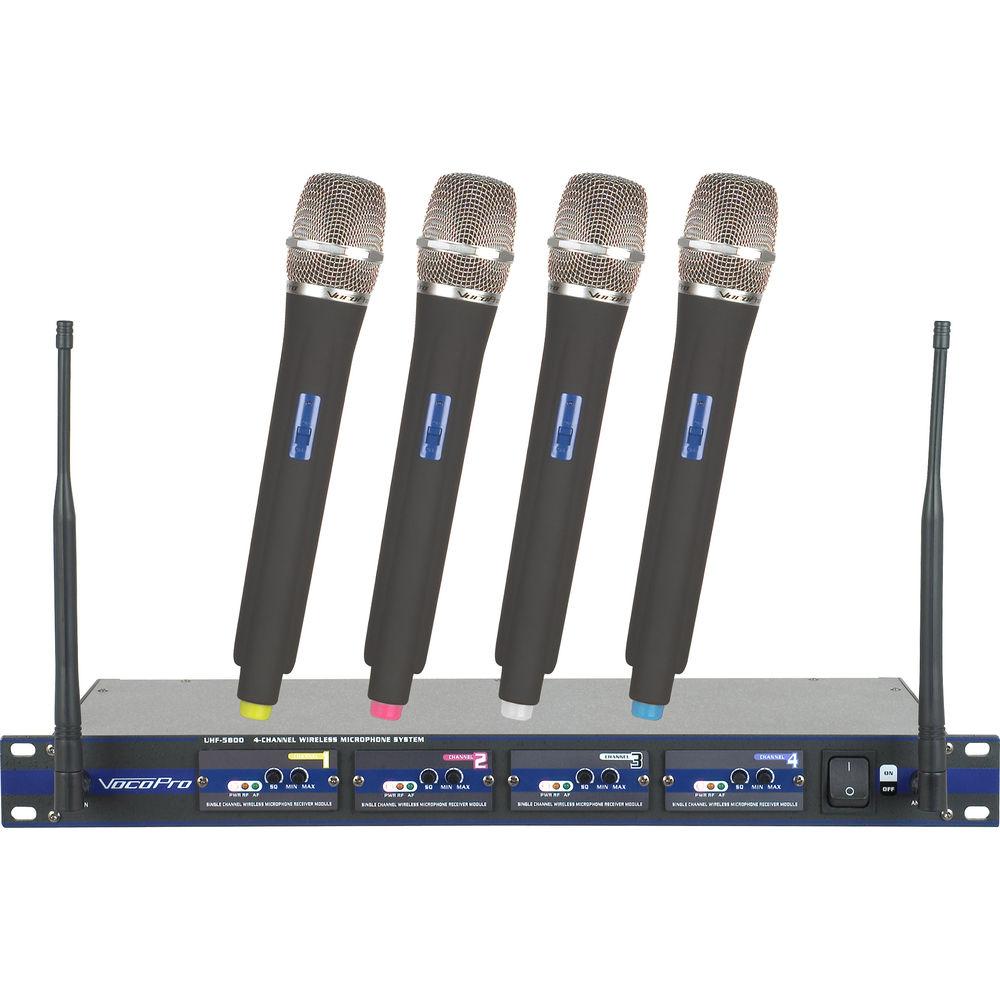

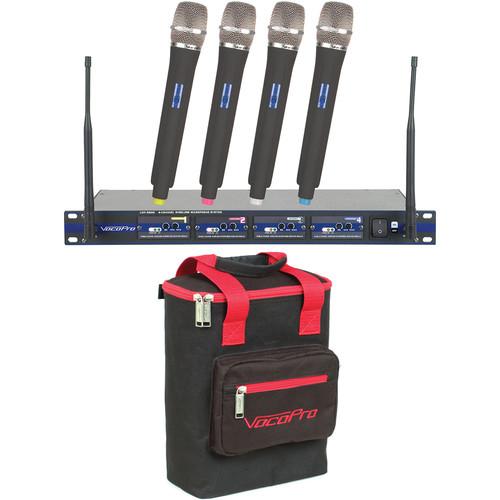

Product description The VocoPro UHF-5800-9 PRO 4-Channel Wireless Microphone System offers affordable, multi-channel wireless microphone operation for small performances, karaoke, presentations, restaurants, bars, etc. This all-in-one solution features a rack-mountable receiver with replaceable front-loaded receiver modules, four individual outputs for flexible external mixing, as well as a mixed output for sending a mixed signal of all four mics. The handheld transmitters operate on individual UHF frequencies, allowing for simultaneous operation, and two AA batteries (each) keep them powered for up to 12 hours. The UHF-5800-9 PRO includes a heavy-duty carrying bag, which contains foam padding and has pre-cut holes for four microphones. - Wireless, multi-channel operation with a receiver and four handheld microphones
- UHF operation minimizes interference and drop outs
- Easily replaceable receiver modules make the system easy to maintain

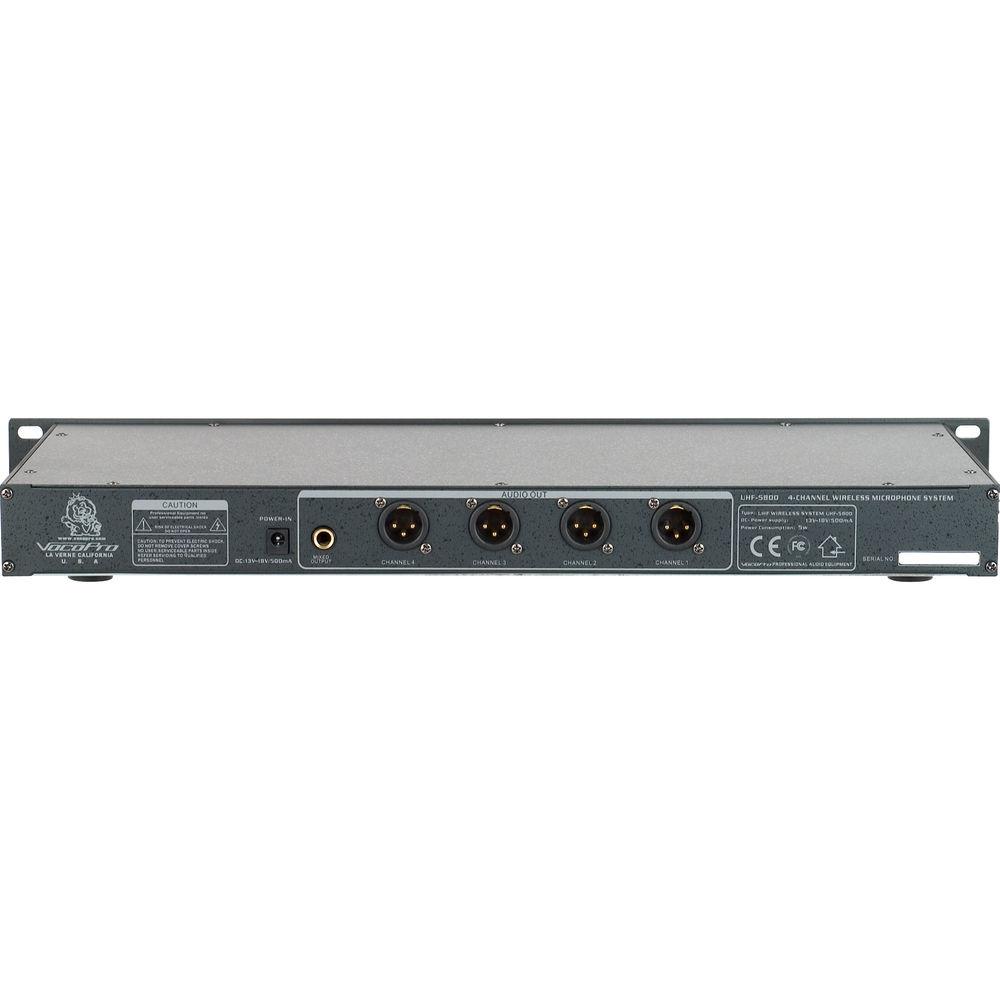

- Four individual outputs allow for external mixing possibilities; a mixed output is also provided
- The transmitters are powered up to 12 hours on two AA batteries

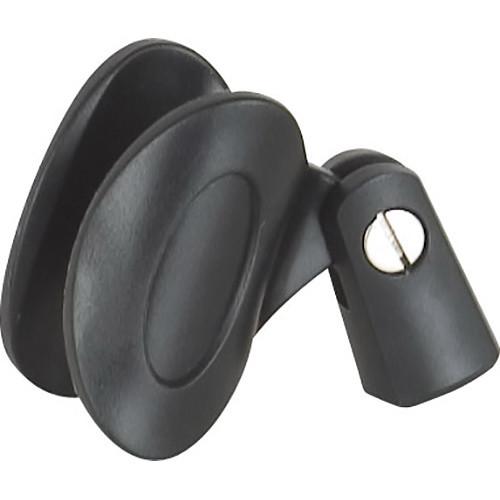

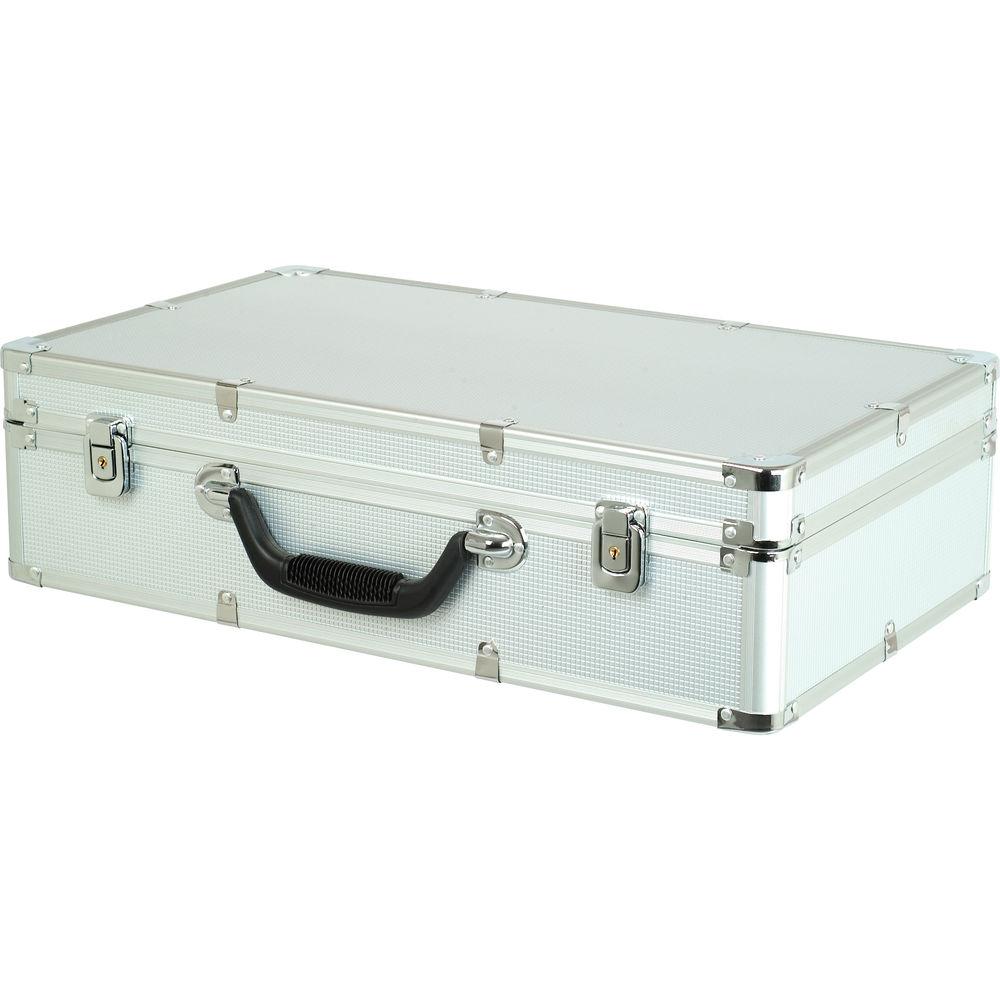

UPC: 692868963711 In the Box VocoPro UHF-5800-9 PRO 4-Channel UHF Wireless Handheld Microphone System (902.0 to 910.7 MHz) UHF-5800-9 Receiver 4 x Handheld Microphone Transmitters 4 x Mic Holders 1/4" Phone Male to Male Cable (3' / 91.4cm) 8 x AA Alkaline Batteries AC Power Supply Aluminum Carrying Case Bag-4 Heavy-Duty Carrying Bag for Mics (Black/Red Trim) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UHF-5800-9 PRO 4-Channel UHF Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UHF-5800-9 Specs | | | Type of System | Multi-channel UHF handheld | | RF Carrier Frequency Range | 902.0 to 910.7 MHz UHF | | Channels | 9A: 902.0 MHz
9B: 904.6 MHz
9C: 907.5 MHz
9D: 910.7 MHz | | THD | < 0.5% @ 1 kHz | | Overall Frequency Response | 40 Hz to 16 kHz | | Signal-to-Noise Ratio | 105 dB | | # Of Channels | 4 | | | | Type of Receiver | Rack-mounted modular UHF | | Type of Outputs | 4 x XLR 3-pin
1 x 1/4" phone (mixed) | | Headphone Monitoring | No | | Power Requirements | External DC power supply, 0.7 A, 12 to 15 VDC | | Display | LED | | Mounting Options | 19" rack-mountable | | Antenna Type | Dual BNC | | Dimensions (WxHxD) | 18.9 x 1.8 x 7.8" (480.06 x 45.72 x 198.12 mm) | | | | Type of Transmitter | 4 x UHF handheld | | Type of Microphone | Dynamic | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | 2 x AA batteries, 12 hours | | Mute Switch | On/Off | | Antenna Type | Internal | | Display | LED | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 30.0 x 14.0 x 6.5" |
