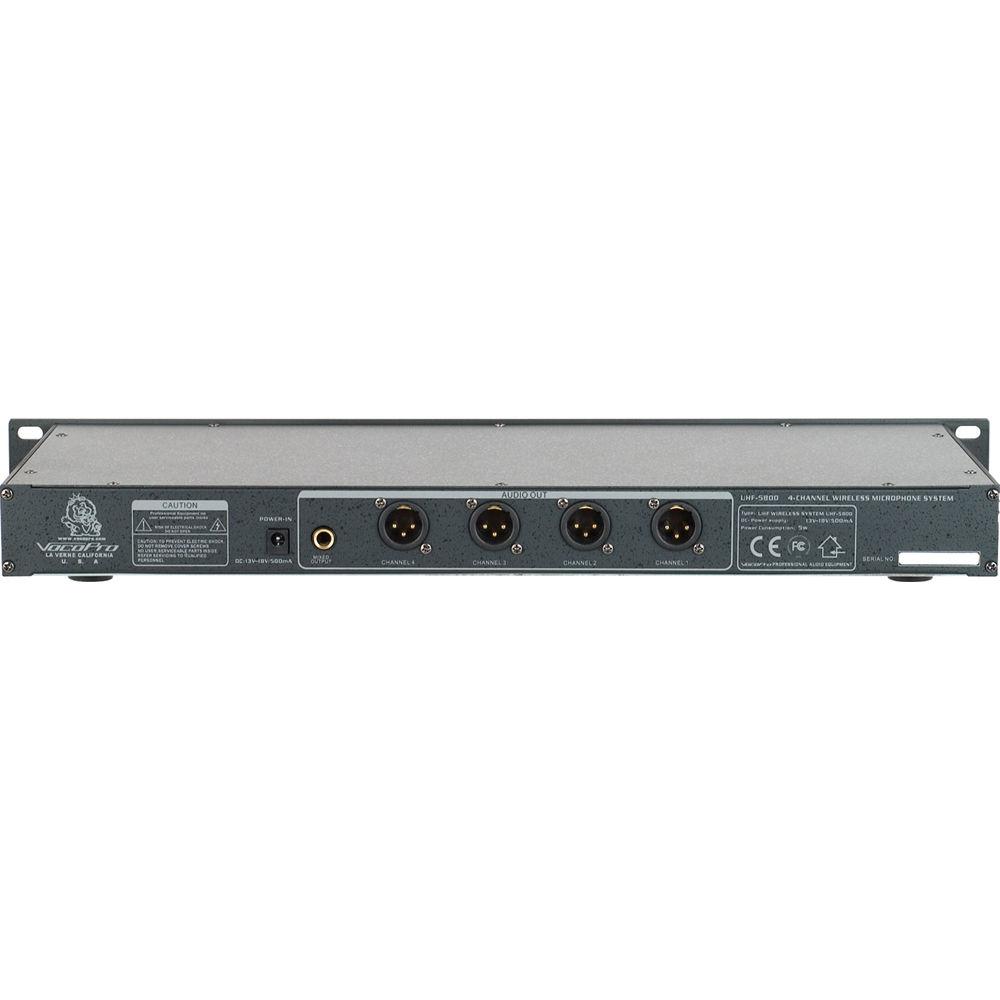

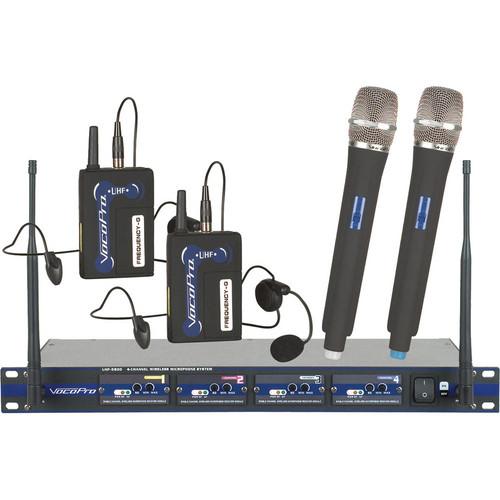

Product description The VocoPro UHF-5800-HB 7 is a 4-channel UHF wireless microphone system that is designed for small performances, karaoke, presentations, restaurants, bars, and other live sound reinforcement applications. This all-in-one solution features a 1U rack-mountable receiver, two handheld microphone transmitters and two bodypack transmitters with headworn microphones. The receiver itself features four individual XLR outputs for flexible mixing, as well as a mixed output for sending a blended signal of all the microphones combined. Each transmitter operates on its own UHF frequency, allowing for simultaneous use. The transmitters operate on two AA batteries each for up to 12 hours of run time. - Includes two handheld microphone transmitters and two bodypack wireless transmitters with headworn microphones
- UHF operation minimizes interference and drop out
- Four individual microphone outputs and one mixed output allow for flexible external mixing
- The transmitters are powered up to 12 hours on two AA batteries
- The receiver features a squelch adjustment knob for each microphone which controls the threshold for the radio signal that regulates audio output. If the radio signal from a microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference from entering the speakers

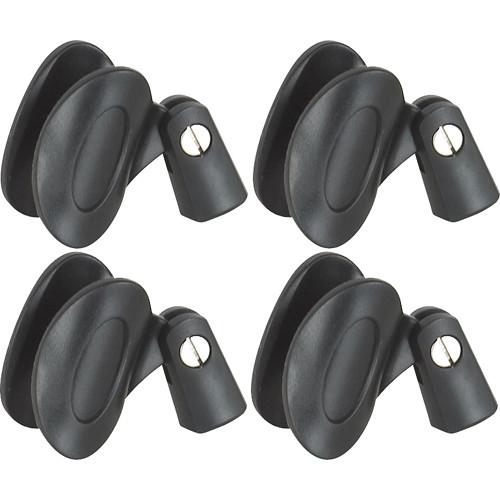

UPC: 692868858239 In the Box VocoPro UHF-5800-HB 7 - 4-Channel UHF Wireless Microphone System UHF-5800 Receiver 2 x Handheld Microphone Transmitters 2 x Bodypack Transmitters with Headworn Microphones 2 x Microphone Holders 1/4" Phone Male to Male Cable (3') (91.44cm) 8 x AA Alkaline Batteries AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UHF-5800-HB 7 - 4-Channel UHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UHF-5800-HB 7 Specs | | | Type of Transmitter | 2 x handheld UHF
2 x bodypack UHF | | Type of Microphone | Dynamic | | Polar Pattern | Not specified by manufacturer | | Interchangeable Mic Heads | No | | Mute Switch | On/Off | | Level Control | No | | Battery Type/Approx. Life | 2 x AA batteries, 12 hours | | Battery Voltage | 2 x 1.5 VDC | | Antenna Type | Internal | | Display | LED | | Transmitter Launch Power | 30 mV | | Spurious Emission | < 40 dB (with carrier) | | | | Type of System | Multi-channel UHF handheld | | RF Carrier Frequency Range | 651.025 to 689.5 MHz UHF | | Approx. Working Range | Not specified by manufacturer | | Overall Frequency Response | 40 to 16,000 Hz | | Signal-to-Noise Ratio | 105 dB | | # Of Channels | 4 | | | | Type of Receiver | Rack mounted modular UHF | | Oscillation Mode | Quartz controlled fixed frequency | | Receiving Stability | 10 PPM | | Sensitivity | 1.6 uV at sinad = 12 dB | | Maximum Deviation | 50 Hz | | Signal to Noise Ratio | > 105 dB | | THD | < 0.5% at 1 kHz | | Image Rejection | 85 dB typical | | Spurious Rejection | 75 dB typical | | Squelch | Dual-squelch circuit | | Maximum Output Level | Balanced: 0 to 400 mV
Unbalanced: 0 to 200 mV | | Type of Outputs | 3-pin XLR x4
1/4" Phone (Mixed) x1 | | Headphone Monitoring | No | | Power Requirements | External DC power supply, 0.7A, 12~15V DC | | Display | LED | | Mounting Options | 19-inch rack mountable | | Antenna Type | Dual BNC | | Dimensions (WxHxD) | 18.9 x 1.8 x 7.8" (480.06 x 45.72 x 198.12mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 22.65 x 13.25 x 6.25" |
