User Manual for VocoPro UHF-8800-XL - 8-Channel UHF Wireless Handheld Microphone System with XLR Cables, Mic Stands, and Carrying Bag Click to enlarge the picture
Contents of the user manual for the VocoPro UHF-8800-XL - 8-Channel UHF Wireless
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro UHF-8800-XL - 8-Channel UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description Operating in the future-proof 900 MHz band, the VocoPro UHF-8800-XL eight-channel, UHF wireless microphone system includes eight handheld mic transmitters and an eight-channel, 2 RU wireless receiver unit. The system is bundled with eight MP-35 straight, tripod microphone stands, two XLR-QUAD-3 4-channel XLR snake cables, two 1/4" patch cables, ten WS-5 microphone windscreens in assorted colors, an aluminum carry case, and a BAG-88 heavy-duty carrying bag. The UHF-8800-XL is ideal for multi-microphone speaking engagements and public address. Each channel has independent volume and squelch control, and the receiver features eight balanced XLR mic level outputs, as well as dual 1/4" unbalanced mix outputs. The mic transmitters are each powered by two AA batteries (available separately), for up to 12 hours of operation. - "Future-proof" UHF 900 MHz band operation
- Includes eight, handheld microphone transmitters, with color code
- Two unbalanced, 1/4" mixed microphone outputs (1: Channel 1-4, 2: Channel 5-8)

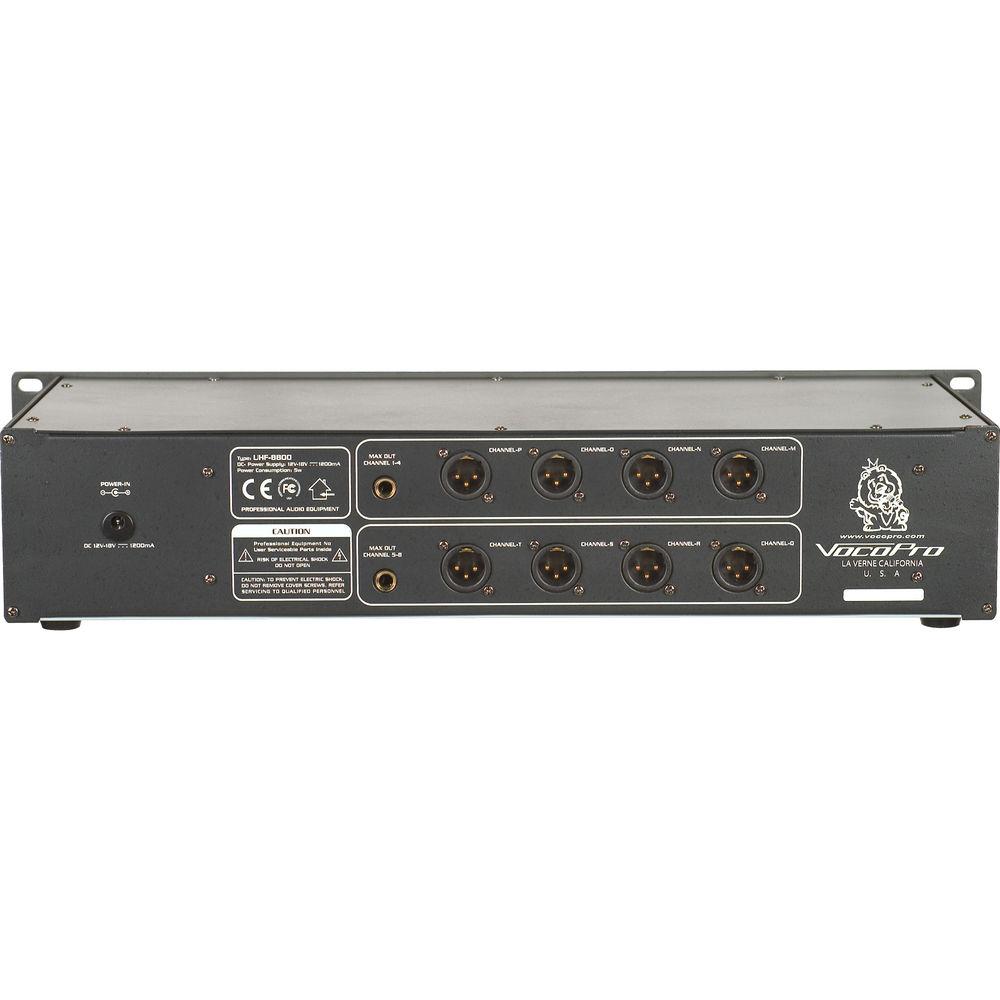

- Eight balanced, XLR microphone outputs
- Individual volume controls for precise vocal balancing
- Individual squelch control on each microphone channel
- 12 hours of microphone battery life with two new AA batteries
- Eight independent field-replaceable modules – allows you to repair or replace a module while still being able to use the other channels
- Rugged 2 RU metal receiver chassis
- Eight MP-35 straight, tripod microphone stands – fold down to a compact size for easy transport
- Two XLR-QUAD-3, 4-channel male XLR to female XLR snake cables included (3')

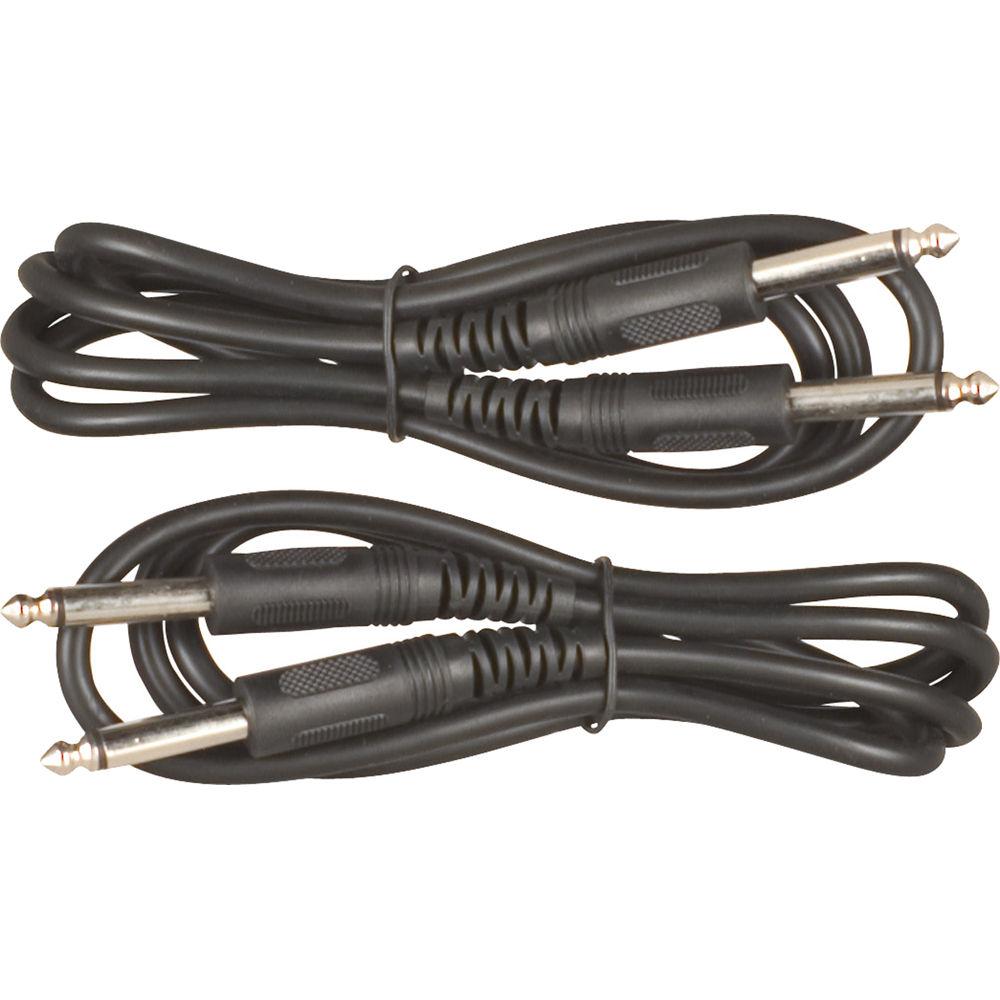

- Two 1/4" to 1/4" patch cable included
- Includes ten WS-5 microphone windscreens, in assorted colors
- BAG-88 heavy-duty carrying bag included

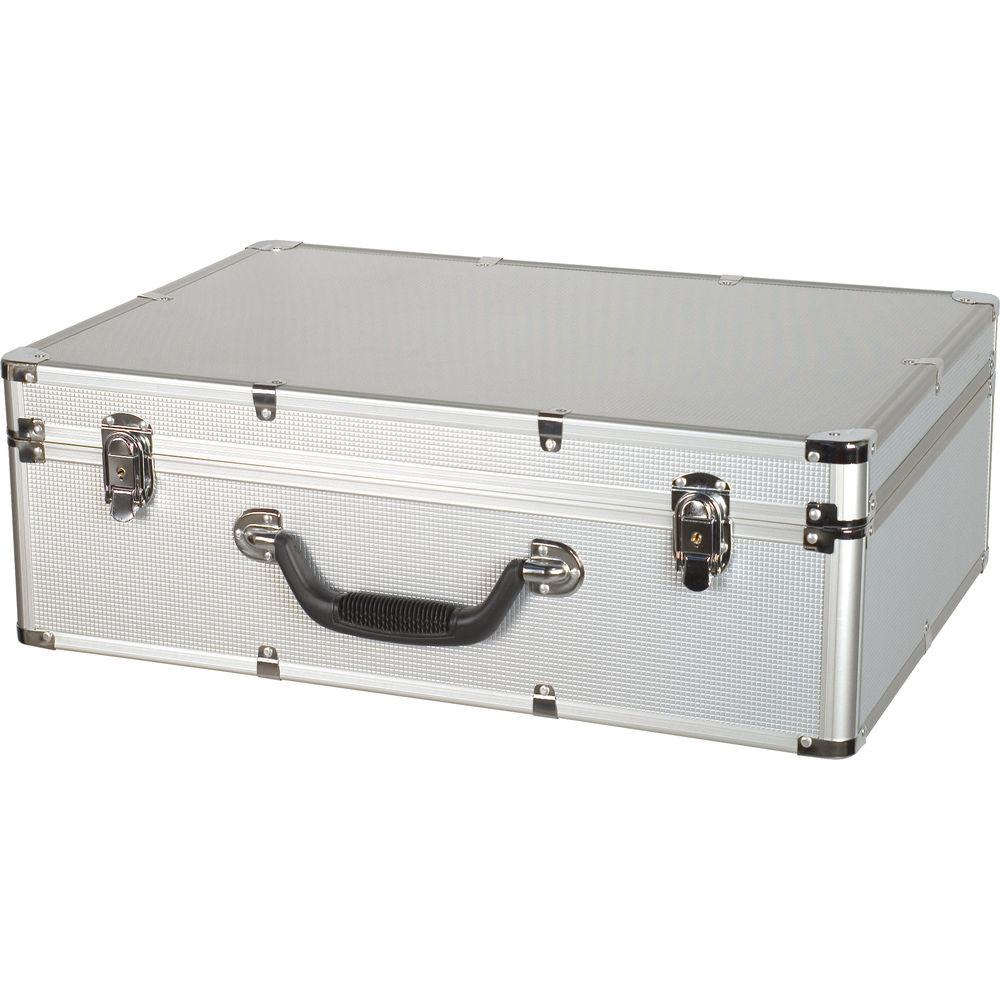

- Aluminum carrying case included

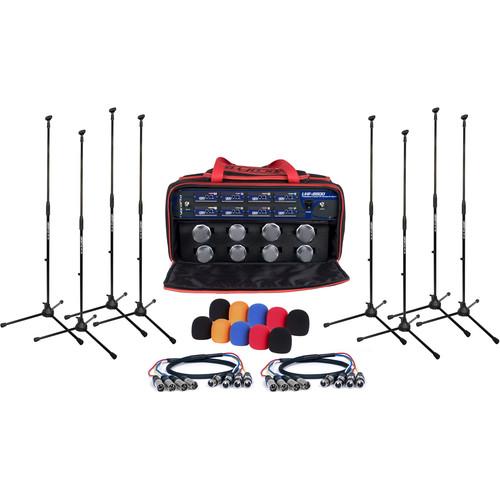

UPC: 692868958809 In the Box VocoPro UHF-8800-XL - 8-Channel UHF Wireless Handheld Microphone System with XLR Cables, Mic Stands, and Carrying Bag (Band: 900 MHz) UHF-8800 Receiver 8 x Handheld Microphone Transmitters BAG-88 Heavy-Duty Wireless Microphone Carrying Bag furqdxzevxeddvedstwfvbzfvs 2 x XLR-QUAD-3 / 4-Channel Male XLR to Female XLR Snake Cables 2 x 1/4" to 1/4" Patch Cables 8 x MP-35 Microphone Stands 2 x WS-5 Microphone Windscreen Set (Assorted Colors) furqdxzevxeddvedstwfvbzfvs Power Adapter Aluminum Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UHF-8800-XL - 8-Channel UHF Wireless Handheld Microphone System with XLR Cables, Mic Stands, and Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UHF-8800-XL Specs | | | Frequency Range | 900 MHz UHF band | | Outputs | 1 x 1/4" mixed mic output, unbalanced (channel 1-4)
1 x 1/4" mixed mic output, unbalanced (channel 5-8)
8 x XLR-male, individual mic outputs, balanced (M, N, O, P, Q, R, S, T frequency) | | Oscillation Mode | Quartz-controlled fixed frequency | | Stability | 10 PPM | | Sensitivity | 1.6 uV at SINAD = 12 dB | | Maximum Deviation Range | 50 Hz | | S/N Ratio | > 105 dB | | THD | < 0.5% at 1 kHz | | Image Rejection | 85 dB typical | | Spurious Rejection | 75 dB typical | | Frequency Response | 40 Hz to 16 kHz | | Squelch | Dual-squelch circuit | | Maximum Output Level | Balanced: 0 to 400 mV
Unbalanced: 0 to 200 mV | | Power Supply | External, 1.2 A, 12 to 18 VDC | | Dimensions | 19.0 x 8.8 x 3.8" / 482.6 x 222.3 x 95.3 mm | | Weight | 18.0 lb / 8.2 kg | | | | Type | Handheld microphone | | Transmitter Power | 30 mV | | Spurious Emission | < 40 dB with carrier | | Battery | Type: 2 x AA
Voltage: 1.5 V
Life: 12 hours | | | | Package Weight | 69.0 lb | | Box Dimensions (LxWxH) | 35.0 x 22.0 x 16.5" |
