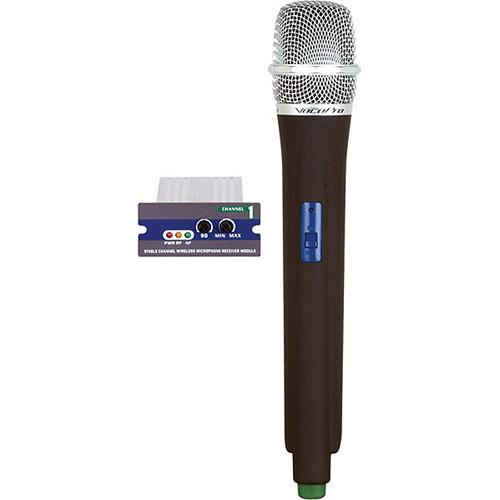

User Manual for VocoPro UMH Single-Channel UHF Receiver Module & Handheld Wireless Microphone Click to enlarge the picture
Contents of the user manual for the VocoPro UMH Single-Channel UHF Receiver Module
- Product category: Wireless Transmitters VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Transmitters
|
User manual for the VocoPro UMH Single-Channel UHF Receiver Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The UMH (S: 38, Light Blue) from VocoPro includes a single-channel UHF receiver module and handheld microphone transmitter, which are designed for use as factory replacements for one microphone channel within the UHF-5800 and UHF-8800 microphone systems, as well as the PA-MAN PA system and PA-PRO 900 PA mixer. Receiver modules are field replaceable and easily slide out, without the need for tools, and without affecting the functionality of the other channels.
The UMH module features squelch and volume rotary control knobs, which provide manual control of the microphone's signal strength and of the individual microphone channel's volume. Three LEDs indicate power, reception of RF signals, and reception of AF signals. Designed for low power consumption, the microphone operates for up to 12 hours on two 1.5 VDC AA alkaline batteries (sold separately).
The UMH receiver and transmitter are tuned to Channel S: 38 and operate at the frequency of 619.120 MHz. The color assigned to the microphone and receiver serves as an indication of the specific channel and frequency used for this model. - Channel-independent volume and squelch
- Volume control for precise vocal balancing
- Interference-resistant UHF band operation
- Low power consumption design for longer battery life
In the Box VocoPro UMH Single-Channel UHF Receiver Module & Handheld Wireless Microphone (S: 38, Light Blue) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro UMH Single-Channel UHF Receiver Module & Handheld Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro UMH Specs | Channel | S: 38, Light Blue | | Operating Frequency | 619.120 MHz | | Controls | 1 x Rotary, squelch level
1 x Rotary, volume level | | Indicators | 1 x LED red, Power
1 x LED yellow, RF
1 x LED green, AF | | Battery Type | 2 x 1.5 VDC AA alkaline | | Battery Life | 12 hours | | Compatible With | UHF-5800, PA-MAN, UHF-8800, PA-PRO 900 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 11.6 x 6.6 x 2.3" |
